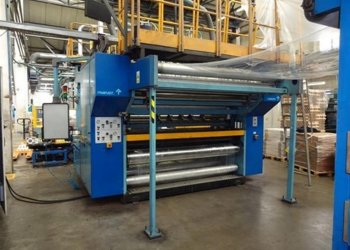

5 layers COLINES AllRollEx Cast film machine ** SOLD ** Ask more informations about a similar one

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA202
Manufacturer COLINES
Model AllRollEx
Year 2016
Number of layers 5
Film structure ACBCD
Material STRETCH FILM
Film width (mm) 1500
Speed (m/min) 800
Output (Kg/h) 1000
Extruder 1 Layer ref: A
Screw diam 55mm
Description L/D 34 2 components gravimetric, AC motors SIEMENS
Extruder 2 Layer ref: B
Screw diam 120
Description L/D 30, 4 components gravimetric, AC motors SIEMENS
Extruder 3 Layer ref: C
Screw diam 55mm
Description L/D 34 2 components gravimetric, AC motors SIEMENS
Extruder 4 Layer ref: D
Screw diam 55mm
Description L/D 34 2 components gravimetric, AC motors SIEMENS
Head description MAke : Cloren, vacuum box, edge pinning
Die width (mm) 2050
Chill roll unit Main chill roler diam 1400mm
Thickness controll system Electronic System type X-rays
Web guide Oschilating device
Rewinder max reel diameter (mm) 400
Rewinder description Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels

** SOLD **
