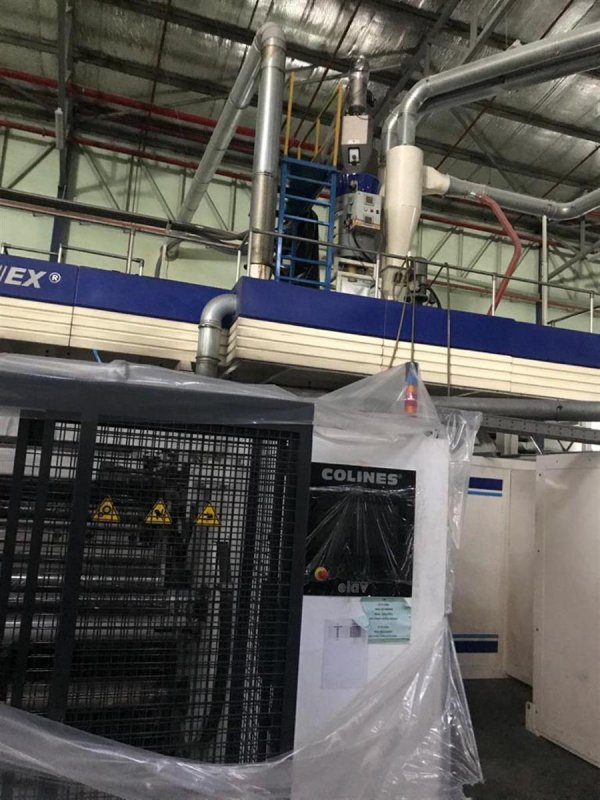

5 layers COLINES ALL ROLL EX 1500 Cast film machine

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA215
Manufacturer COLINES
Model ALL ROLL EX 1500
Year 2017
Number of layers 5
Film structure A-B-C-B-D
Material STRETCH FILM
Film width (mm) 1500
Speed (m/min) 800
Output (Kg/h) 1250
Extruder 1 Layer ref: A
Screw diam 55mm
Description AC motors, gravimetric dosers Doteco 3 comp
Extruder 2 Layer ref: B
Screw diam 80mm
Description AC motors, gravimetric dosers Doteco 2 comp
Extruder 3 Layer ref: C
Screw diam 120mm
Description AC motors, gravimetric dosers Doteco 2 comp
Extruder 4 Layer ref: D
Screw diam 55mm
Description AC motors, gravimetric dosers Doteco 2 comp
Head description Cloren,
Die width (mm) 2100

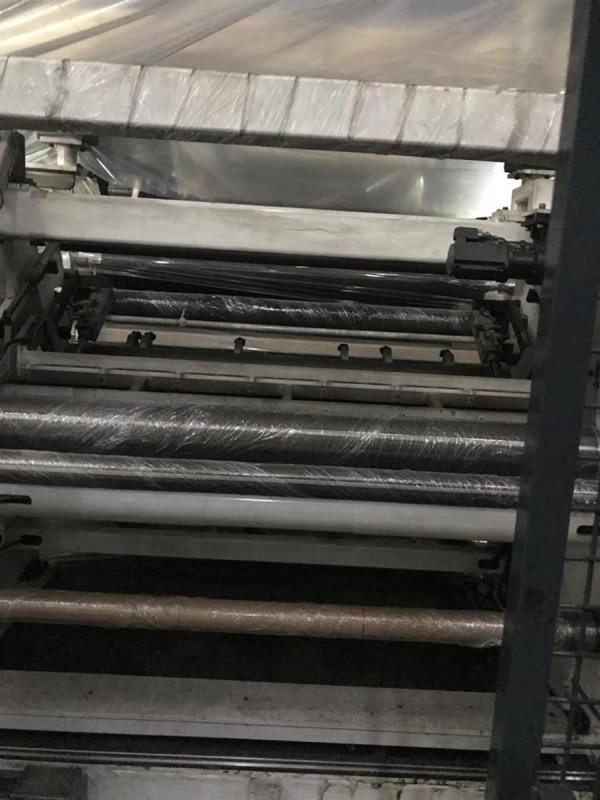

Chill roll unit diam 1400mm
Thickness controll system Automatic, Electronic System
Web guide Oscilating frame
Rewinder description Rewinder for Hand reels, Machine reels and Jumbo. Shafts 2" and 3 "
