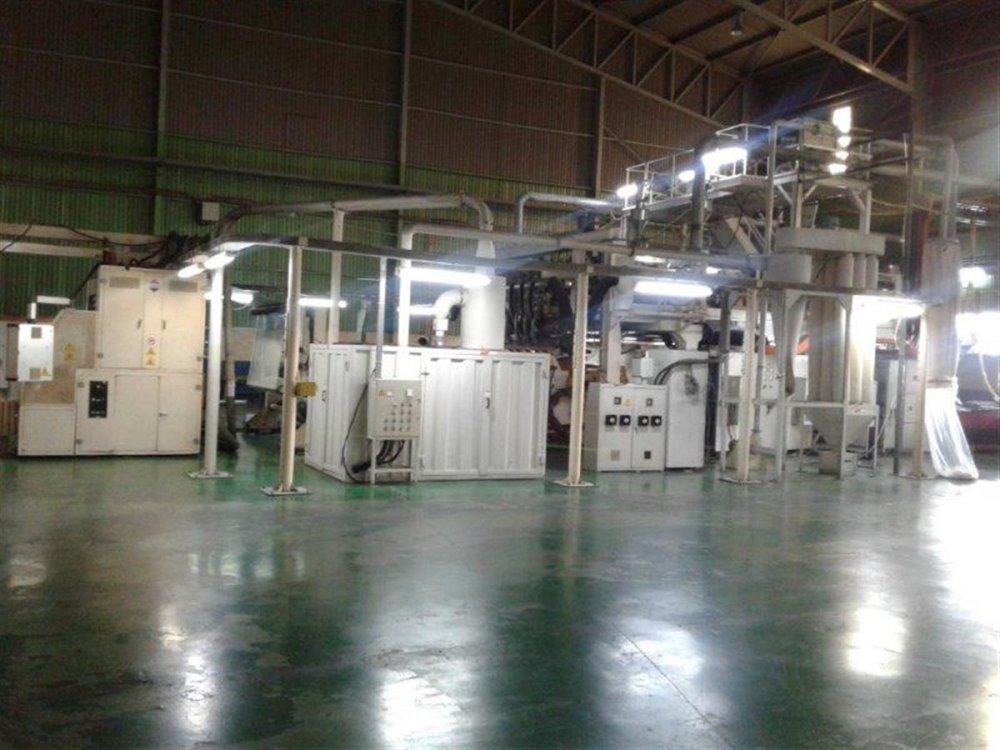

3 layers GAP Cast film extrusion line

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA150
Manufacturer GAP
Year 2006
Number of layers 3
Film structure ABC
Material STRETCH FILM
Film width (mm) 2000
Output (Kg/h) 1000

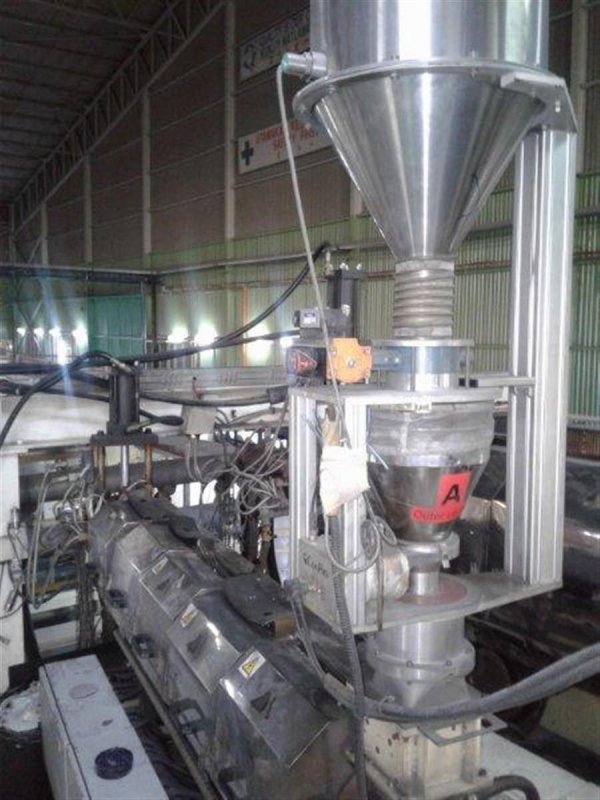

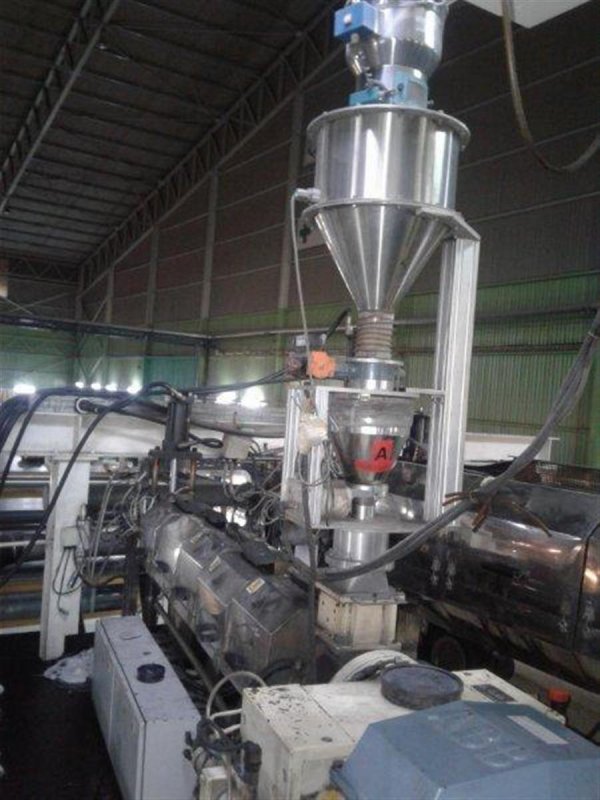

Extruder 1 Layer ref: A
Screw diam 90
Description single component gravimetric doser, AC motor 132KW

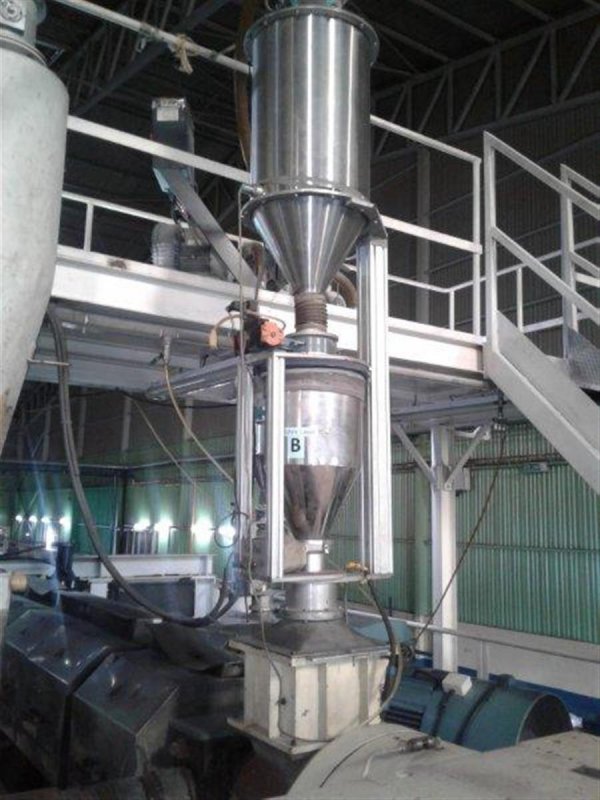

Extruder 2 Layer ref: B
Screw diam 170
Description single component gravimetric doser, AC motor 355KW. Additional small extruder for forced feeding of edge trim recycling

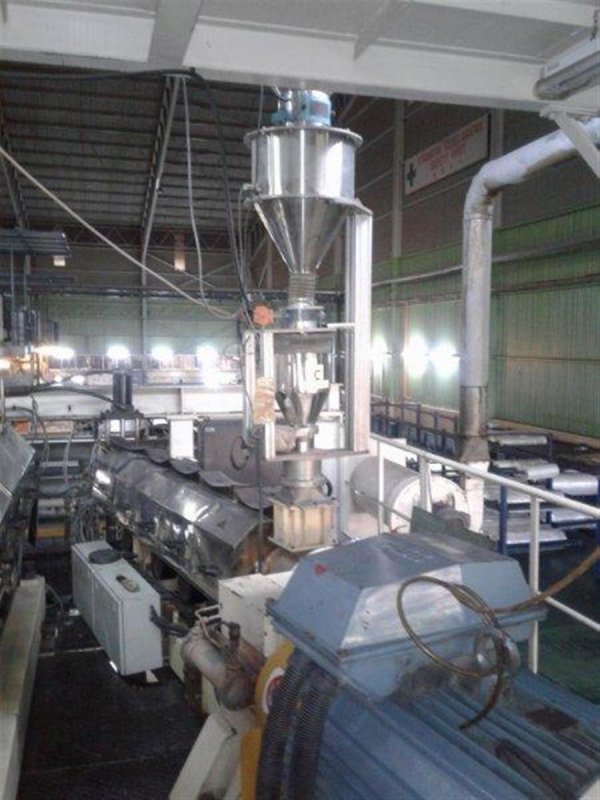

Extruder 3 Layer ref: C
Screw diam 90
Description single component gravimetric doser, AC motor 132KW
Head description Cloren
Die width (mm) 2500

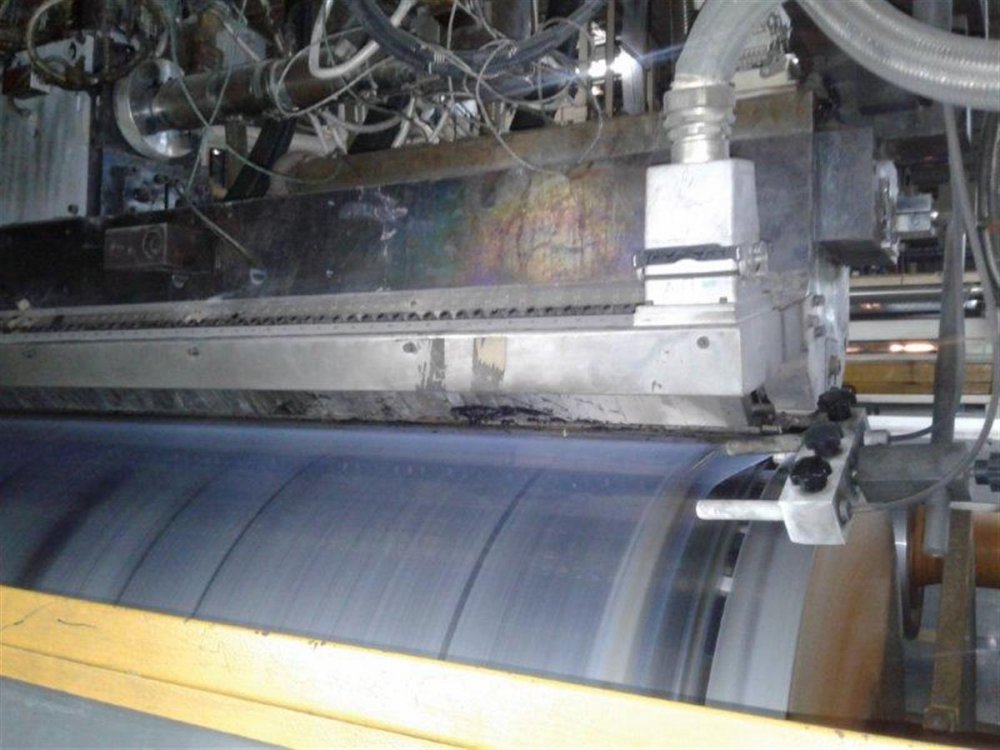

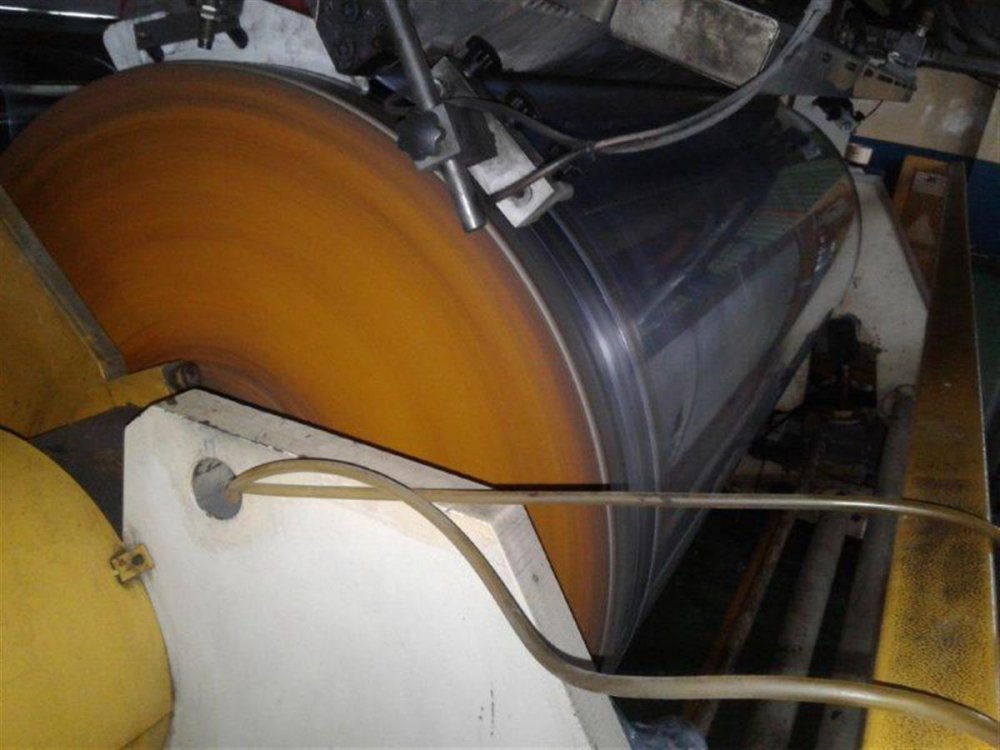

Chill roll unit diam 1000mm. edge pinning, vacuum box
Thickness controll system Scantech with x rays. Automatich thicknes control through thermal bolts and flex lip.
Web guide oscillating device

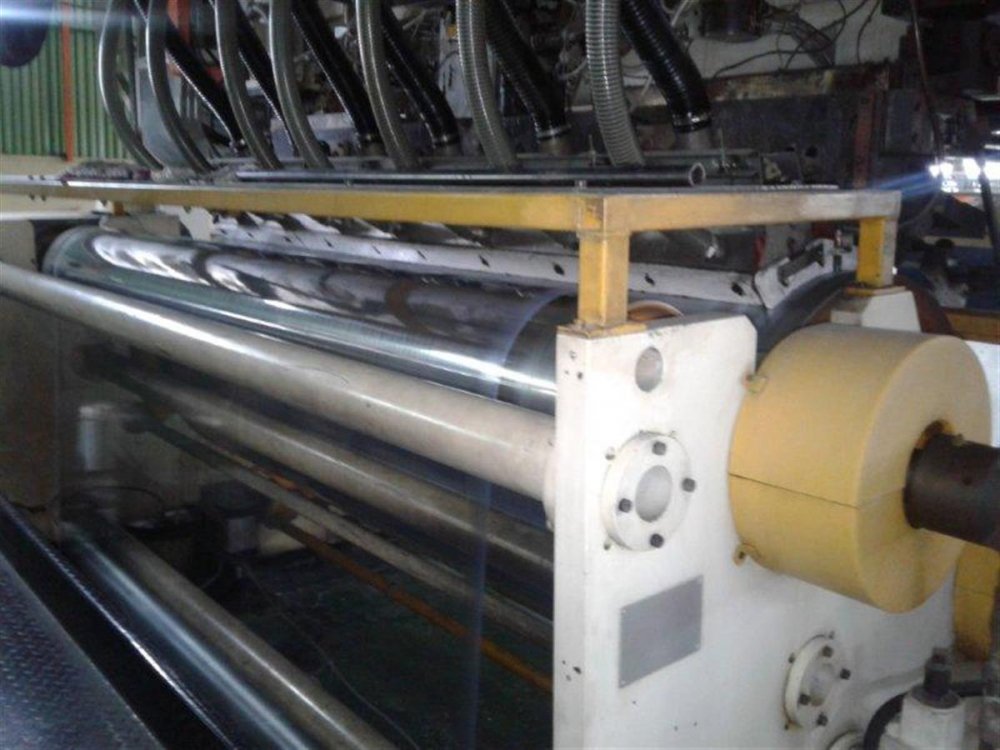

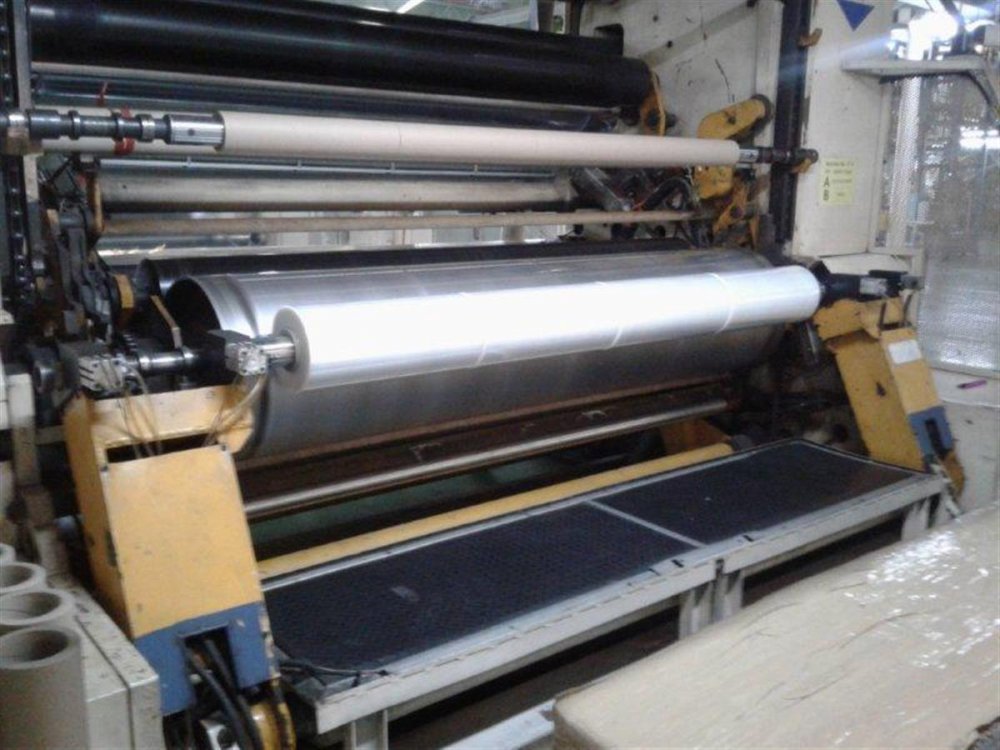

Rewinder max reel diameter (mm) 500
Rewinder description Rewinder for machine reela and jumbo
