** SOLD **

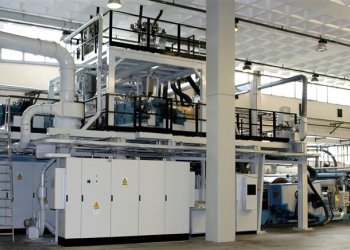

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA043
- Manufacturer
- PRIMPLAST
- Modello
- CS 200 F/C
- Year
- 2004
- Number of layers
- 3
- Material
- STRETCH FILM LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- 550
- Output (Kg/h)
- 1400
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90mm
- Description 1
- 110 kw. AC motor
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 160mm
- Description 2
- 315Kw . AC motor
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 120mm
- Description 3
- 200 kw. AC motor
- Die width (mm)
- Cloren width 2550mm
- Chill roll unit
- Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema
- Thickness controll system
- Oscillating thickness control, beta rays gauge (1 scanner) Year 2004
- Rewinder max reel diameter (mm)
- 600mm
- Rewinder description
- AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm
- Note
- 5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003
Machine Code | CA043 |
Manufacturer | PRIMPLAST |
Modello | CS 200 F/C |
Year | 2004 |
Number of layers | 3 |
Material | STRETCH FILM LLDPE |
Film width (mm) | 2000 |
Speed (m/min) | 550 |
Output (Kg/h) | 1400 |
Extruder 1 Layer ref: | A |
Screw diam 1 | 90mm |
Description 1 | 110 kw. AC motor |
Extruder 2 Layer ref: | B |
Screw diam 2 | 160mm |
Description 2 | 315Kw . AC motor |
Extruder 3 Layer ref: | C |
Screw diam 3 | 120mm |
Description 3 | 200 kw. AC motor |
Die width (mm) | Cloren width 2550mm |
Chill roll unit | Chill roll 2750mm (dia 1350mm). Tank and pumps group included chiller pipes Corema |
Thickness controll system | Oscillating thickness control, beta rays gauge (1 scanner) Year 2004 |
Rewinder max reel diameter (mm) | 600mm |
Rewinder description | AutomaticAVD 2000B with antistatic bars, pneumatic rubber coated pressure roll, no 3 pneumatic shafts for cardboard cores 76mm |
Note | 5 slitting knives. 4 lanes. Mechanical speed chill roll 550 m/min , winder 600m/min Static eliminator. Edge trim recycle system Trim cutting device Process control system Control panel bentilation Automatic cardboard cores feeder Inline scarps recovery system Granulator Aertecnica Croci Motor Kw 30 Year 2003 |
