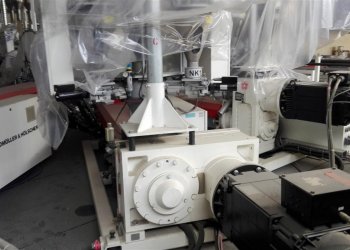

9 layers WINDMOLLER & HOLSCHER FILMEX Cast film extrusion line ** SOLD ** Ask more informations about a similar one

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).

Machine Code CA154
Manufacturer WINDMOLLER & HOLSCHER
Model FILMEX
Year 2012
Number of layers 9
Material barrier film, CPP
Film width (mm) 2400
Speed (m/min) 350
Output (Kg/h) 1000 gross
Extruder 1 Layer ref: A
Screw diam 135
Description FILMEX
Extruder 2 Layer ref: B
Screw diam 90
Extruder 3 Layer ref: C
Screw diam 90
Extruder 4 Layer ref: D
Screw diam 70
Extruder 5 Layer ref: E
Screw diam 60
Extruder 6 Layer ref: F
Screw diam 50
Extruder 7 Layer ref: G
Screw diam 50
Head description automatic die 2700 mm wide Coeren with feed block for 9 layers, dual chamber vacuum box , internal slot die deckling system with edge encapsulation
Die width (mm) 2700
Chill roll unit double chill roller , electrostatic edge stabilization pneumatic edge stabilization
Thickness controll system Infrared thickness gauge NDC with additio nal infrared gauge
Corona treatment Yes, for pre treatment
Rewinder max reel diameter (mm) 1200
Rewinder description Center driven
Additional information Total electrical connected load: 1350 KVA Power: 400V/50Hz 1000 kw installed power

** SOLD **
