** SOLD **

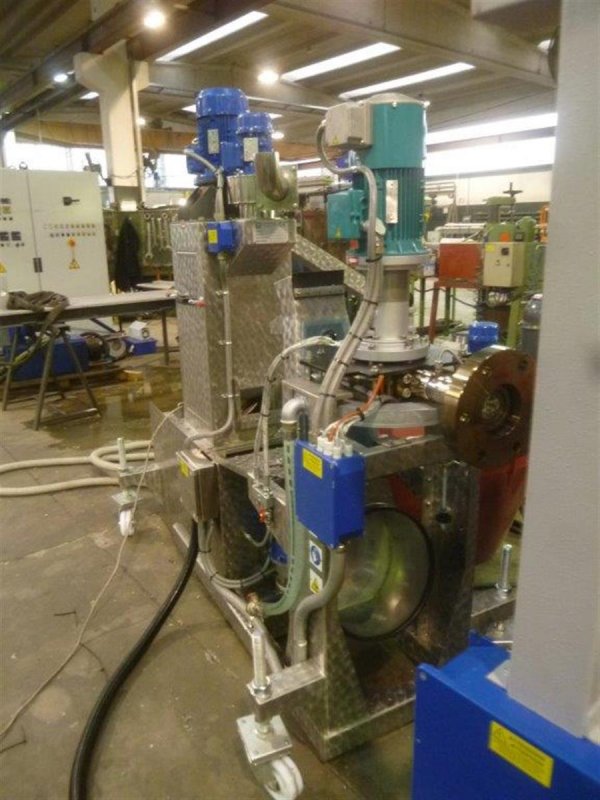

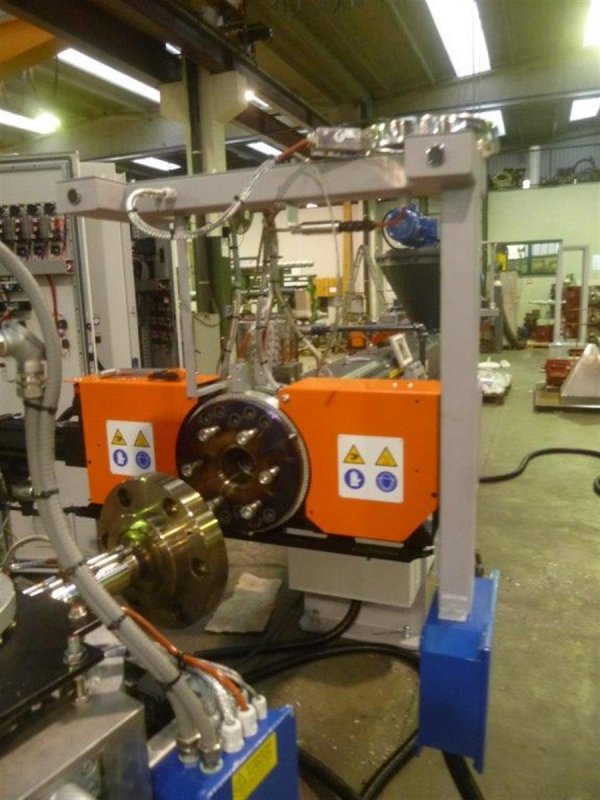

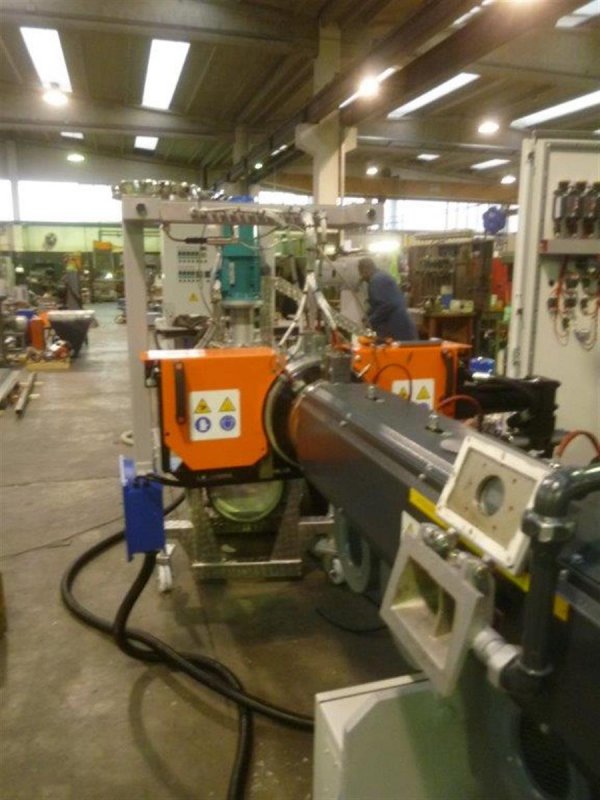

Process starts with a grinder which is a rotor knife mill designed to take larger components of feed stock (such as plastics film, bottles, etc…) and reduce them to a flake or particle size. These flakes are fed in an extruder which melts material and re shapes it into a granular form.
Ask more informations
about a similar one
- Machine Code
- RE118
- Manufacturer
- TECNOVA
- Modello
- Mini 60
- Year
- 2018
- Overhaul/renovation
- Full revision
- Screw diameter (mm)
- 60
- Materials
- LDPE, HDPE, PP
- Grinder

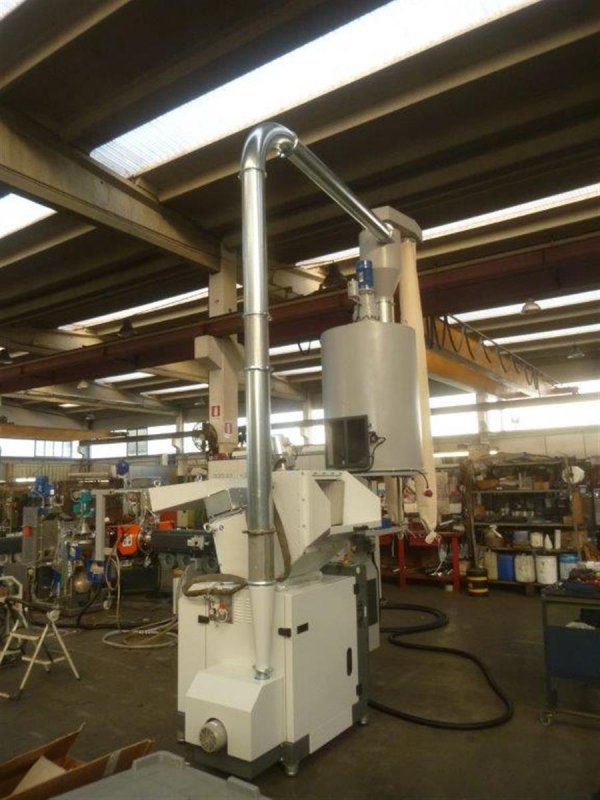

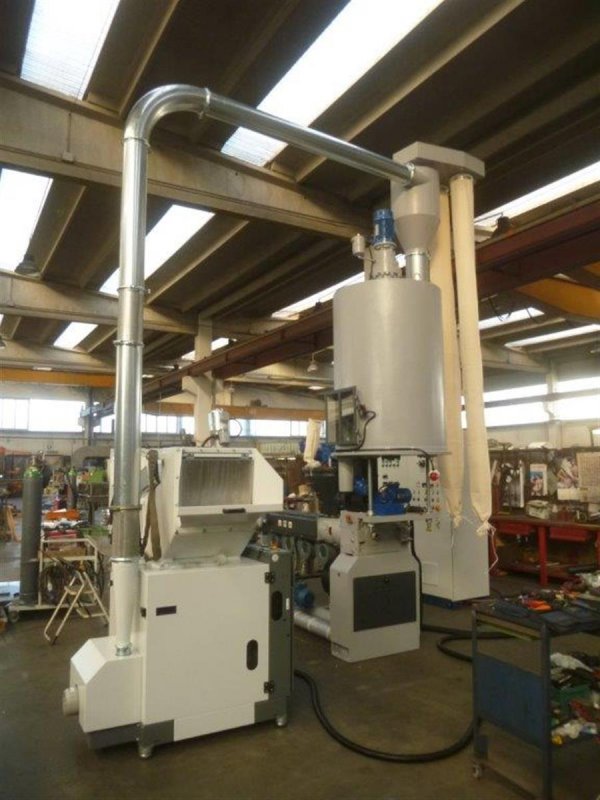

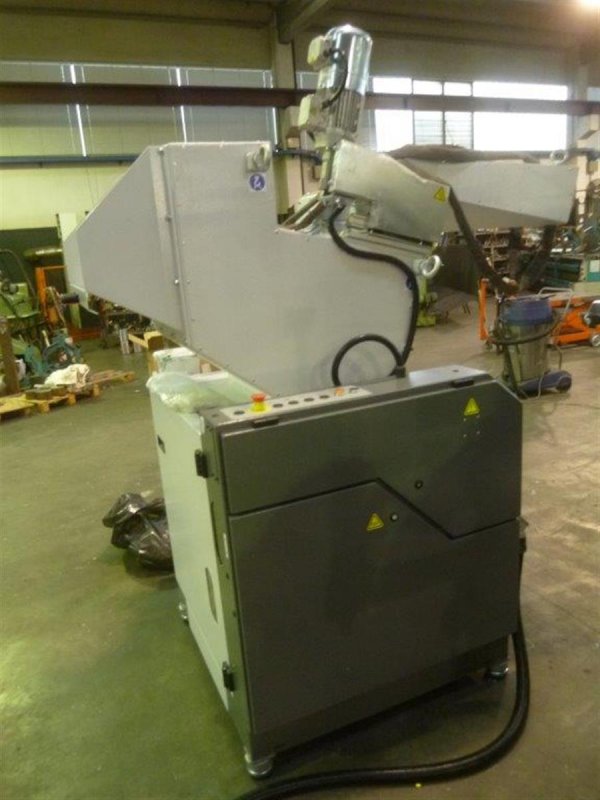

- Grinding chamber with 500x300 mm passage - rotor ø260 mm, 580 rpm - rotating blades no. 3; fixed counter-blades no. 2 - motorisation 15 Kw - suction unit 1.1 Kw
- Silos
- Yes
- Extruder

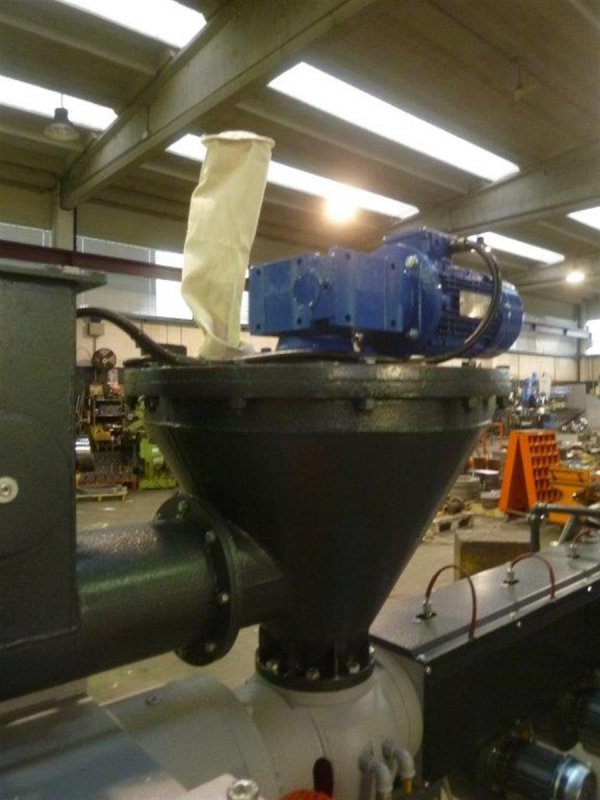

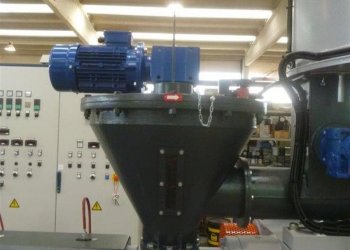

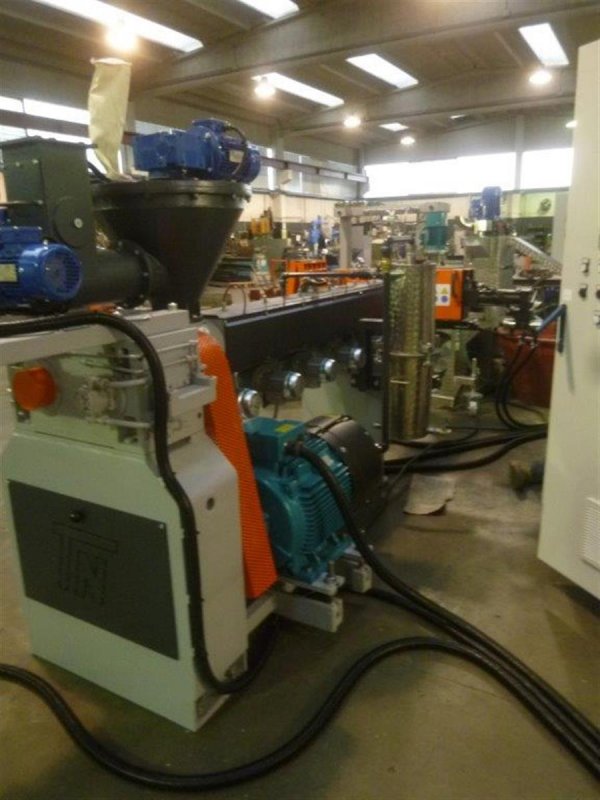

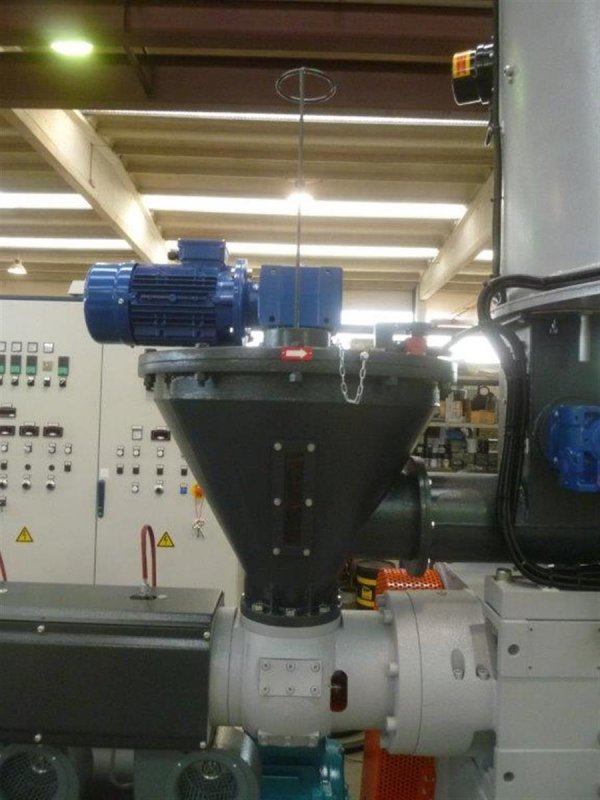

- 60 LD 35 with degassing
- Cooling
- yes.
- Vibrating device
- yes
- Cyclone
- yes
- Output
- 80/150 kg per hour depending on material
- Note
- 12 months warranty
| Machine Code | RE118 |
| Manufacturer | TECNOVA |
| Modello | Mini 60 |
| Year | 2018 |
| Overhaul/renovation | Full revision |
| Screw diameter (mm) | 60 |
| Materials | LDPE, HDPE, PP |
| Grinder | Grinding chamber with 500x300 mm passage - rotor ø260 mm, 580 rpm - rotating blades no. 3; fixed counter-blades no. 2 - motorisation 15 Kw - suction unit 1.1 Kw |
| Silos | Yes |
| Extruder | 60 LD 35 with degassing |
| Cooling | yes. |
| Vibrating device | yes |
| Cyclone | yes |
| Output | 80/150 kg per hour depending on material |
| Note | 12 months warranty |
