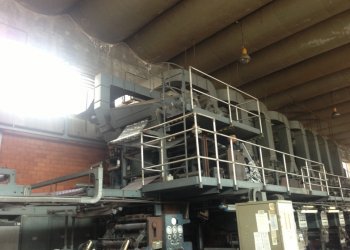

CERUTTI 38 R Gravure printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO116
Manufacturer CERUTTI
Model 38 R
Year 1980
Number of colors 8
Print possibilities 8+0
Web width (mm) 1070
Print width (mm) 1020
Print repeat range (mm) 440-880 mm
Drying specifications double dryer c.m./h 4500 – total dryer length 3 mt
Drying heat surce steam heaters
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 900
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Register control yes
Vyscosity control included
Additional information In line solventless lamination unit Nordmeccanica.Print speed: 250 mt/min. 2 trolleys for cylinders.Gravure cylinders: Nr. 80 (available on option up to 200 cylinders).Cylinders shafts: 16.Pressure rollers: 8 size 1020 mm + 8 size 900 mm.6 ink pumps;

** SOLD **
