Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO288
- Manufacturer
- UTECO
- Modello

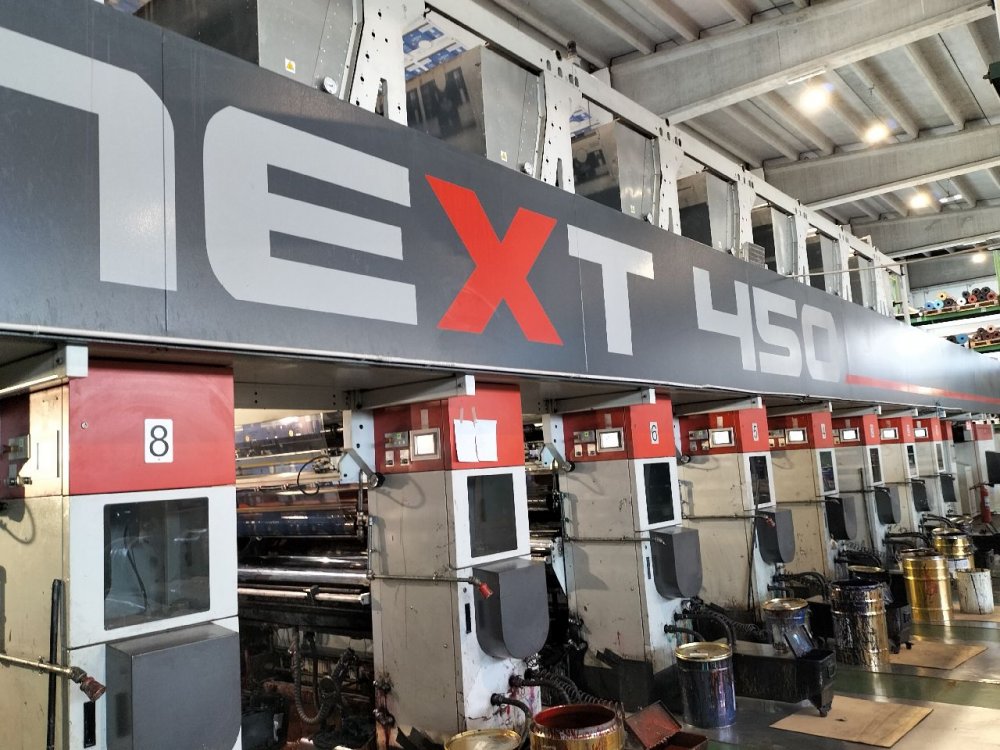

- NEXT 450
- Year
- 2018
- Number of colors
- 9
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 950
- Print width (mm)
- 930
- Print repeat range (mm)
- min.300mm, max.800mm
- Drying specifications
- 8 units type single hood A1 (colours 1-8) 1 unit type double hood C2 on colour 9
- Drying heat surce
- Drying air recirculation with L.E.L. system

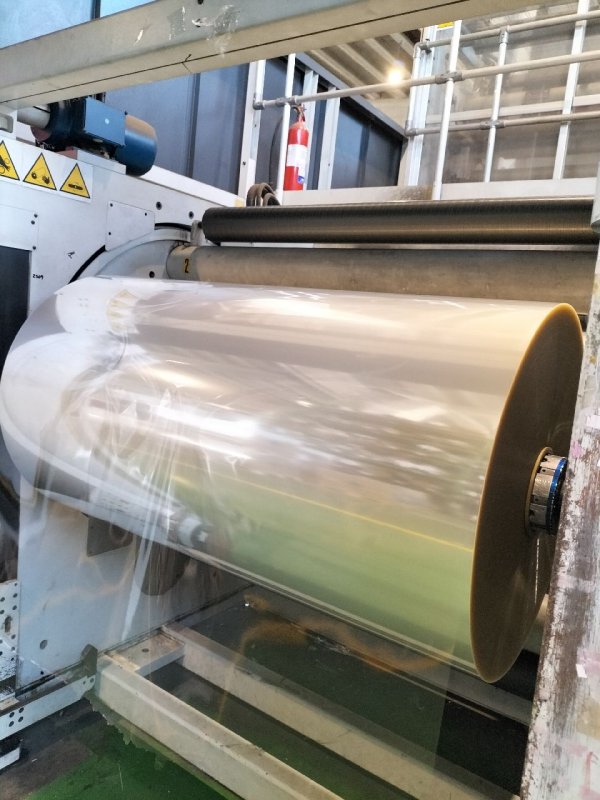

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Videocamera BST Eltromat IPQ modular web inspection system
- Register controll
- BST ELTROMAT REGISTAR 20 automatic register control
- Vyscosity control
- UTECO GAMA
- Note
- Ultrasonic automatic web guide Pneumatic impression roller system Pneumatic doctor blade system Turning bar (7+2 / 8+1 printing configuration) ENULEC anti-static system Materials : OPP: 15-60 microns OPA: 15-60 microns PET: 9-30 microns PET-met: 9-30 microns Laminates : 100 g/ m² max
| Machine Code | RO288 |
| Manufacturer | UTECO |
| Modello | NEXT 450 |
| Year | 2018 |
| Number of colors | 9 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 950 |
| Print width (mm) | 930 |
| Print repeat range (mm) | min.300mm, max.800mm |
| Drying specifications | 8 units type single hood A1 (colours 1-8) 1 unit type double hood C2 on colour 9 |
| Drying heat surce | Drying air recirculation with L.E.L. system |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Videocamera BST Eltromat IPQ modular web inspection system |
| Register controll | BST ELTROMAT REGISTAR 20 automatic register control |
| Vyscosity control | UTECO GAMA |
| Note | Ultrasonic automatic web guide Pneumatic impression roller system Pneumatic doctor blade system Turning bar (7+2 / 8+1 printing configuration) ENULEC anti-static system Materials : OPP: 15-60 microns OPA: 15-60 microns PET: 9-30 microns PET-met: 9-30 microns Laminates : 100 g/ m² max |
