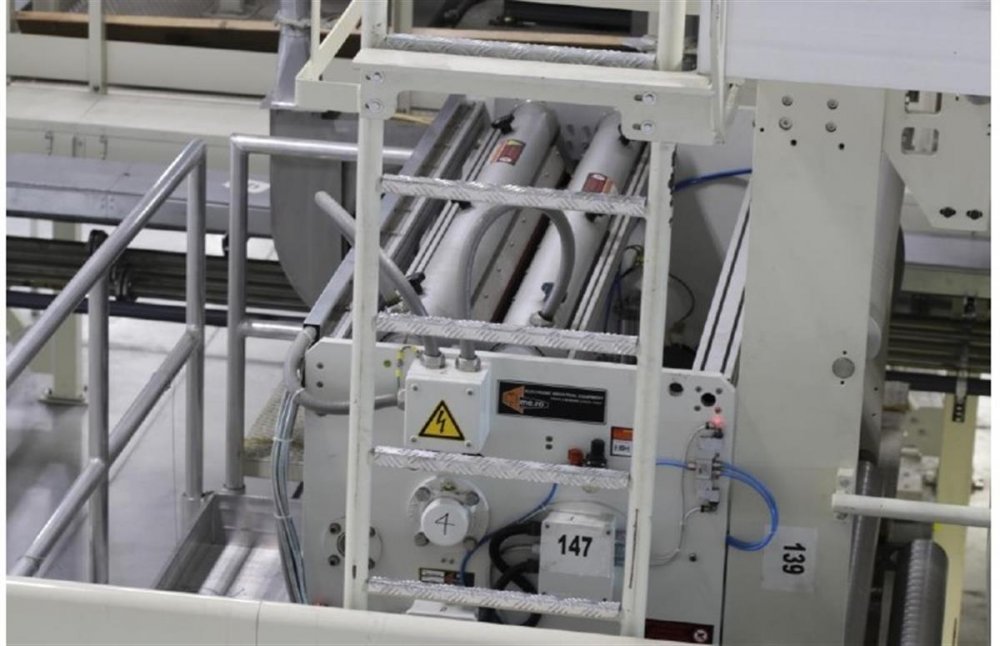

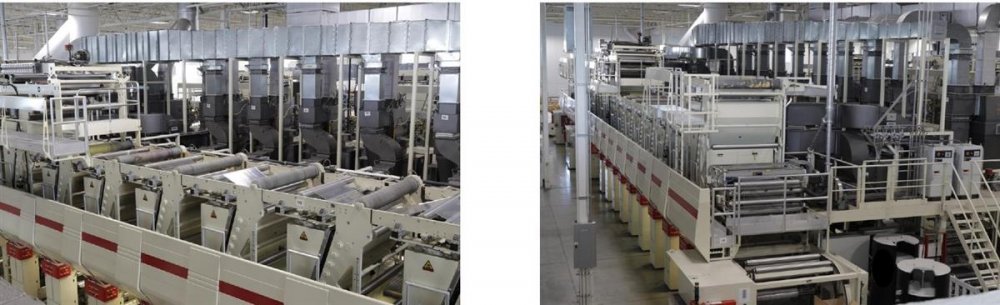

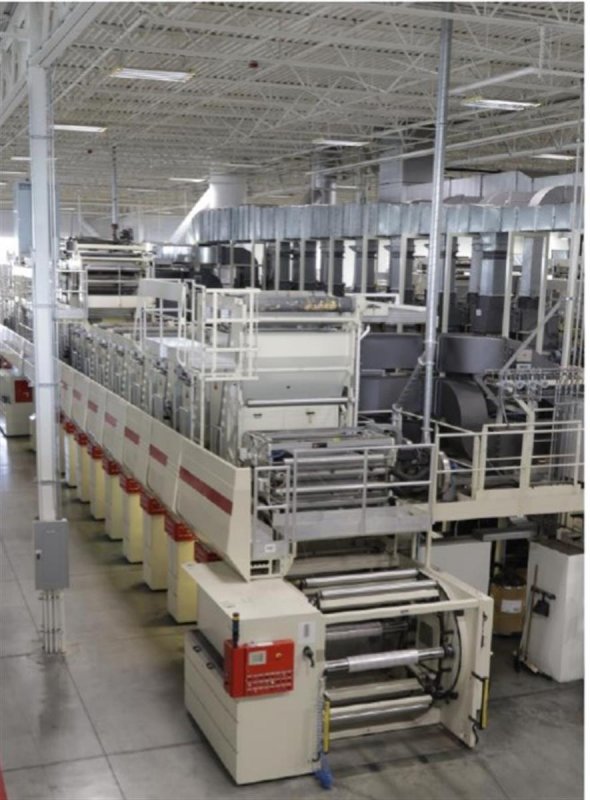

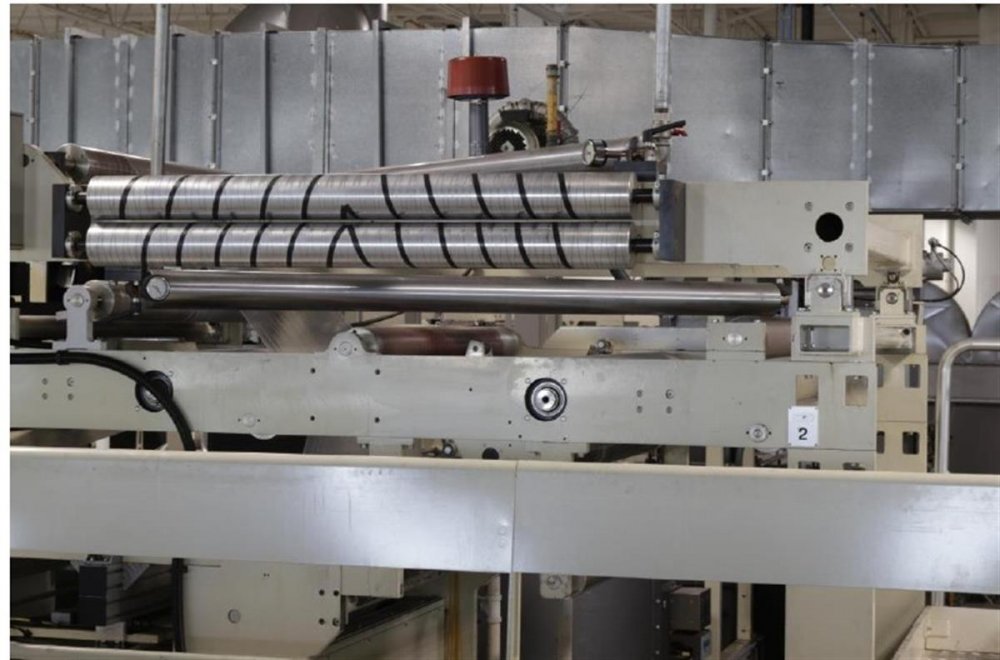

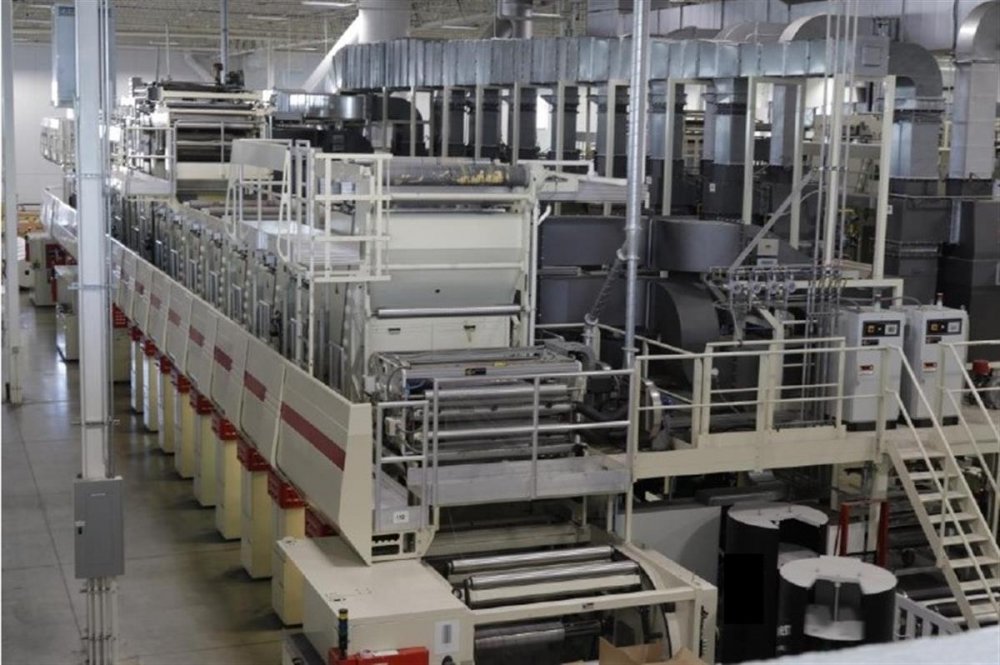

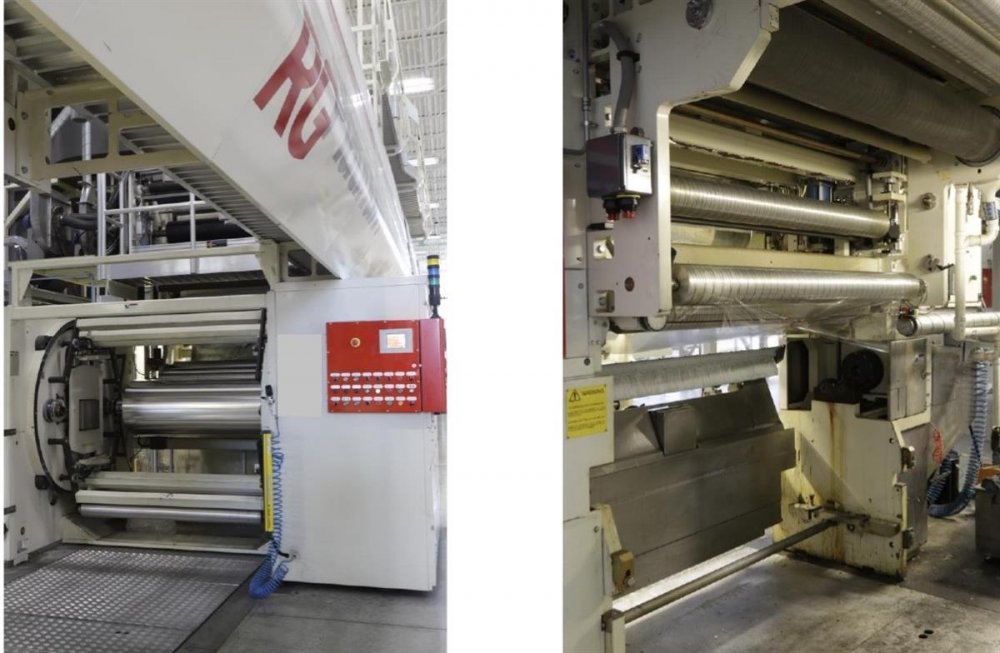

ACOM RG Platinum Rotogravure printing machine 11 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Ask more informations
Machine Code
RO242
Manufacturer
ACOM
Modello
RG Platinum
Year
2006
Number of colors
11
Print possibilities
10 + cold seal, 9 + lamination + cold seal ,
Drive
Electronic shaft
Trolley system
Yes
Web width (mm)
1350
Print width (mm)
1300
Print repeat range (mm)
450 - 950 mm
Drying specifications
Extended drying : Yes, stations 9, 10 and 11
Drying heat surce
Gas
Unwinder type
Automatic turret, Shafted
Max reel diameter unwinder (mm)
1200
Rewinder type
Automatic turret, Shafted
Max reel diameter rewinder (mm)
1200
Videocamera
Yes AVT
Register controll
DGC 700 Eltromat
Corona treatment
Yes
Print cylinders
500
Note
Type of inks : solvent based Number of colors: 11, 1 of the stations designed for lamination purpose ; 1 of the stations for cold seal in register Max. mechanical speed : 450 m/min Webguide Inline lamination Turning Bar
Machine Code RO242
Manufacturer ACOM
Modello RG Platinum
Year 2006
Number of colors 11
Print possibilities 10 + cold seal, 9 + lamination + cold seal ,
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1350
Print width (mm) 1300
Print repeat range (mm) 450 - 950 mm
Drying specifications Extended drying : Yes, stations 9, 10 and 11
Drying heat surce Gas
Unwinder type Automatic turret, Shafted
Max reel diameter unwinder (mm) 1200
Rewinder type Automatic turret, Shafted
Max reel diameter rewinder (mm) 1200
Videocamera Yes AVT
Register controll DGC 700 Eltromat
Corona treatment Yes
Print cylinders 500
Note Type of inks : solvent based Number of colors: 11, 1 of the stations designed for lamination purpose ; 1 of the stations for cold seal in register Max. mechanical speed : 450 m/min Webguide Inline lamination Turning Bar
