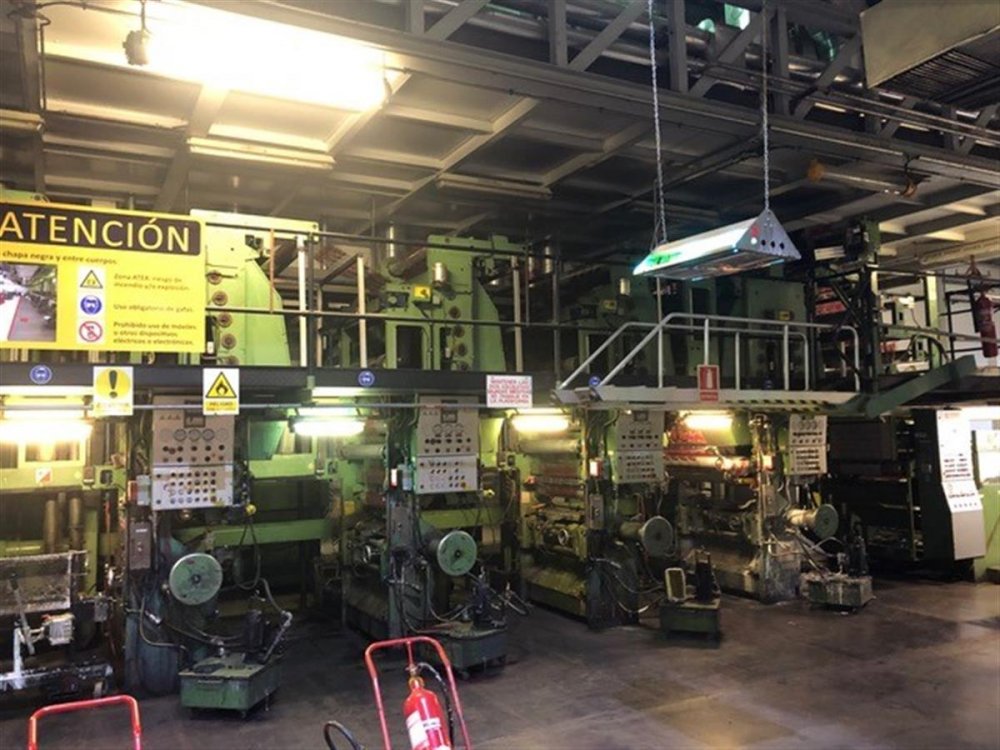

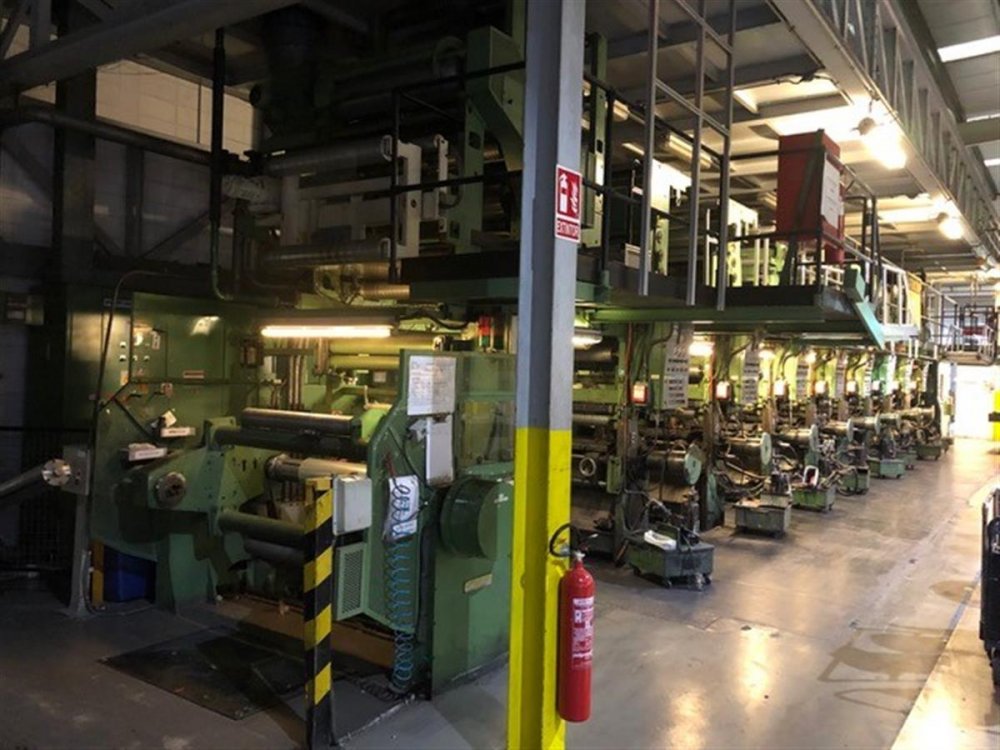

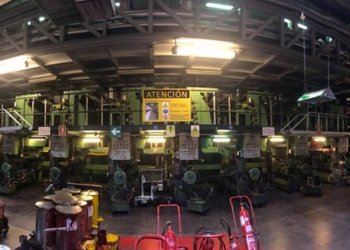

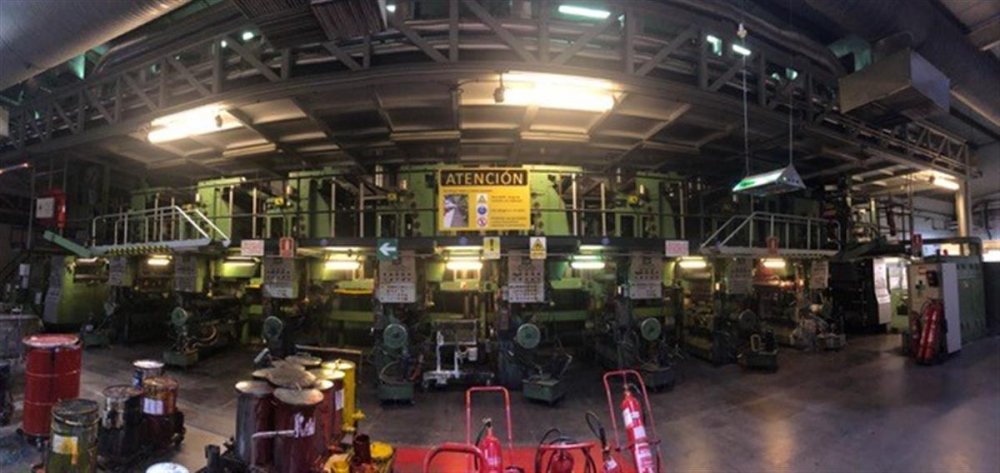

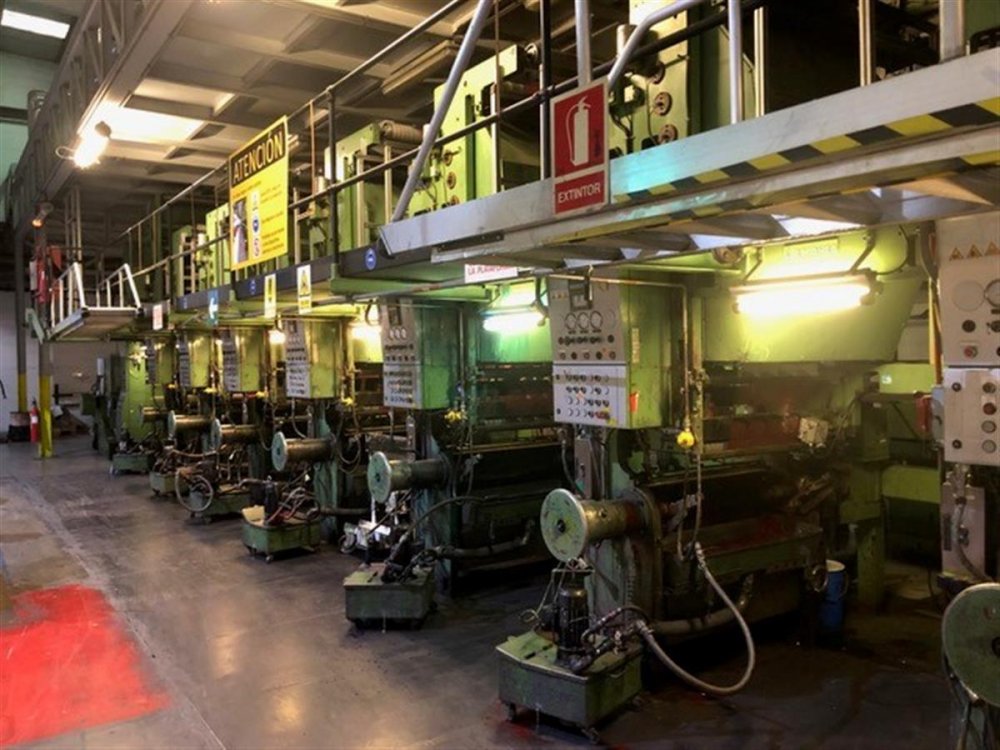

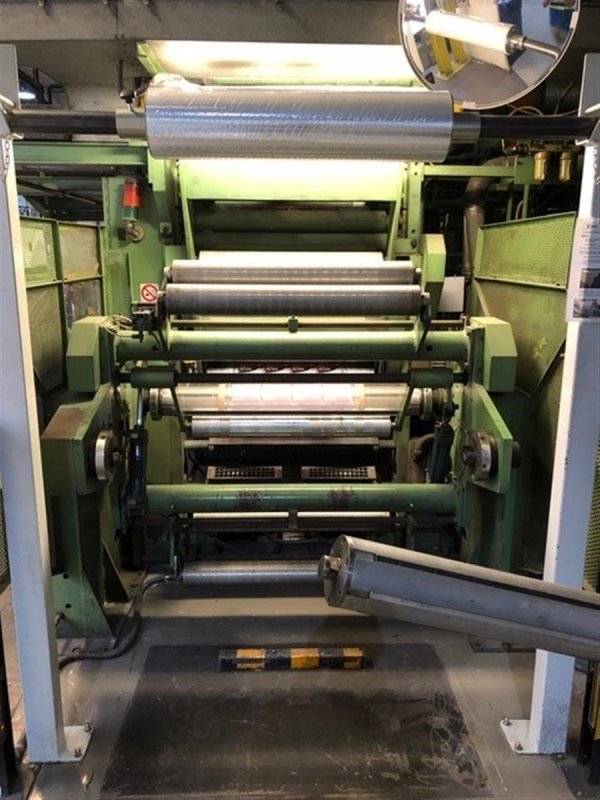

ROTOMEC Rotopak 3000 Rotogravure printing machine 8 colors
Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
| Machine Code | RO221 |
| Manufacturer | ROTOMEC |
| Model | Rotopak 3000 |
| Year | 1990 |
| Number of colors | 8 |
| Print possibilities | 8+0 |
| Drive | Cardan |
| Trolley system | Undefined |
| Web width (mm) | 900 |
| Print width (mm) | 870 |
| Drying specifications | Drying tunnels, thermal oil |
| Drying heat surce | Thermal oil |
| Unwinder type | Turret non stop |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret non stop |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | Yes BST viewer |
| Register control | Automatic Grafykontrol |
| Corona treatment | Yes, one face threatment |
| Additional information | Web guide Graficontrol automatic register MD Manual register for TD LEL operational controls |
