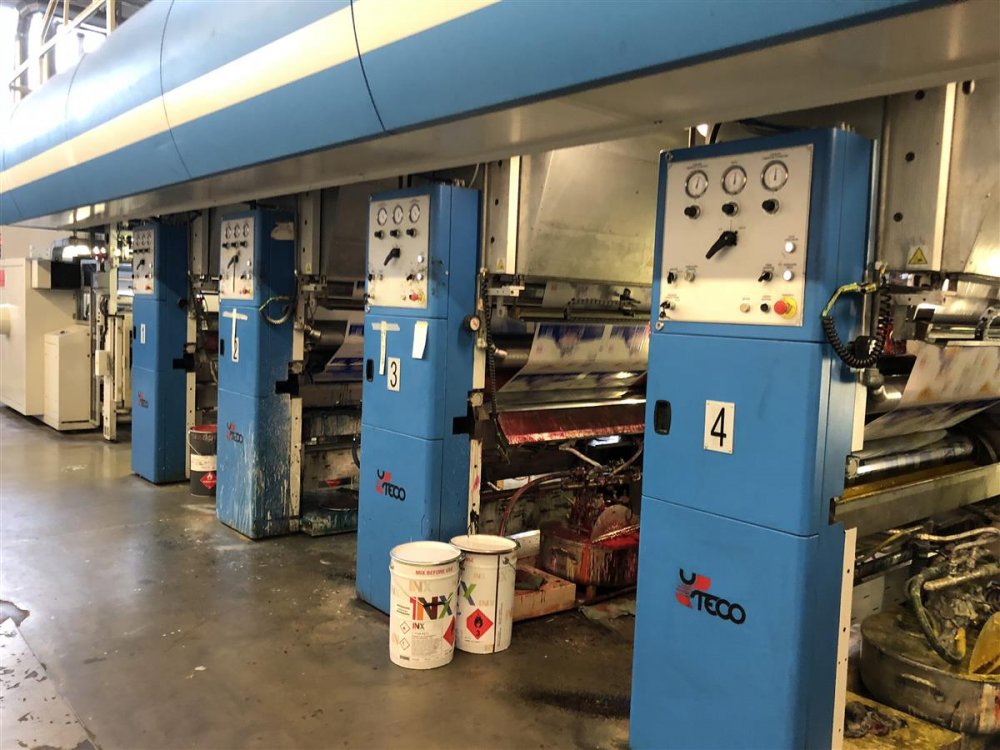

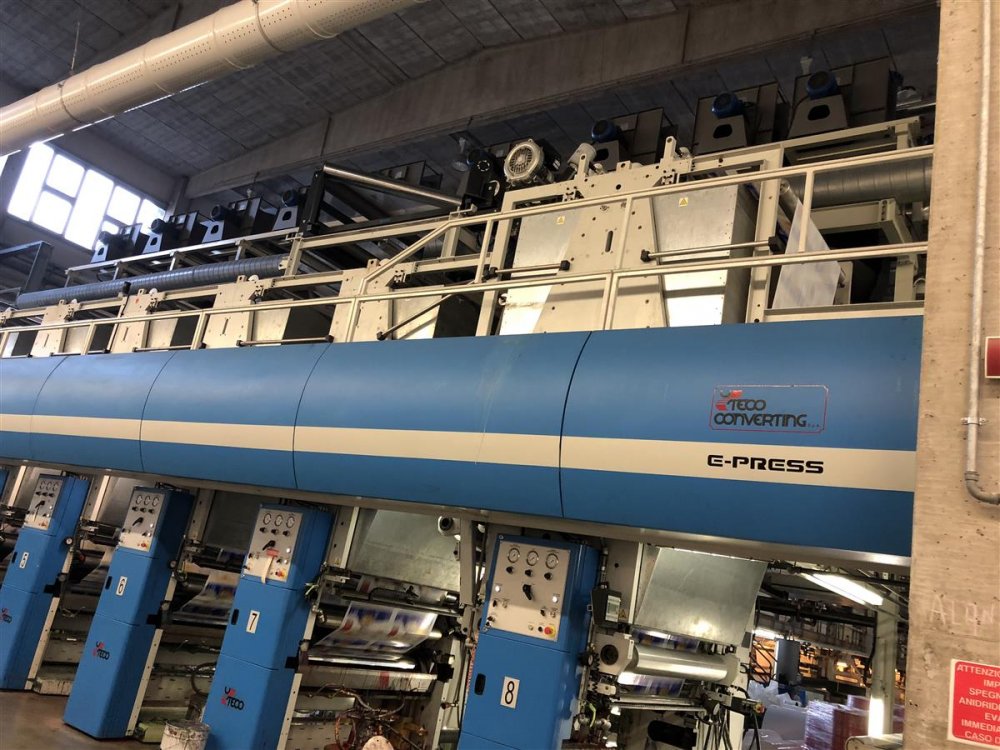

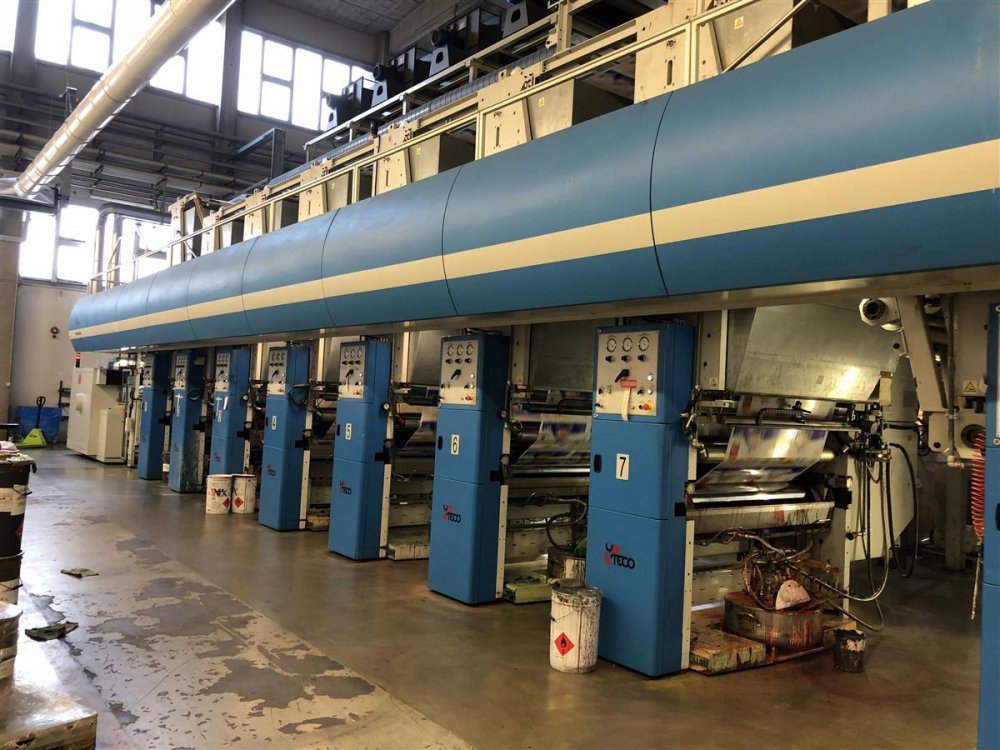

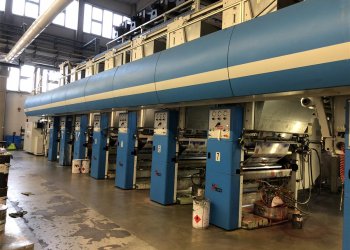

UTECO E-PRESS Rotogravure printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO185
Manufacturer UTECO
Model E-PRESS
Year 2006
Number of colors 8
Print possibilities 8+0, 7+1
Drive Electronic shaft
Trolley system No
Web width (mm) 1320
Print width (mm) 1250
Print repeat range (mm) 400-900 mm

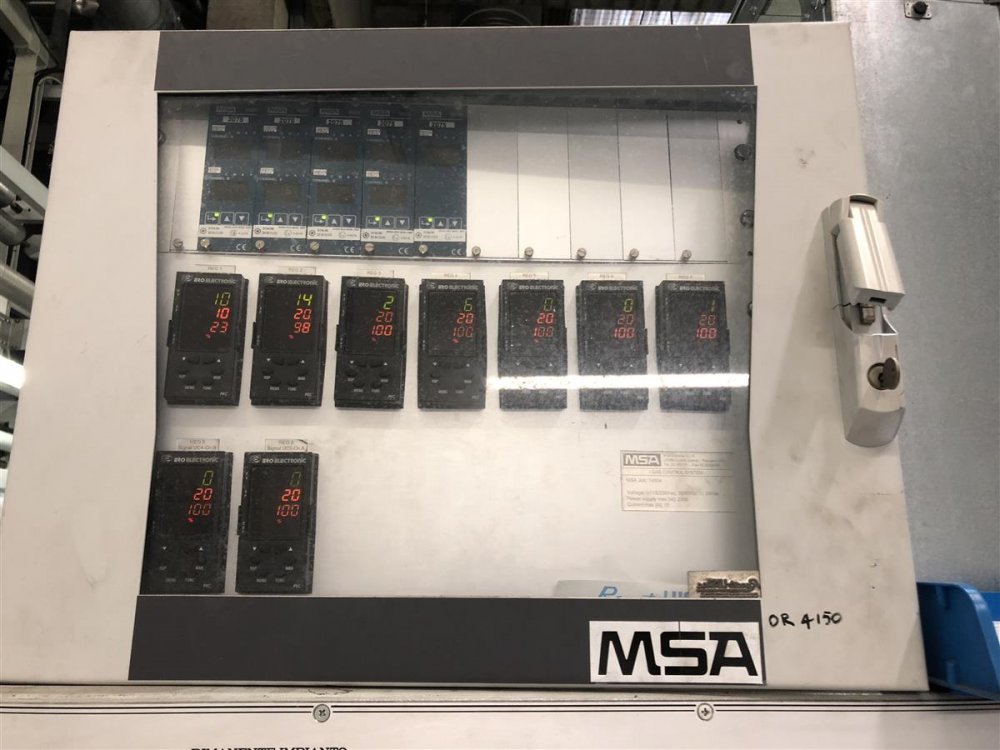

Drying specifications Independent ventilation each uniot, unit 1, extended drier , unit 8 extebded double drier reversible , automatic air recirculation system MSA each unit with LEL control
Drying heat surce Thermo oil heaters

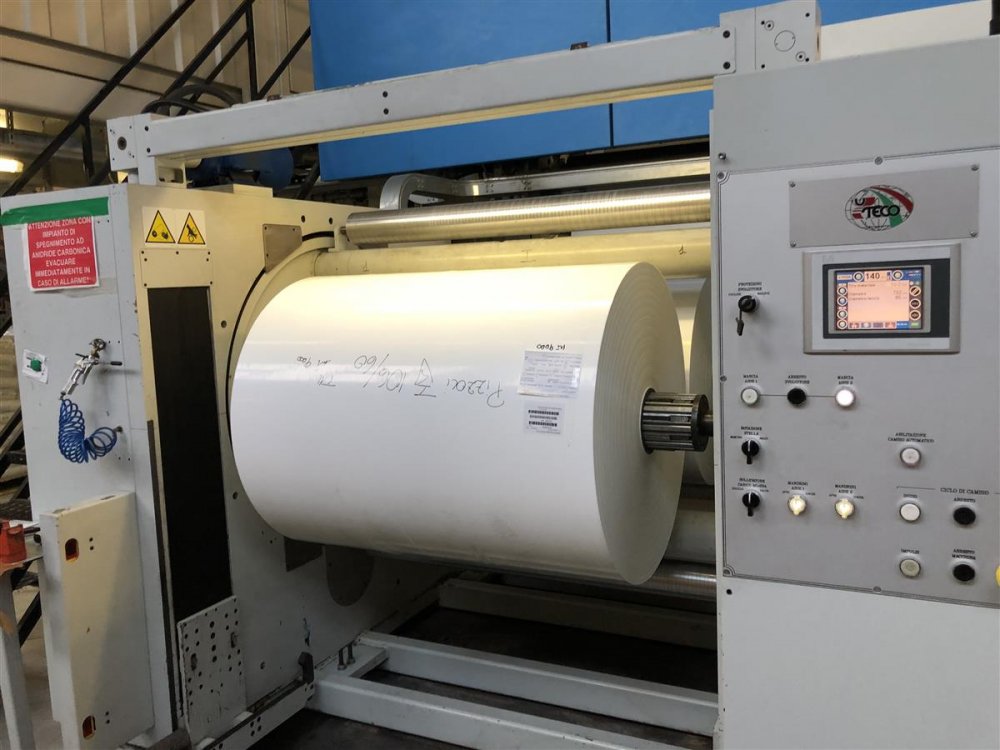

Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret rewinder
Max reel diameter rewinder (mm) 1000
Videocamera Yes BST Eltromat
Register control Yes GRAFYKONTROL
Vyscosity control Yes Gama
Additional information Electrostatic assistance ESA unoit 1- to 5 web cleaner ACE All driven chill calnders and carbon fiber idler rollers with high wrap angle, machien suitable for LDPE

** SOLD **
