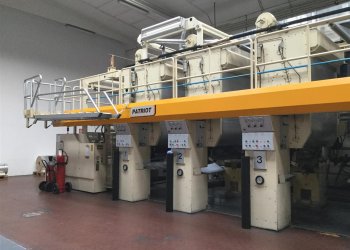

SCHIAVI PATRIOT Rotogravure press 9 colors
Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
| Machine Code | RO168 |
| Manufacturer | SCHIAVI |
| Model | PATRIOT |
| Year | 1999 |
| Number of colors | 9 |
| Print possibilities | 9+0 , 8+lamination |
| Overhaul/renovation | New PLC Siemens,New LEL MSA with automatic control, New Supervision; |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Print repeat range (mm) | 400-1000 mm |
| Drying specifications | 1- 8 single hood 1, 8 mt lomng , 9th unit double exytended hood |
| Drying heat surce | Diathermic oil |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | BST Eltromat |
| Register control | Yes Grafikontrol |
| Print cylinders | 200 |
| Additional information | Speed 350m/min secondary unwinder for lamination turret diam 800 mm |
