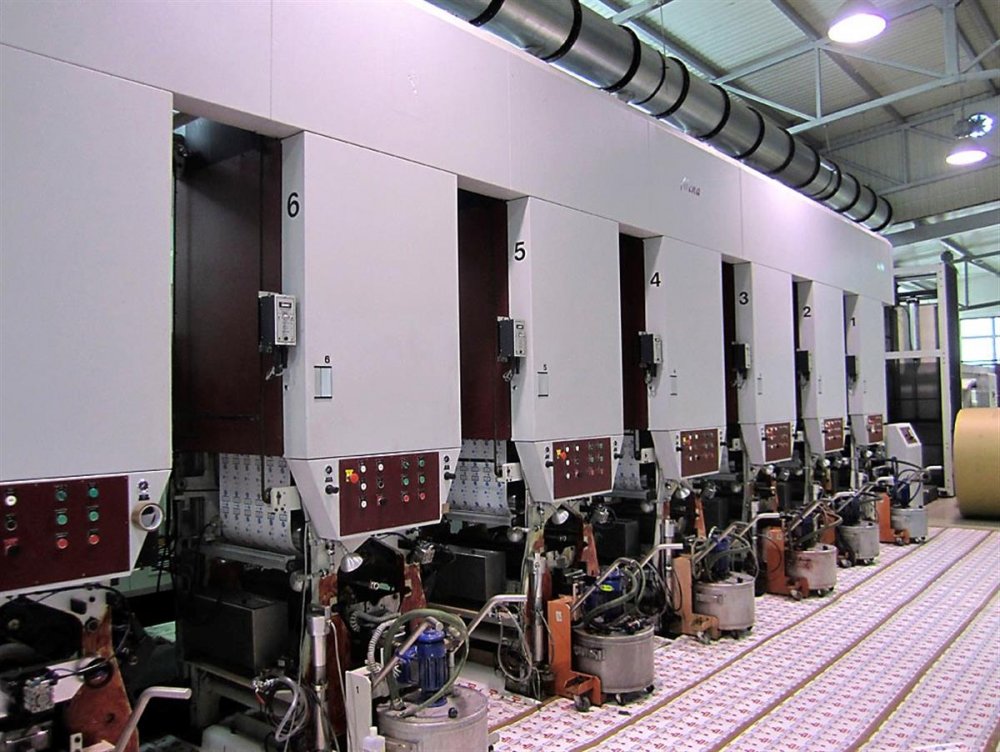

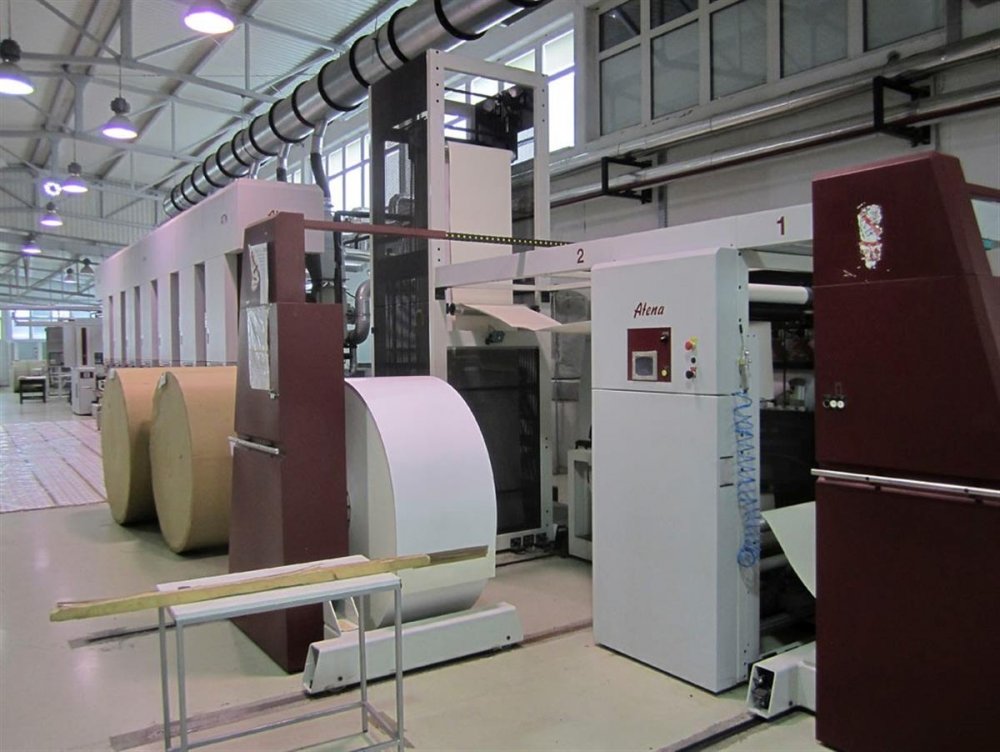

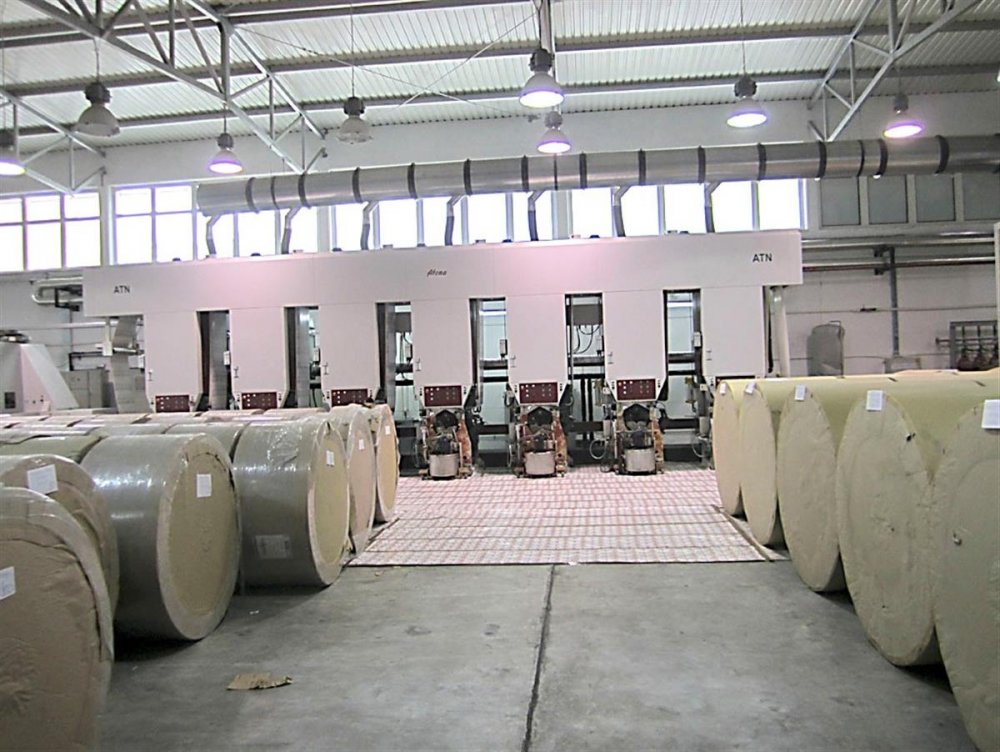

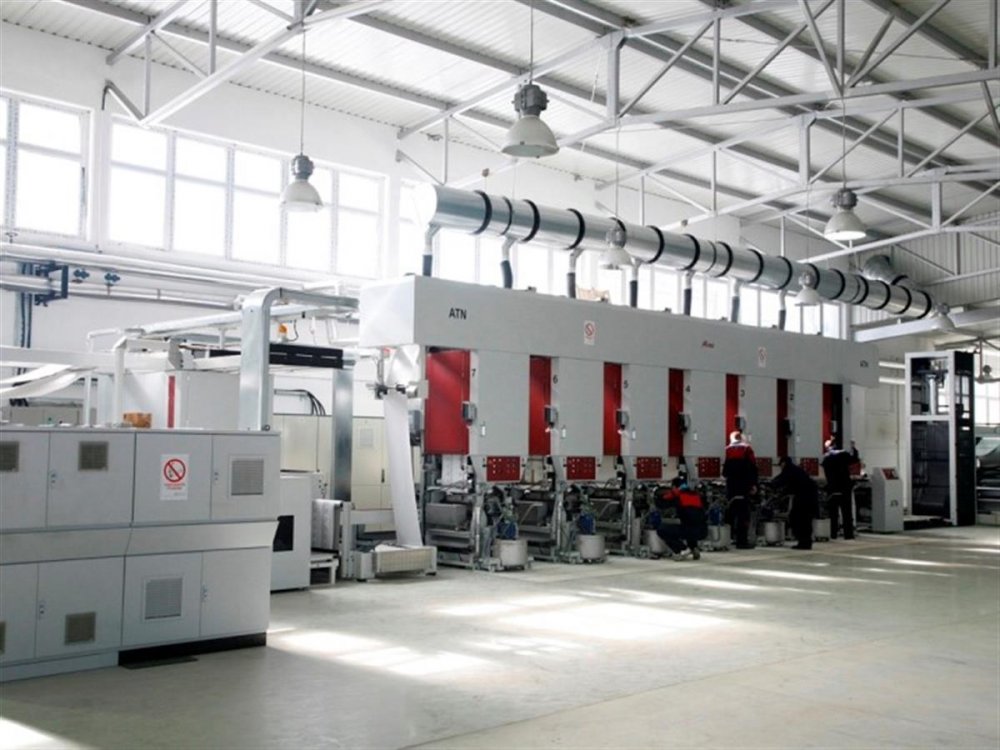

DCM ATENA Gravure printing machine 7 colors

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO150
Manufacturer DCM
Model ATENA
Year 2007
Number of colors 7
Trolley system No
Web width (mm) 660
Print width (mm) 640
Print repeat range (mm) 360-760 mm
Drying specifications The low temperature high efficiency dryer insure an air circulation and heating. The circulating air in the dryer has a velocity of 40 m/s with an adjustable fan and blower 7000 m3/hour and heated by thermo-oil installation and with temperature regulation. Very precisely controlled air recirculation allows an efficient dryer at a low temperature, saving thus energy and substrate quality
Drying heat surce thermo-oil instalation
Unwinder type Automatic
Max reel diameter unwinder (mm) 1800
Rewinder type Single Shaft
Max reel diameter rewinder (mm) 1300
Videocamera BST Handyscan
Register control DGC 650 from Eltromat
Vyscosity control Viscosity control equipment with solvent reservoir enables to measure and adjust viscosity of solvent inks (Opticolor Junior)
Print cylinders 67 printing cylinders (13 steel base only and 54 copper covered) ;3 sets of cutting + creasing tools
Additional information SUBSTRATE: PAPER/CARDBOARD SUBSTRATE WEIGHT: 60-300 gsm MAXIMUM ROTARY DIE CUTTING WIDTH : 660 mm MAXIMUM ROTARY DIE CUTTING REPEAT : 800 mm MINIMUM ROTARY DIE CUTTING REPEAT : 535 mm Production of cigaretes packaging, paper labels and cardboard packaging Register control DGC 650 from Eltromat Splicing device AIR VOLUME : 7000 m3/h AIR VELOCITY : 40 m/s REGISTER ACCURACY PRINT TO PRINT : +/- 0.10 mm PRINT TO CUT : +/- 0.15 mm ELECTRICAL SPECIFICATIONS : 400 V, 3 phases, 50 Hz PRODUCTION SPEED : up to 200 m/min 3 stage rotary die cutting unit RDC10 in-line - embossing, creasing and cutting/stripping cassettes Production: roll to roll, roll to sheet, roll to die-cut product Additional equipment included in price – 67 printing cylinders (13 steel base only and 54 copper covered) – 3 sets of cutting + creasing tools (buyer can’t use the whole tool, only original ATN cassettes in which the tools are packed)
