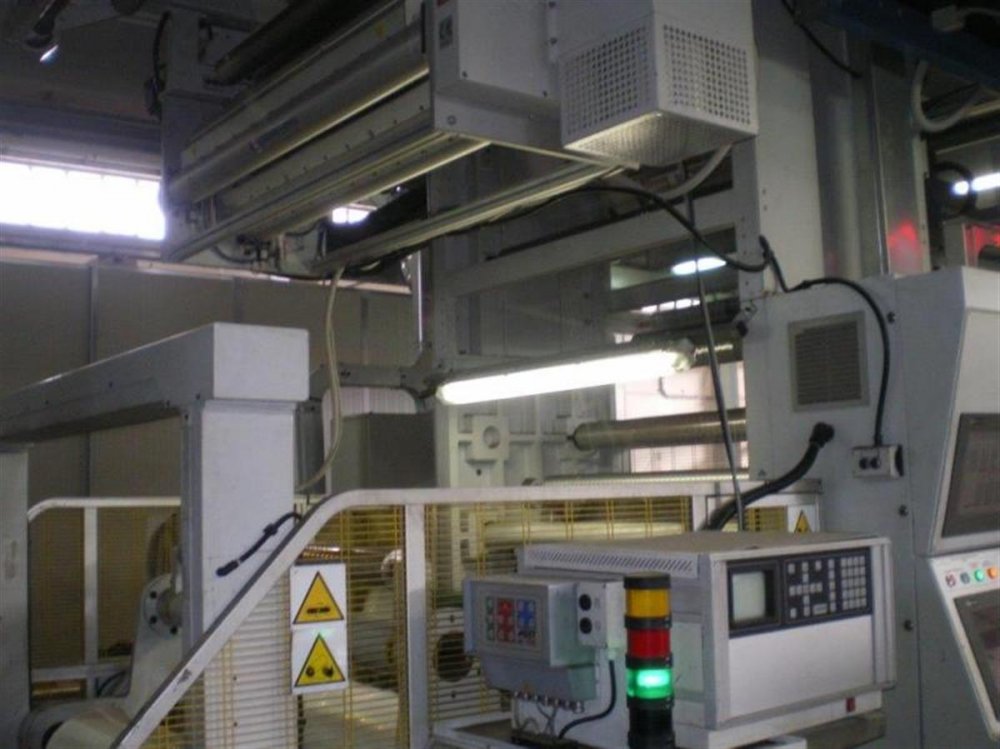

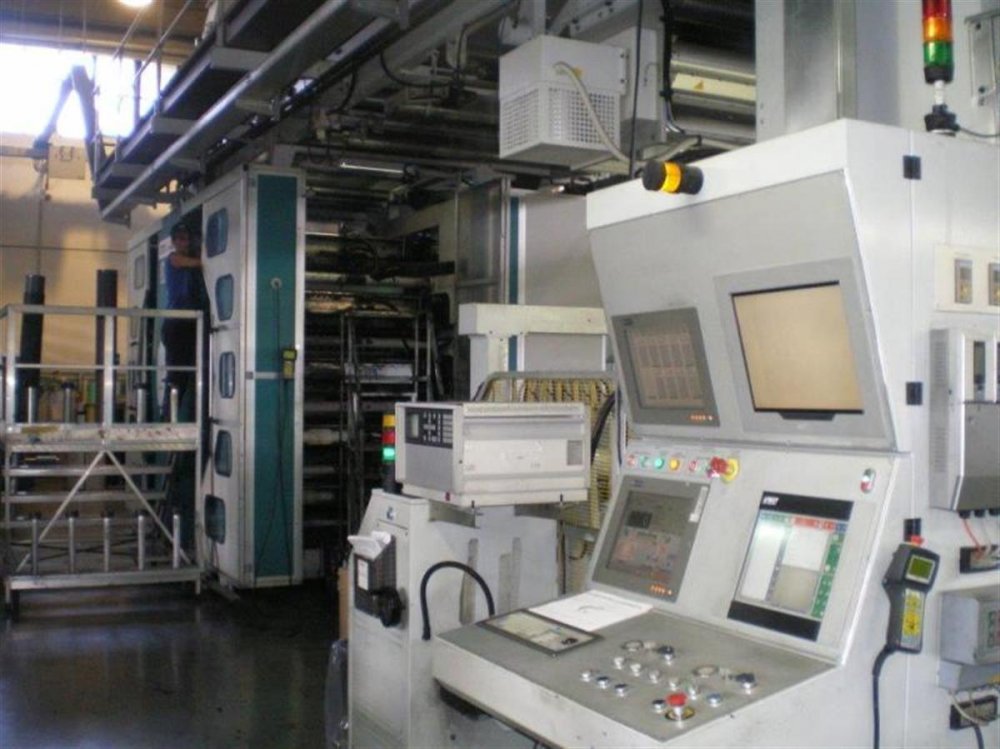

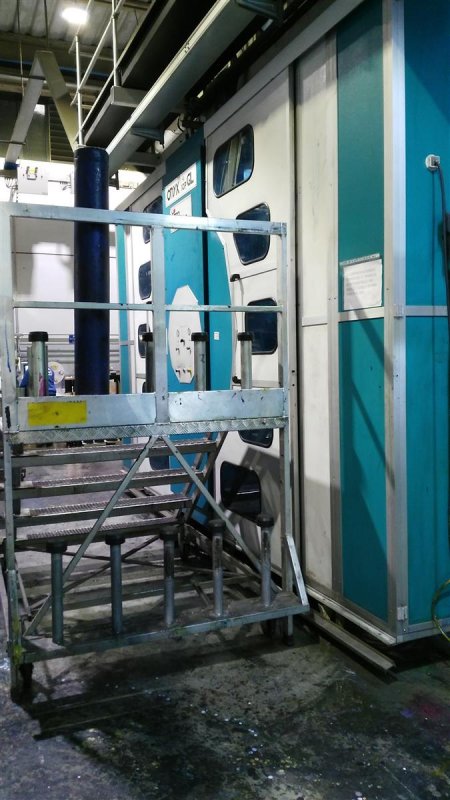

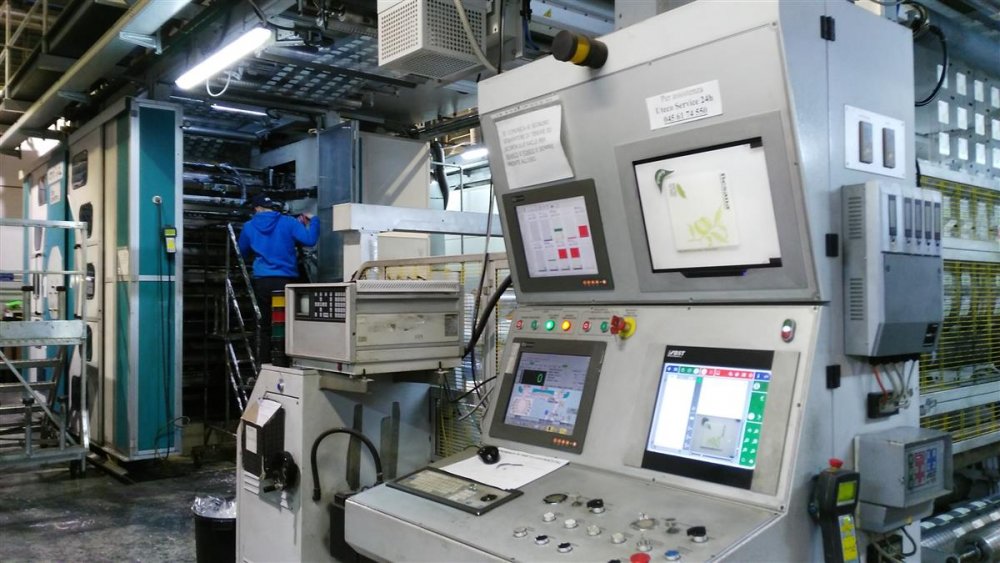

UTECO ONYX 107 flexo press 10 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL630
Manufacturer UTECO
Model ONYX 107
Year 2010
Number of colors 10
Print possibilities 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 800
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , 5 mt tunnel , two gas burners 150.000 kcal /h
Videocamera BST Premius digital with register control
Web guides yes in and out
Vyscosity control yes 8 automatic
Washing system yes automatic wash up system for closed chamber doctor blades and anilox
Inking system Solvent based
Anilox 10 anilox ceramic sleeves
Print Sleeves to be agreed
Additional information Mechanical speed 400m/min

Others in the same category:

202107 - OFEM JULIETTE

OFEM JULIETTE

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 600

Year: 2000

202535 - PCMC Infiniti II

PCMC Infiniti II

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1245

Year: 2003

214117 - FLEXOTECNICA NG10

FLEXOTECNICA NG10

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1050

Year: 2007

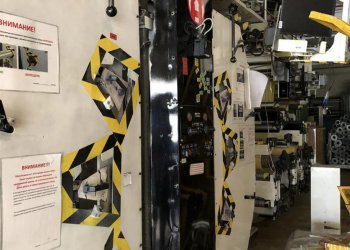

3571 - WINDMÖLLER & HÖLSCHER SOLOFLEX
