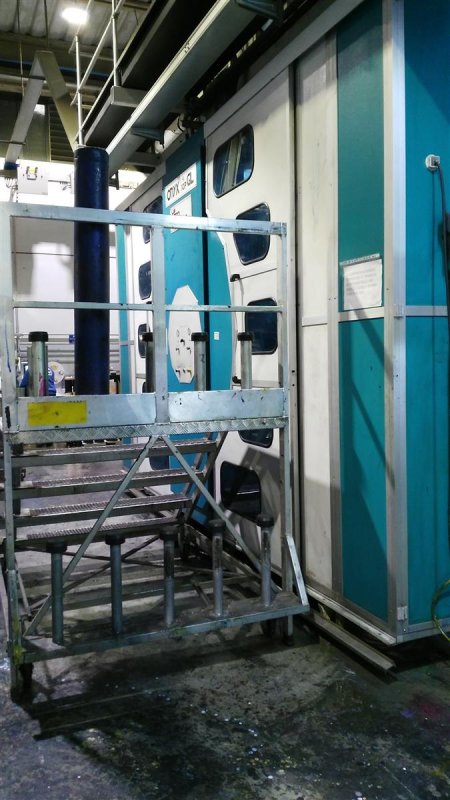

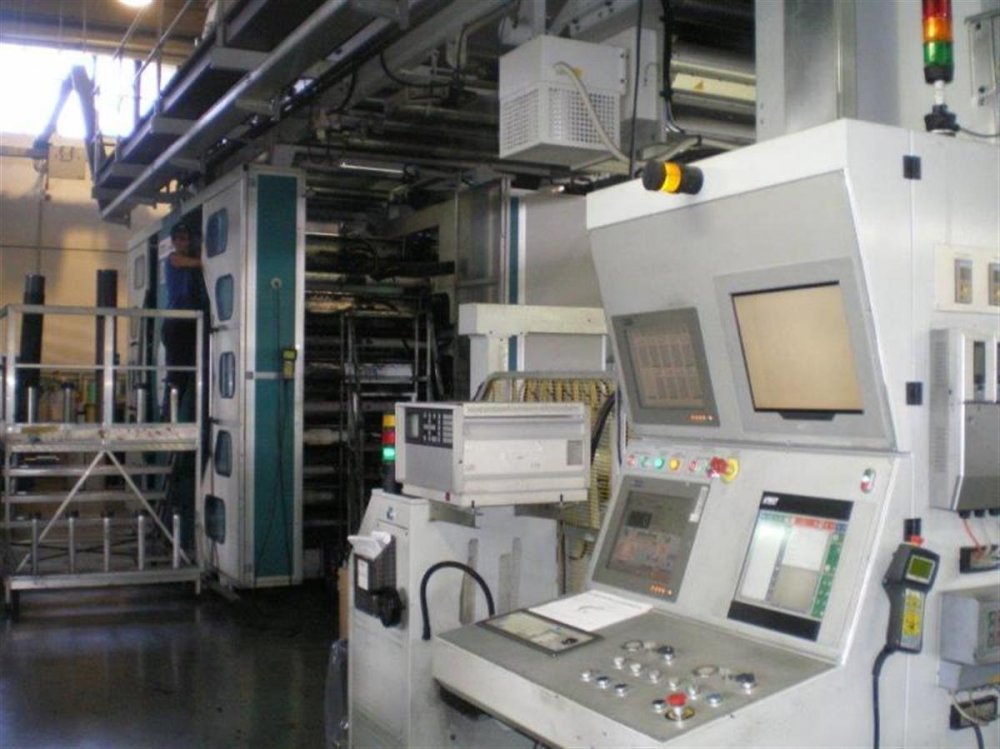

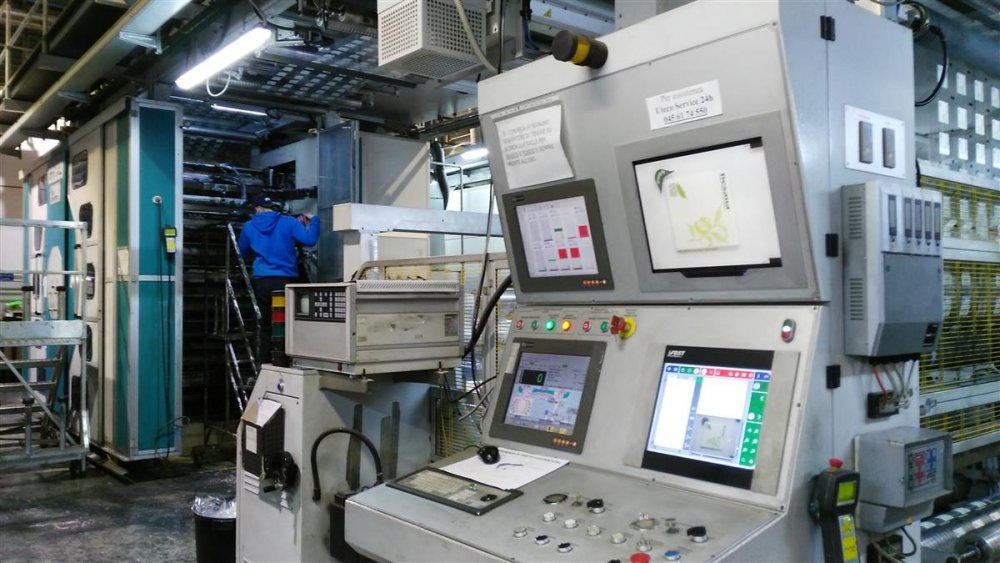

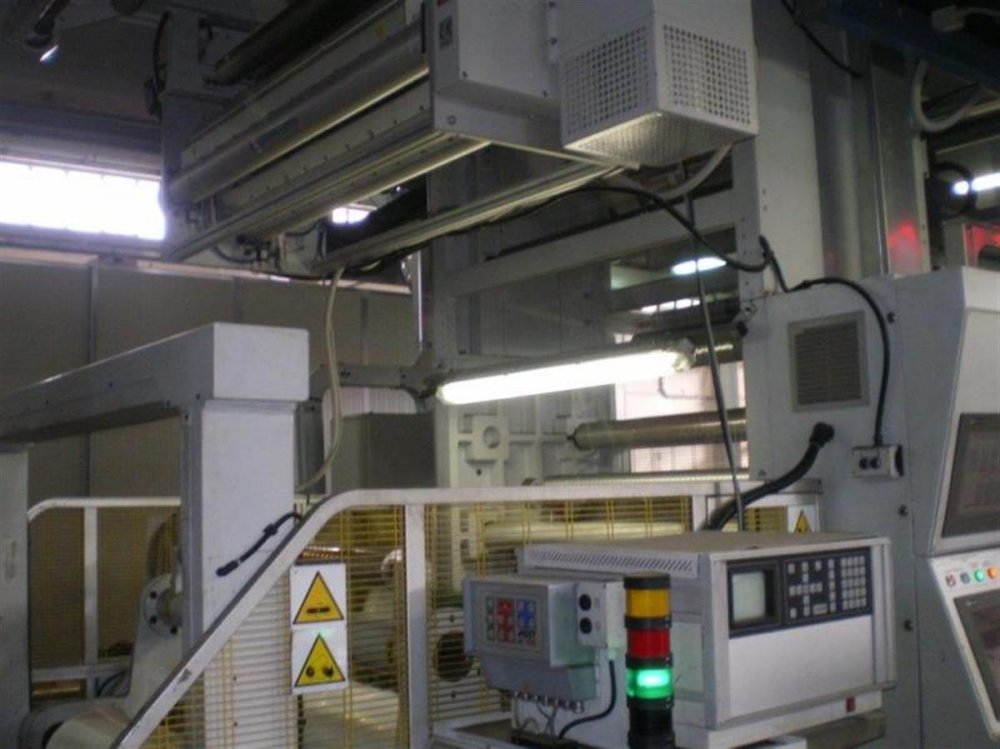

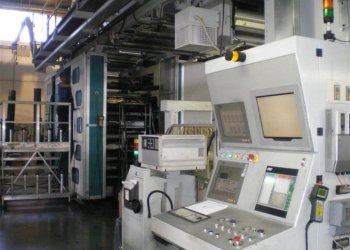

UTECO ONYX 107 flexographic printing machine 10 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL630
Manufacturer UTECO
Model ONYX 107
Year 2010
Number of colors 10
Print possibilities 10+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 800
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , 5 mt tunnel , two gas burners 150.000 kcal /h
Videocamera BST Premius digital with register control
Web guides yes in and out
Vyscosity control yes 8 automatic
Washing system yes automatic wash up system for closed chamber doctor blades and anilox
Inking system Solvent based
Anilox 10 anilox ceramic sleeves
Print Sleeves to be agreed
Additional information Mechanical speed 400m/min
