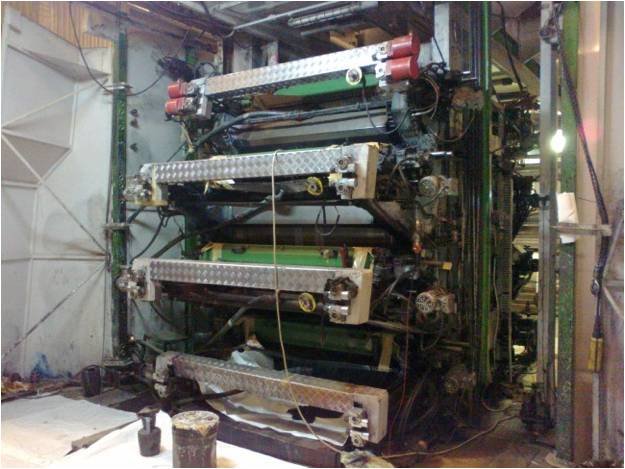

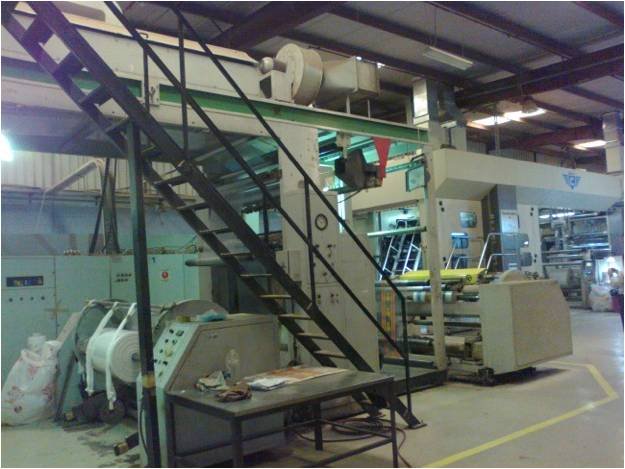

BIELLONI REGINA EASY flexo press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL451
Manufacturer
BIELLONI
Model
REGINA EASY
Year
1995
Number of colors
8
Gearless
No
Fast sleeve change
No
Web width (mm)
1470
Print width (mm)
1400
Min print repeat (mm)
350
Max print repeat (mm)
800

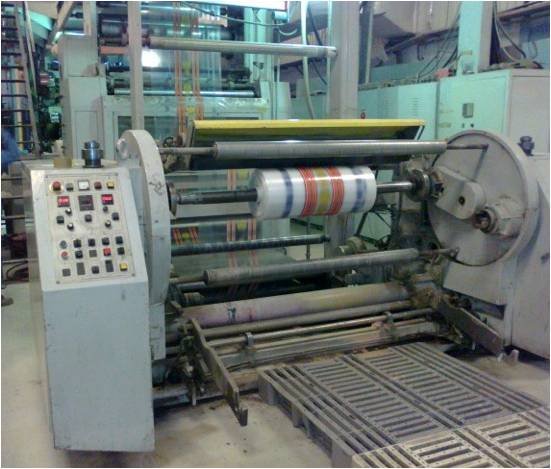

Unwinder type
Turret
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret
Max reel diameter rewinder (mm)
1000
Drying
Electric heaters
Videocamera
Crossfield (not working)
Web guides
Before and after printing
Vyscosity control
Crossfield (not working)
Inking system
yes
Anilox
12, 180 l/cm / 8 cm³/m² ( 1pcs ) ;220 l/cm / 6 cm³/m² ( 4pcs ) ;260 l/cm /5 cm³/m² ( 1pcs ) ;120 l/cm / 11 cm³/m² ( 1pcs ) ;140 l/cm / 15 cm³/m² ( 1pcs ) ; 100 l/cm / 16 cm³/m² ( 1pcs )
Print cylinders
8 x 385, 400, 410, 450, 470, 510, 530, 550, 610, 650, 720
Additional information
CI gear type; Speed: 100 -150m/min; Chill role unit; Bridge with air dryer; Unwinder/rewinder include two air shafts. ;Spare rollers ± 6 pieces
Machine Code FL451
Manufacturer BIELLONI
Model REGINA EASY
Year 1995
Number of colors 8
Gearless No
Fast sleeve change No
Web width (mm) 1470
Print width (mm) 1400
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying Electric heaters
Videocamera Crossfield (not working)
Web guides Before and after printing
Vyscosity control Crossfield (not working)
Inking system yes
Anilox 12, 180 l/cm / 8 cm³/m² ( 1pcs ) ;220 l/cm / 6 cm³/m² ( 4pcs ) ;260 l/cm /5 cm³/m² ( 1pcs ) ;120 l/cm / 11 cm³/m² ( 1pcs ) ;140 l/cm / 15 cm³/m² ( 1pcs ) ; 100 l/cm / 16 cm³/m² ( 1pcs )
Print cylinders 8 x 385, 400, 410, 450, 470, 510, 530, 550, 610, 650, 720
Additional information CI gear type; Speed: 100 -150m/min; Chill role unit; Bridge with air dryer; Unwinder/rewinder include two air shafts. ;Spare rollers ± 6 pieces
