Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1201
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Miraflex
- Year
- 2013
- Number of colors
- 8
- Overhaul/renovation
- We camera and inspection system
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans, 2 gas burners

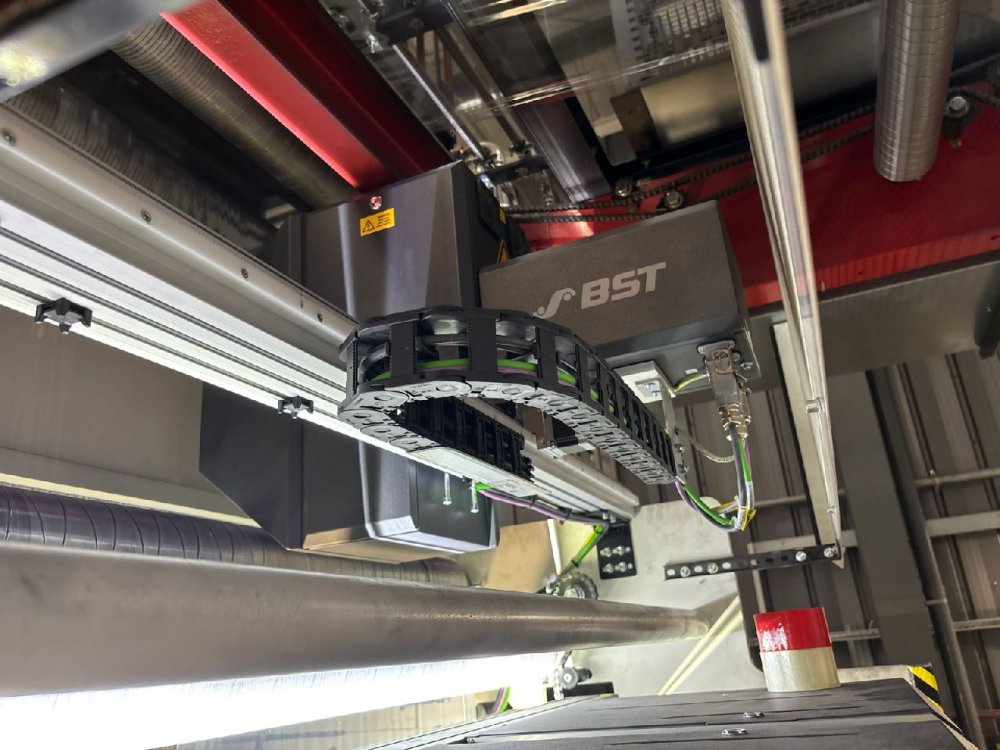

- Videocamera
- year 2024 with automatic quality inspection system
- Corona treatment
- YEs
- Vyscosity control
- automatic
- Washing system
- TURBOCLEAN automatic washing system
- Inking system
- closed chamber doctor blades
- Anilox
- 26 aniloxes
- Print Sleeves
- 295 sleeves - 8x300mm, 8x310mm, 8x315mm, 8x320mm, 8x325mm, 12x330mm, 12x340mm, 8x350mm, 8x355mm, 8x360mm, 8x370mm, 8x380mm, 8x385mm, 8x390mm, 8x400mm, 8x410mm, 8x420mm, 8x430mm,8x440mm, 8x450mm, 8x460mm, 8x470mm, 18x480mm, 8x500mm, 8x510mm, 12x520mm, 8x530mm, 8x540mm, 8x560mm, 8x570mm, 9x580mm, 8x590mm, 8x620mm, 8x660mm
- Note
- max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“
| Machine Code | FL1201 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Miraflex |
| Year | 2013 |
| Number of colors | 8 |
| Overhaul/renovation | We camera and inspection system |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans, 2 gas burners |
| Videocamera | year 2024 with automatic quality inspection system |
| Corona treatment | YEs |
| Vyscosity control | automatic |
| Washing system | TURBOCLEAN automatic washing system |
| Inking system | closed chamber doctor blades |
| Anilox | 26 aniloxes |
| Print Sleeves | 295 sleeves - 8x300mm, 8x310mm, 8x315mm, 8x320mm, 8x325mm, 12x330mm, 12x340mm, 8x350mm, 8x355mm, 8x360mm, 8x370mm, 8x380mm, 8x385mm, 8x390mm, 8x400mm, 8x410mm, 8x420mm, 8x430mm,8x440mm, 8x450mm, 8x460mm, 8x470mm, 18x480mm, 8x500mm, 8x510mm, 12x520mm, 8x530mm, 8x540mm, 8x560mm, 8x570mm, 9x580mm, 8x590mm, 8x620mm, 8x660mm |
| Note | max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“ |
