Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code

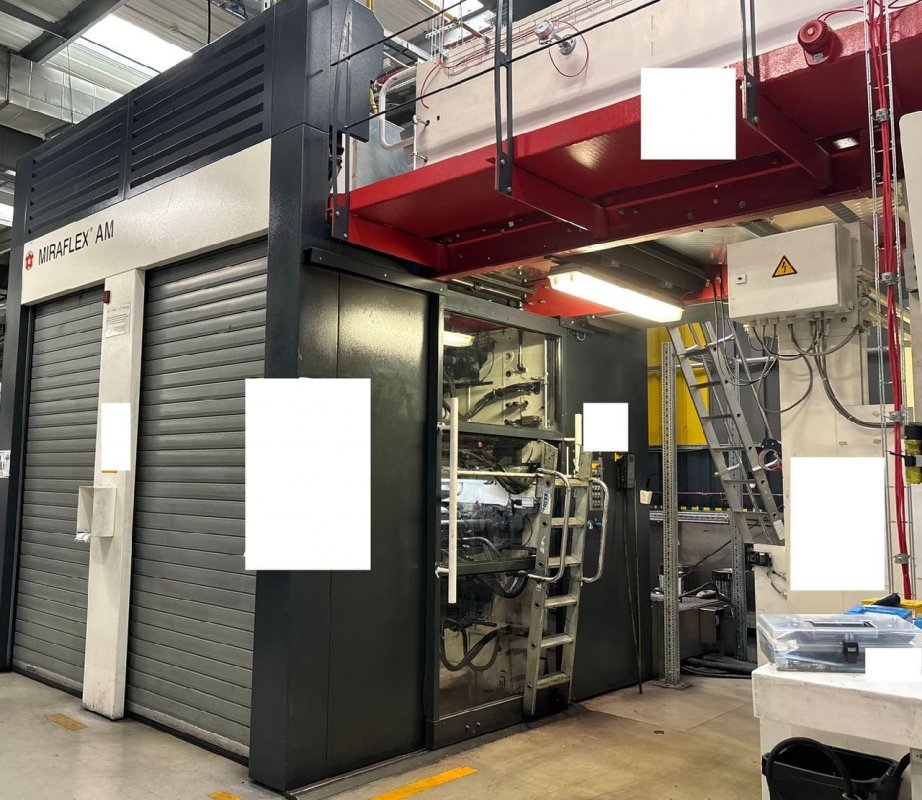

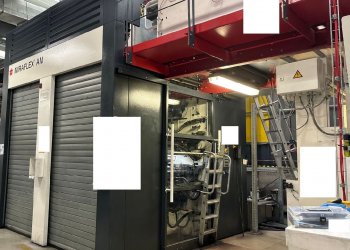

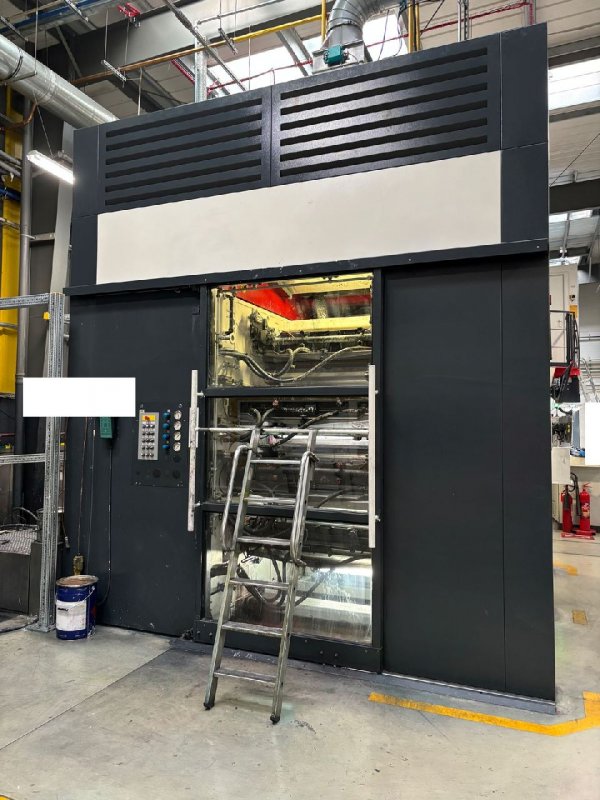

- FL1201
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- Miraflex
- Year
- 2013
- Number of colors
- 8
- Overhaul/renovation
- We camera and inspection system
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans, 2 gas burners

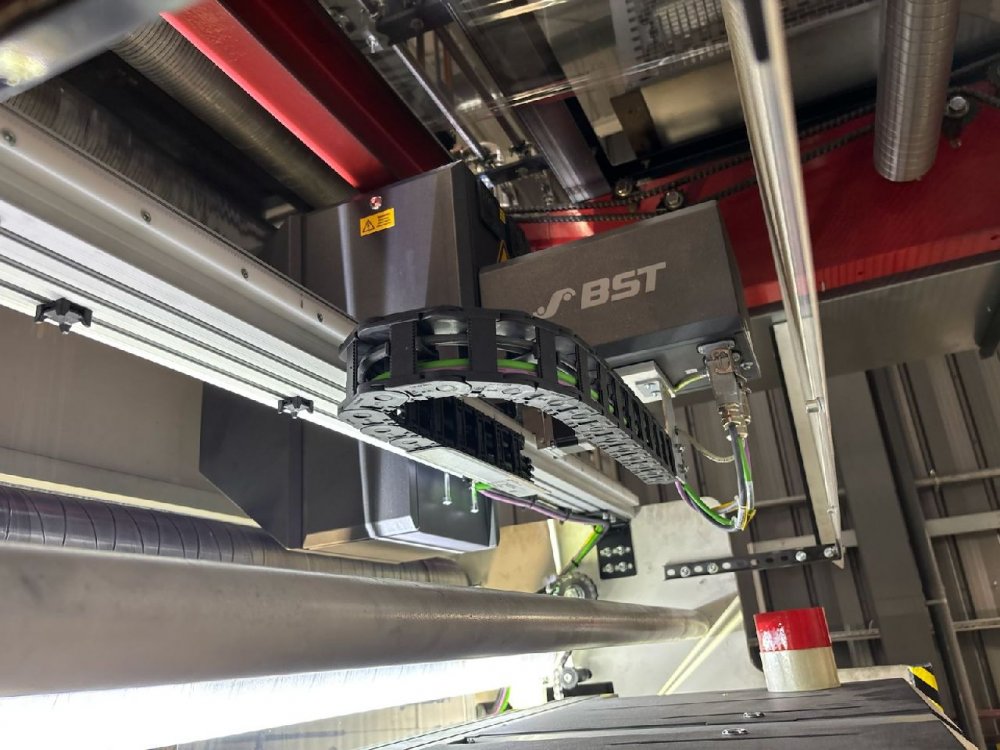

- Videocamera
- year 2024 with automatic quality inspection system
- Corona treatment
- YEs
- Vyscosity control
- automatic
- Washing system
- TURBOCLEAN automatic washing system

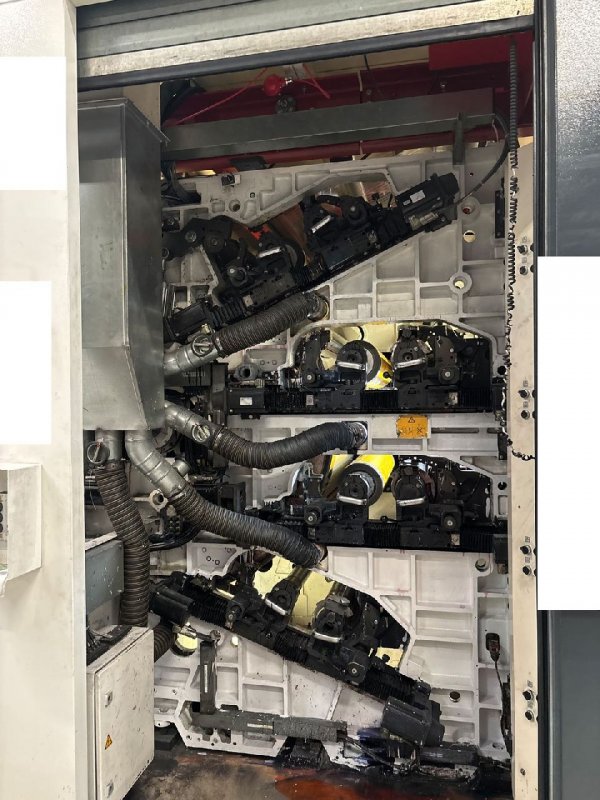

- Inking system
- closed chamber doctor blades
- Anilox
- 32 ceramic anilox sleeves as follows 10 x 400 L/cm- vol.3,5 ; 4 x 470 L/cm- vol.3,5 ; 4x 340 L/cm-vol.5,5 ; 2x 300 L/cm-vol.7 ; 2x 280 L/cm-vol.8 ; 2x 200 L/cm-vol.10; 2x 160 L//cm- vol.10; 2x 120 L/cm-vol.12 ; 2x 100 L/cm-vol.15 ; 1x 140 L/cm- vol 16,5 1x 60 L/cm- vol 20
- Print Sleeves
- 260 sleeves - 8 for each following repeat 300 mm, 310 mm, 320 mm, 325 mm, 330 mm, 340 mm, 350 mm, 355 mm, 360 mm, 370 mm, 380 mm, 385 mm , 390 mm, 400 mm, 410 mm, 420 mm,430 mm, 440 mm, 450 mm, 460 mm, 470 mm, 480 mm (x16 ) , 500 mm , 510 mm, 520 mm, 540 mm, 560 mm, 580 mm, 590 mm, 620 mm, 660 mm
- Note
- max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“
| Machine Code | FL1201 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Miraflex |
| Year | 2013 |
| Number of colors | 8 |
| Overhaul/renovation | We camera and inspection system |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans, 2 gas burners |
| Videocamera | year 2024 with automatic quality inspection system |
| Corona treatment | YEs |
| Vyscosity control | automatic |
| Washing system | TURBOCLEAN automatic washing system |
| Inking system | closed chamber doctor blades |
| Anilox | 32 ceramic anilox sleeves as follows 10 x 400 L/cm- vol.3,5 ; 4 x 470 L/cm- vol.3,5 ; 4x 340 L/cm-vol.5,5 ; 2x 300 L/cm-vol.7 ; 2x 280 L/cm-vol.8 ; 2x 200 L/cm-vol.10; 2x 160 L//cm- vol.10; 2x 120 L/cm-vol.12 ; 2x 100 L/cm-vol.15 ; 1x 140 L/cm- vol 16,5 1x 60 L/cm- vol 20 |
| Print Sleeves | 260 sleeves - 8 for each following repeat 300 mm, 310 mm, 320 mm, 325 mm, 330 mm, 340 mm, 350 mm, 355 mm, 360 mm, 370 mm, 380 mm, 385 mm , 390 mm, 400 mm, 410 mm, 420 mm,430 mm, 440 mm, 450 mm, 460 mm, 470 mm, 480 mm (x16 ) , 500 mm , 510 mm, 520 mm, 540 mm, 560 mm, 580 mm, 590 mm, 620 mm, 660 mm |
| Note | max. working speed 400m/min Automatic Impression setting „EASY SET HD“ Automatic Register setting „EASY REG S“ Colour maching system „EASY COL“ |
