Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1187
- Manufacturer
- KBA FLEXOTECNICA
- Modello
- EVO XDN
- Year
- 2017
- Number of colors
- 8
- Print possibilityes
- 8+1 (stack)
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 950
- Print width (mm)
- 900
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 950

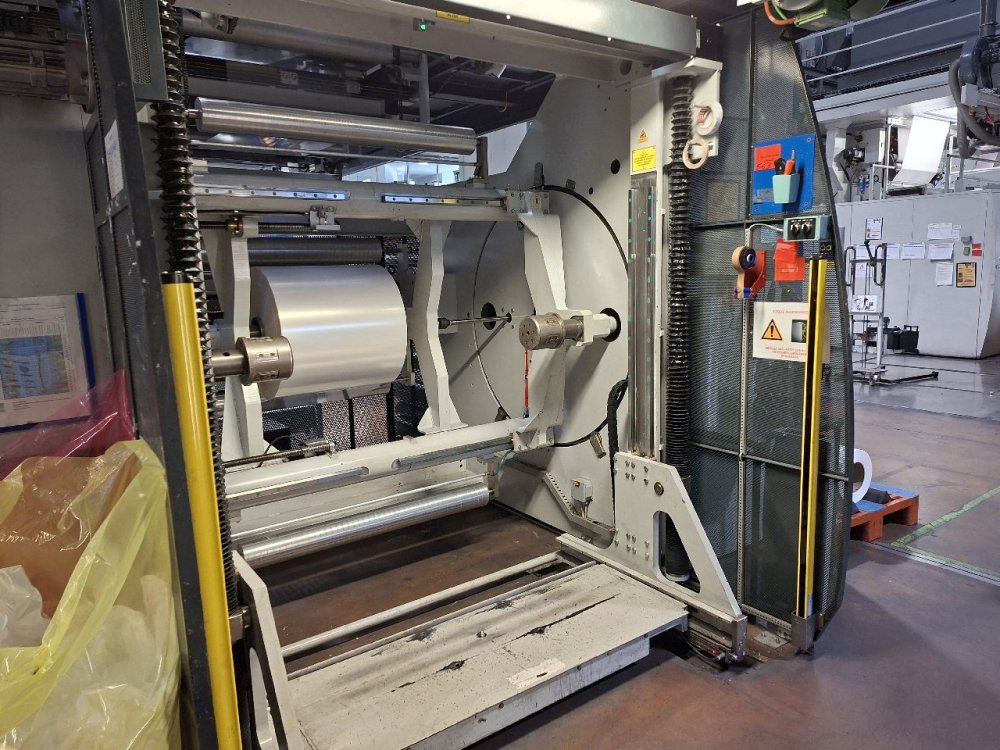

- Unwinder type
- Turret automatic Shaftless
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic Shaftless
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones on CI with 3mt final tunnel and thermo oil heat exchangers , 1 zone with double hood 2x 15 mt on Stack uniy
- Videocamera
- Yes BST 100% and matrix camera
- Corona treatment
- Yes ME.RO.
- Web guides
- Yes in and out
- Vyscosity control
- New Celio
- Washing system
- Yes automatic Rossini
- Inking system
- Closed chamber doctor blades
- Anilox
- 29
- Print Sleeves
- 168 approx.
- Print cylinders
- 4 set of 8 +1 carriers
| Machine Code | FL1187 |
| Manufacturer | KBA FLEXOTECNICA |
| Modello | EVO XDN |
| Year | 2017 |
| Number of colors | 8 |
| Print possibilityes | 8+1 (stack) |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 950 |
| Print width (mm) | 900 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 950 |
| Unwinder type | Turret automatic Shaftless |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic Shaftless |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones on CI with 3mt final tunnel and thermo oil heat exchangers , 1 zone with double hood 2x 15 mt on Stack uniy |
| Videocamera | Yes BST 100% and matrix camera |
| Corona treatment | Yes ME.RO. |
| Web guides | Yes in and out |
| Vyscosity control | New Celio |
| Washing system | Yes automatic Rossini |
| Inking system | Closed chamber doctor blades |
| Anilox | 29 |
| Print Sleeves | 168 approx. |
| Print cylinders | 4 set of 8 +1 carriers |
