Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1173
- Manufacturer
- UTECO
- Modello
- ONYX 876 + 1
- Year
- 2007
- Print possibilityes
- 8+1
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 760
- Unwinder type
- Single position with roll loading system
- Max reel diameter unwinder (mm)
- 1250
- Rewinder type
- Single position with roll loading system
- Max reel diameter rewinder (mm)
- 1250
- Drying
- 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters
- Videocamera
- Yes , Selectra
- Web guides
- Yes in and out Fife OPG
- Inking system
- Closed chamber doctor blades
- Anilox
- 9 ceramic anilox sleeves
- Print Sleeves
- to be agreed
- Note
- Flexo stack coating unit downsytream with Grafykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg
| Machine Code | FL1173 |
| Manufacturer | UTECO |
| Modello | ONYX 876 + 1 |
| Year | 2007 |
| Print possibilityes | 8+1 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 760 |
| Unwinder type | Single position with roll loading system |
| Max reel diameter unwinder (mm) | 1250 |
| Rewinder type | Single position with roll loading system |
| Max reel diameter rewinder (mm) | 1250 |
| Drying | 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters |
| Videocamera | Yes , Selectra |
| Web guides | Yes in and out Fife OPG |
| Inking system | Closed chamber doctor blades |
| Anilox | 9 ceramic anilox sleeves |
| Print Sleeves | to be agreed |
| Note | Flexo stack coating unit downsytream with Grafykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg |
UTECO DIAMOND HP 108
-
Machine Code: FL1012
-
Year: 2009
-
Web width (mm): 1350

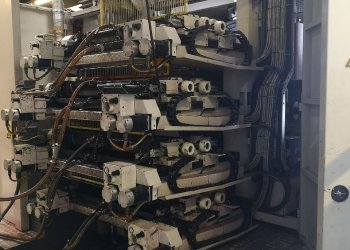

COMEXI FP 1808
-
Machine Code: FL1197
-
Year: 2000
-
Web width (mm): 1070
BIELLONI Bielloflex GALA
-
Machine Code: FL1149
-
Year: 1992
-
Web width (mm): 1480

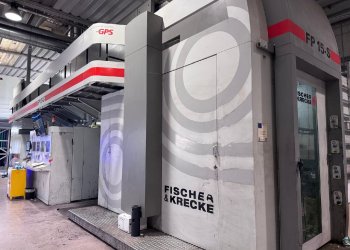

BOBST FISCHER & KRECKE 15S
-
