Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1169
- Manufacturer
- UTECO
- Modello
- EMERALD 825
- Year
- 2001
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- YES CI Drum recoated in 2020
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

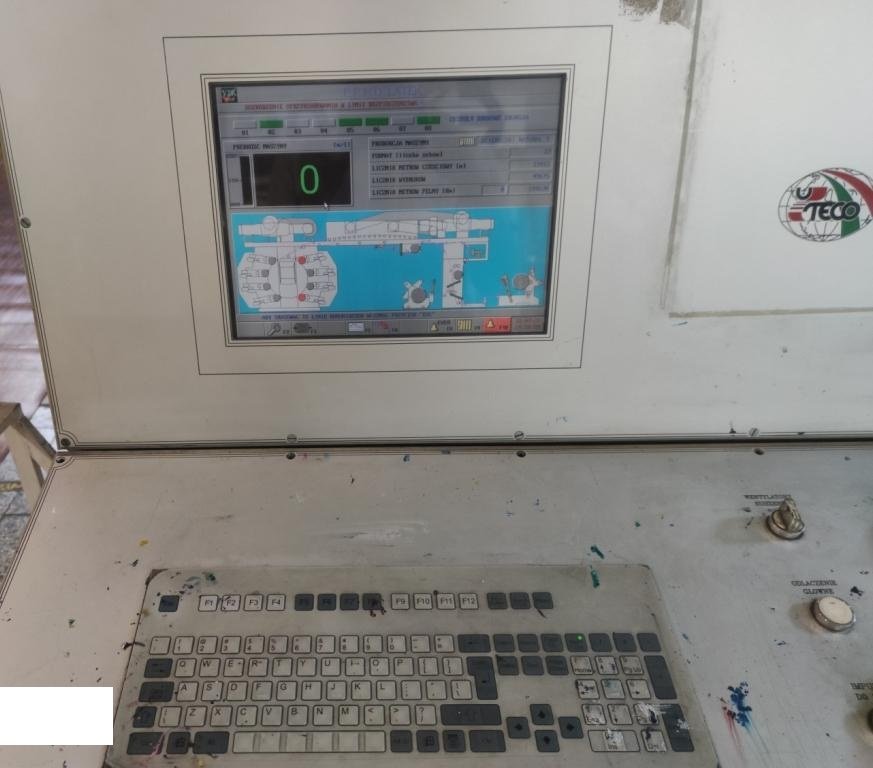

- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 800
- Min print repeat (mm)
- 270
- Max print repeat (mm)
- 650
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zons 4 fan , 4 mt final tunnel

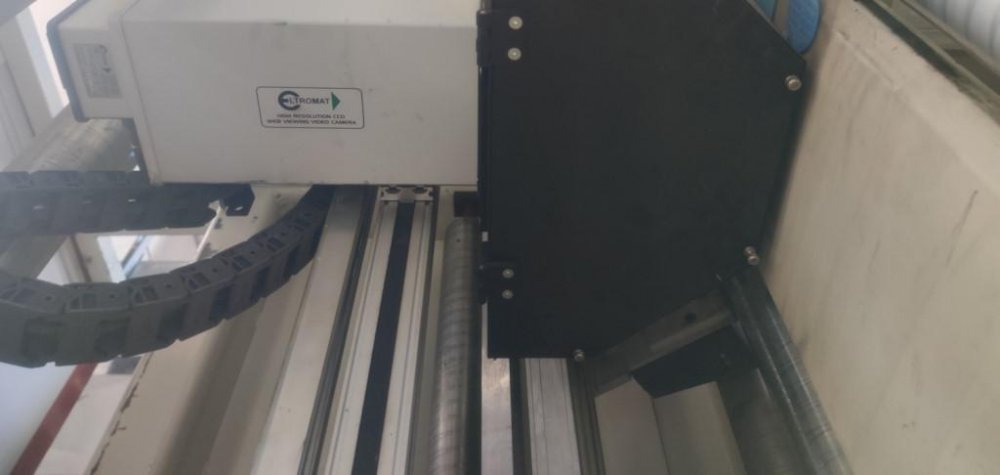

- Videocamera
- yes Eltromat
- Web guides
- Yes in and out
- Inking system
- Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps.

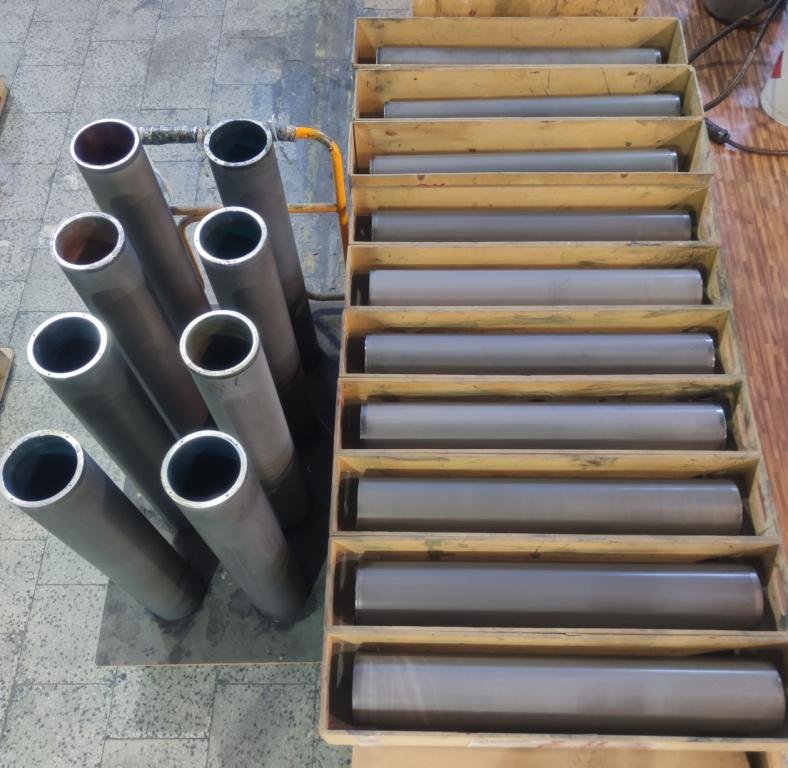

- Anilox
- 21 ceramic anilox sleeves 1x 80 L/cm, 3 x 100 L/cm , 4 x 120 L/cm , 3x 160 L/cm , 3x 200 L/cm , 1x 255 L/cm , 4x 285 L/cm , 1x 330 L/cm , 1x 340 L/cm

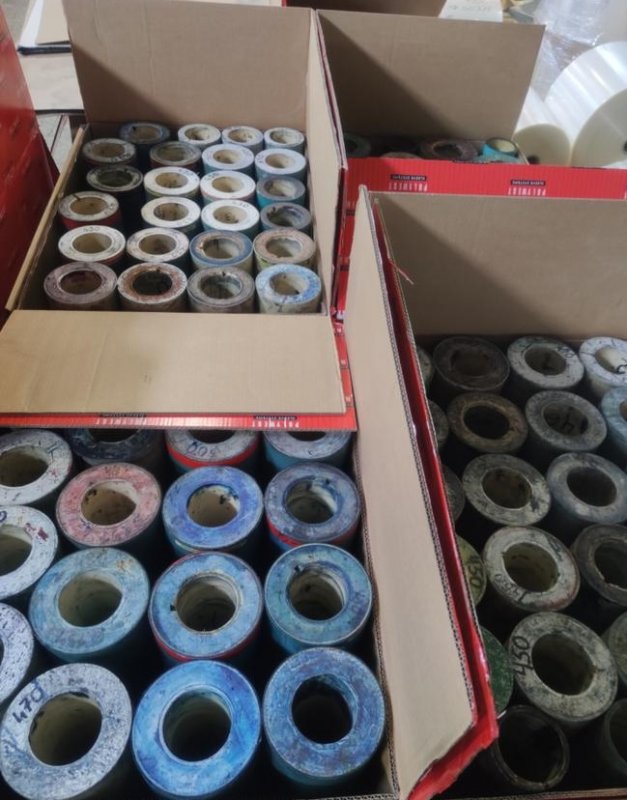

- Print Sleeves

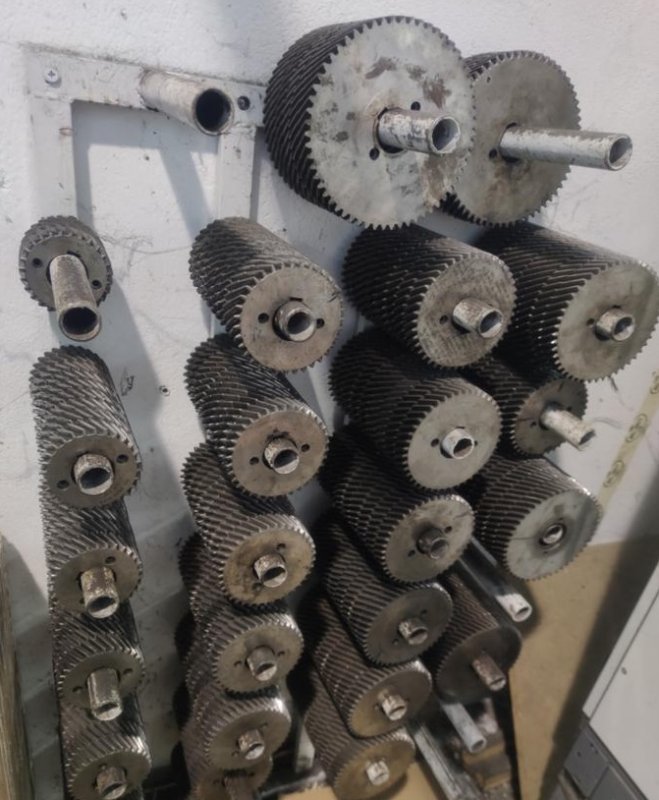

- 10 x each following repeat 270mm , 280 , 300 , 310 , 320 , 340 , 360 , 400 , 520 ; 8 for each following repeat 330 , 350 , 370 , 380 , 390 , 440 , 450 , 460 , 470 , 500 , ; Twinlock sleeves 8 for each following 350 , 360 , 380 , 410 , 420 , 430 , 80 , 500
| Machine Code | FL1169 |
| Manufacturer | UTECO |
| Modello | EMERALD 825 |
| Year | 2001 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | YES CI Drum recoated in 2020 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 850 |
| Print width (mm) | 800 |
| Min print repeat (mm) | 270 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 800 |

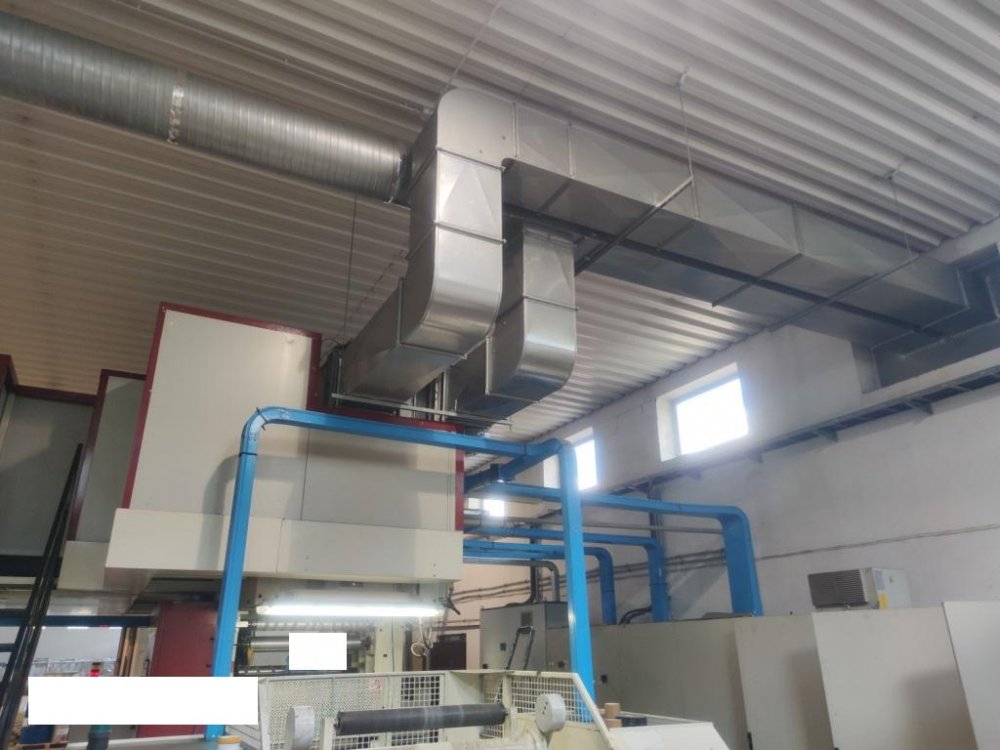

| Drying | 2 zons 4 fan , 4 mt final tunnel |
| Videocamera | yes Eltromat |
| Web guides | Yes in and out |
| Inking system | Closed chamber doctor blades and ceramic anilox rollers N° 8Ink Pumps. |
| Anilox | 21 ceramic anilox sleeves 1x 80 L/cm, 3 x 100 L/cm , 4 x 120 L/cm , 3x 160 L/cm , 3x 200 L/cm , 1x 255 L/cm , 4x 285 L/cm , 1x 330 L/cm , 1x 340 L/cm |
| Print Sleeves | 10 x each following repeat 270mm , 280 , 300 , 310 , 320 , 340 , 360 , 400 , 520 ; 8 for each following repeat 330 , 350 , 370 , 380 , 390 , 440 , 450 , 460 , 470 , 500 , ; Twinlock sleeves 8 for each following 350 , 360 , 380 , 410 , 420 , 430 , 80 , 500 |
