Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1183
- Manufacturer
- TCM
- Year
- 2000
- Number of colors
- 6
- Print possibilityes
- 4 CI +2 stack
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No

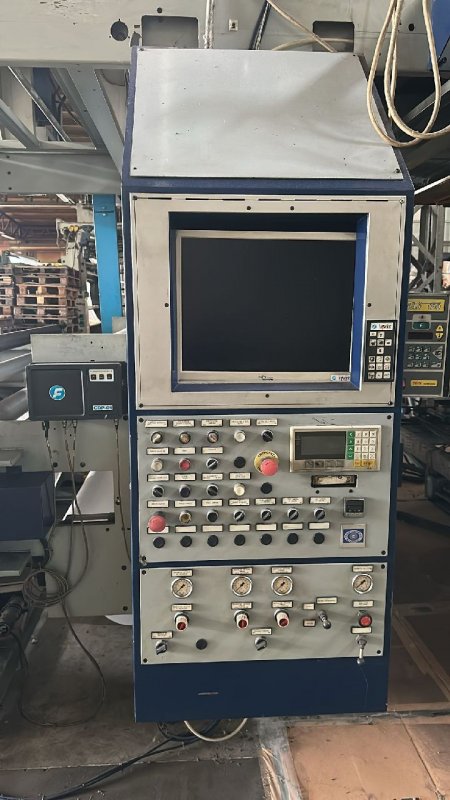

- Computer supervision
- Yes
- Web width (mm)
- 1900
- Print width (mm)
- 1800
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 800
- Unwinder type
- Single position
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Single position
- Max reel diameter rewinder (mm)
- 1200
- Drying
- 1zone for Ci , 1 zone for stack unot , gas burners
- Videocamera
- Yes INPRINT
- Web guides
- yes in and out
- Inking system
- Closed chamber doctor blades and pneumatic ink pumps
- Anilox
- 6 ceramic anilox rollers
- Note
- Register control by ZELO between CI and stack unit
| Machine Code | FL1183 |
| Manufacturer | TCM |
| Year | 2000 |
| Number of colors | 6 |
| Print possibilityes | 4 CI +2 stack |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1900 |
| Print width (mm) | 1800 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single position |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Single position |
| Max reel diameter rewinder (mm) | 1200 |
| Drying | 1zone for Ci , 1 zone for stack unot , gas burners |
| Videocamera | Yes INPRINT |
| Web guides | yes in and out |
| Inking system | Closed chamber doctor blades and pneumatic ink pumps |
| Anilox | 6 ceramic anilox rollers |
| Note | Register control by ZELO between CI and stack unit |
