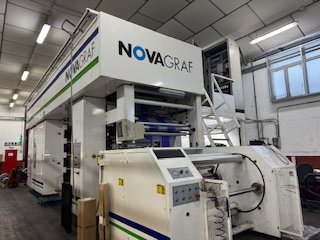

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1143
- Manufacturer
- NOVAGRAF
- Modello
- FL 8000
- Year
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 750

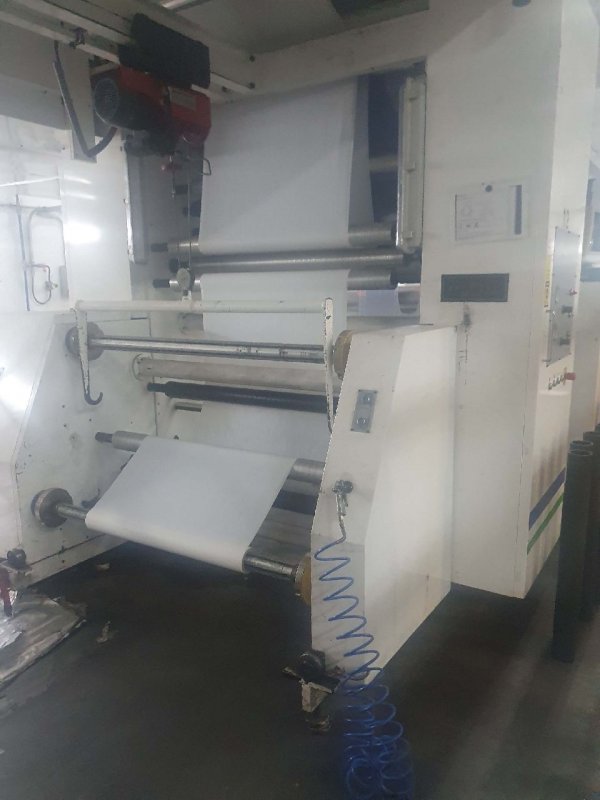

- Unwinder type
- Manual double tandem
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Electric drying system
- Anilox
- 4 x 360 , 4 x 140 , 1 x 180 , 1 x 140 l/cm
- Print Sleeves
- 8x380 (1,14) 8x390 (2,54) 8x400 (1,14) 6x400 (2,54) 8x420 (1,14) 8x440 (1,14) 8x450 (1,14) 8x470 (1,14) 8x500 (1,14) 8x510 (1,14) 8x540 (1,14) 8x550 (1,14) 8x560 (1,14) 8x600 (1,14) 8x640 (1,14) 8x680 (1,14), 1x450
| Machine Code | FL1143 |
| Manufacturer | NOVAGRAF |
| Modello | FL 8000 |
| Year | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 750 |
| Unwinder type | Manual double tandem |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Electric drying system |
| Anilox | 4 x 360 , 4 x 140 , 1 x 180 , 1 x 140 l/cm |
| Print Sleeves | 8x380 (1,14) 8x390 (2,54) 8x400 (1,14) 6x400 (2,54) 8x420 (1,14) 8x440 (1,14) 8x450 (1,14) 8x470 (1,14) 8x500 (1,14) 8x510 (1,14) 8x540 (1,14) 8x550 (1,14) 8x560 (1,14) 8x600 (1,14) 8x640 (1,14) 8x680 (1,14), 1x450 |
