** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1138
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800

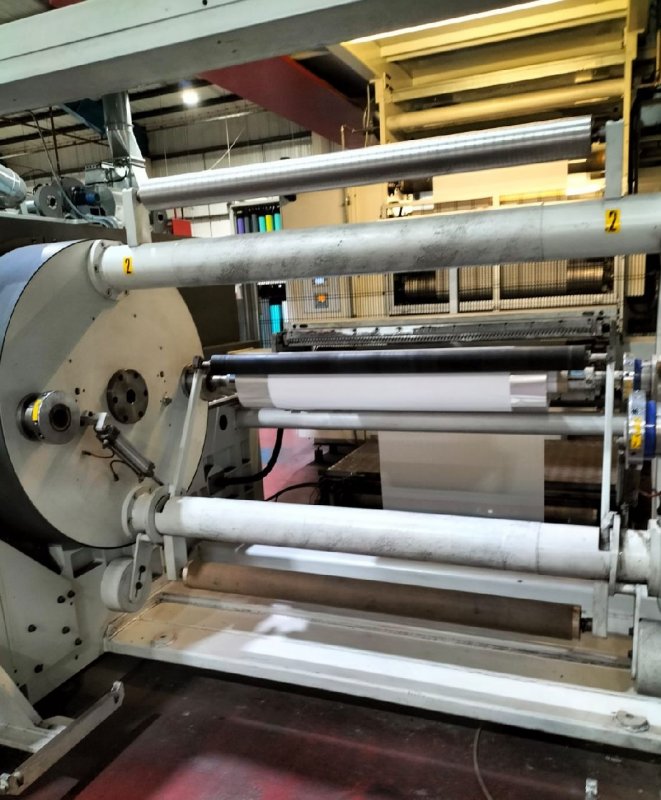

- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000

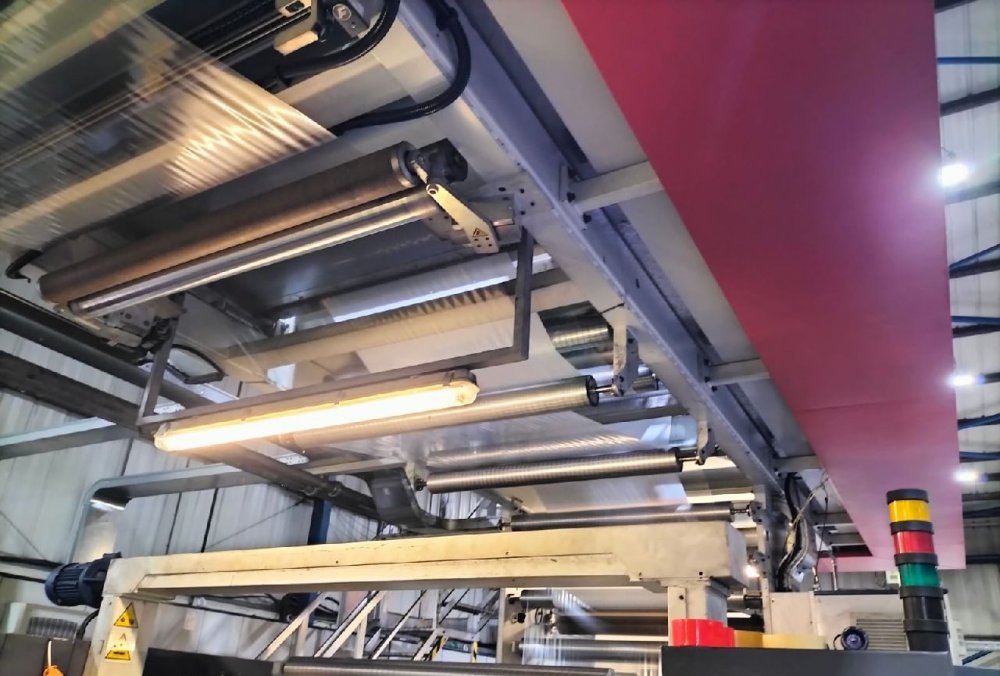

- Drying
- 2 ZONES 4 FANS- FINAL DRYING TUNNEL 4 MT - 2 GAS BURNERS- AUTOMATIC AIR RECIRCULATING SYSTEM WITH LEL control
- Videocamera
- Yes Grafykontrol with auto register control " Click& Drag"
- Web guides
- yes in and out Fife OPG
- Vyscosity control
- Yes
- Washing system
- Yes Automatic uteco Sprint wash system
- Inking system
- Closed chamber doctor blades
- Anilox
- 10 ceramic anilox sleeves
- Print Sleeves
- 3 sets
- Note
- Touch & Go Print setting system
| Machine Code | FL1138 |
| Manufacturer | UTECO |
| Modello | ONYX 808 |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 ZONES 4 FANS- FINAL DRYING TUNNEL 4 MT - 2 GAS BURNERS- AUTOMATIC AIR RECIRCULATING SYSTEM WITH LEL control |
| Videocamera | Yes Grafykontrol with auto register control " Click& Drag" |
| Web guides | yes in and out Fife OPG |
| Vyscosity control | Yes |
| Washing system | Yes Automatic uteco Sprint wash system |
| Inking system | Closed chamber doctor blades |
| Anilox | 10 ceramic anilox sleeves |
| Print Sleeves | 3 sets |
| Note | Touch & Go Print setting system |
