Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations

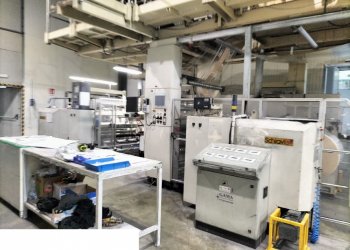

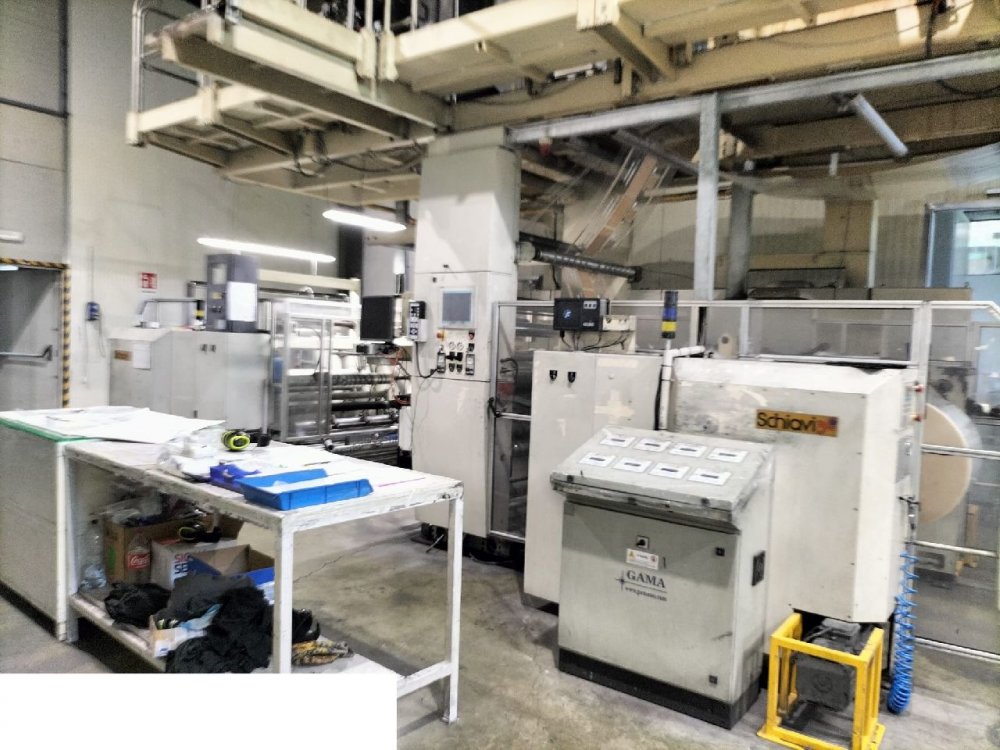

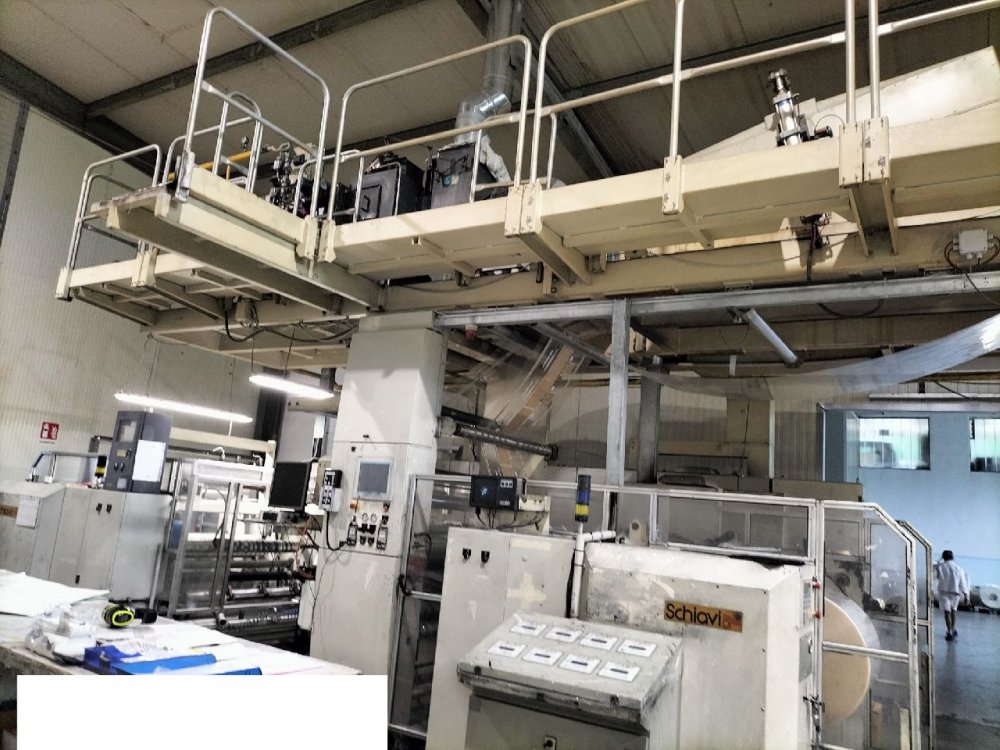

- Machine Code
- FL1105
- Manufacturer
- SCHIAVI
- Modello
- SIGMA
- Year
- 2002
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 700
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800

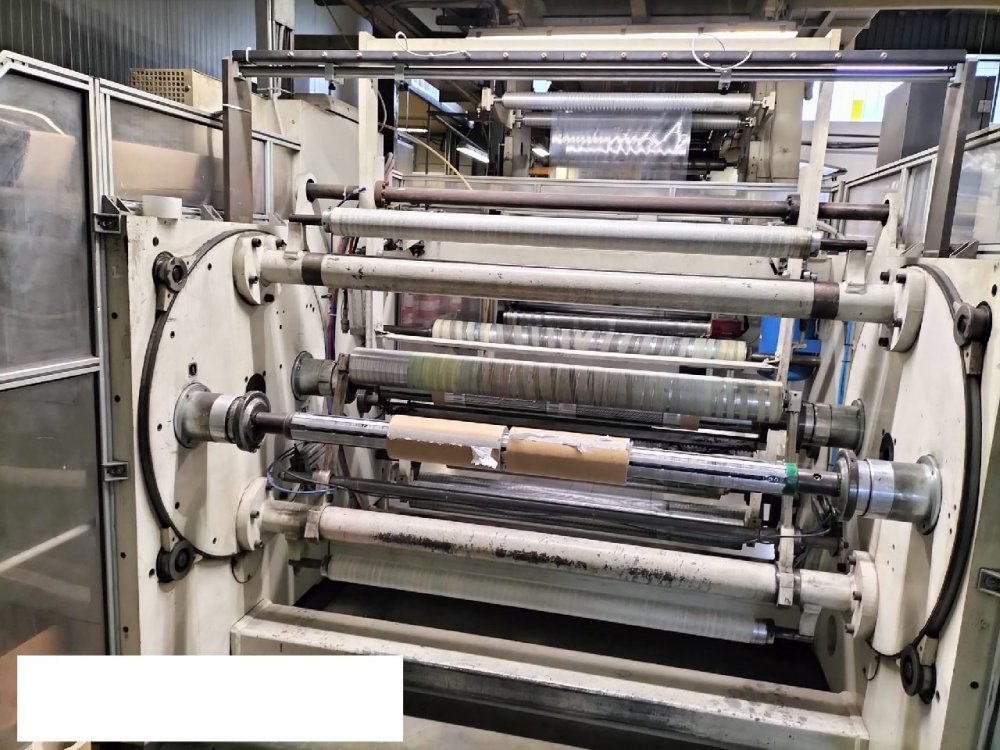

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control

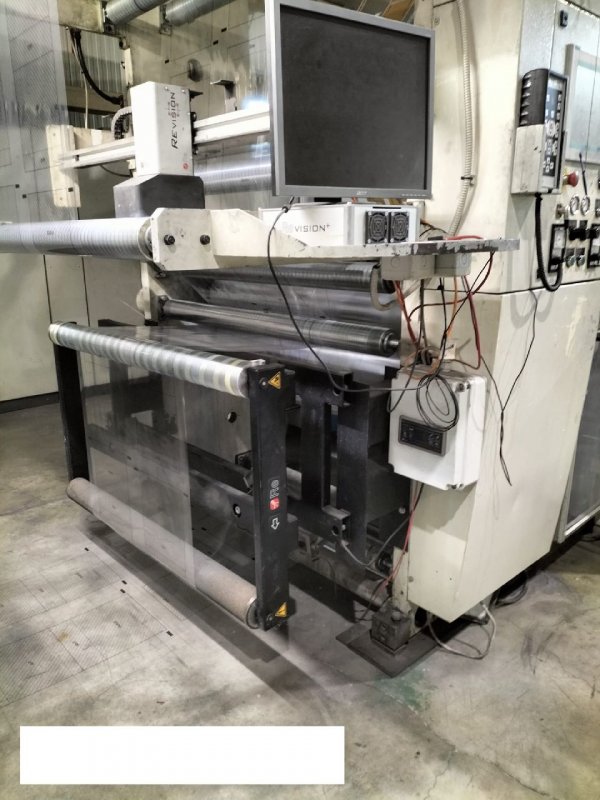

- Videocamera
- yes by RE
- Web guides
- Yes FIFE OPG in and out
- Vyscosity control
- Yes Automatic by Gama
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 4 sets
| Machine Code | FL1105 |
| Manufacturer | SCHIAVI |
| Modello | SIGMA |
| Year | 2002 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 700 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control |
| Videocamera | yes by RE |
| Web guides | Yes FIFE OPG in and out |
| Vyscosity control | Yes Automatic by Gama |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 4 sets |
