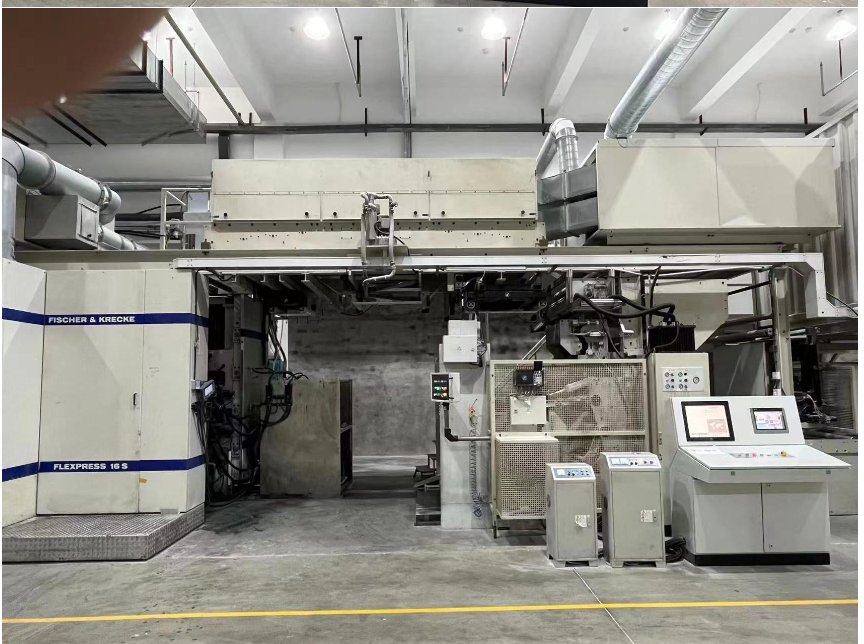

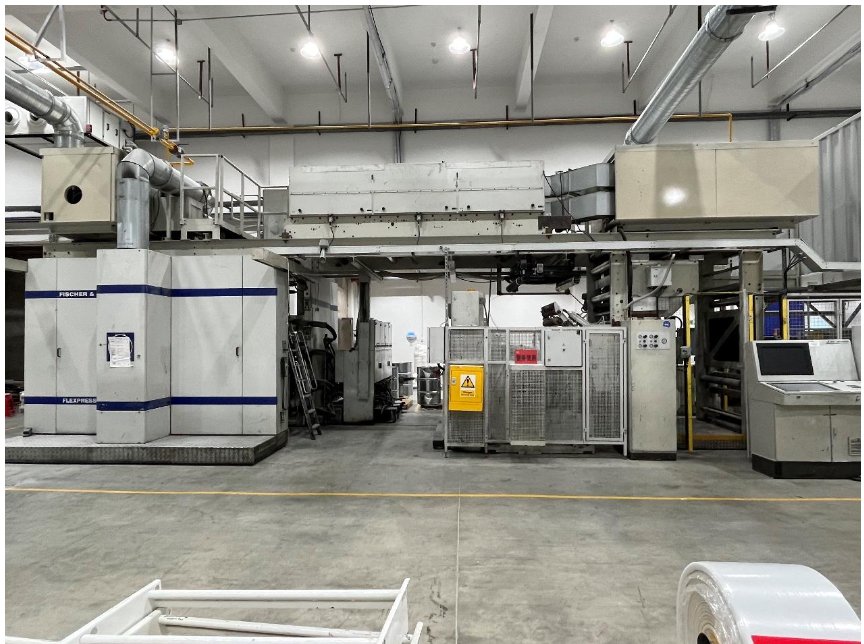

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
- Machine Code
- FL1086
- Manufacturer
- FISCHER & KRECKE
- Modello
- 16 S
- Year
- 2002
- Number of colors
- 8
- Print possibilityes
- 8+0 8+8 (half width)
- Overhaul/renovation

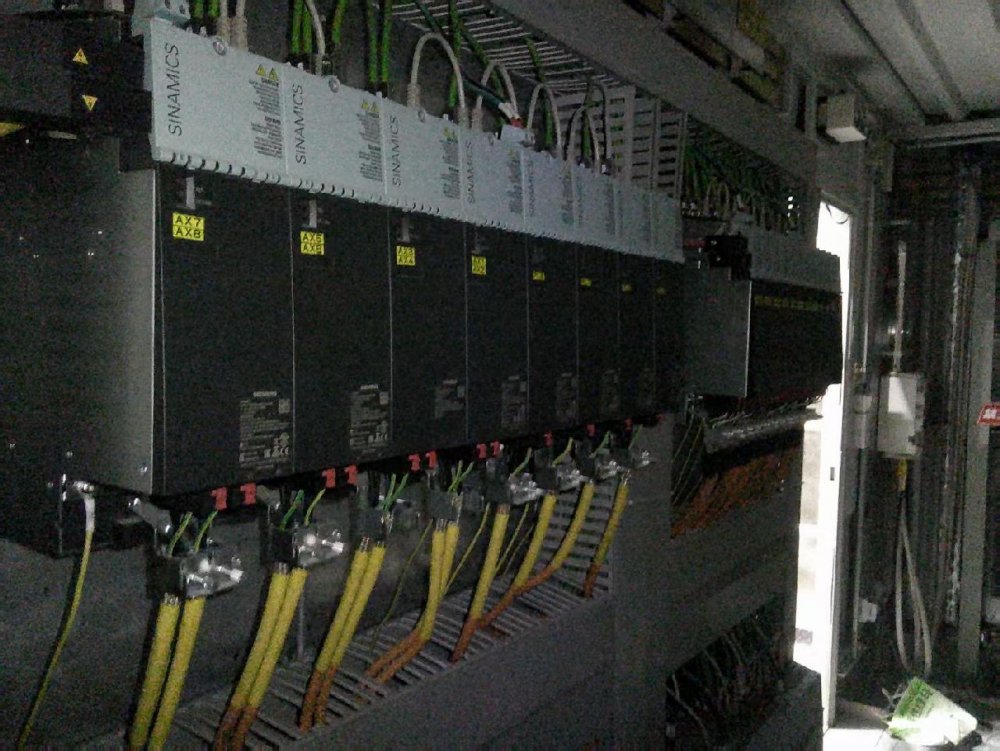

- PLC System and HMI renovated/upgraded. Electronic New supervisor and HMI. drives upgraded to Siemens Sinamics
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1150
- Print width (mm)
- 1100
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 780
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans final tunnel , 2 Thermo Oil heaters
- Videocamera
- Eltromat
- Corona treatment
- Yes

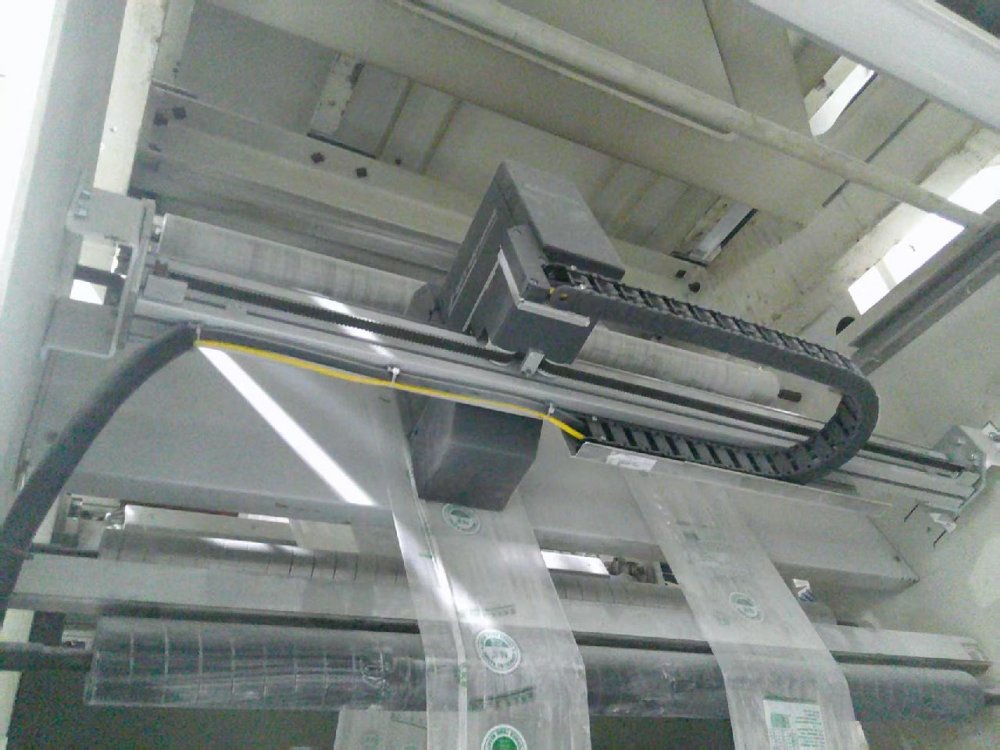

- Web guides
- yes in and out
- Vyscosity control
- Auto
- Washing system
- Yes
- Inking system
- Closed chamber doctor blade
- Anilox
- 24 ceramic anilox sleeves
- Print Sleeves
- 60 print sleeves
- Note
- Turning bar 8+8 Thermo conditioning unit with chiller
| Machine Code | FL1086 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 16 S |
| Year | 2002 |
| Number of colors | 8 |
| Print possibilityes | 8+0 8+8 (half width) |
| Overhaul/renovation | PLC System and HMI renovated/upgraded. Electronic New supervisor and HMI. drives upgraded to Siemens Sinamics |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1150 |
| Print width (mm) | 1100 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 780 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans final tunnel , 2 Thermo Oil heaters |
| Videocamera | Eltromat |
| Corona treatment | Yes |
| Web guides | yes in and out |
| Vyscosity control | Auto |
| Washing system | Yes |
| Inking system | Closed chamber doctor blade |
| Anilox | 24 ceramic anilox sleeves |
| Print Sleeves | 60 print sleeves |
| Note | Turning bar 8+8 Thermo conditioning unit with chiller |
