** SOLD **

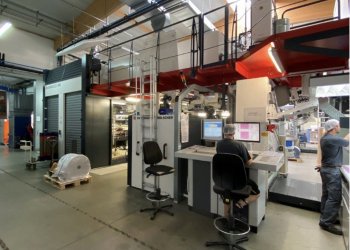

Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
about a similar one
- Machine Code
- FL1083
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- MIRAFLEX
- Year
- 2010
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic with a roll lifter
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with a roll lifter
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans 2 gas burners AUTOMATIC recirculaton control with LEL CONTROL ZELLWEGER SYSTEM
- Videocamera
- Yes
- Corona treatment
- Corona treater - 38 - 40 mN/m (dyn)
- Web guides
- Yes in and out BST
- Vyscosity control
- Yes automatic Procontrol
- Washing system
- AUTOMATIC WASH UP SYSTEM turboclean400 and Yamada pumps
- Anilox
- 30 ceramic anilox sleeves
- Note
- insetter register control LEL SENSORS Machine Speed Max. 370m/min EASY SET automatic Printing setting EASY REG automatic adj. of long. and side registers
| Machine Code | FL1083 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | MIRAFLEX |
| Year | 2010 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with a roll lifter |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with a roll lifter |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans 2 gas burners AUTOMATIC recirculaton control with LEL CONTROL ZELLWEGER SYSTEM |
| Videocamera | Yes |
| Corona treatment | Corona treater - 38 - 40 mN/m (dyn) |
| Web guides | Yes in and out BST |
| Vyscosity control | Yes automatic Procontrol |
| Washing system | AUTOMATIC WASH UP SYSTEM turboclean400 and Yamada pumps |
| Anilox | 30 ceramic anilox sleeves |
| Note | insetter register control LEL SENSORS Machine Speed Max. 370m/min EASY SET automatic Printing setting EASY REG automatic adj. of long. and side registers |
