** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL1061
- Manufacturer
- UTECO
- Modello

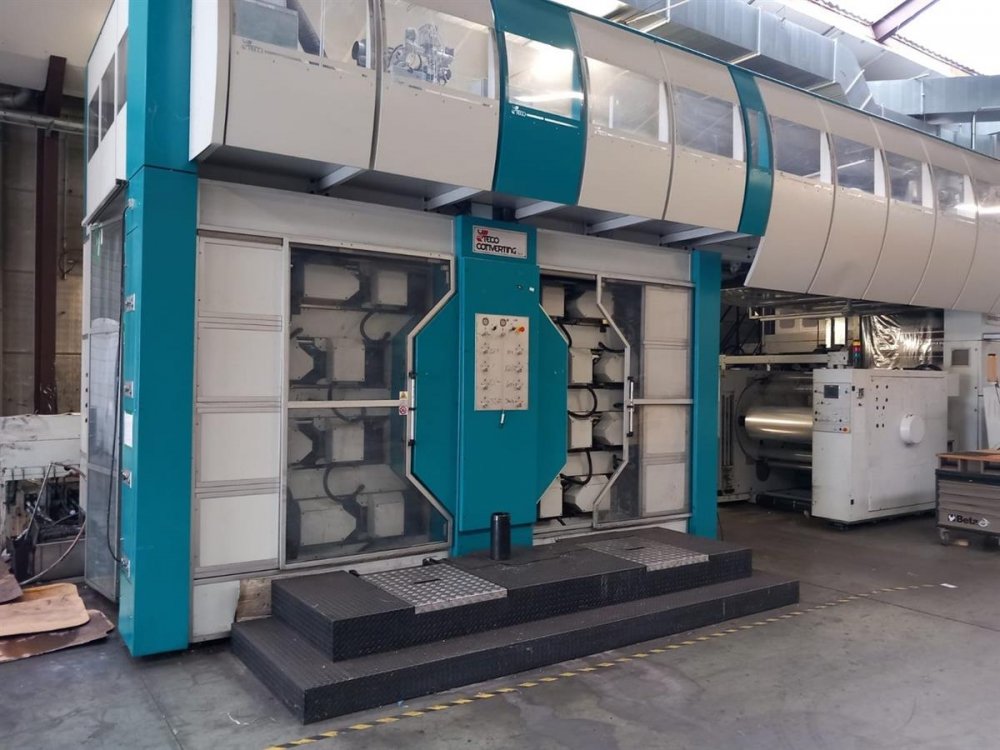

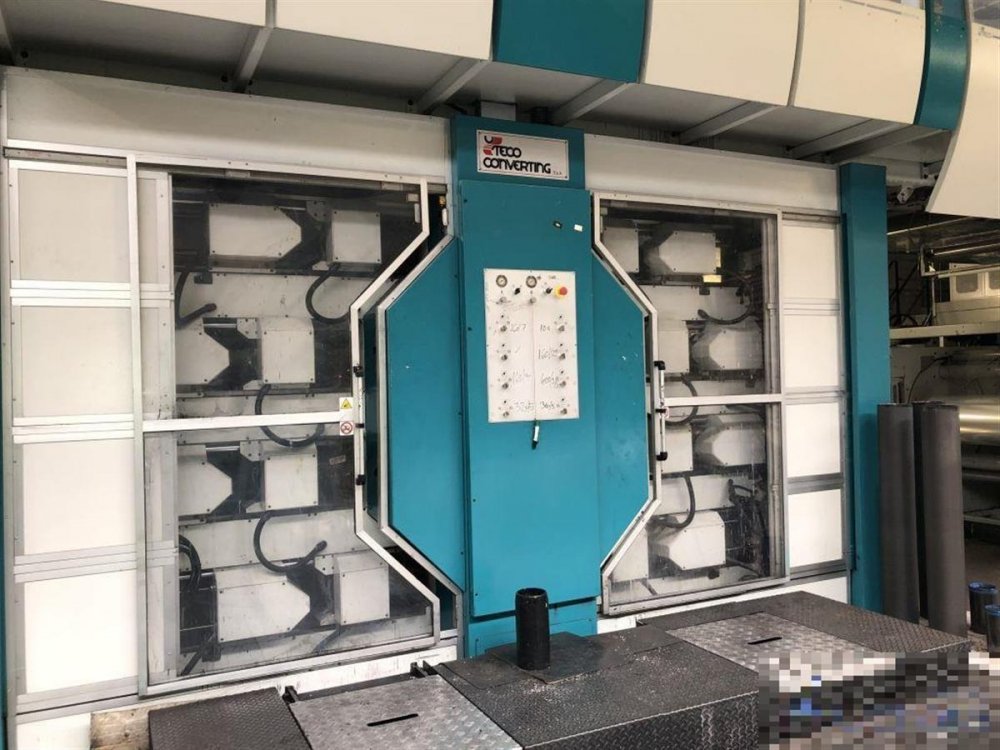

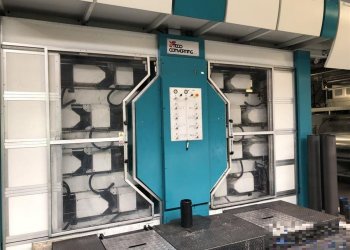

- Diamond HP 808 Mod 120
- Year
- 2008
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 800
- Unwinder type
- Non stop auto splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Non stop auto splice
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas
- Videocamera
- AVT year 2016
- Anilox
- 13 anilox plus 6 spare
- Print Sleeves
- 168 print sleeves as follows : 8x350mm, 370mm,380,390,400,420,440,450,480,520,530,560,570,590,600,610,620,640,650,660,680mm
- Note
- 500 Metres/min Dimensions :approx. 17 x 7 x 5,5m
| Machine Code | FL1061 |
| Manufacturer | UTECO |
| Modello | Diamond HP 808 Mod 120 |
| Year | 2008 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 800 |
| Unwinder type | Non stop auto splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Non stop auto splice |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | AVT year 2016 |
| Anilox | 13 anilox plus 6 spare |
| Print Sleeves | 168 print sleeves as follows : 8x350mm, 370mm,380,390,400,420,440,450,480,520,530,560,570,590,600,610,620,640,650,660,680mm |
| Note | 500 Metres/min Dimensions :approx. 17 x 7 x 5,5m |
