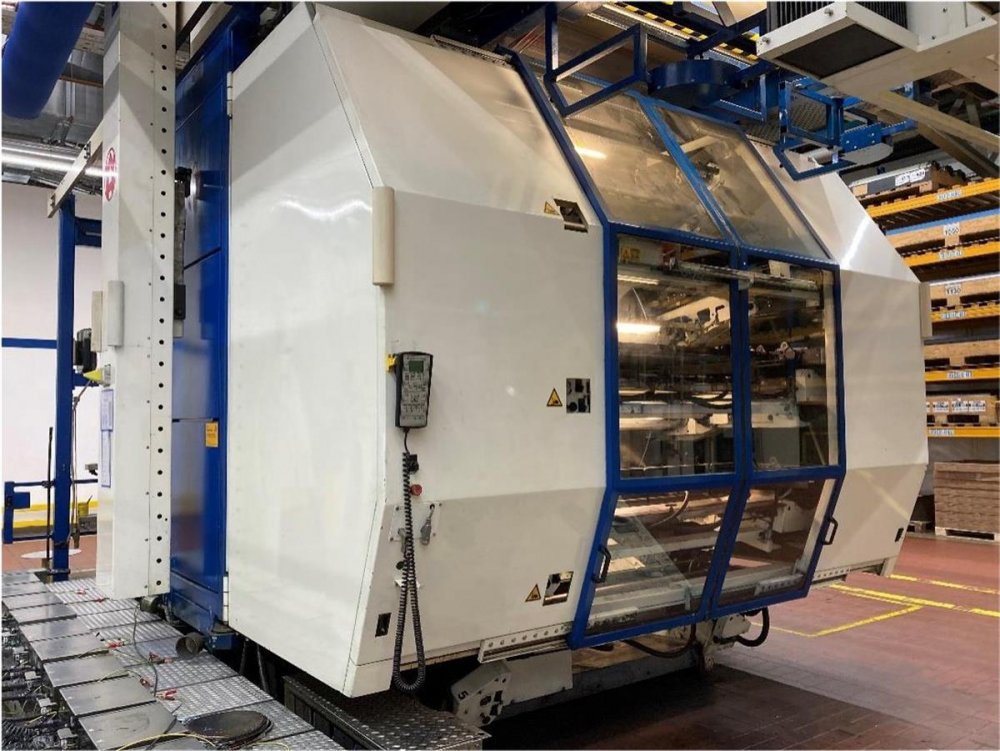

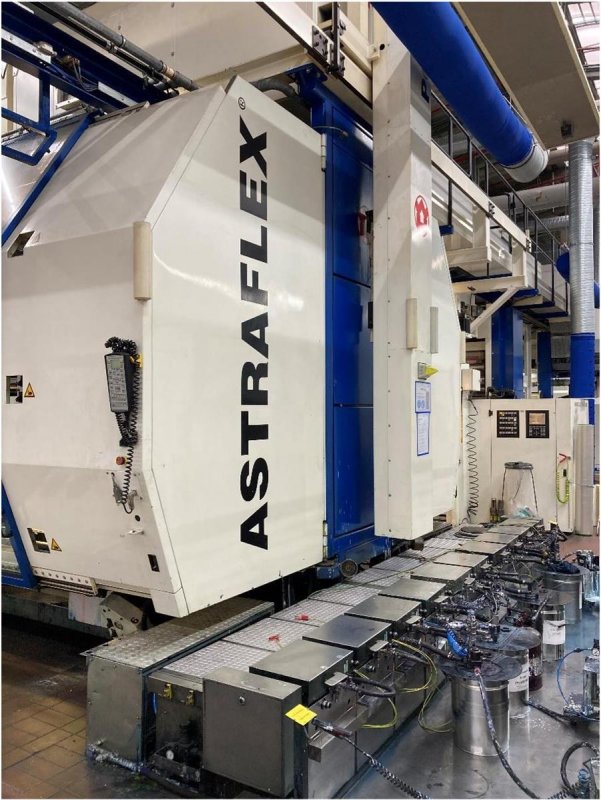

WINDMÖLLER & HÖLSCHER ASTRAFLEX Flexo central drum printing press 10 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL1018
Manufacturer
WINDMÖLLER & HÖLSCHER
Modello
ASTRAFLEX
Year
2005
Number of colors
10
Print possibilityes
10+0
Gearless
No
4 motor per deck CNC position system
Yes

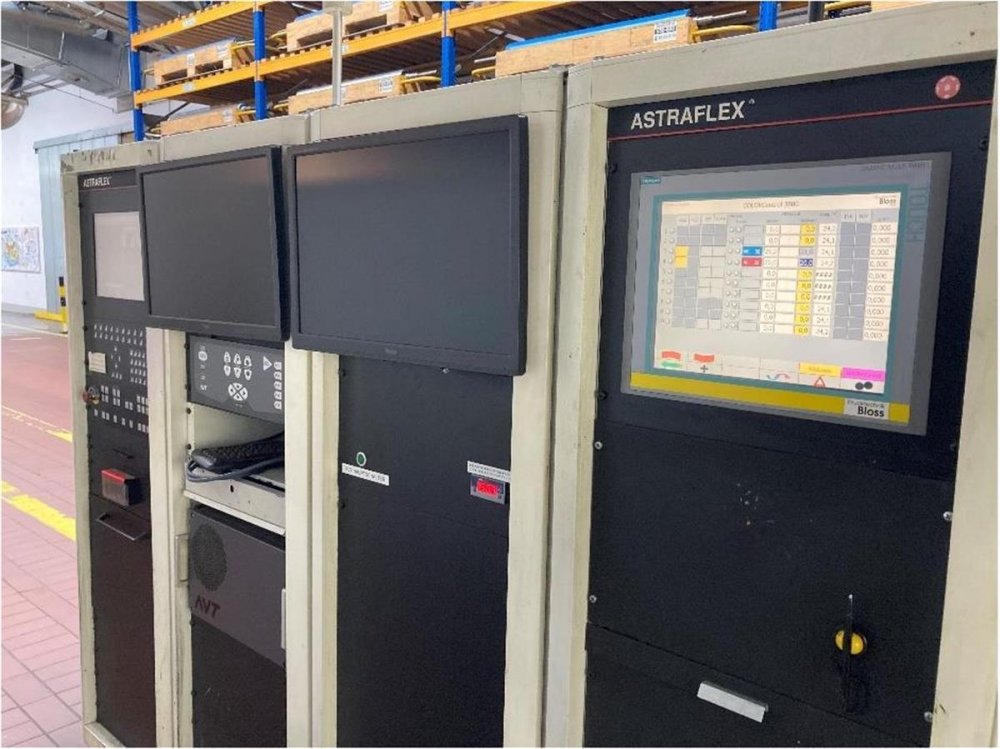

Computer supervision
Yes
Web width (mm)
1620
Print width (mm)
1570
Min print repeat (mm)
400
Max print repeat (mm)
820
Unwinder type
Turret automatic and shaftless, chucks ofr cores 70 + 76mm
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic and shaftless, chucks ofr cores 70 + 76mm
Max reel diameter rewinder (mm)
1000
Drying
2 thermal oil heat exchangers
Videocamera
AVT
Vyscosity control
automatic, Bloss
Washing system
Turbo-wash automatic washing system¨
Inking system
Closed chamber doctor blades
Note

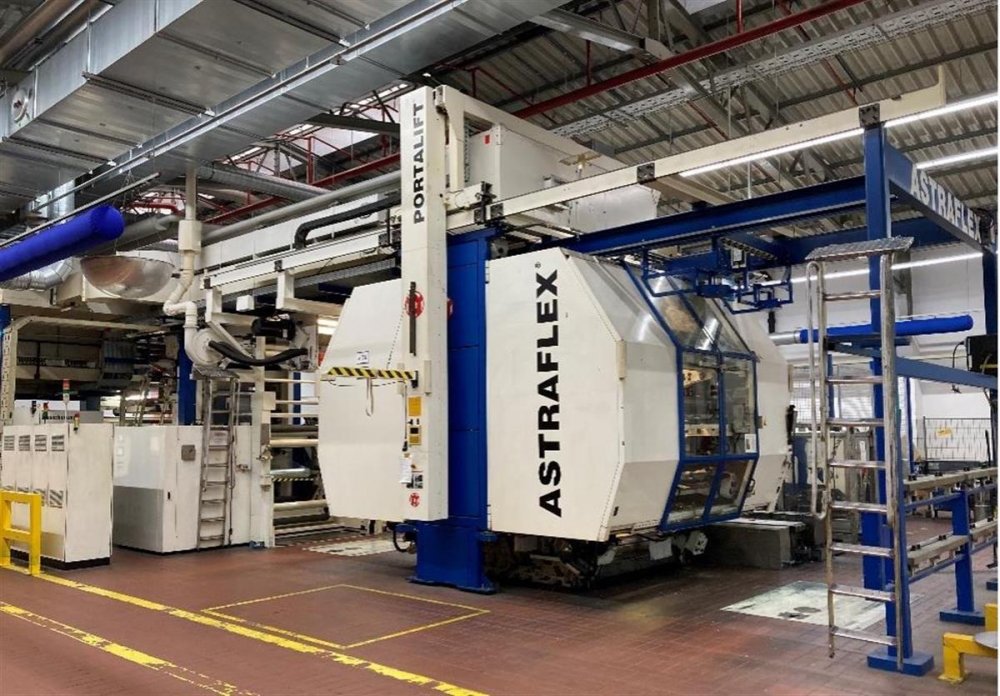

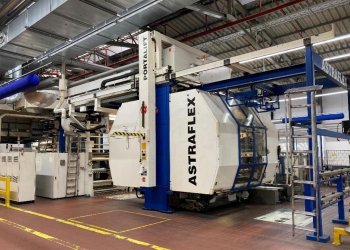

- Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system
Machine Code FL1018
Manufacturer WINDMÖLLER & HÖLSCHER
Modello ASTRAFLEX
Year 2005
Number of colors 10
Print possibilityes 10+0
Gearless No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1620
Print width (mm) 1570
Min print repeat (mm) 400
Max print repeat (mm) 820
Unwinder type Turret automatic and shaftless, chucks ofr cores 70 + 76mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic and shaftless, chucks ofr cores 70 + 76mm
Max reel diameter rewinder (mm) 1000
Drying 2 thermal oil heat exchangers
Videocamera AVT
Vyscosity control automatic, Bloss
Washing system Turbo-wash automatic washing system¨
Inking system Closed chamber doctor blades
Note - Portalift: Robot system for anilox and mandrel change - Mechanical speed 460 m/min - In line slitting system
