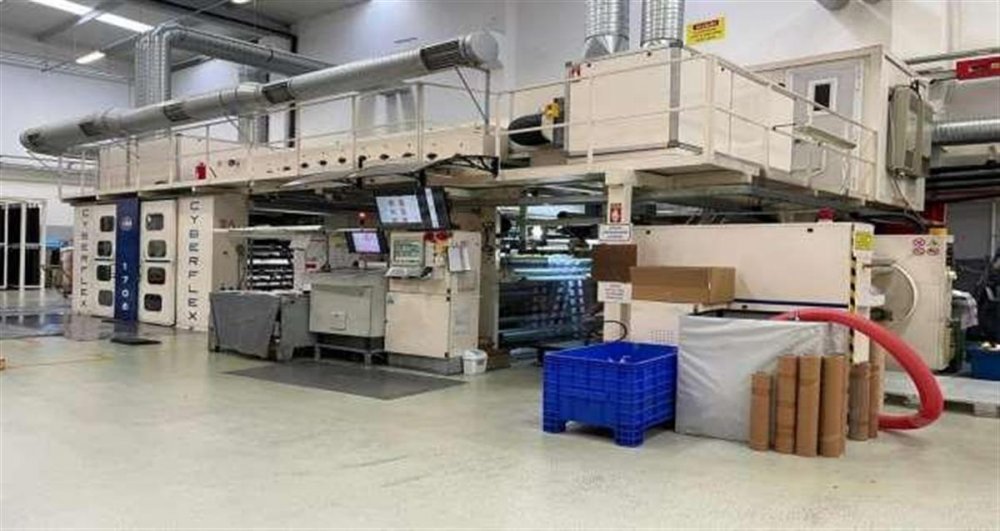

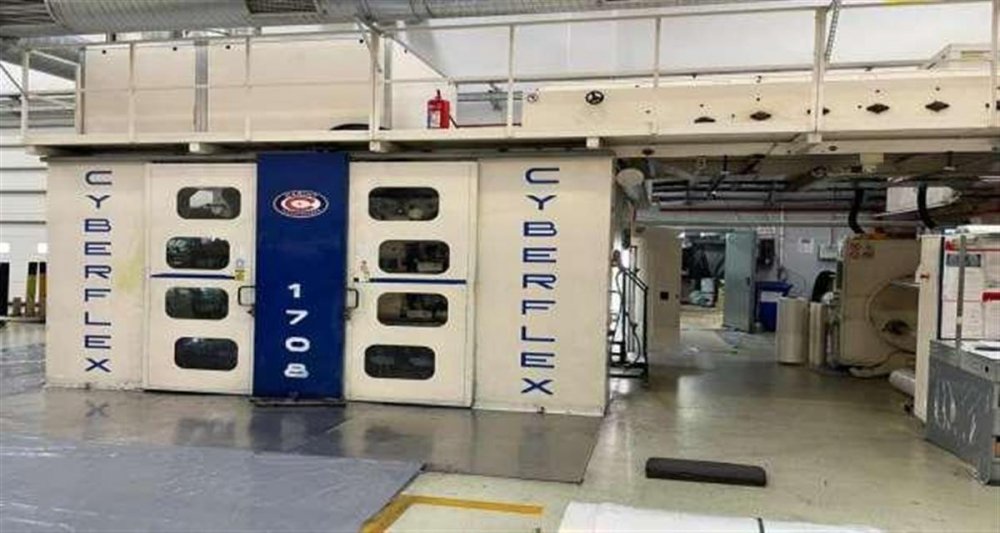

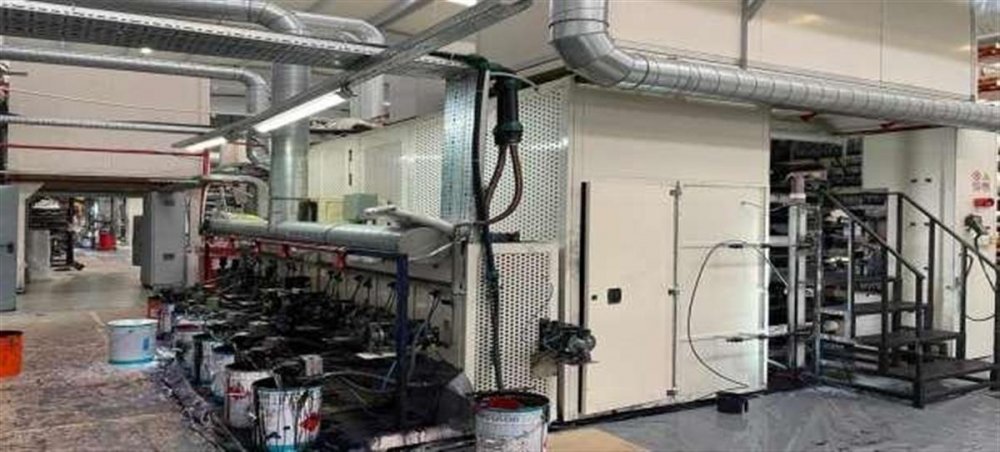

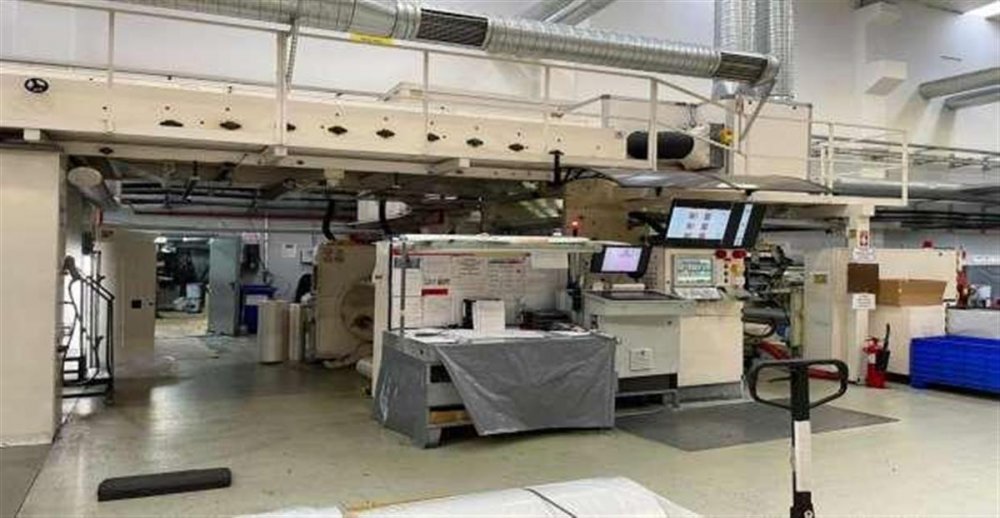

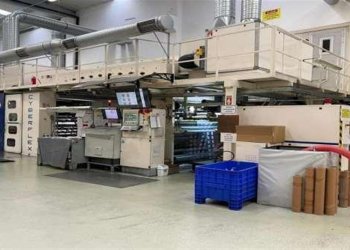

CARINT CYBERFLEX 1703 Flexo printer 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL982
Manufacturer CARINT
Model CYBERFLEX 1703
Year 2008
Number of colors 8
Print possibilities 8+0
Gearless Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 400
Max print repeat (mm) 800
Unwinder type Turret automatic with hydr roll lifting
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic with hydr roll lifting
Max reel diameter rewinder (mm) 1000
Drying Electric
Videocamera BST model POWERSCOPE 1 CHIP
Web guides In and out
Washing system KD SYSTEME 8V
Inking system Closed chamber doctor blade + ceramic anilox
Anilox 26 sleeve pieces
Print Sleeves 160 pieces
