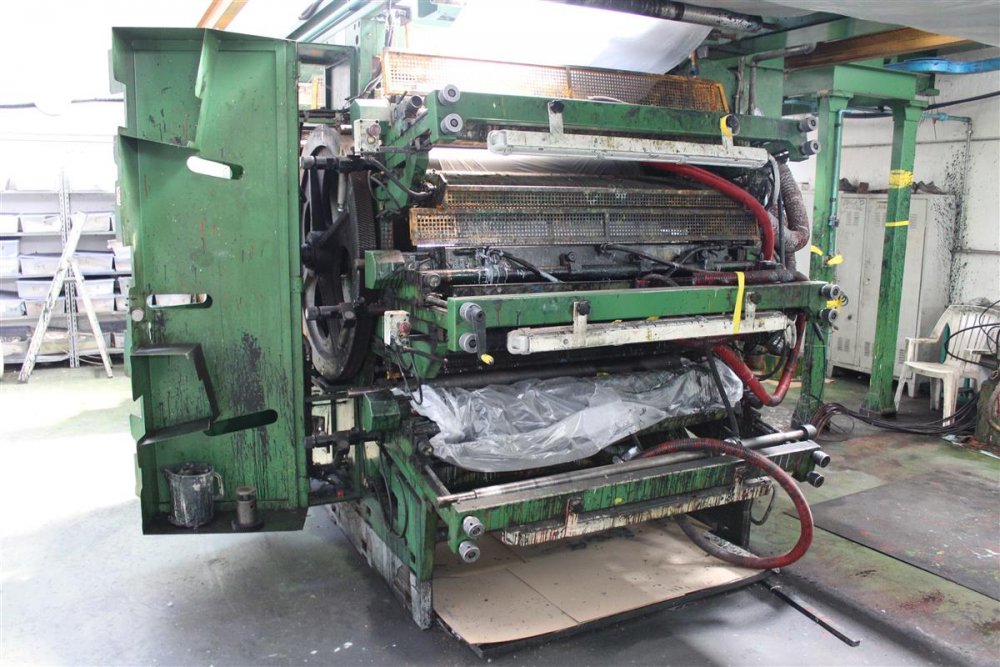

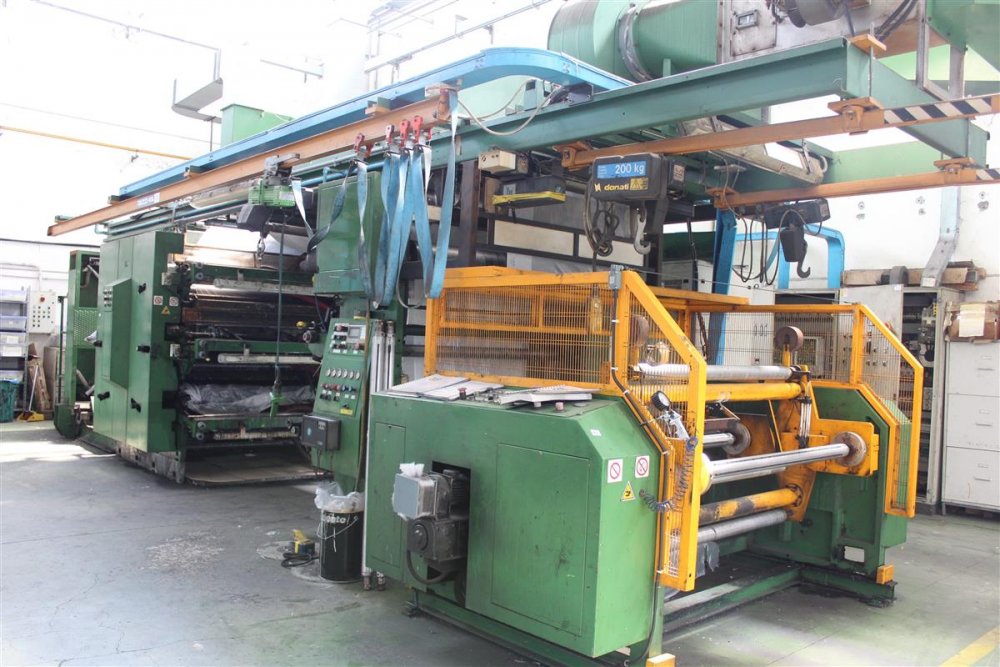

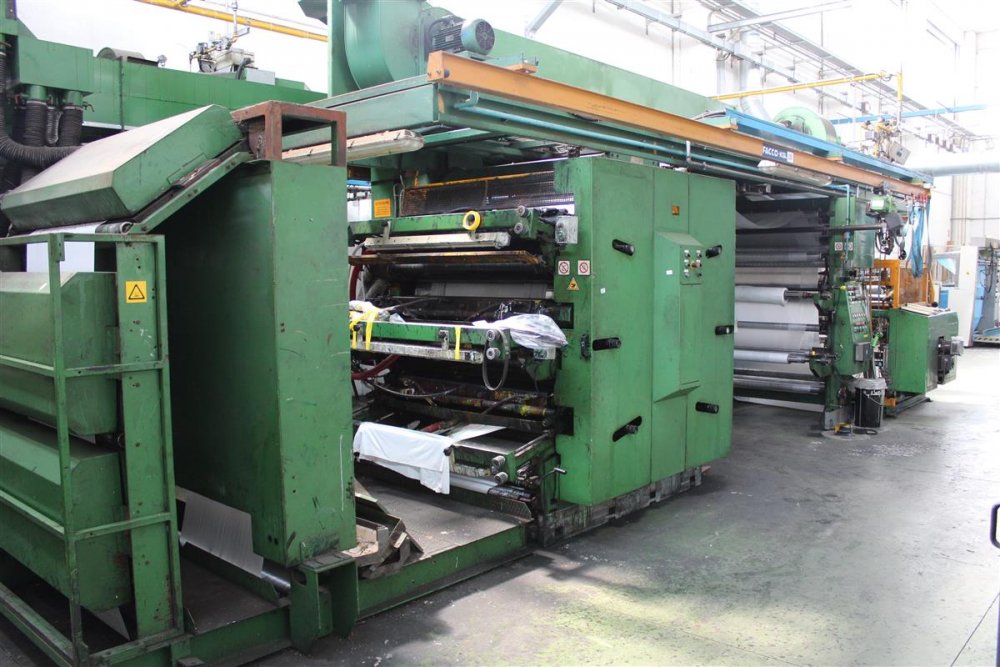

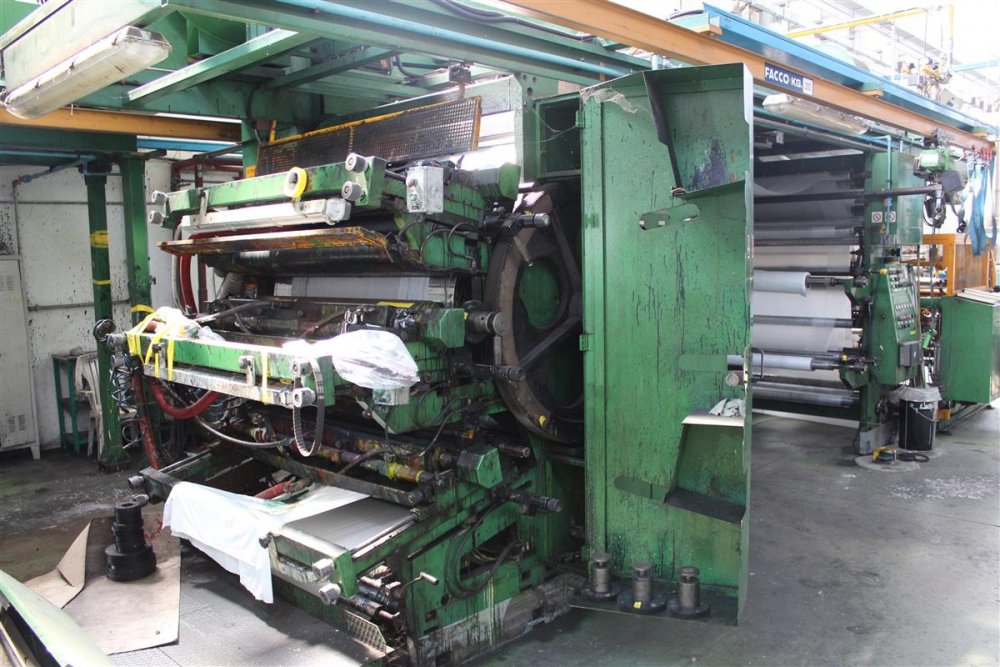

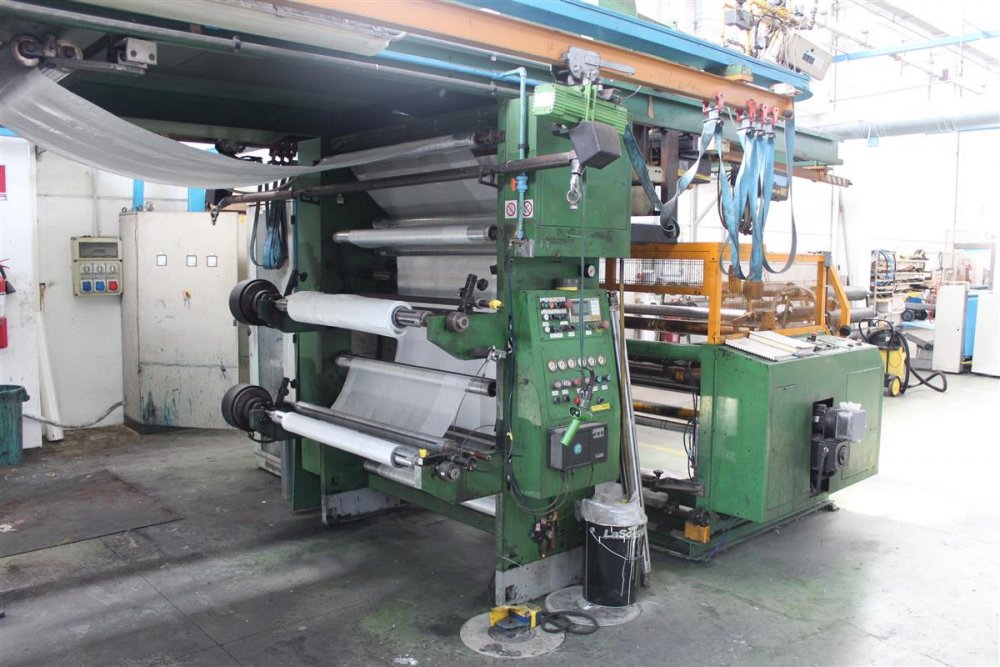

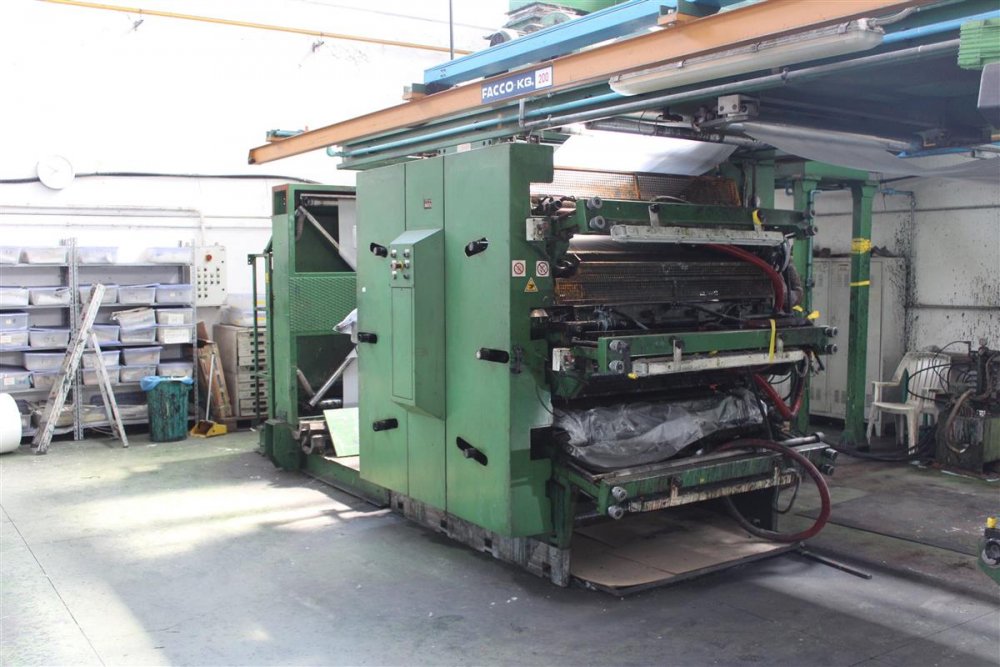

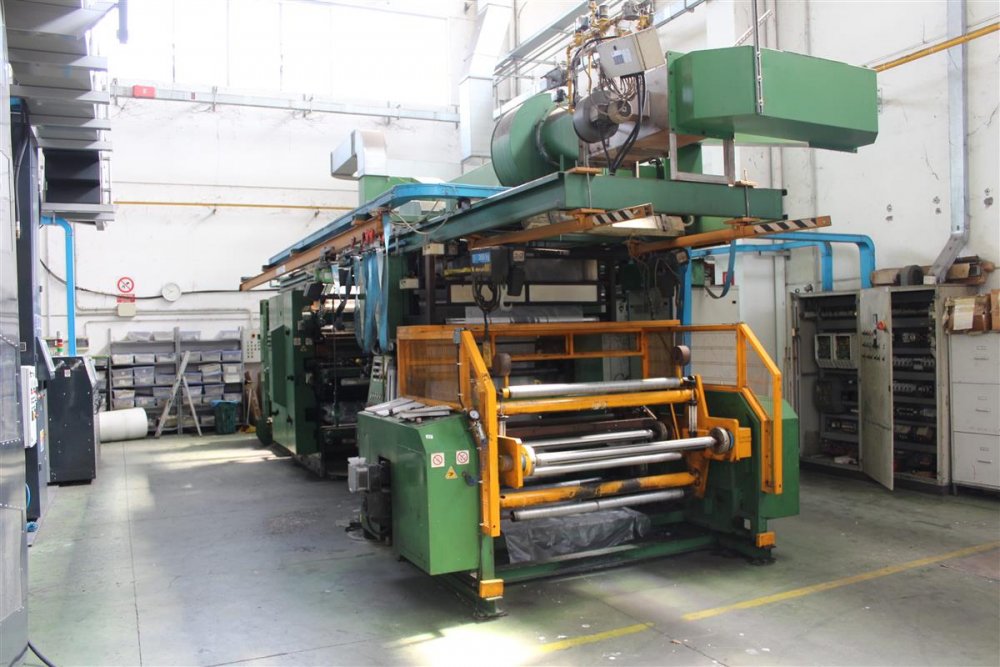

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL0965
- Manufacturer
- TCM
- Modello
- Midi 50 - 114
- Year
- 1998
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No

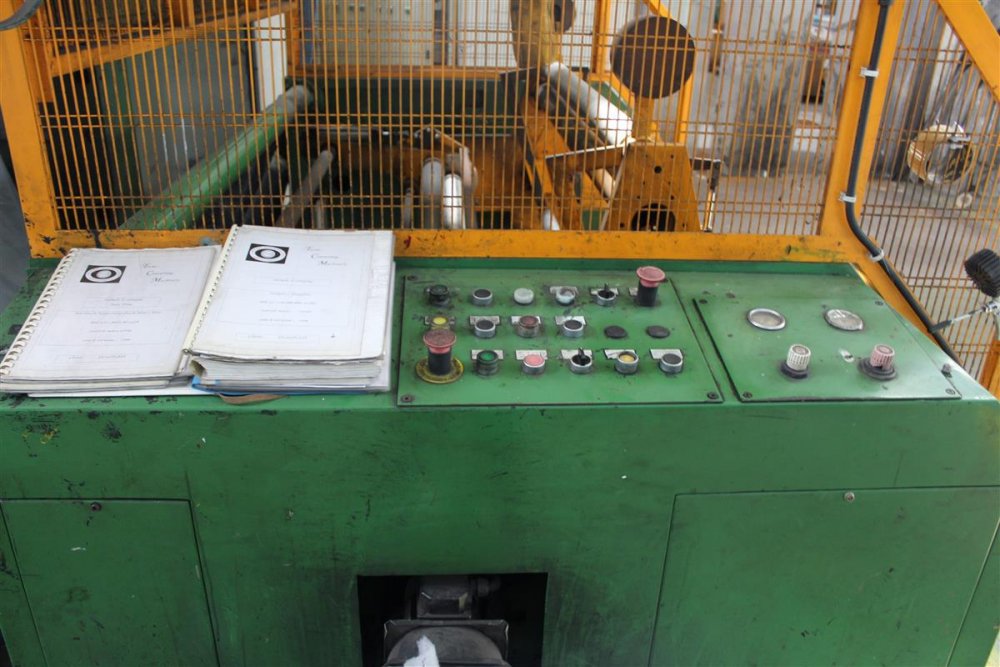

- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Doiuble Bracket
- Max reel diameter unwinder (mm)
- 1000

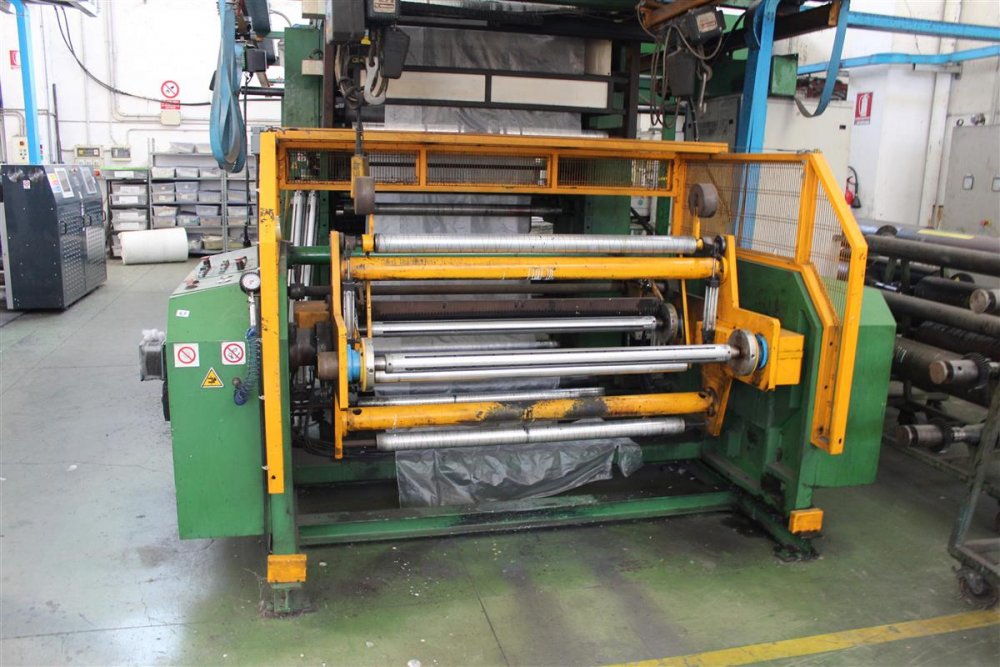

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800

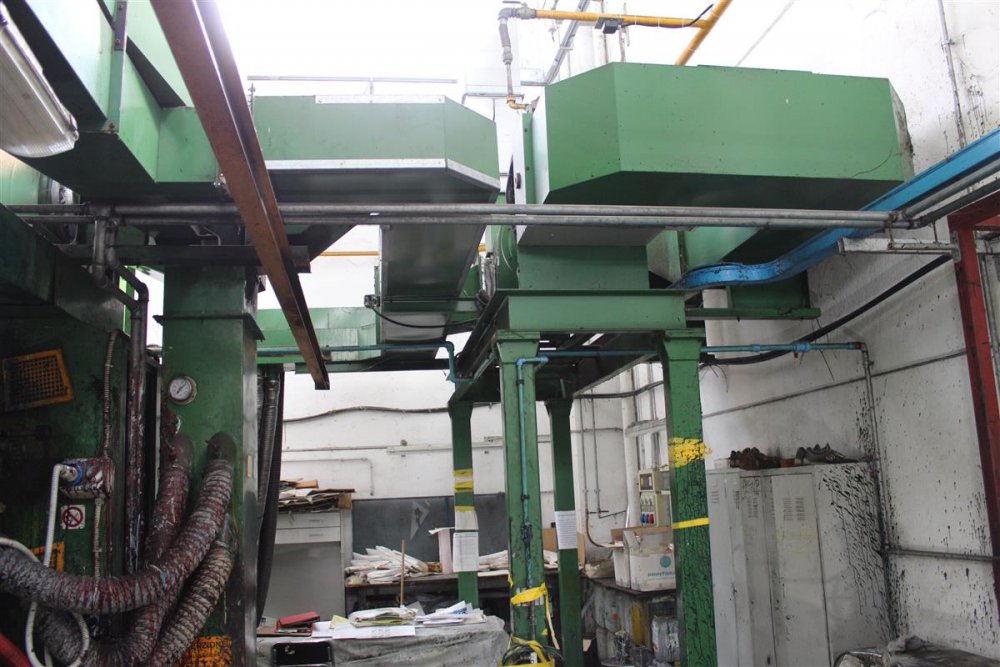

- Drying
- 2 zones , 1 Gas burners
- Videocamera
- yes Fife
- Web guides
- In and out
- Inking system
- ceramic anilox + doctor blade chamber
- Anilox
- yes 6
- Print cylinders
- 30
- Note

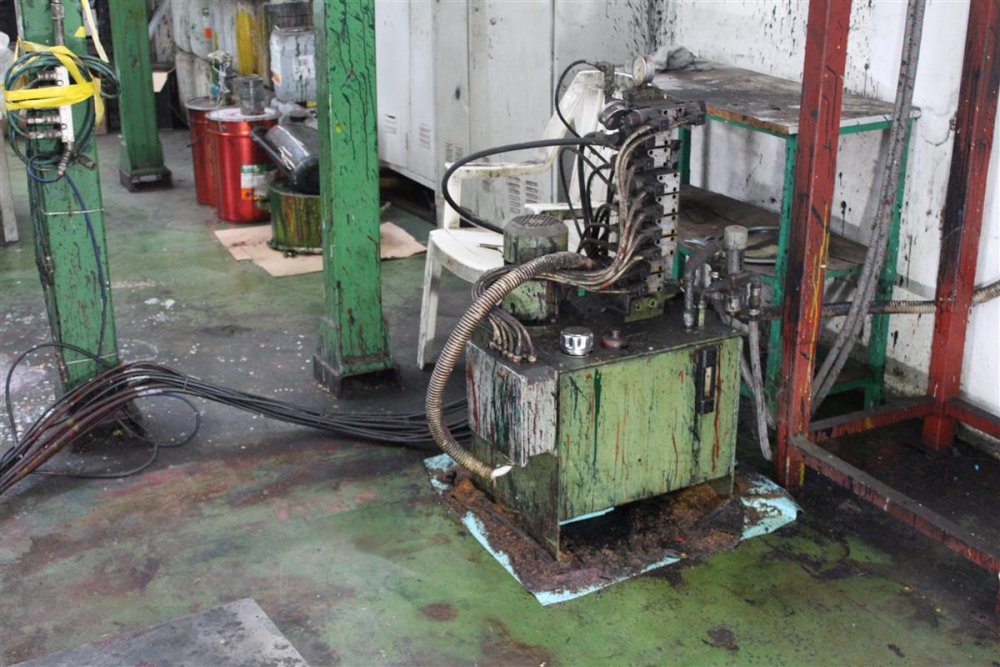

- Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Height 3540 mm
| Machine Code | FL0965 |
| Manufacturer | TCM |
| Modello | Midi 50 - 114 |
| Year | 1998 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Doiuble Bracket |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 1 Gas burners |
| Videocamera | yes Fife |
| Web guides | In and out |
| Inking system | ceramic anilox + doctor blade chamber |
| Anilox | yes 6 |
| Print cylinders | 30 |
| Note | Installed power: 80 Kw Working speed: 200 m/min Electric hoists Pneumatic pumos Length 7 800 mm- Max Height 3540 mm |
