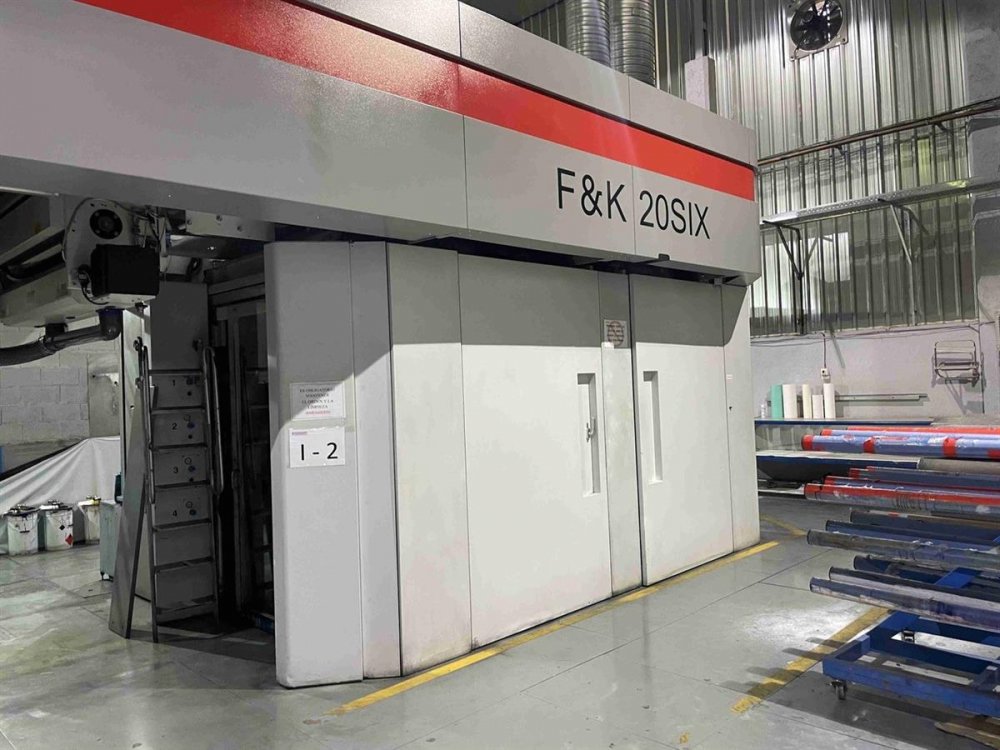

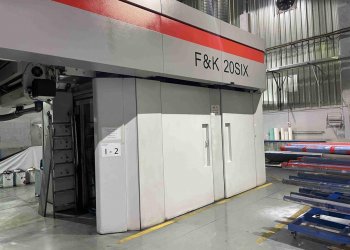

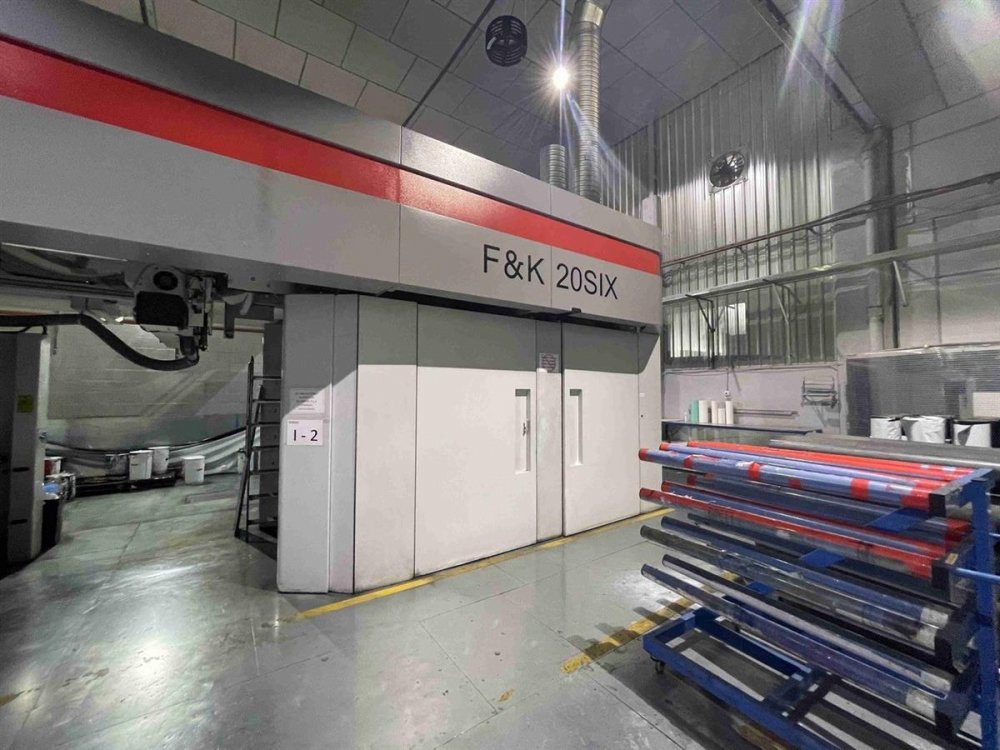

BOBST 20 SIX S flexographic printing machine 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Machine Code: FL975
Manufacturer: BOBST
Modello: 20 SIX S
Year: 2014
Number of colors: 8
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1300
Print width (mm): 1250
Min print repeat (mm): 320
Max print repeat (mm): 800
Unwinder type: Double automatic
Max reel diameter unwinder (mm): 1200
Rewinder type: Double automatic
Max reel diameter rewinder (mm): 1020
Drying: Electric
Videocamera: Yes
Web guides: Yes
Vyscosity control: Yes
Washing system: Yes, automatic
Inking system: Closed chamber doctor blades
Anilox: 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ;
Print Sleeves: 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650

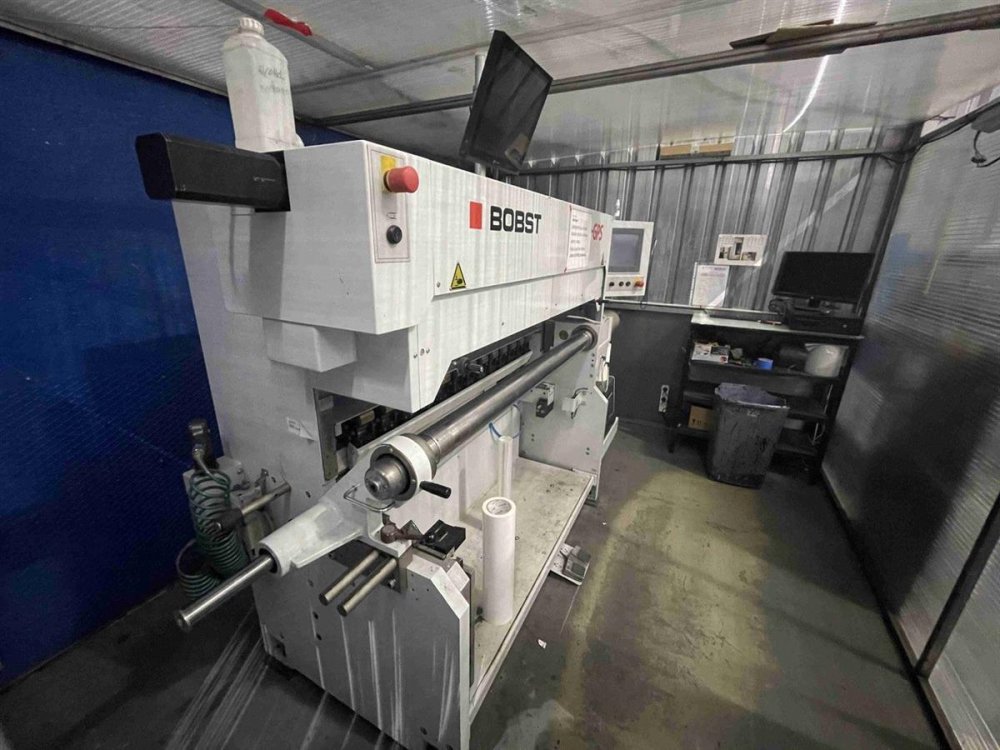

Note: Speed 500 mt/min Smart GPS register system including Plate Mounter
