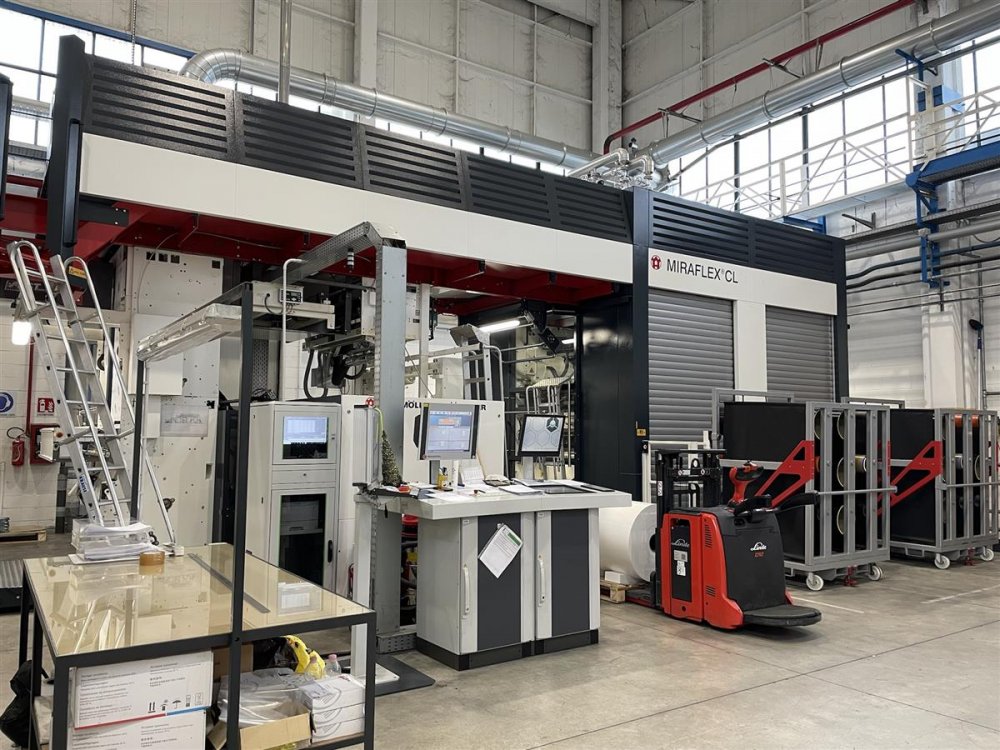

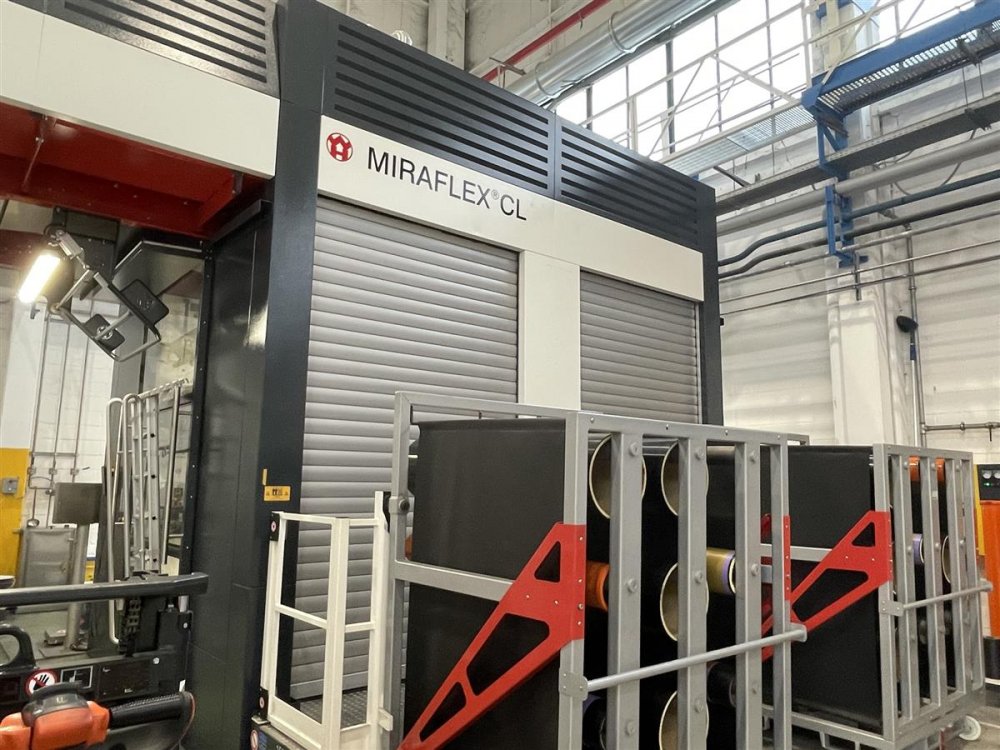

WINDMOELLER & HOLSCHER MIRAFLEX CL8 flexo printing machine 8 colors
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Machine Code | FL972 |
Manufacturer | WINDMOELLER & HOLSCHER |
Model | MIRAFLEX CL8 |
Year | 2018 |
Number of colors | 8 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |

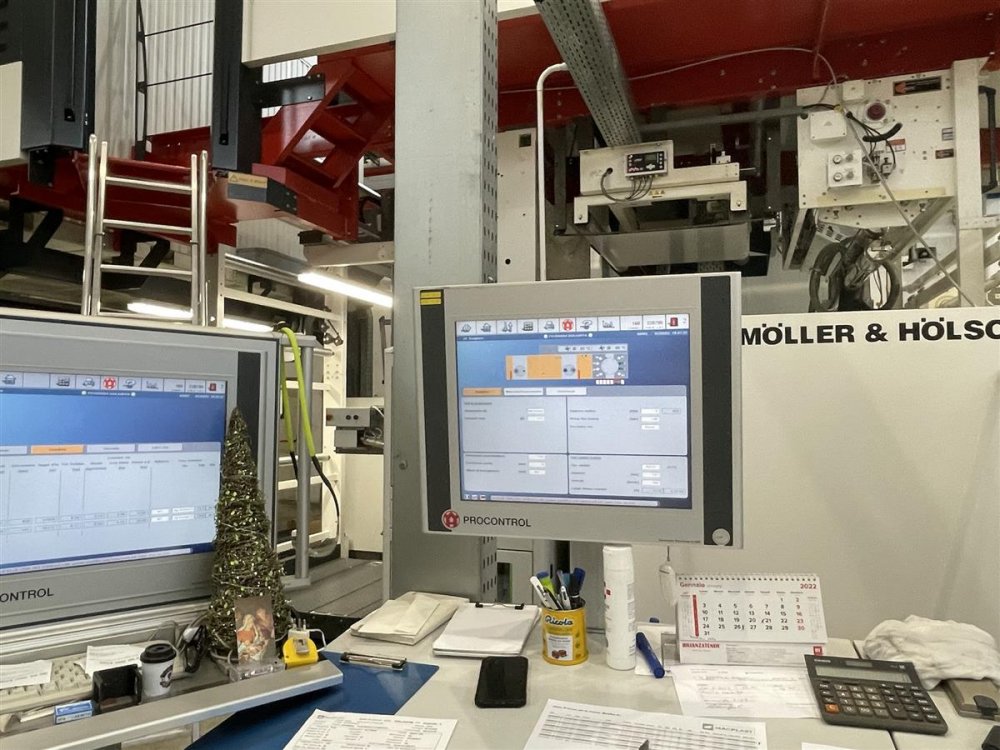

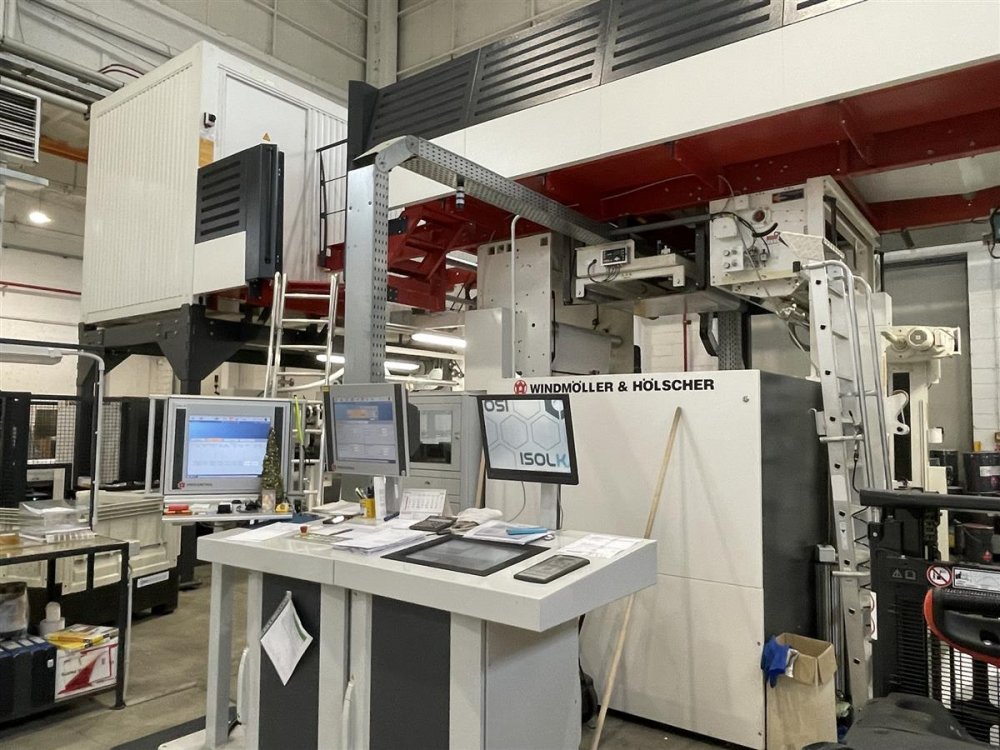

Computer supervision | Yes |
Web width (mm) | 1320 |
Print width (mm) | 1270 |
Min print repeat (mm) | 500 |
Max print repeat (mm) | 1130 |

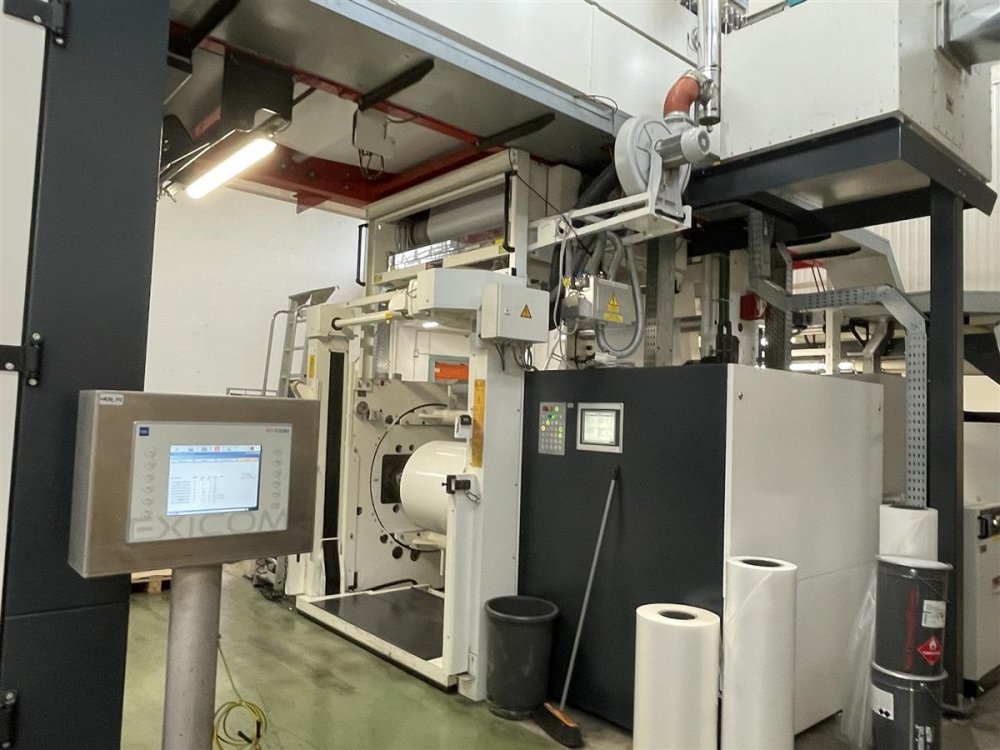

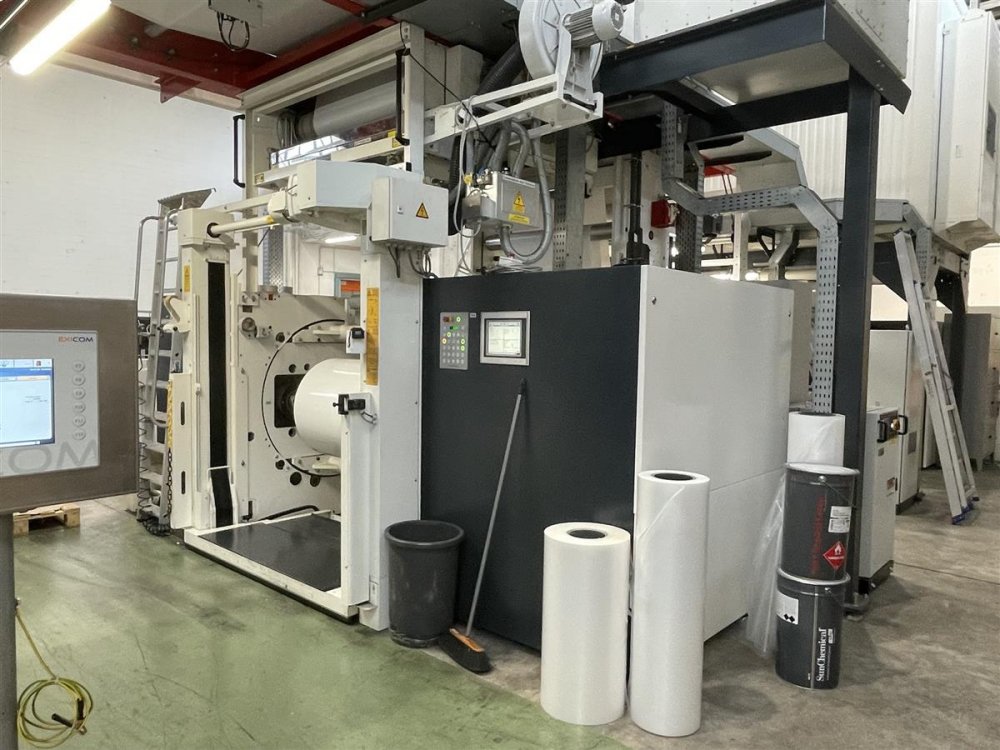

Unwinder type | Turret Automatic |
Max reel diameter unwinder (mm) | 1000 |

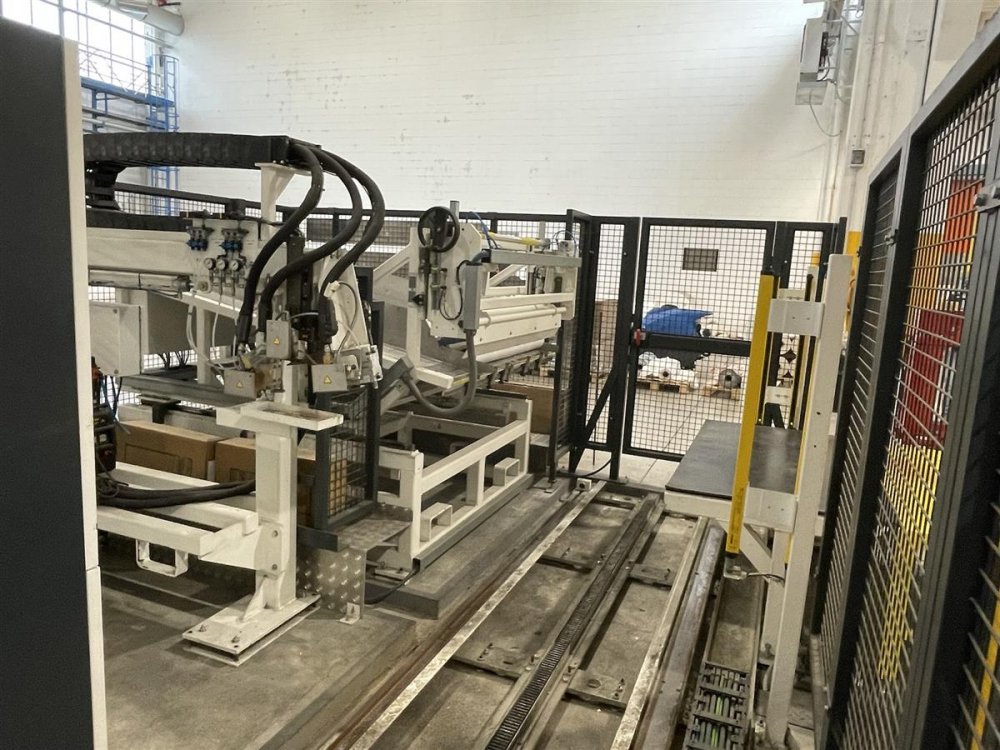

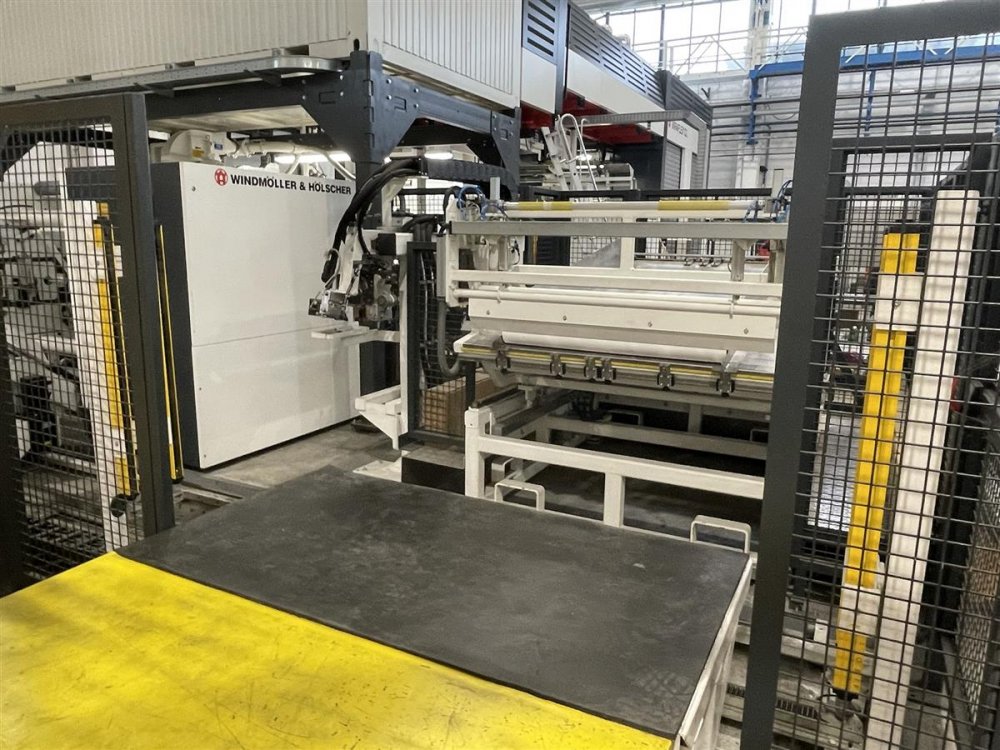

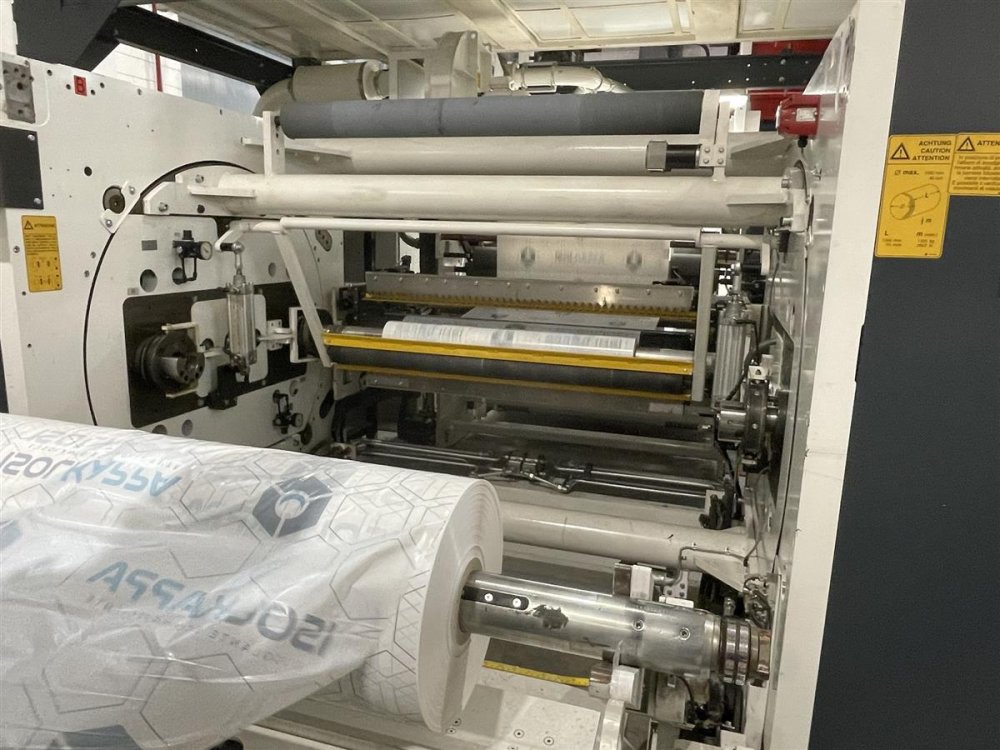

Rewinder type | Turret automatic. Automatic finished reel unloading, cores insertion into shafts and new shafts loading. All automatic |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones 4 fans , final tunnel, Thermo oil heaters included Thermo oil boiler gas burner heated |
Videocamera | BST,3 chip with register control |
Corona treatment | MERO (year 2021 |
Web guides | 2 X BST |

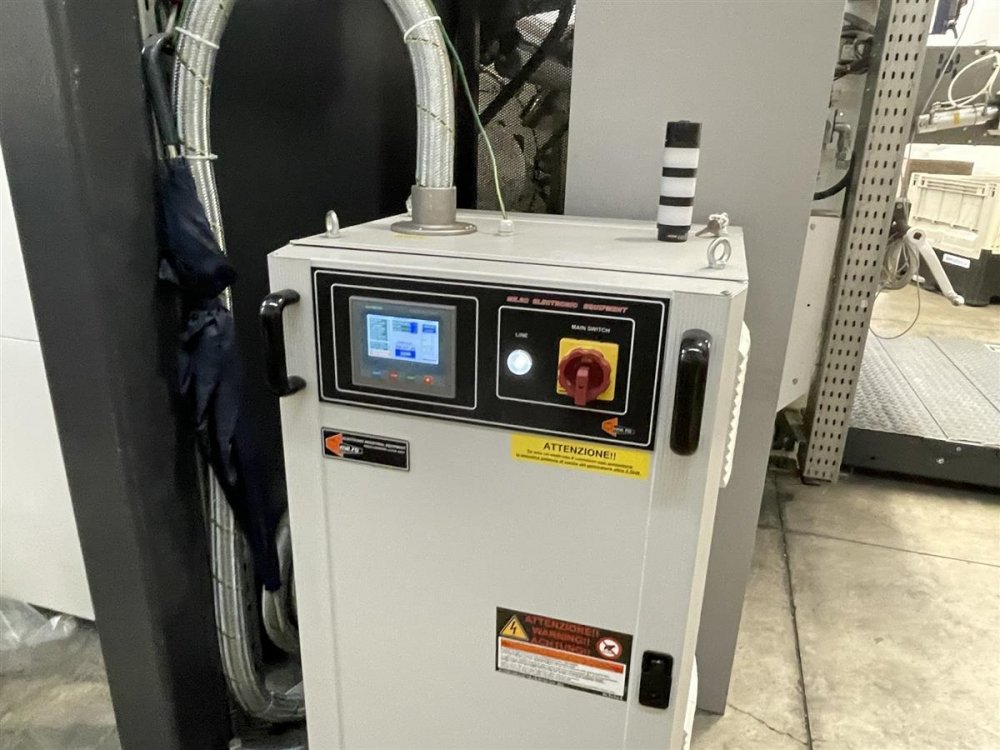

Vyscosity control | Automatic (Easy col) with coolimng system and temperature control |
Washing system | Automatic |

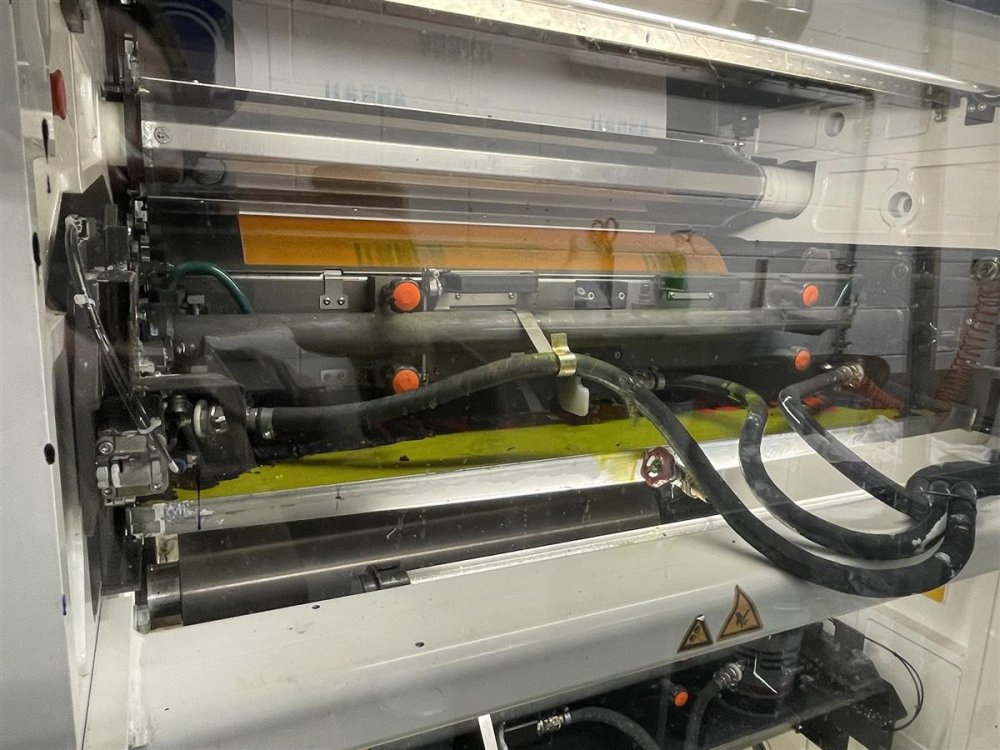

Inking system | Closed chamber doctor blade |
Anilox | 6X400/2X340/2X280/1X220/2X200/1X170/1X120/1X100 |

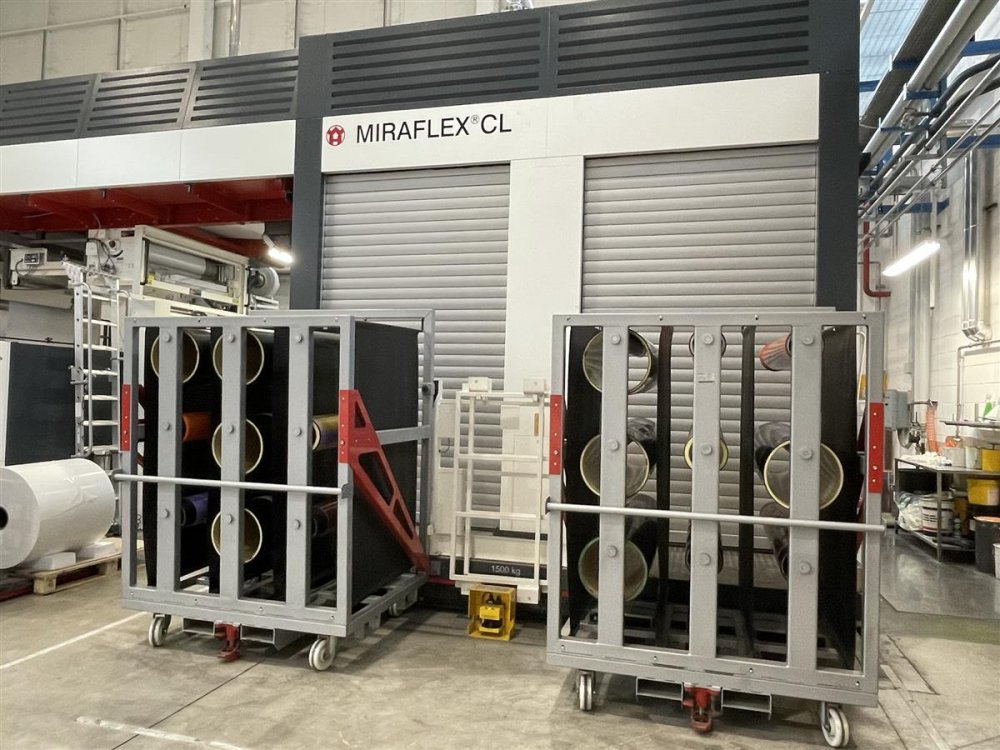

Print Sleeves | 8X500/560/570/590/630/650/680/750/800/820/880/900/9701010/1020/1030/1050/1065/10801090/1120 |
Additional information | Chiller and temperature control included Additional ancillaries included : Plate mounter Anilox washing system Ink tanks and parts washing system and solvent distillation -recovery system |
