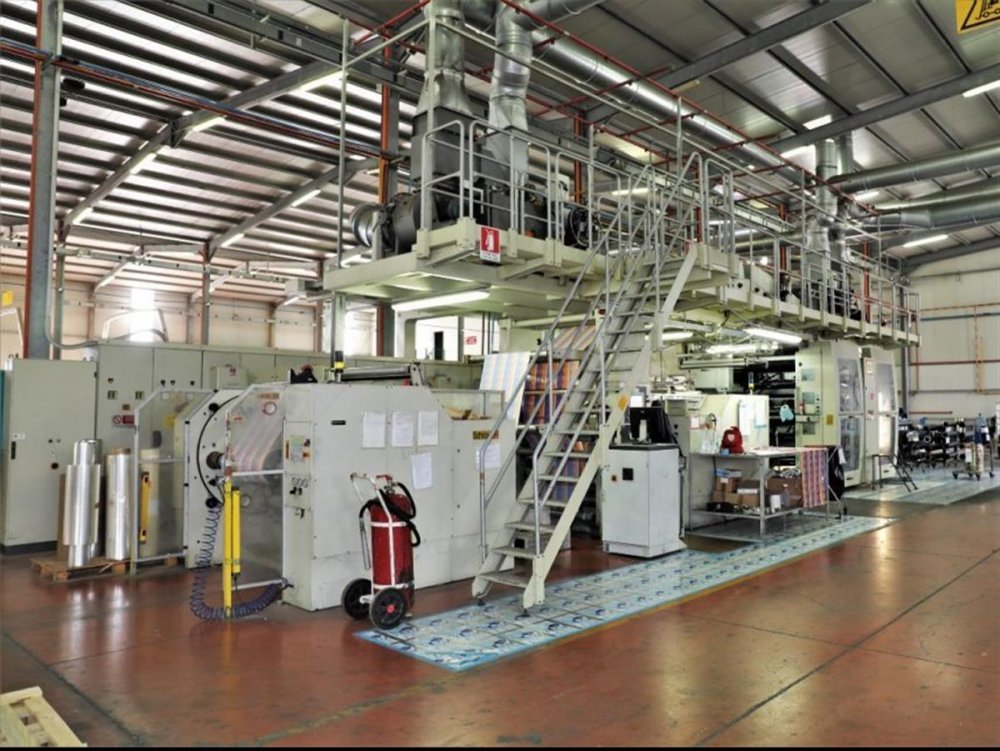

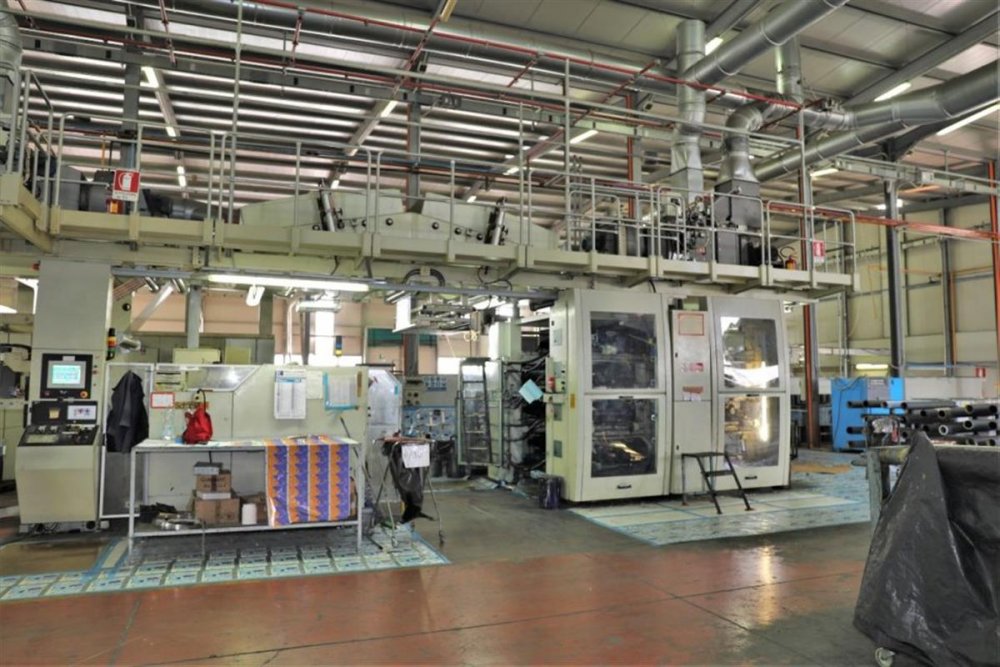

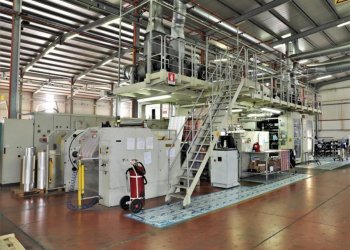

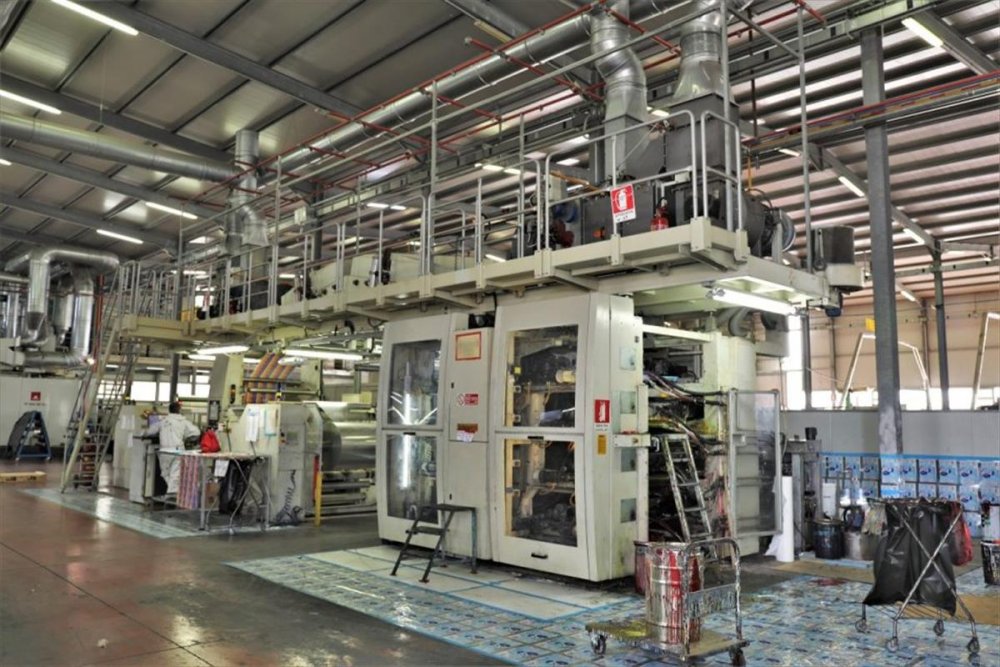

SCHIAVI EF4020 flexo press 8 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL969
Manufacturer SCHIAVI
Model EF4020
Year 2006
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

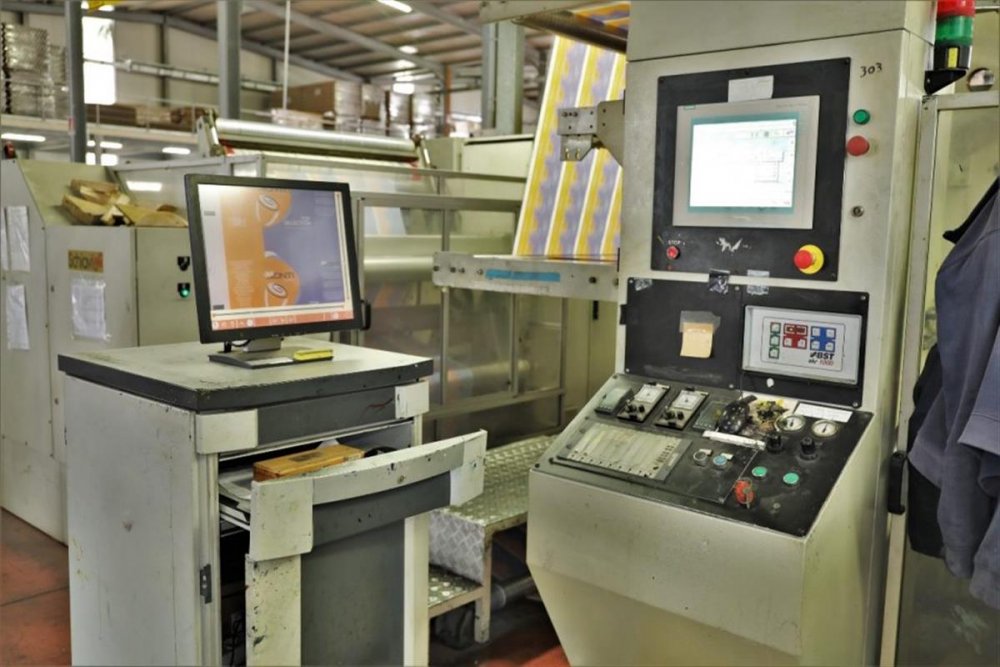

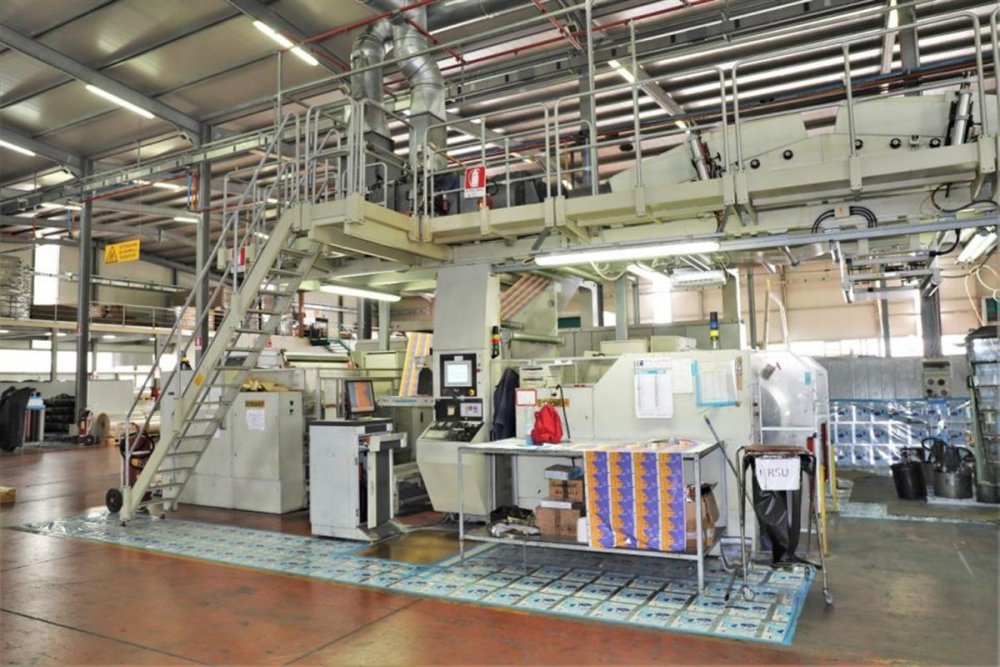

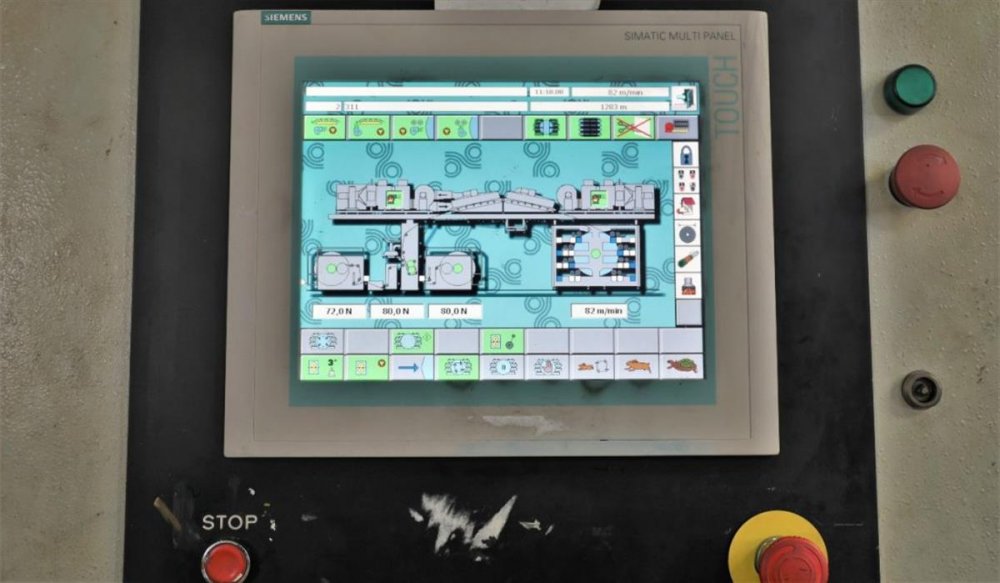

Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 330
Max print repeat (mm) 760

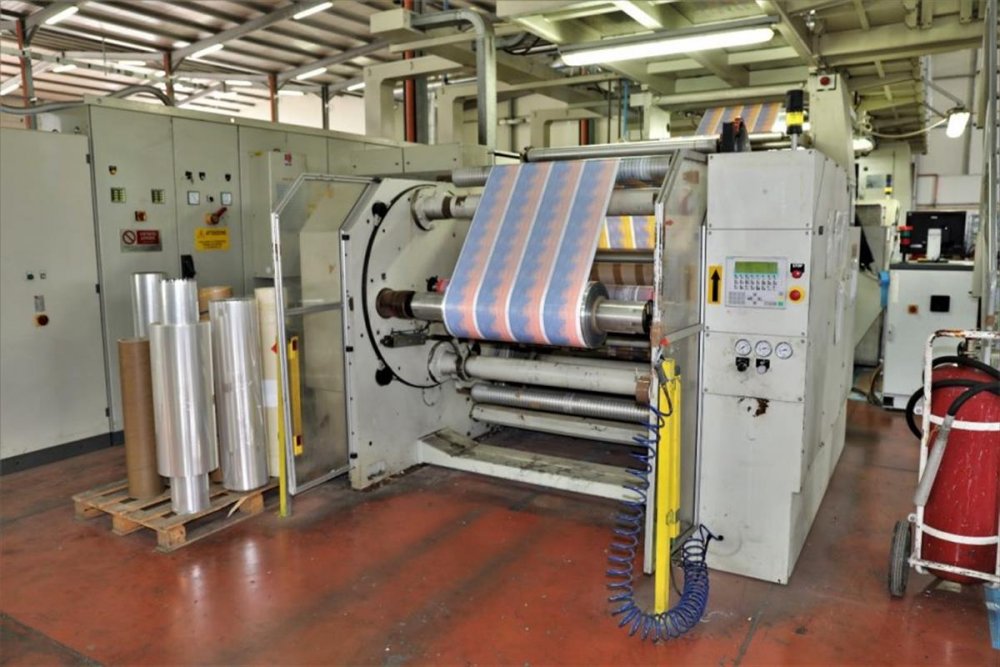

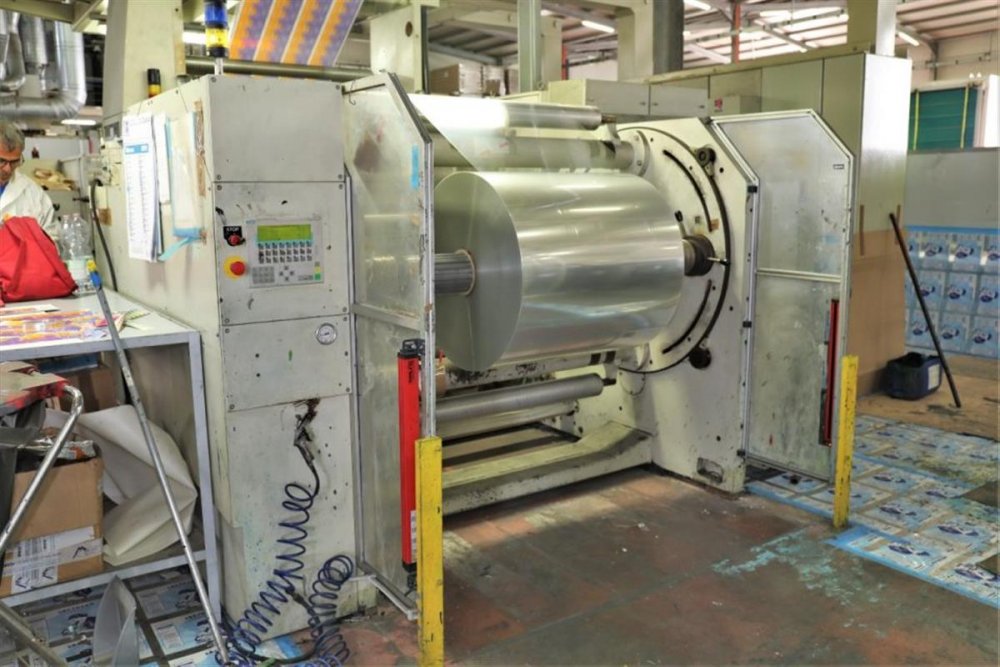

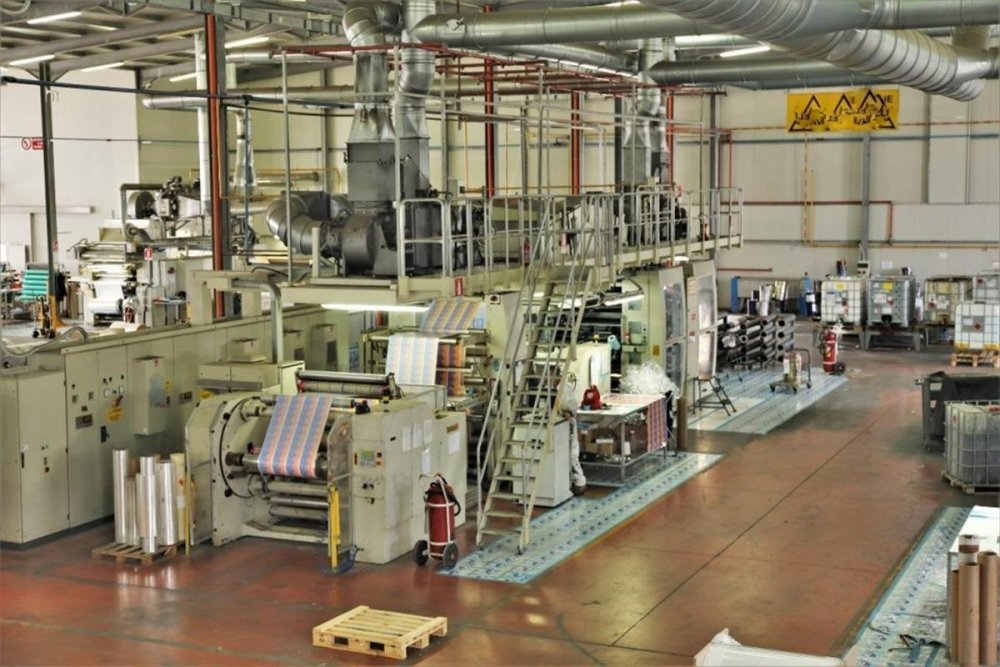

Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000

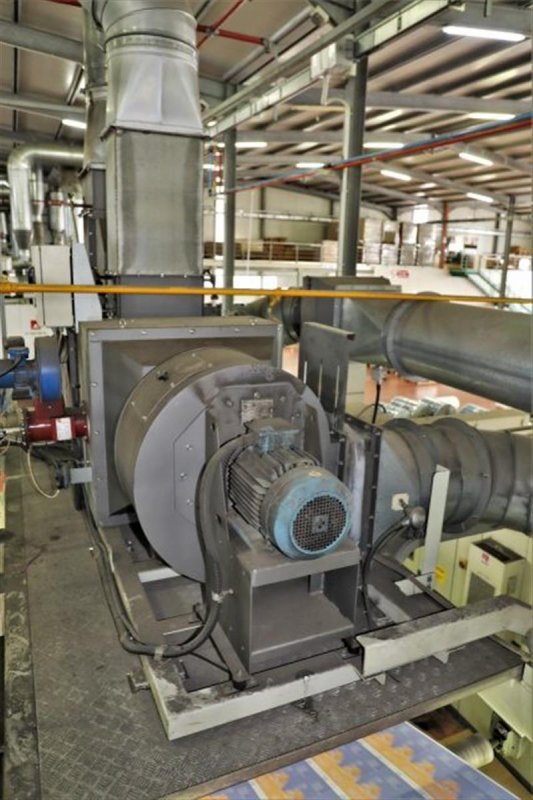

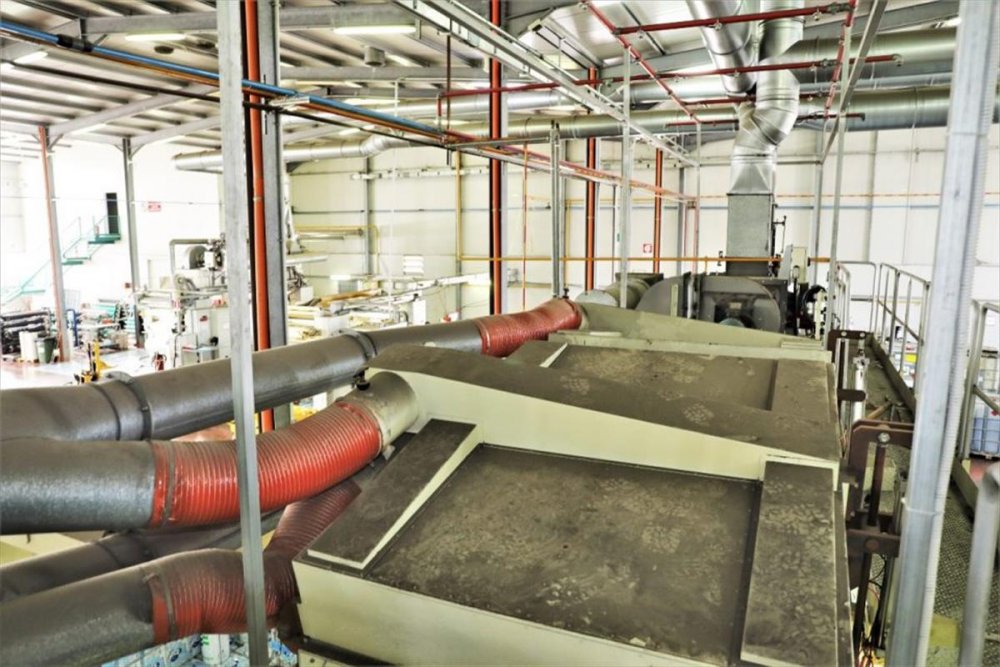

Drying 2 zones 4 fans Final Tunnel 4 mt Length - 2 gas burners 150.000 Kcal / h ; automatic air recirculation system with LEL solvent control

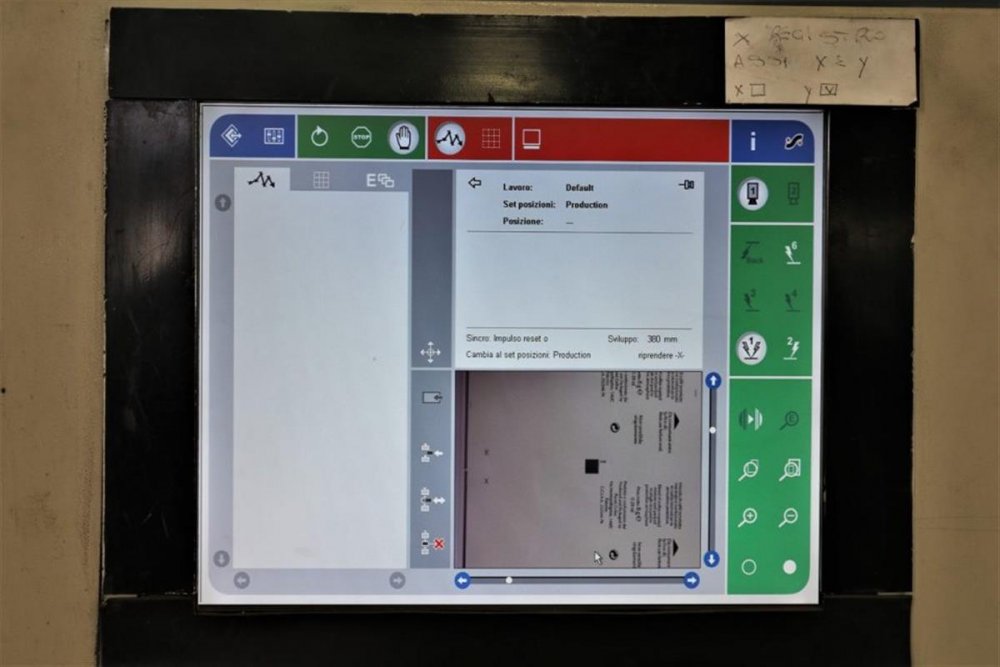

Videocamera Deco system with register control and quality control

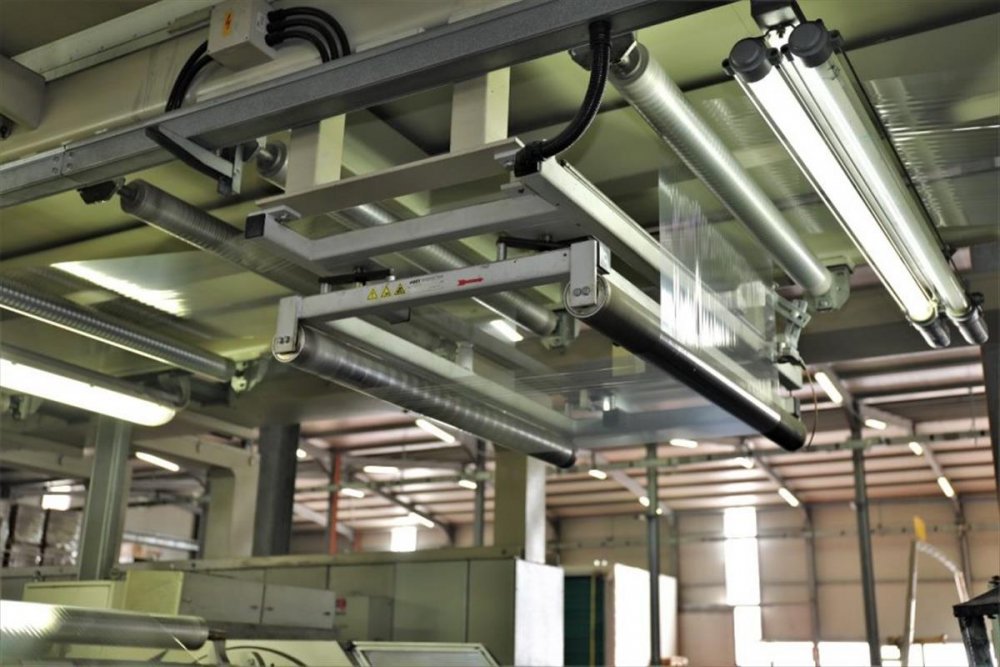

Web guides Yes in and out OPG type

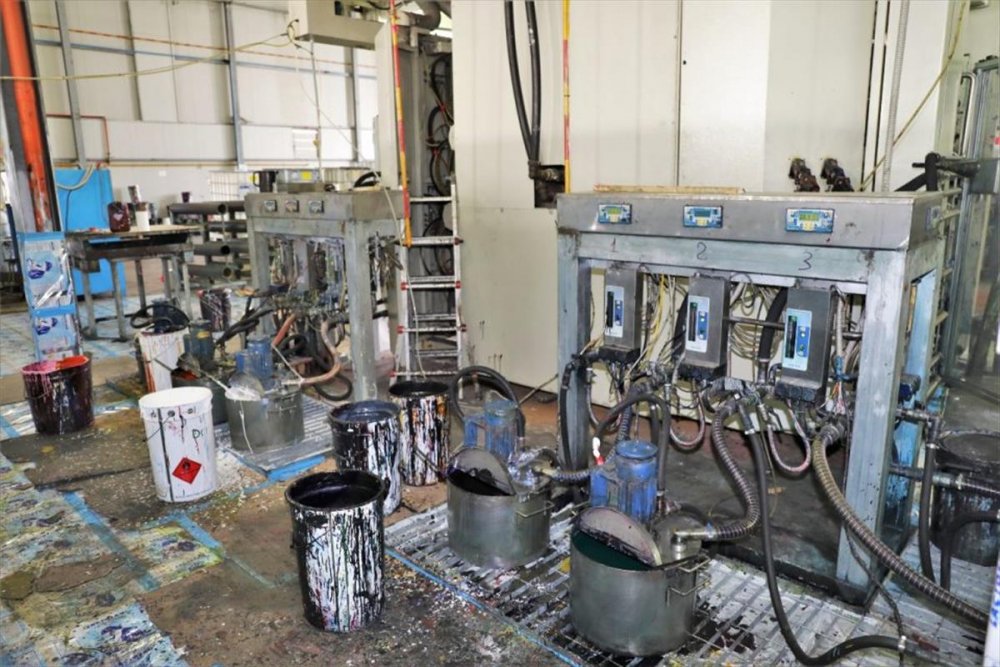

Vyscosity control Yes by FASNACHT

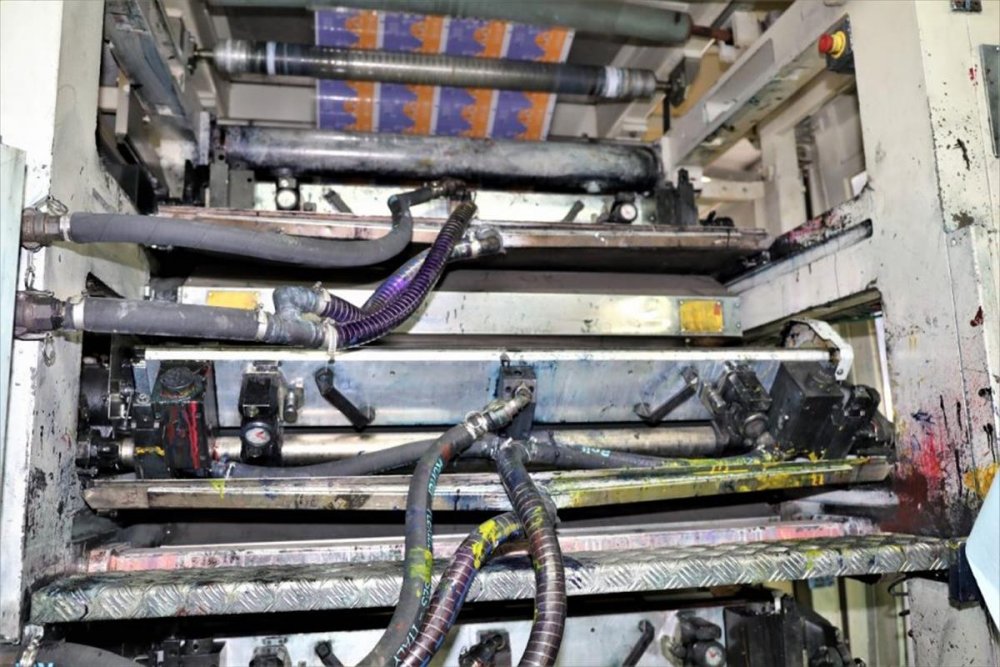

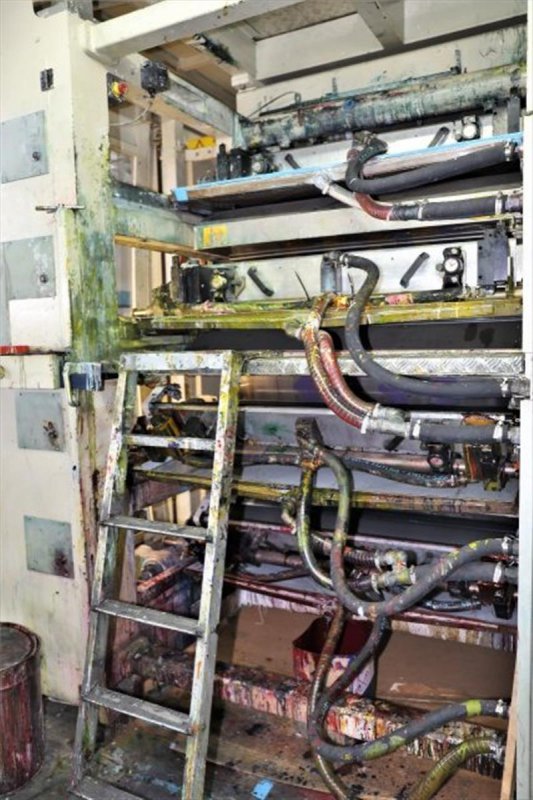

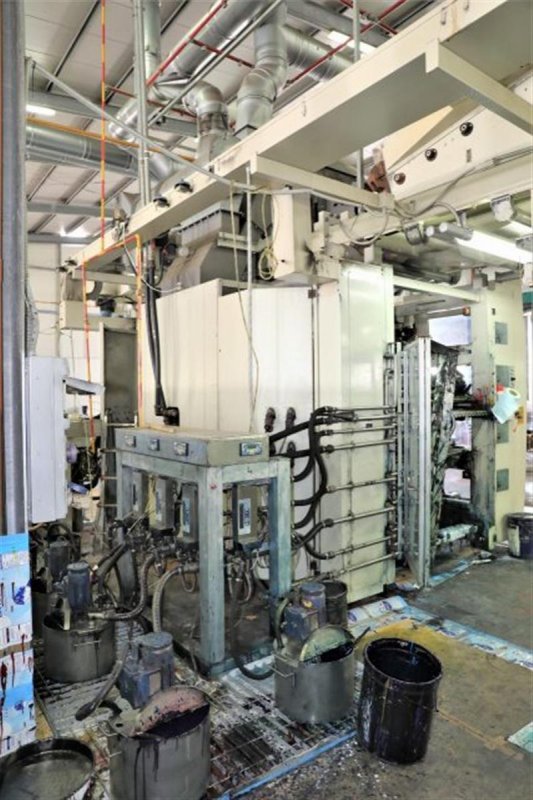

Inking system Closed Chamber doctor blades 8 electric ink pumps
Anilox totally 12 a s folows 1x 430 l/cm -vol.3 ; 1x 420 l/cm-vol.5,5; 1x 360 l/cm vol.5,5 ; 1x 300 l/cm-vol.5; 2x 280 l/cm-vol.6,5; 1x 260 l/cm vol.7,5; 2x 200 l/cm vol.10; 2x 110 l/cm vol.14; 1x 100 l/cm -vol.18
Print Sleeves totally 72 as 8 of each following repeat 400, 420 , 440 , 460 , 480 , 550 , 640 , 660 , 680
Additional information Chiller thermo regulating unit for CI drum 18.000 Kcal/h

** SOLD **
