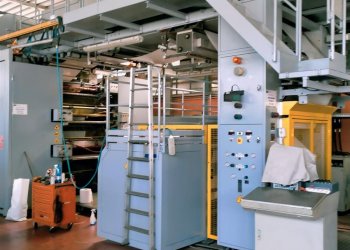

FLEXOTECNICA TACHYS Flexo central drum printing press 8 colors
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Machine Code | FL968 |
Manufacturer | FLEXOTECNICA |
Model | TACHYS |
Year | 2000 |
Number of colors | 8 |
Gearless | No |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1050 |
Print width (mm) | 1000 |
Min print repeat (mm) | 300 |
Max print repeat (mm) | 650 |
Unwinder type | Turret |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones, 4 fans, 2 heaters |
Videocamera | yes |
Corona treatment | Yes |
Inking system | Closed chamber doctror blades |
Anilox | 40 |
Print Sleeves | 700 |
Additional information | Max. speed 250 m/min Printable webs: the classical ones, theoretical values (wider range possible) OPP 12-60 µ PET 12-25µ PA 15-100µ Paper 100 g/m² Laminates until +/- 100 g/m² Coronatreater Webviewer 700 sleeves and the necessary carriers 40 anilox rollers (volume 5 to 18 cm³/m², 340 to 60 lines/cm) |
