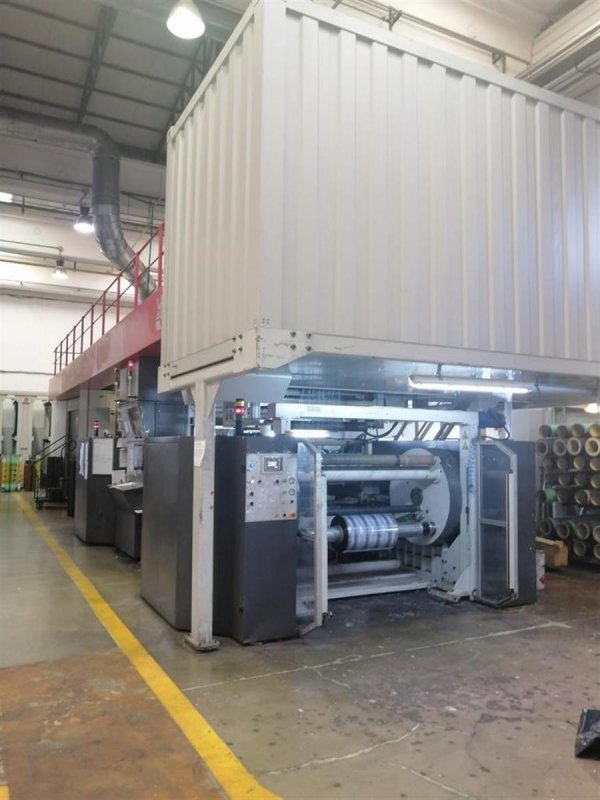

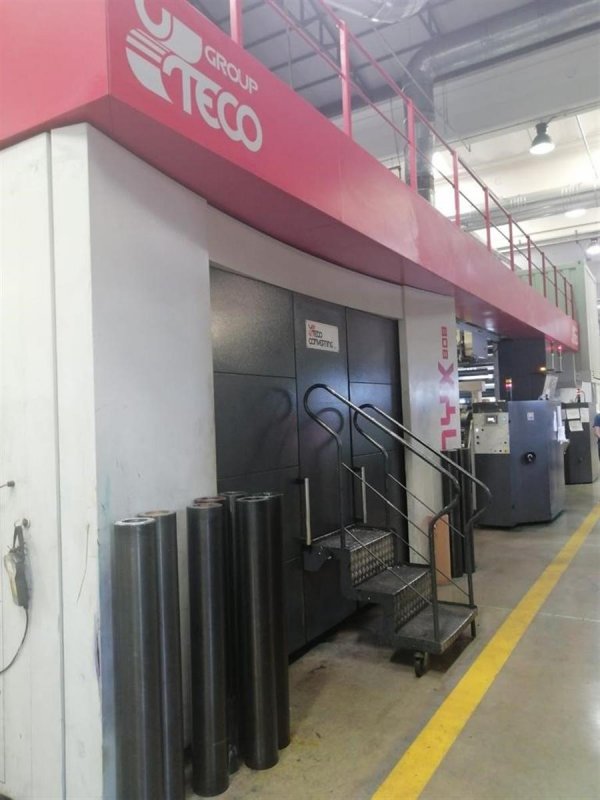

UTECO ONYX 808 flexo press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL937
Manufacturer
UTECO
Modello
ONYX 808
Year
2014
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

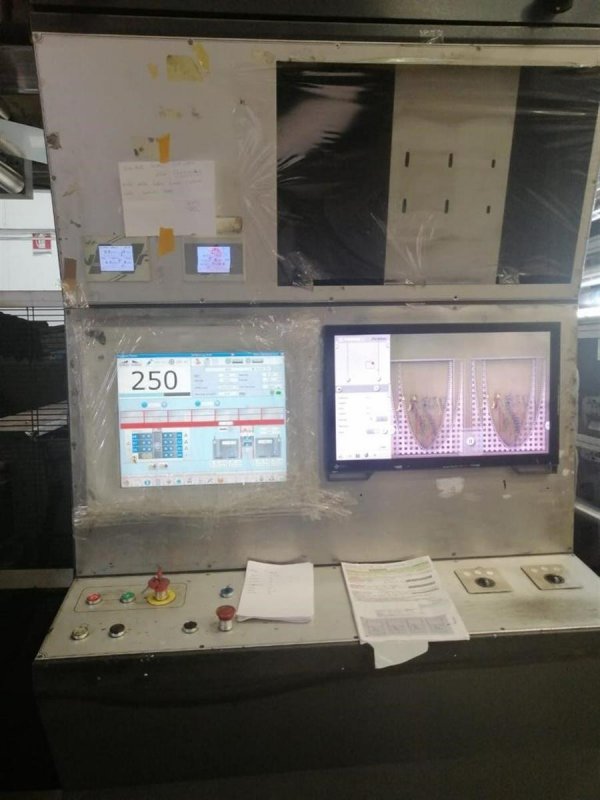

Computer supervision
Yes
Web width (mm)
1300
Print width (mm)
1250
Min print repeat (mm)
330
Max print repeat (mm)
800

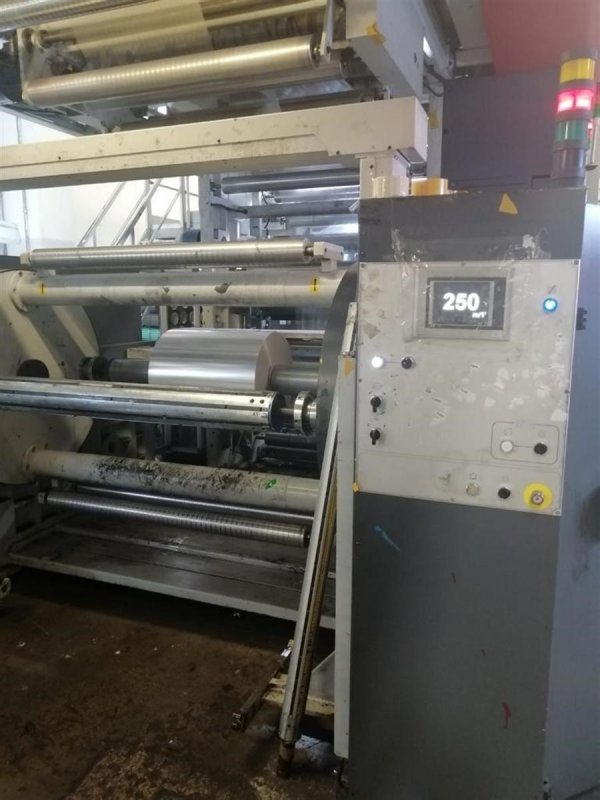

Unwinder type
Turret non stop
Max reel diameter unwinder (mm)
1000

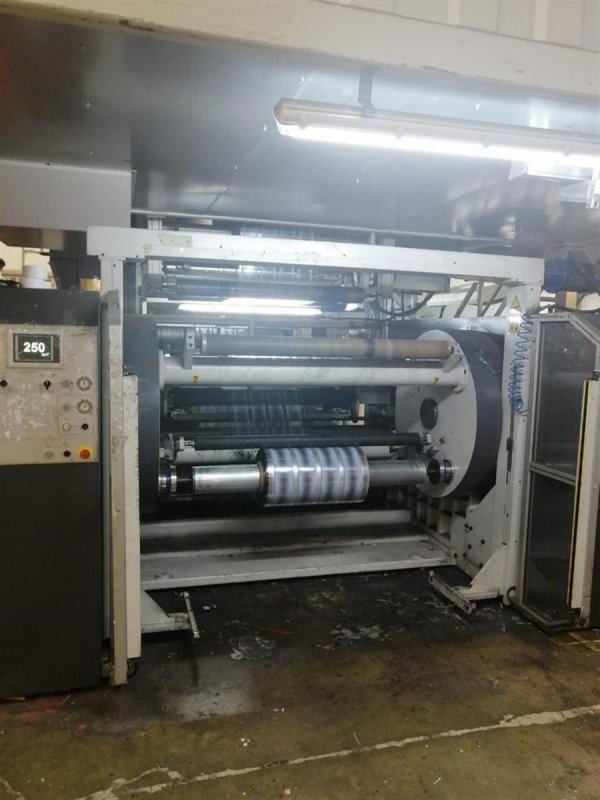

Rewinder type
Turret non stop
Max reel diameter rewinder (mm)
1000
Drying
Gas

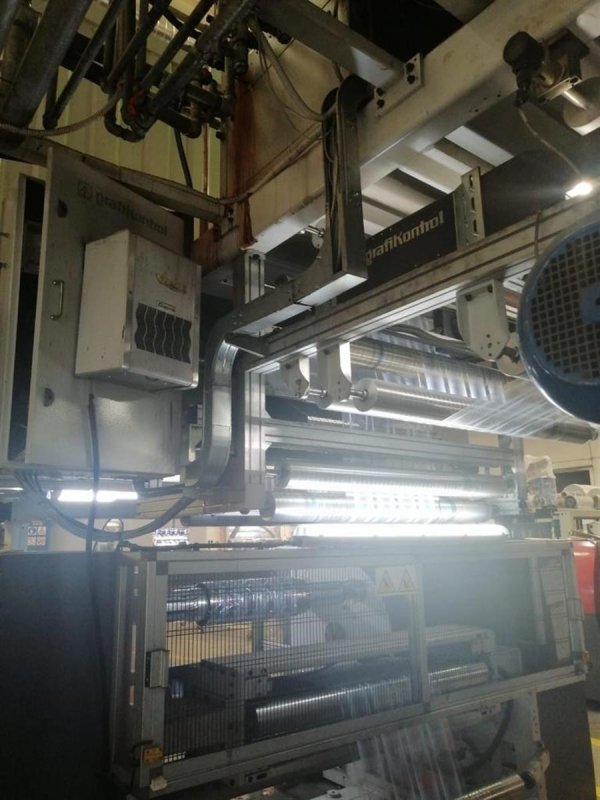

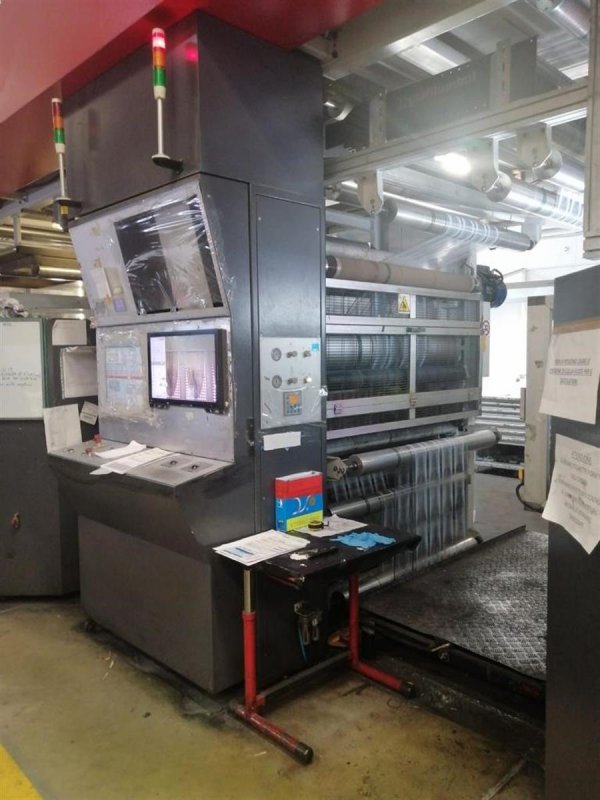

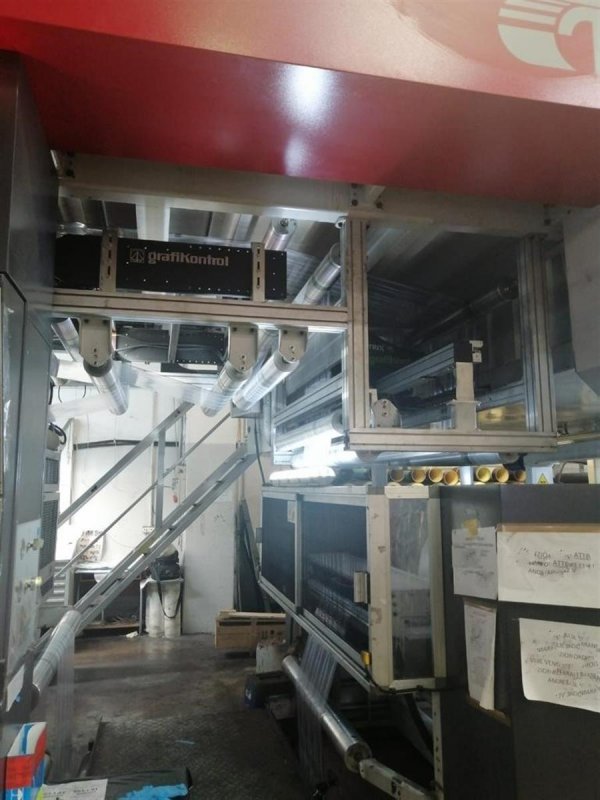

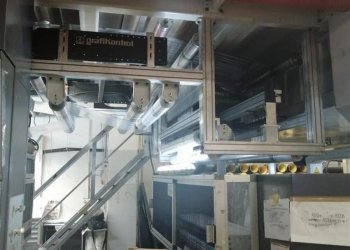

Videocamera
Graficontrol with 100% inspection
Web guides
Yes
Vyscosity control
Gama
Washing system
Yes
Inking system
Ceramic anilox + closed chambered doctor blade
Anilox
12 pieces

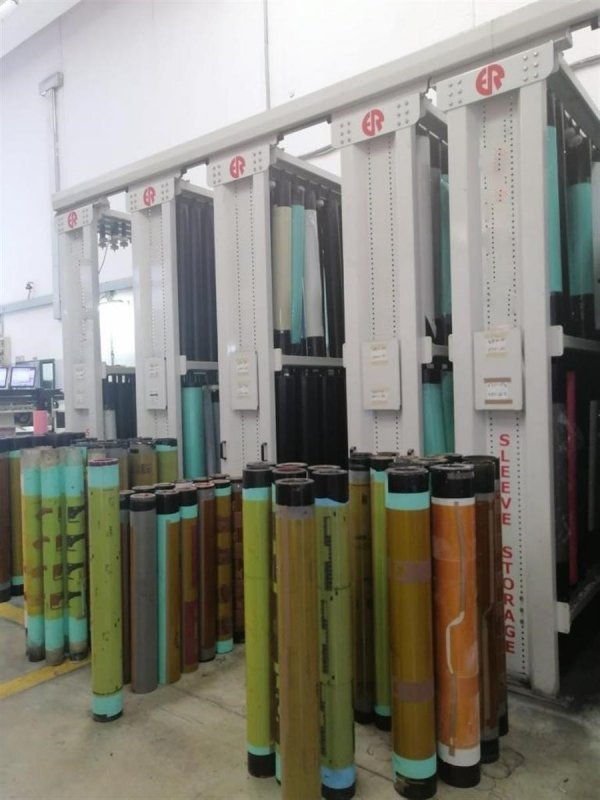

Print Sleeves
3 set of sleeves
Note
" Kiss and Go" automatic Print setting Driven infeed roller
Machine Code FL937
Manufacturer UTECO
Modello ONYX 808
Year 2014
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1300
Print width (mm) 1250
Min print repeat (mm) 330
Max print repeat (mm) 800
Unwinder type Turret non stop
Max reel diameter unwinder (mm) 1000
Rewinder type Turret non stop
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera Graficontrol with 100% inspection
Web guides Yes
Vyscosity control Gama
Washing system Yes
Inking system Ceramic anilox + closed chambered doctor blade
Anilox 12 pieces
Print Sleeves 3 set of sleeves
Note " Kiss and Go" automatic Print setting Driven infeed roller
