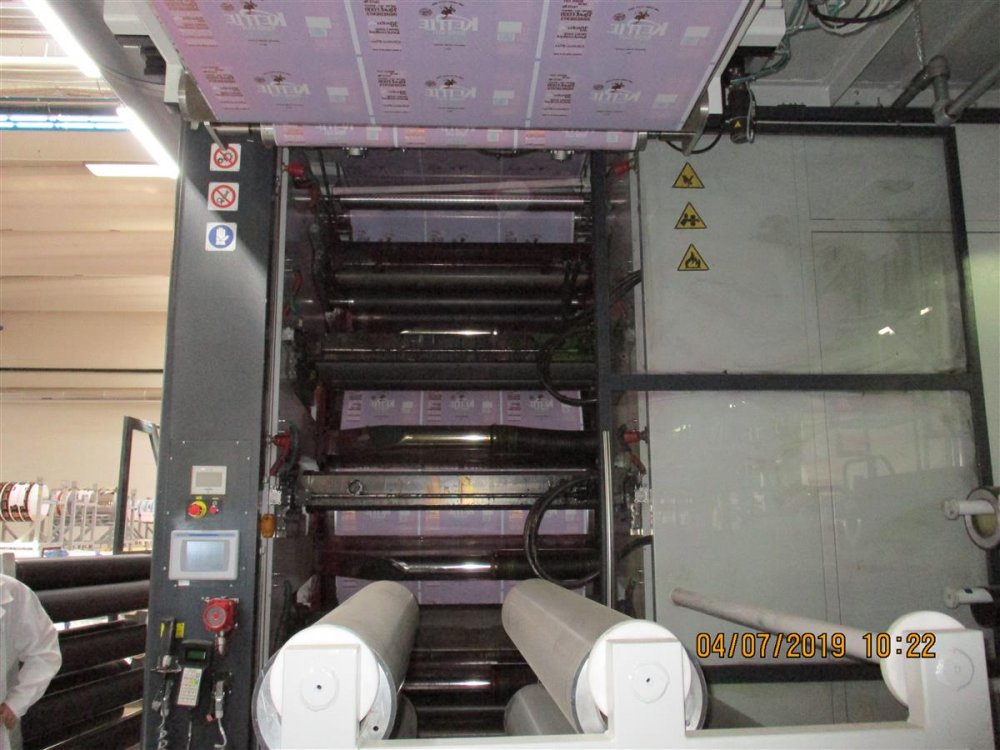

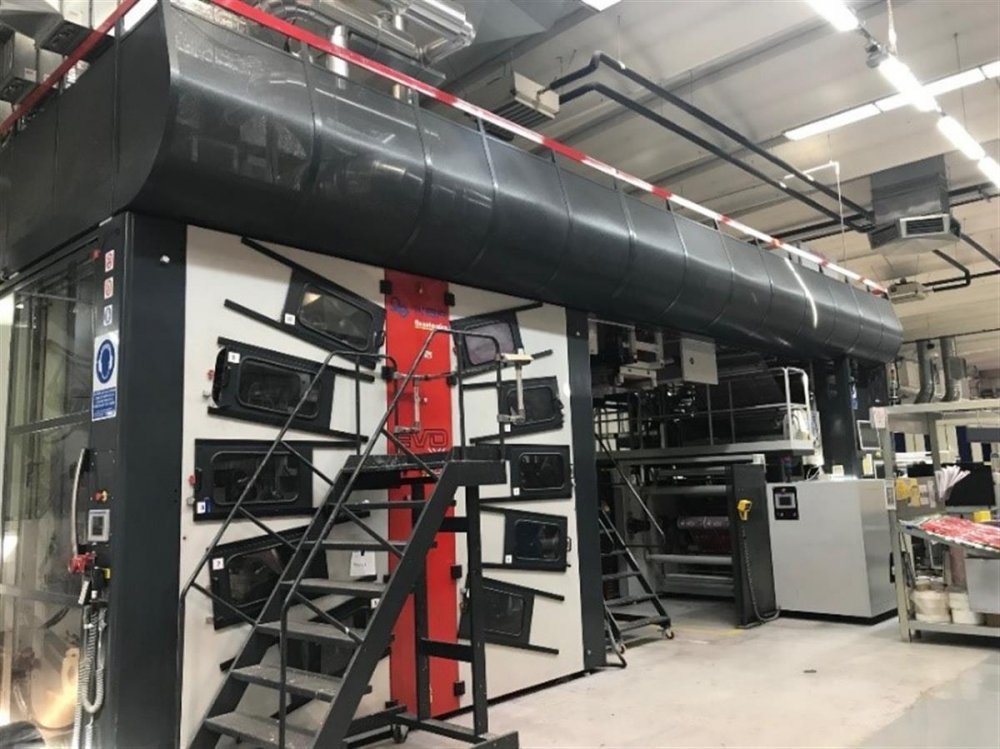

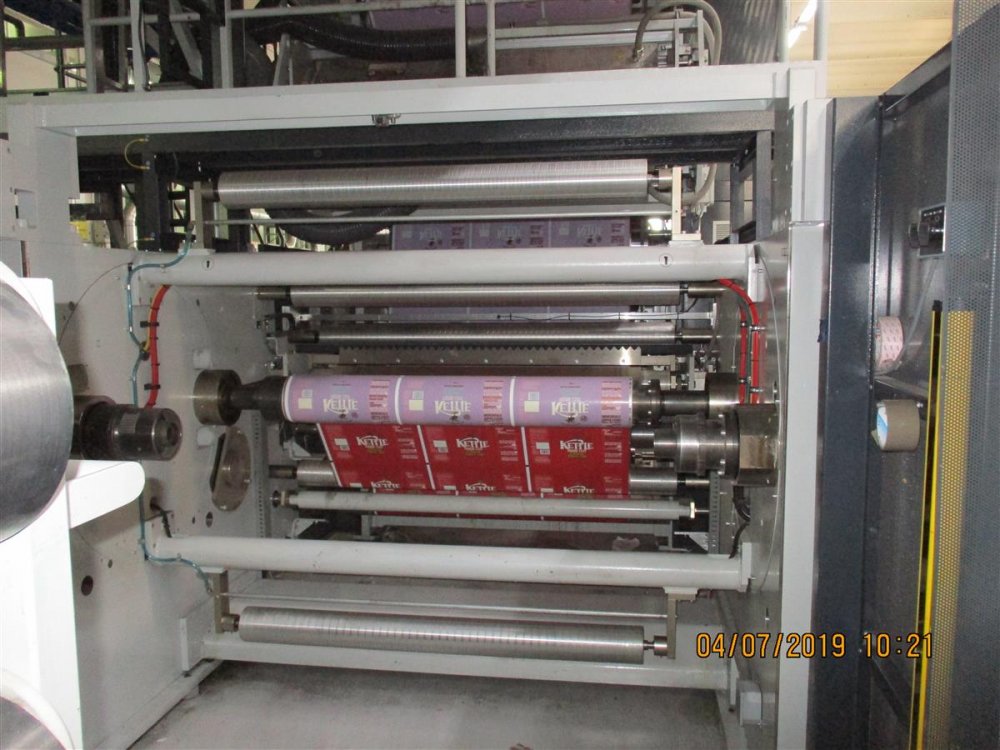

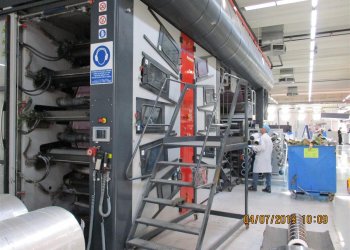

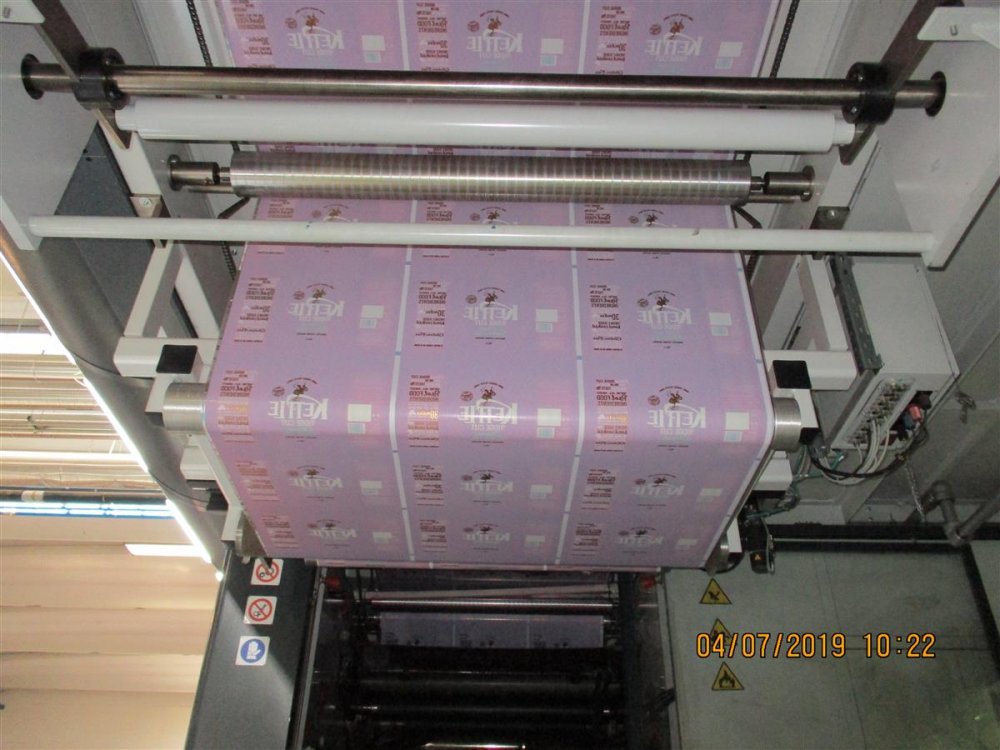

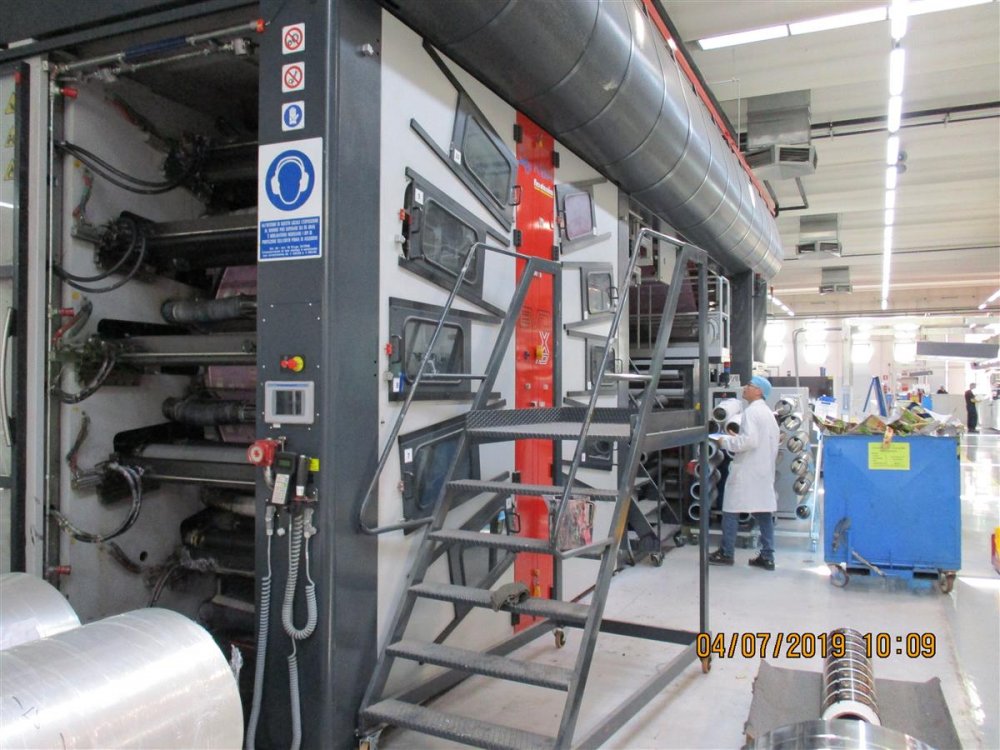

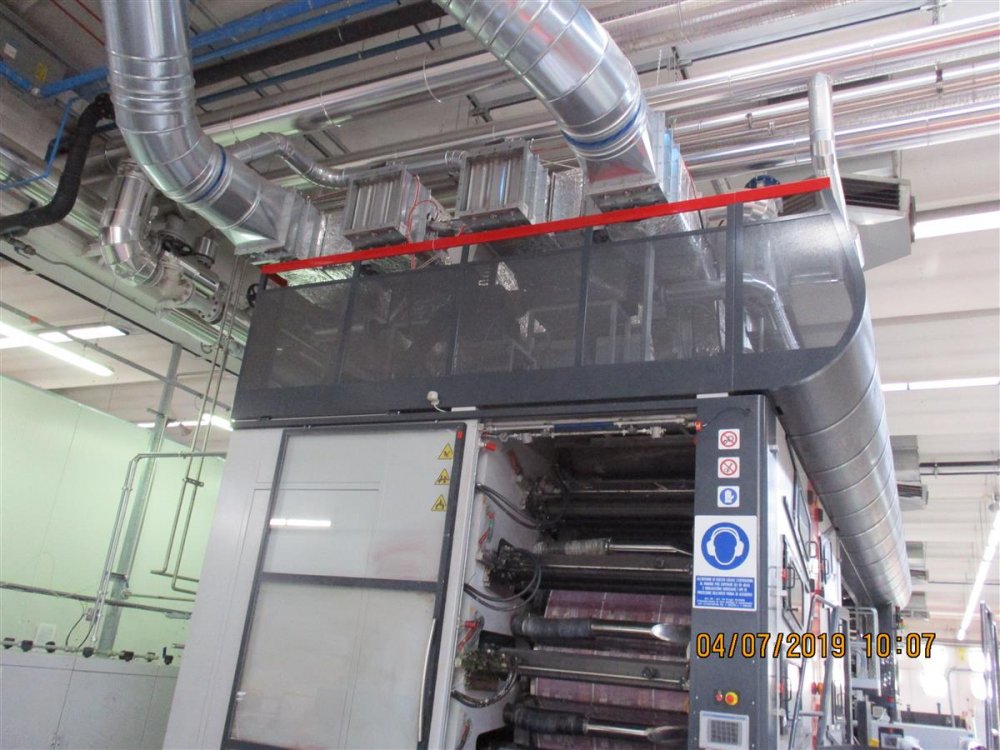

FLEXOTECNICA KBA EVOXD Flexo central drum printing press 10 colors
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
| Machine Code | FL874 |
| Manufacturer | FLEXOTECNICA KBA |
| Model | EVOXD |
| Year | 2016 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret shaftless |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret shaftless |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Oil burner |
| Videocamera | Graficontrol Progrex 500 ( system Matrix 500 statistical and Lznex 100% iquality inspection) |
| Corona treatment | ME.RO. power 12kW |
| Web guides | 2 |
| Vyscosity control | GAMA Mod. VISG26 |
| Washing system | Automatic |
| Inking system | closed chambers doctor blades |
| Anilox | 24 anilox n. 90 Vol.23 and n. 420 Vol.4,5 |
| Print Sleeves | 37 sleeves form 450mm to 1.230mm |
| Print cylinders | 620 from 400mm to 790mm |
| Additional information | Speed: 500m/min Register control: Grafikontrol cr34 LEL system NIRA mod: Sagitttarius 5000 Plate mounter CAMIS IRISLEEVE 1303: Year: 2016 Width: 1300 mm Sleeve warehouse SIMBA - GAMA: Year: 2016 Blocks: 15 Manual |
