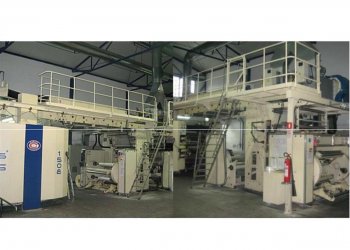

CARINT SPL 1508 mod 120 s/n 824 flexographic printing machine 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL850
Manufacturer
CARINT
Modello
SPL 1508 mod 120 s/n 824
Year
2006
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
360
Max print repeat (mm)
685
Unwinder type
Automatic turret
Max reel diameter unwinder (mm)
800
Rewinder type
Semi-automatic turret
Max reel diameter rewinder (mm)
800
Drying
Gas 2 packages.
Videocamera
BST PROSCAN.
Web guides
Edge guide before/after printing FIFE
Inking system
solvent based
Anilox
20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex
Print cylinders
176pcs
Note
Solvent based inks Printing speed up to 300m/min
Machine Code FL850
Manufacturer CARINT
Modello SPL 1508 mod 120 s/n 824
Year 2006
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 360
Max print repeat (mm) 685
Unwinder type Automatic turret
Max reel diameter unwinder (mm) 800
Rewinder type Semi-automatic turret
Max reel diameter rewinder (mm) 800
Drying Gas 2 packages.
Videocamera BST PROSCAN.
Web guides Edge guide before/after printing FIFE
Inking system solvent based
Anilox 20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex
Print cylinders 176pcs
Note Solvent based inks Printing speed up to 300m/min
