** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL909
- Manufacturer

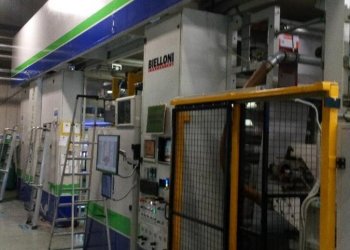

- BIELLONI
- Modello
- MAGIFLEX 850
- Year
- 2006
- Number of colors
- 8
- Gearless
- No
- Computer supervision
- Yes
- Web width (mm)
- 960
- Print width (mm)
- 850
- Min print repeat (mm)
- 340
- Max print repeat (mm)
- 800
- Max reel diameter unwinder (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Drying
- STEAM/AIR
- Videocamera
- BST
- Anilox
- 19
- Print Sleeves
- Totaly 20 sets 350mm; 370mm; 390mm; 390mm; 400mm; 410mm; 420mm; 440mm; 470mm; 475mm; 480mm; 490mm; 500mm; 510mm; 515mm; 520mm; 540mm; 550mm; 600mm;
- Note
- anilox cylinder diameter (mandrela) 149,400 mm print cylinder diameter (mandrela) 98,792 mm standard inking with chambered doctor blade 8 number ink pneumatic pumps 8 inks type solvent , water cliché thicknes photopolymer 1,14 or 2,54mm + adhesive tape horizontal register motorised on all colours horizontal register range +/- 10 mm longitudinal register motorised on all colours longitudinal register range+/- 10 mm drying system steam / air reels diameter unwinder 1000 mm reels diameter winder 1000 mm cores diameter 6" , 3" video camera to control the printing BST automatic edge-guide before CD FIFA automatic edge-guide before winding FIFA Compressed air *feeding pressure 6 bar *consumed quantity 130 Nm3/h Cooling water *feeding pressure 2 bar *max.consumed quantity 3300 l/h Inlet air quantity 10 000 Nm3/h Exhausted air quantity 12 000 Nm3/h
| Machine Code | FL909 |
| Manufacturer | BIELLONI |
| Modello | MAGIFLEX 850 |
| Year | 2006 |
| Number of colors | 8 |
| Gearless | No |
| Computer supervision | Yes |
| Web width (mm) | 960 |
| Print width (mm) | 850 |
| Min print repeat (mm) | 340 |
| Max print repeat (mm) | 800 |
| Max reel diameter unwinder (mm) | 1000 |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | STEAM/AIR |
| Videocamera | BST |
| Anilox | 19 |
| Print Sleeves | Totaly 20 sets 350mm; 370mm; 390mm; 390mm; 400mm; 410mm; 420mm; 440mm; 470mm; 475mm; 480mm; 490mm; 500mm; 510mm; 515mm; 520mm; 540mm; 550mm; 600mm; |
| Note | anilox cylinder diameter (mandrela) 149,400 mm print cylinder diameter (mandrela) 98,792 mm standard inking with chambered doctor blade 8 number ink pneumatic pumps 8 inks type solvent , water cliché thicknes photopolymer 1,14 or 2,54mm + adhesive tape horizontal register motorised on all colours horizontal register range +/- 10 mm longitudinal register motorised on all colours longitudinal register range+/- 10 mm drying system steam / air reels diameter unwinder 1000 mm reels diameter winder 1000 mm cores diameter 6" , 3" video camera to control the printing BST automatic edge-guide before CD FIFA automatic edge-guide before winding FIFA Compressed air *feeding pressure 6 bar *consumed quantity 130 Nm3/h Cooling water *feeding pressure 2 bar *max.consumed quantity 3300 l/h Inlet air quantity 10 000 Nm3/h Exhausted air quantity 12 000 Nm3/h |
