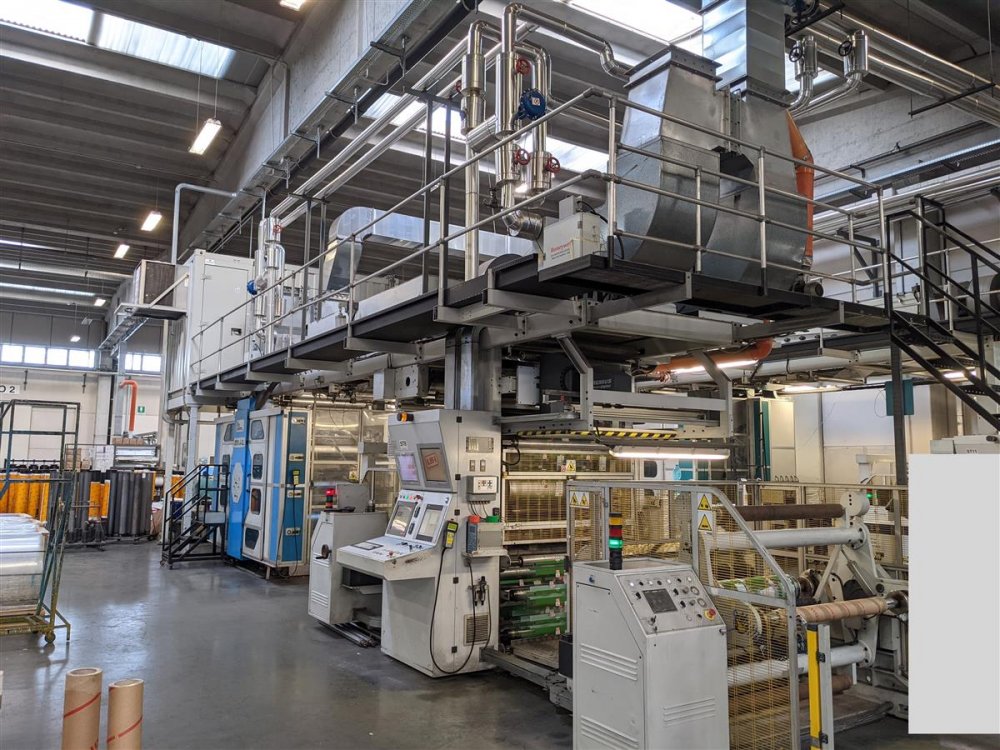

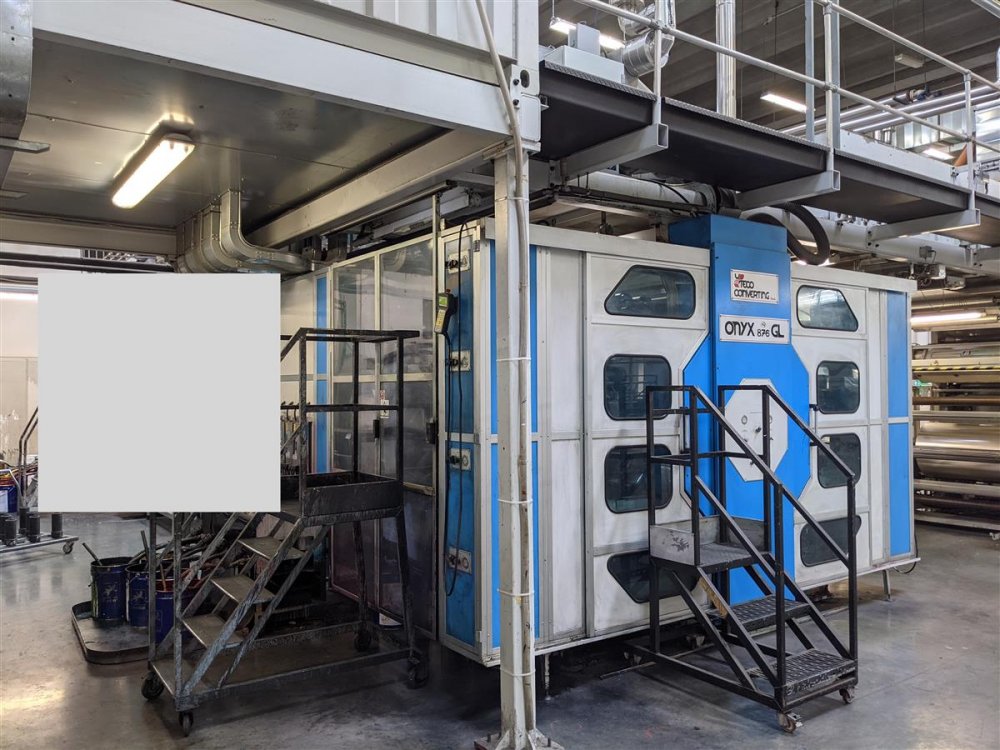

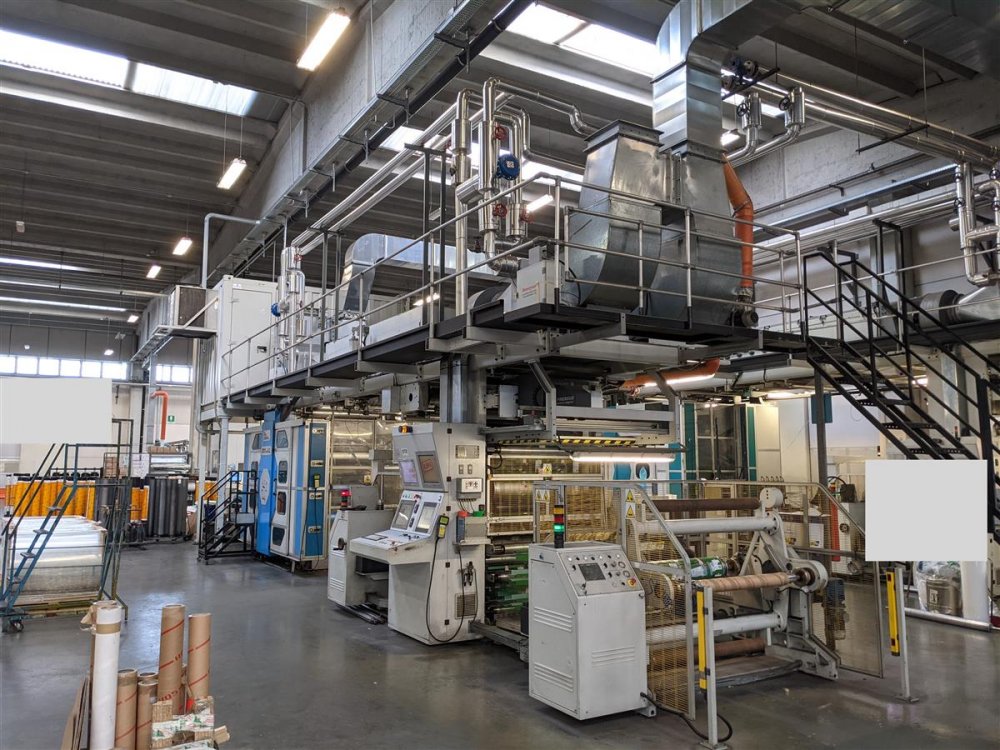

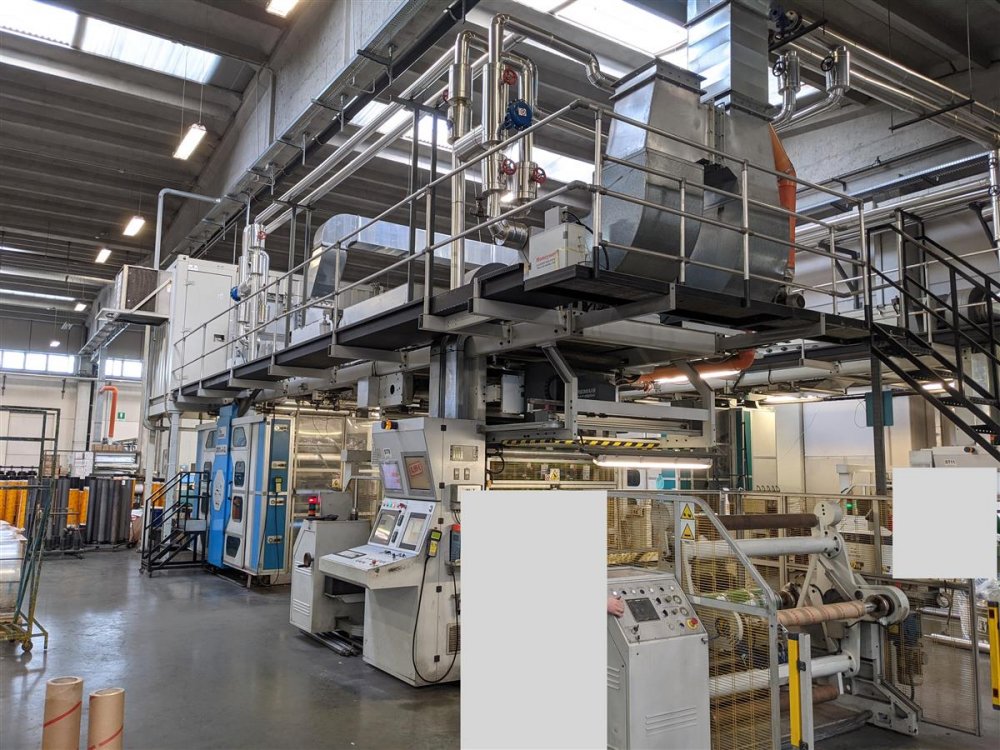

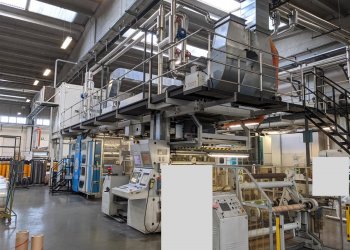

UTECO ONYX 808 flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL899
Manufacturer UTECO
Model ONYX 808
Year 2007
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change No
4 motor per deck CNC position system Yes

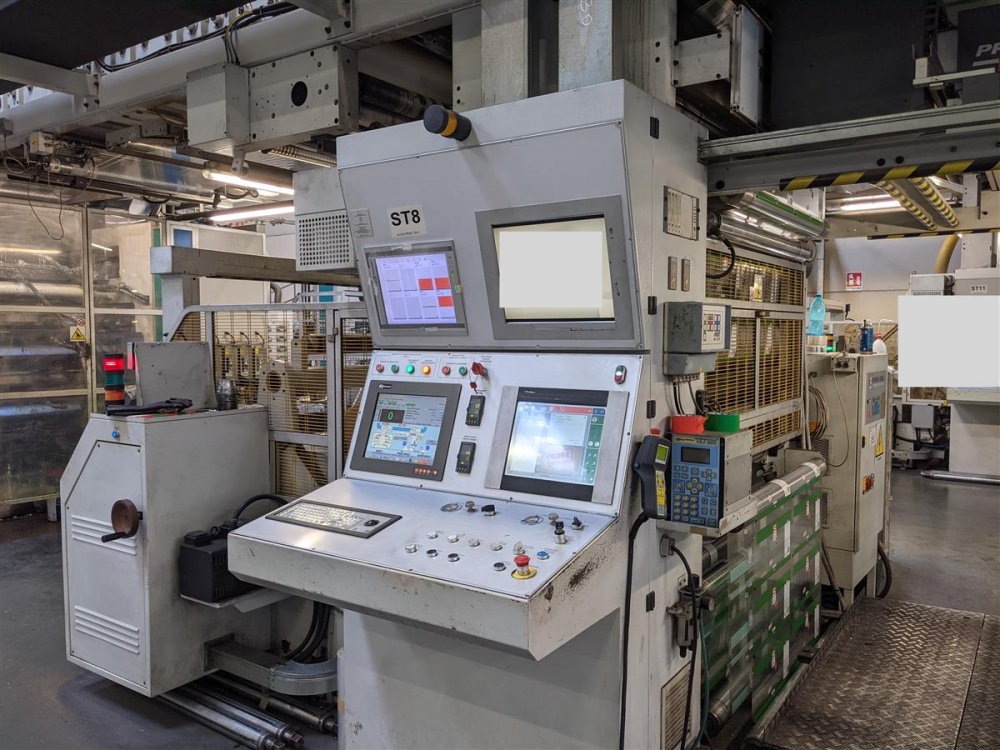

Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 800

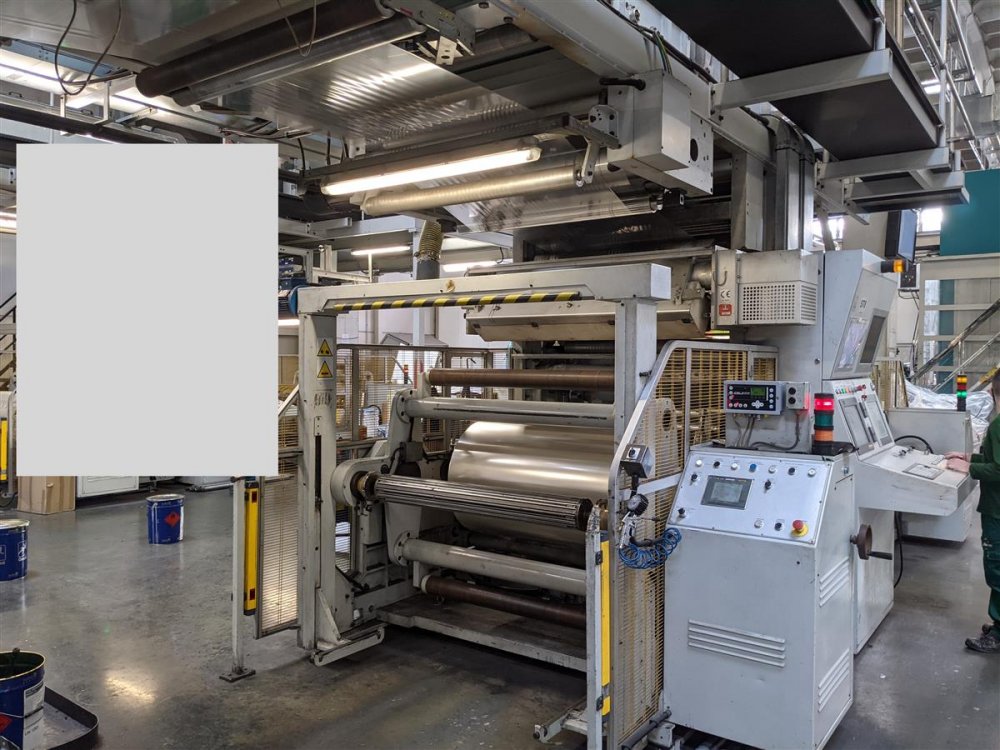

Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans , drying tunnel 4 mt , 2 thermo oil heat exchangers
Videocamera BST Premius Digital 3 chip
Web guides yes in and out
Vyscosity control yes by Fasnacht
Washing system Yes automatic
Inking system Closed chamber doctor blades
Anilox 12 ceramic anilox sleeves as follwos : 4x 300 lines/cm- Vol.15 cm3/m2 ; 4x 200 lines /cm-Vol. 6,5 ; 2x 100 lines/cm -vol.12 ; 2x 80 lines/cm -vol.15
Print Sleeves 56 sleeves: 8x34, 8x 40, 8x47, 8x54, 8x59, 8x65, 8x69
Print cylinders 9 carbon fiber carriers
Additional information Reprint system with insetter register control and Driven infeed nip calender

** SOLD **


You may also be interested in:

151999 - PCMC VISION G

PCMC VISION G

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 900

Year: 2005

214593 - FISCHER & KRECKE 34DF/8  CNC

FISCHER & KRECKE 34DF/8 CNC

Category: Printing machines

Subcategory: Flexo CI

Print width (mm): 1300

Year: 1995

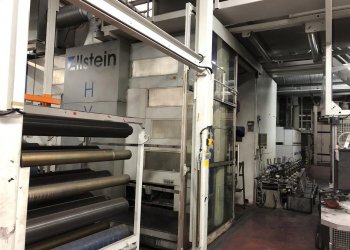

204470 - ALLSTEIN Hydro 10
