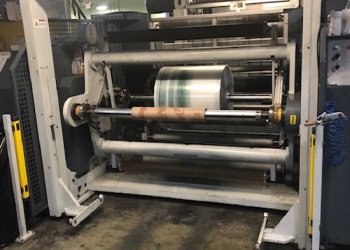

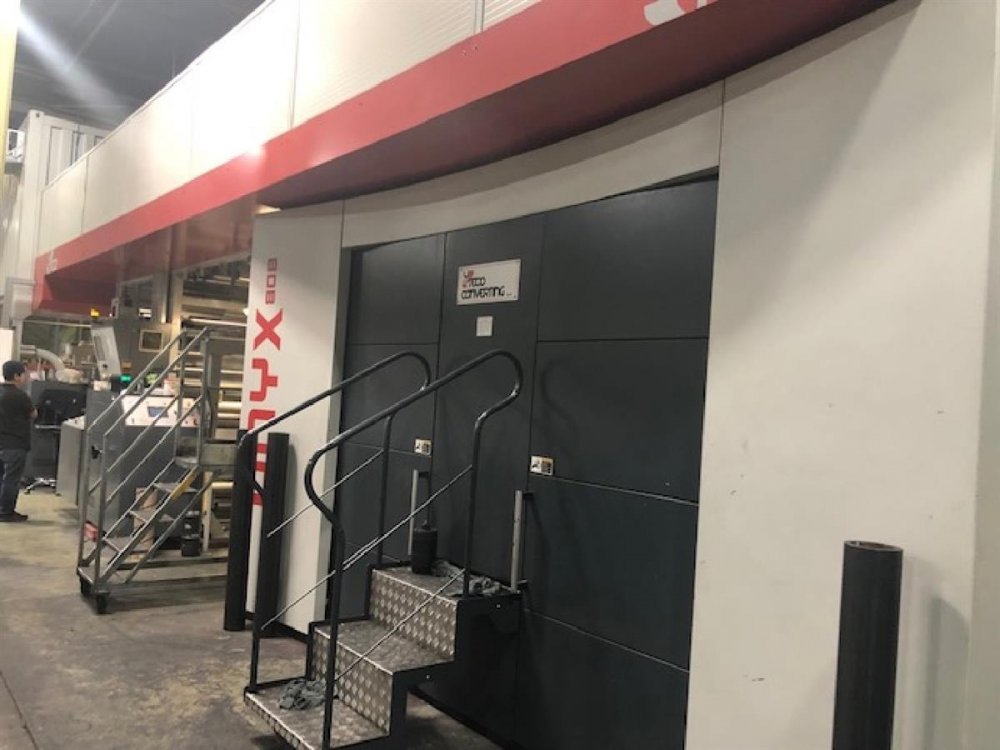

UTECO ONYX 808 flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL855
Manufacturer UTECO
Model ONYX 808
Year 2010
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 350
Max print repeat (mm) 800

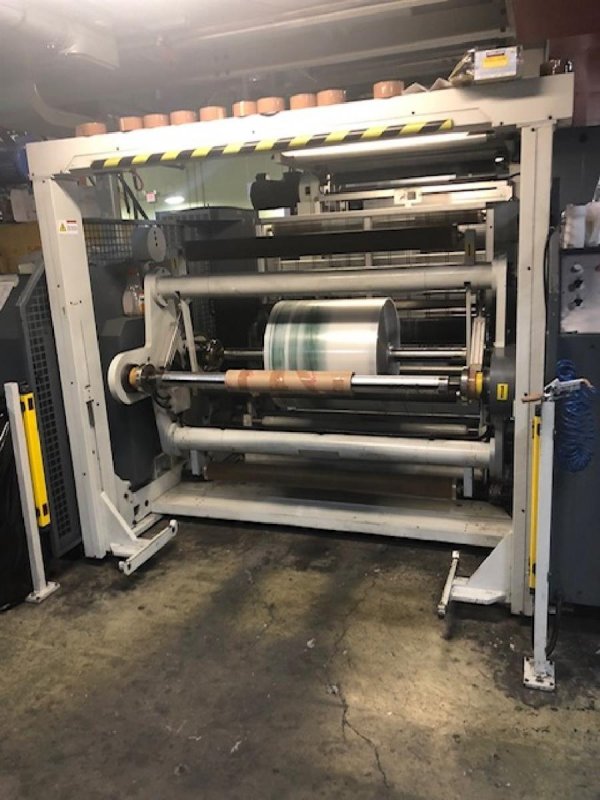

Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , four fans , extended drying tunnel 4 mt , Two gas burners , Automatic recirculation system with LEL control
Videocamera Video inspection system Grafikontrol with interactive register control Click&Drag
Web guides Yes in and out
Vyscosity control Viscosity controllers
Washing system Semi Automatic washing system for doctor blades and aniloxes;
Inking system Closed chamber doctor blades with quick changeover of the blades and side sealings and Double pneumatic inking pumps
Anilox 12 ceramic anilox sleeves 3 x 900 L/inch, vol.2,3 BCM; 2 X 800 L/inch , vol 2,3 BCM ; 1 x 700L/inch ; 3 x 550L/inch vol. 5,5 ; 1x350 l/inch -vol .5,9 ; 2 x250L/inch -vol.9
Print Sleeves 56 repeats 14.5” , 15” 16.25” , 17” , 17.5” , 18.25” , 19.25
Additional information Gearless machine with patented Direct Drive Evo; Chiller;

** SOLD **
