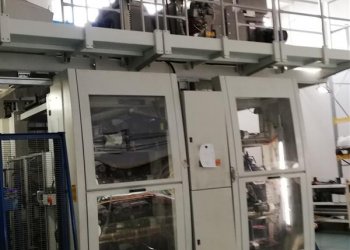

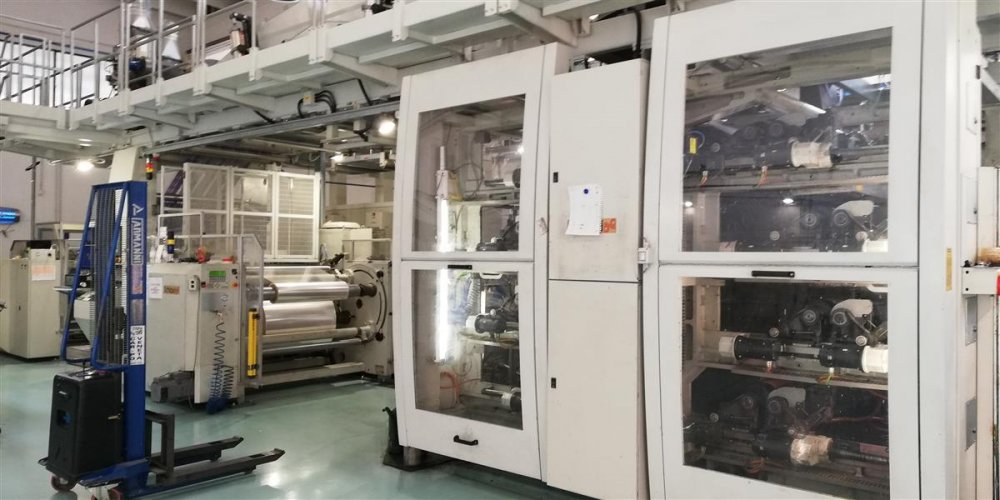

SCHIAVI EF 4020 flexo printing machine 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

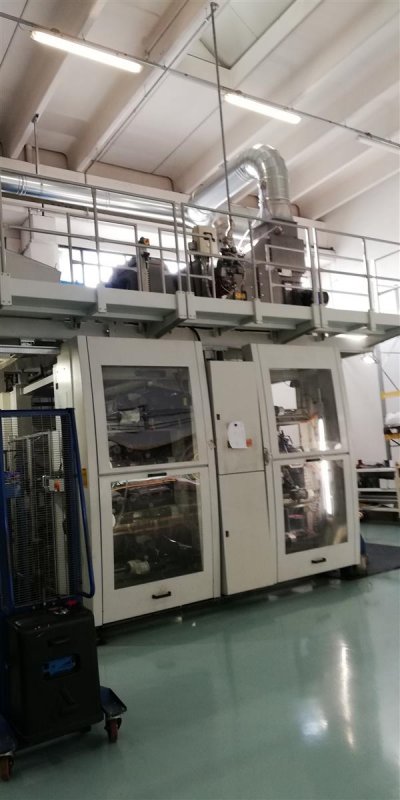

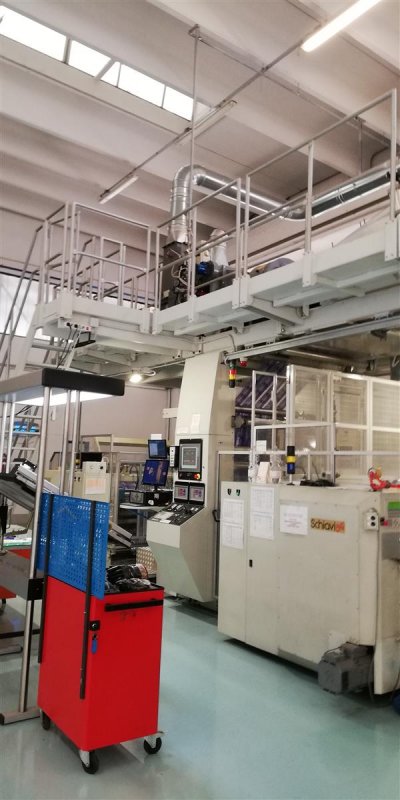

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL827
Manufacturer: SCHIAVI
Modello: EF 4020
Year: 2009
Number of colors: 8
Print possibilityes: 8+0
Gearless: Yes
Fast sleeve change: Yes

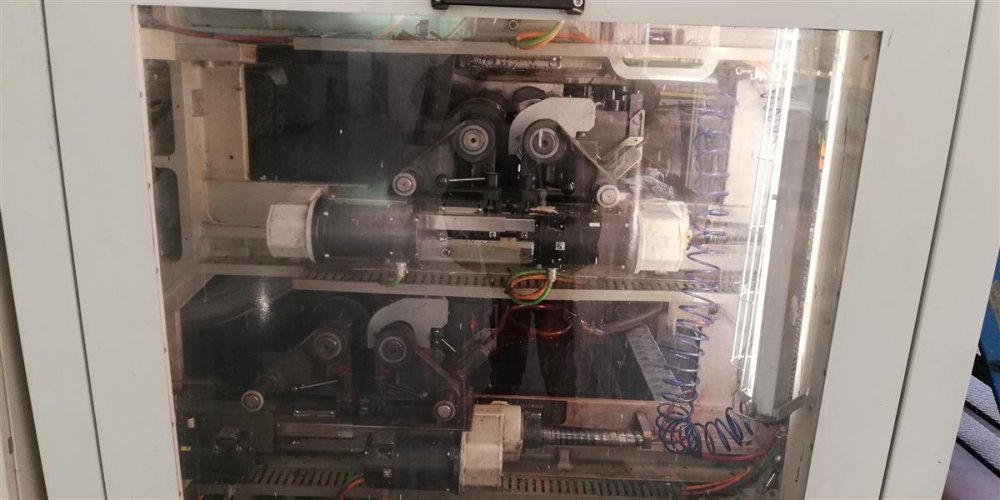

4 motor per deck CNC position system: Yes

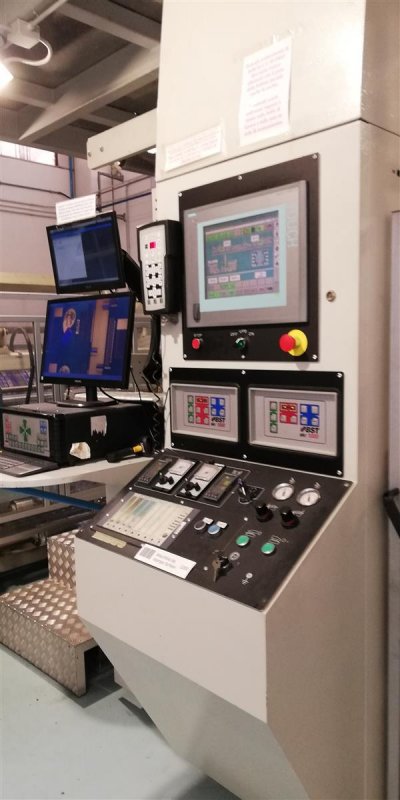

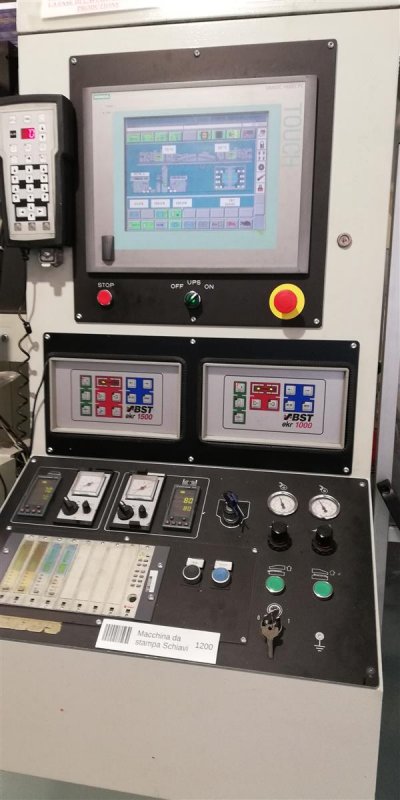

Computer supervision: Yes
Web width (mm): 1270
Print width (mm): 1220
Min print repeat (mm): 360
Max print repeat (mm): 750
Unwinder type: Turret Automatic
Max reel diameter unwinder (mm): 800

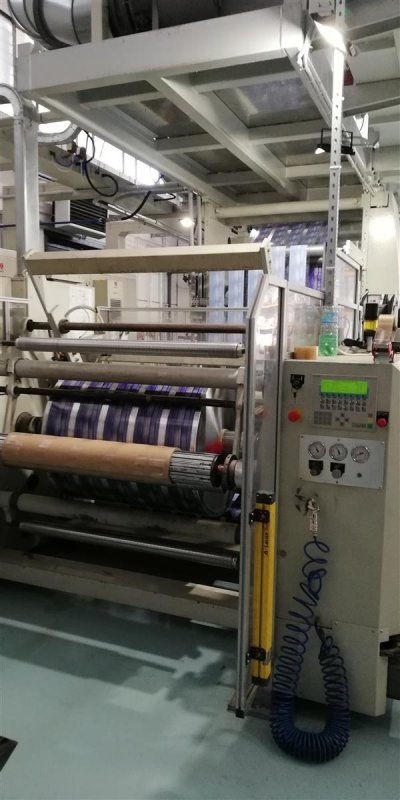

Rewinder type: Turret automatic
Max reel diameter rewinder (mm): 800

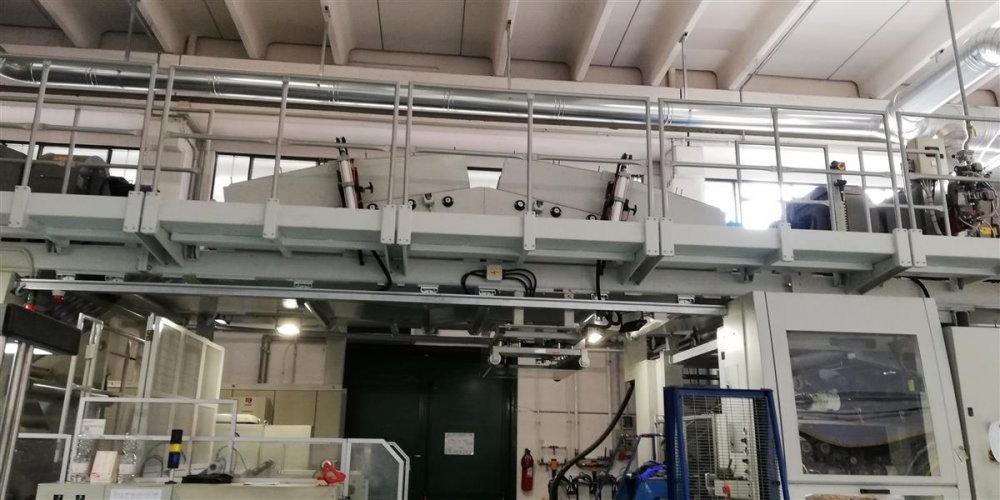

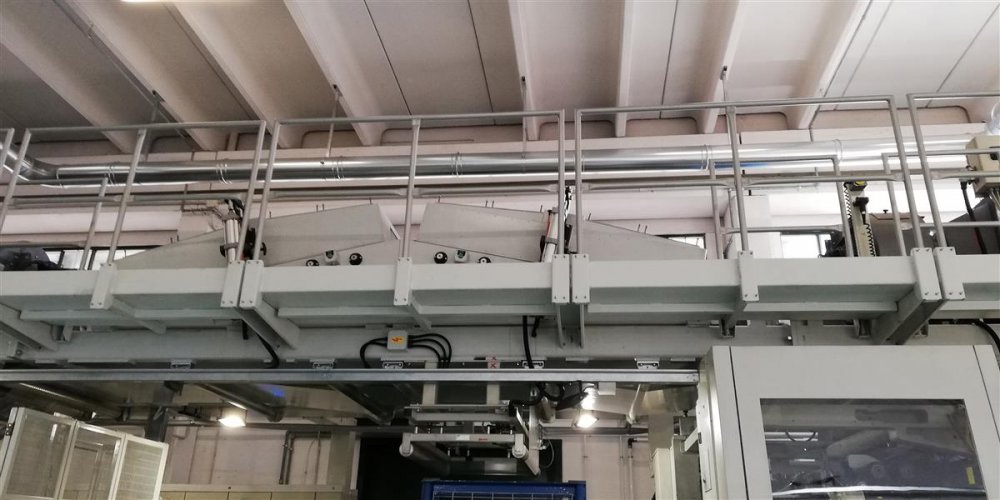

Drying: 2 zones , four fans final tunnel , two gas burners, autoatic air recirculation system with LEL control
Videocamera: BST Proscan
Web guides: yes in and out BST EKR 1000
Vyscosity control: yes 8 viscosity controls New Celio
Inking system: Closed chamber doctor bladees
Anilox: 21 ceramic anilox sleeves: 1x80 l/cm-vol.16 ; 1x100 l/ cm-vol.16 ; 1x120 l/cm-vol.14 ; 1x140 -.7 ; 1x160 -10 ; 1x160 - 12 ; 1x180 / 10 ; 2x240 - 5 ; 1x280 - 7 ; 1x300 - 6 ; 3x320 - 5,5 ; 2x360 - 3,5 ; 4x420 - 4
Print Sleeves: 180 print sleeves : 18 x 350 mm; 8 x 360 ; 8 x 390 ; 9 x 400 ; 8 x 420 ; 15 x 440 ; 8 x 450 ; 8 x 460 ; 8 x 480 ; 8 x 500 ; 8 x 520 ; 8 x 530 ; 8 x 550 ; 15 x 570 ; 8 x 600 ; 8 x 650 ; 8 x 660 ; 8 x 680 ; 8 x 700
Print cylinders: 1 set of carbon fiber carriers
Note: Speed 300mpm
