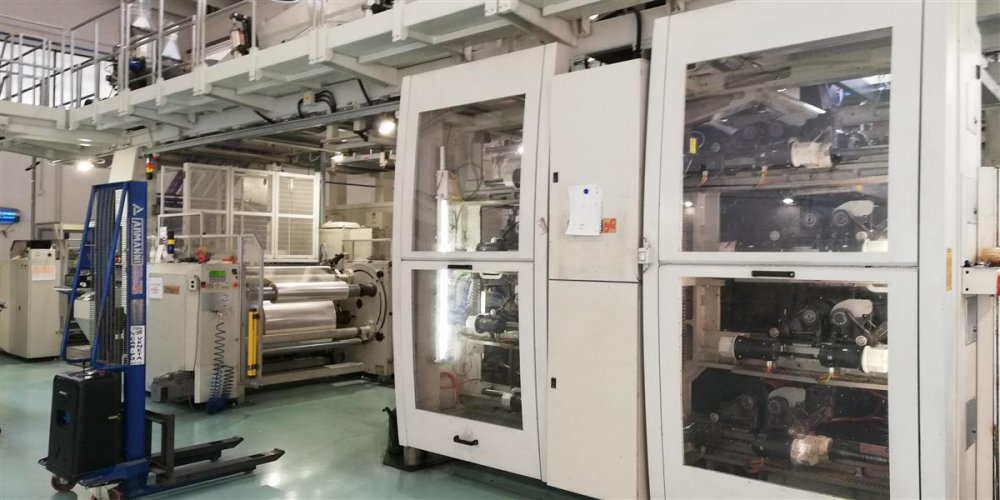

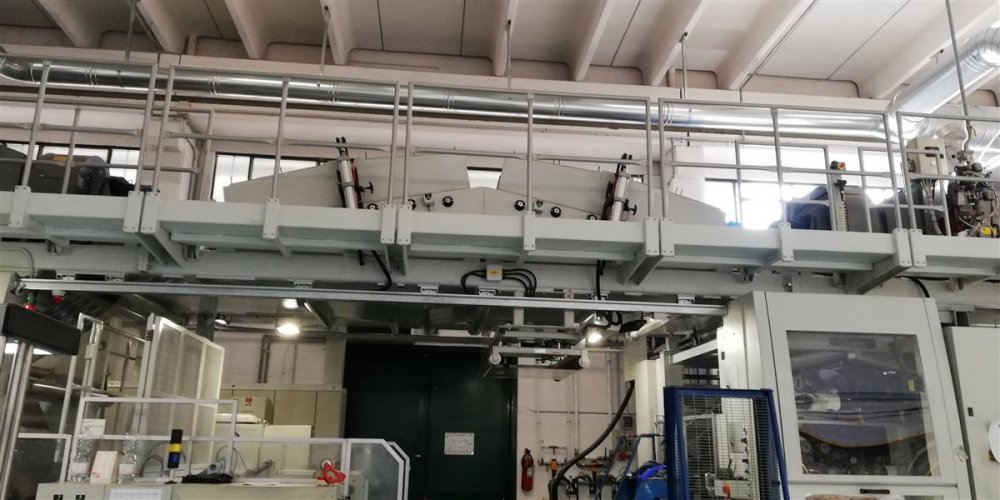

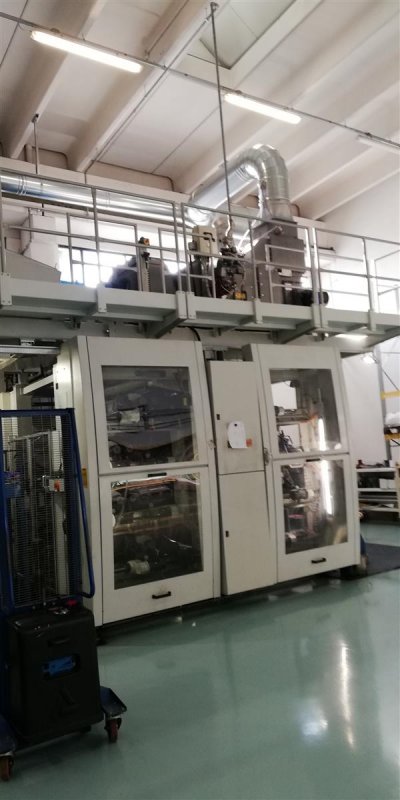

SCHIAVI EF 4020 flexo printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL827
Manufacturer
SCHIAVI
Model
EF 4020
Year
2009
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes

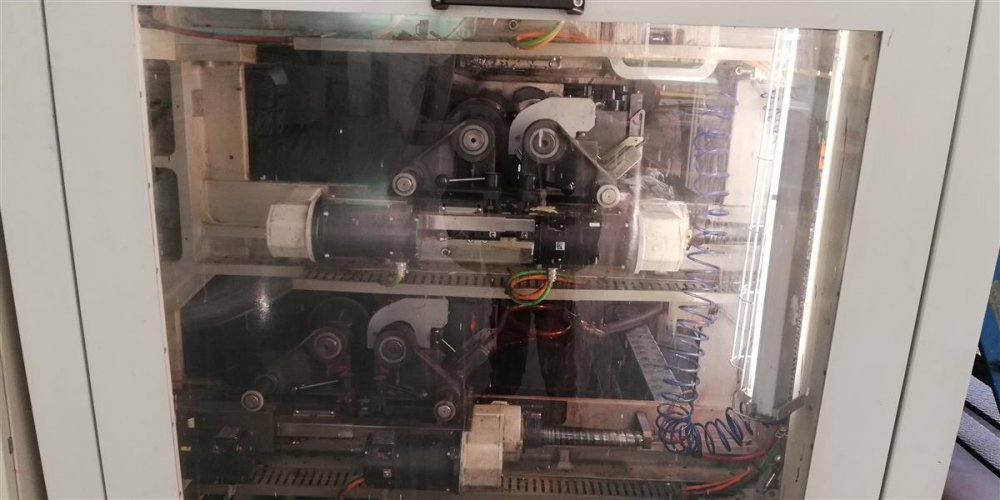

4 motor per deck CNC position system
Yes

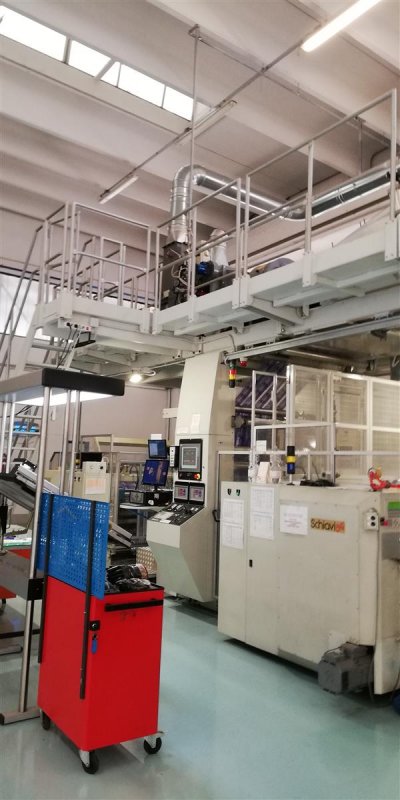

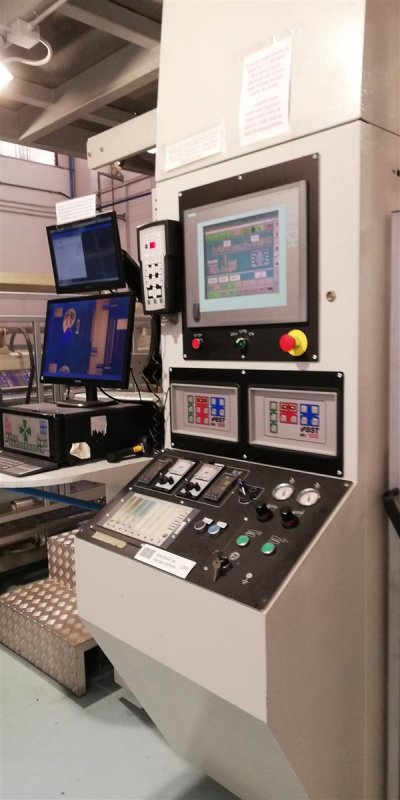

Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
360
Max print repeat (mm)
750
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
800

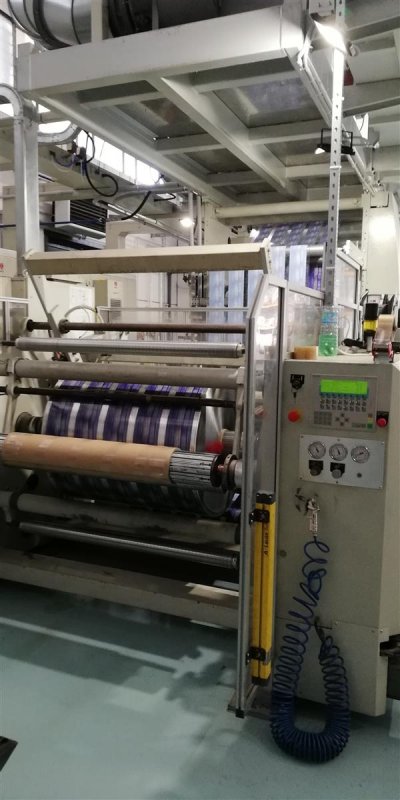

Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800

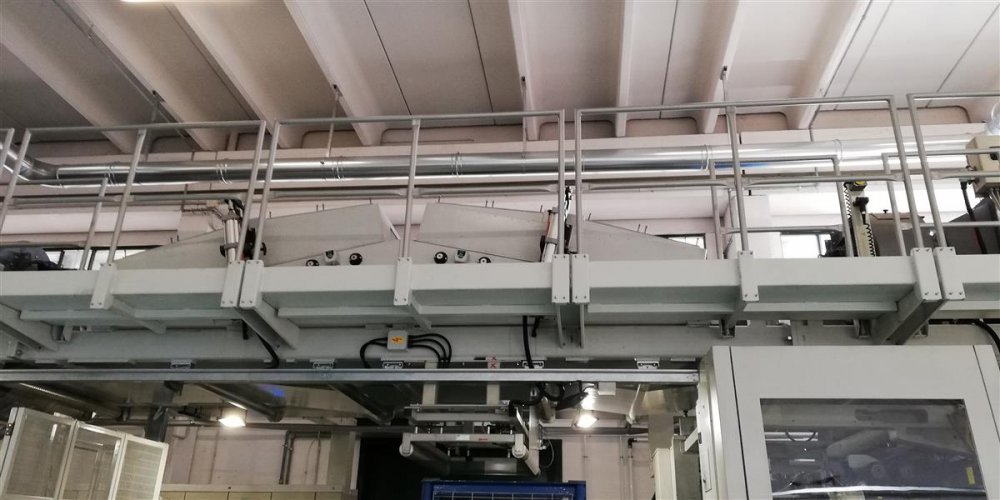

Drying
2 zones , four fans final tunnel , two gas burners, autoatic air recirculation system with LEL control
Videocamera
BST Proscan

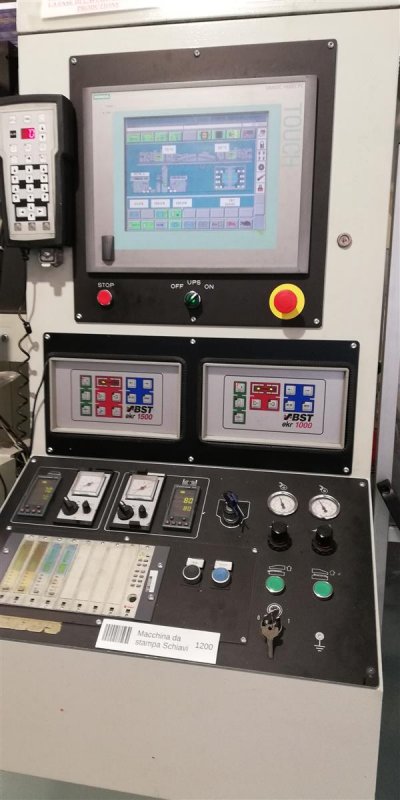

Web guides
yes in and out BST EKR 1000
Vyscosity control
yes 8 viscosity controls New Celio
Inking system
Closed chamber doctor bladees
Anilox
21 ceramic anilox sleeves: 1x80 l/cm-vol.16 ; 1x100 l/ cm-vol.16 ; 1x120 l/cm-vol.14 ; 1x140 -.7 ; 1x160 -10 ; 1x160 - 12 ; 1x180 / 10 ; 2x240 - 5 ; 1x280 - 7 ; 1x300 - 6 ; 3x320 - 5,5 ; 2x360 - 3,5 ; 4x420 - 4
Print Sleeves
180 print sleeves : 18 x 350 mm; 8 x 360 ; 8 x 390 ; 9 x 400 ; 8 x 420 ; 15 x 440 ; 8 x 450 ; 8 x 460 ; 8 x 480 ; 8 x 500 ; 8 x 520 ; 8 x 530 ; 8 x 550 ; 15 x 570 ; 8 x 600 ; 8 x 650 ; 8 x 660 ; 8 x 680 ; 8 x 700
Print cylinders
1 set of carbon fiber carriers
Additional information
Speed 300mpm
Machine Code FL827
Manufacturer SCHIAVI
Model EF 4020
Year 2009
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 360
Max print repeat (mm) 750
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones , four fans final tunnel , two gas burners, autoatic air recirculation system with LEL control
Videocamera BST Proscan
Web guides yes in and out BST EKR 1000
Vyscosity control yes 8 viscosity controls New Celio
Inking system Closed chamber doctor bladees
Anilox 21 ceramic anilox sleeves: 1x80 l/cm-vol.16 ; 1x100 l/ cm-vol.16 ; 1x120 l/cm-vol.14 ; 1x140 -.7 ; 1x160 -10 ; 1x160 - 12 ; 1x180 / 10 ; 2x240 - 5 ; 1x280 - 7 ; 1x300 - 6 ; 3x320 - 5,5 ; 2x360 - 3,5 ; 4x420 - 4
Print Sleeves 180 print sleeves : 18 x 350 mm; 8 x 360 ; 8 x 390 ; 9 x 400 ; 8 x 420 ; 15 x 440 ; 8 x 450 ; 8 x 460 ; 8 x 480 ; 8 x 500 ; 8 x 520 ; 8 x 530 ; 8 x 550 ; 15 x 570 ; 8 x 600 ; 8 x 650 ; 8 x 660 ; 8 x 680 ; 8 x 700
Print cylinders 1 set of carbon fiber carriers
Additional information Speed 300mpm
** SOLD **
