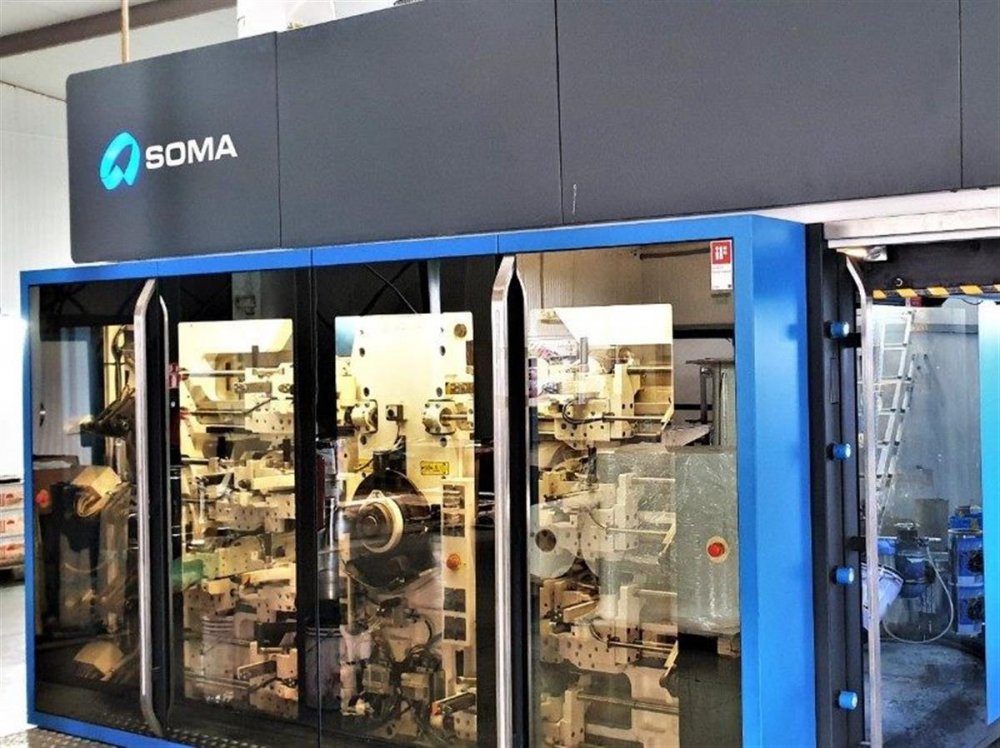

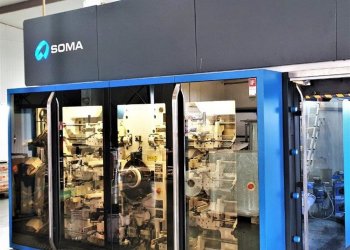

SOMA FLEX-OPTIMA 8 EG/WG Flexo central drum printing press 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL883
Manufacturer: SOMA
Modello: FLEX-OPTIMA 8 EG/WG
Year: 2016
Number of colors: 8
Print possibilityes: 8+0
Overhaul/renovation: Machine brand new . used only for printing test and demo in demo center , not for daily production .less than 1000 hours f operation
Gearless: Yes
Fast sleeve change: No
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 850
Print width (mm): 820
Min print repeat (mm): 280
Max print repeat (mm): 600

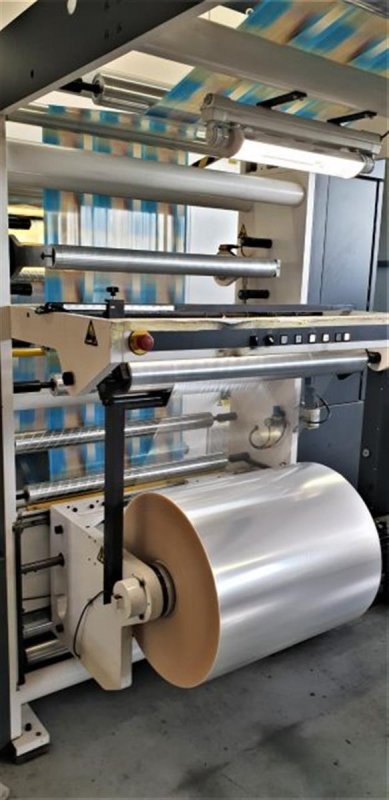

Unwinder type: Single position shaftless
Max reel diameter unwinder (mm): 1000

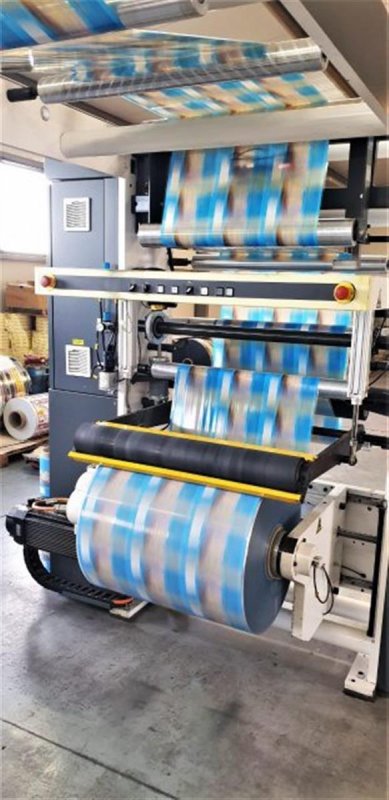

Rewinder type: Single position shaftless
Max reel diameter rewinder (mm): 1000
Drying: 2 zones - 4 fans- Tunnel 3mt lomg 19 air knives 2 gas burners
Videocamera: BST Digital Super Handy Scan 4000 with automatic register control
Corona treatment: yes
Web guides: Yes in and out
Washing system: Yes automatic
Inking system: Closed chamber doctor blades with pneumatic ink pumps with mixer
Anilox: 14 ceramic anilox sleeves 4 x360 lines/cm-vol3,5; 3x320 L/cm-vol.6,5 ; 1x260 L/cm.vol.6,2 ; 3x180 L/cm- vol.12; 1x 180 L/cm-vol.8; 1x140 L/cm-vol.10 ;1x 100 L/cm-vol.14
Print Sleeves: 8x260, 8x270, 8x280, 8x290, 8x300, 8x320, 8x330, 8x350, 8x360, 8x380, 8x400, 8x430, 8x450, 8x490
Note: Materials: LDPE 0.020-0.160 mm, HDPE/OPP 0.010-0.150 mm, CPP 0.020-0.070 mm, BOPP 0.010-0.060 mm, PET 0.012-0.050 mm, OPA 0.015-0.050 mm, Laminates 0.020-0.150 mm, Paper 20-180 g Temperature control for CI drum and coolimg calender Servo unit for register control-motive reprint on already printed material
