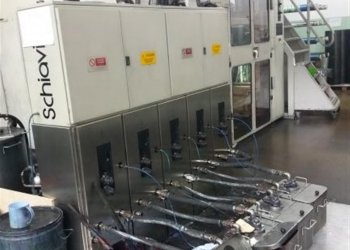

SCHIAVI EF 5040 (GEARLESS) Flexo central drum printing press 10 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL418
Manufacturer SCHIAVI
Model EF 5040 (GEARLESS)
Year 2006
Number of colors 10
Overhaul/renovation yes 2016
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 1020
Unwinder type Turret unwinder
Max reel diameter unwinder (mm) 1000
Rewinder type Turret rewinder
Max reel diameter rewinder (mm) 1000
Drying 2 gas burners, 2 zones 4 fans 4,75 tunnel, Automatic recirculation system with LEL control for each zone
Videocamera Deco System with Auto Register control and Quality control
Corona treatment yes
Web guides Yes in and out
Vyscosity control Yes
Washing system Yes
Inking system Closed chamber doctor blades
Anilox 32 ceramic anilox sleeves. 6 x 340 l/cm , 5x 280 l/cm; 1x 260 l/cm; 4x 220 l/cm; 3x 200 l/cm; 5x 180 l/cm; 1x 160 l/cm; 4x 120 l/cm
Print Sleeves 140 as follwos 10 sleevs for each repeat 400mm, 410 , 420, 430 , 440 , 450 , 460, 480 , 500 , 510, 520 , 530 , 540 , 550
Print cylinders 1 set of carriers
Additional information Sleeve change for print sleeves and anilox rollers;Fast job system with "Random Deck change" ; Automatic register Control ; Automatic print pressure control ; 1 set of carbonfiber carriers (1x 10) ;
