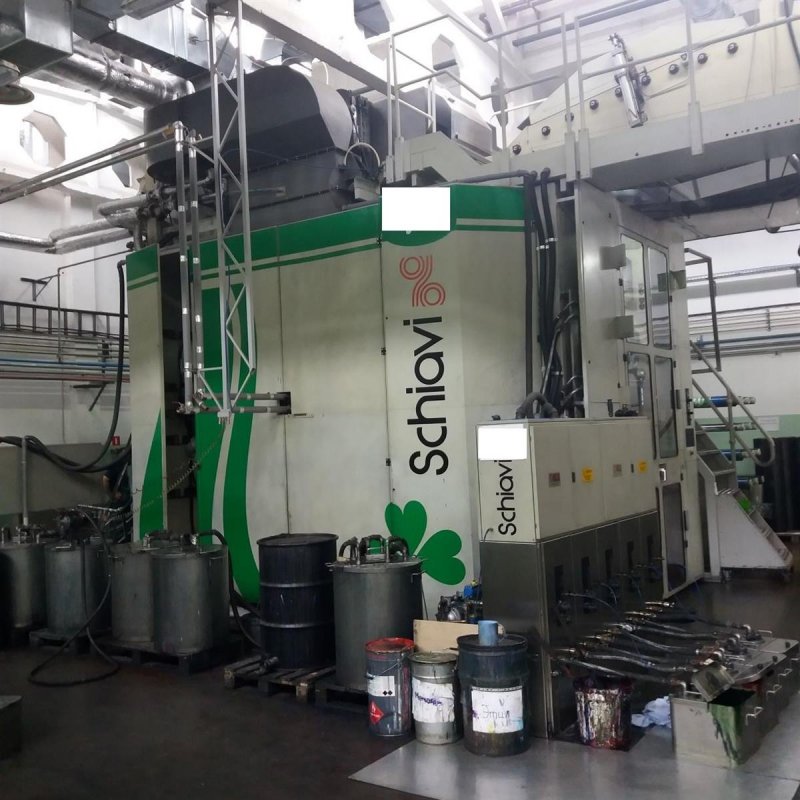

SCHIAVI EF 5040 (GEARLESS) flexo printing machine 10 colors

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL418
Manufacturer SCHIAVI
Model EF 5040 (GEARLESS)
Year 2006
Number of colors 10
Overhaul/renovation yes 2016
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

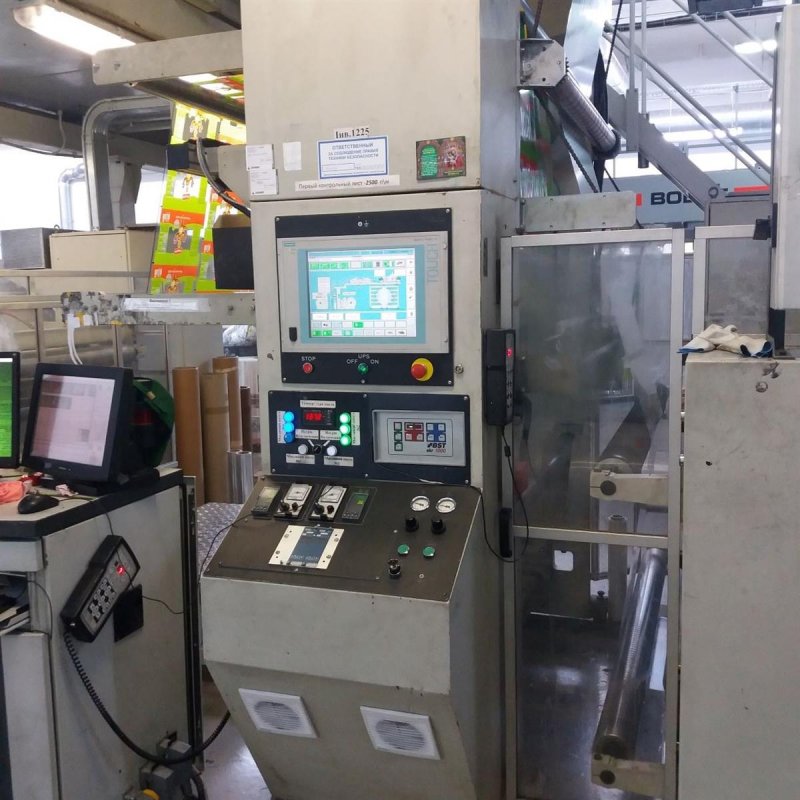

Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 1020
Unwinder type Turret unwinder
Max reel diameter unwinder (mm) 1000

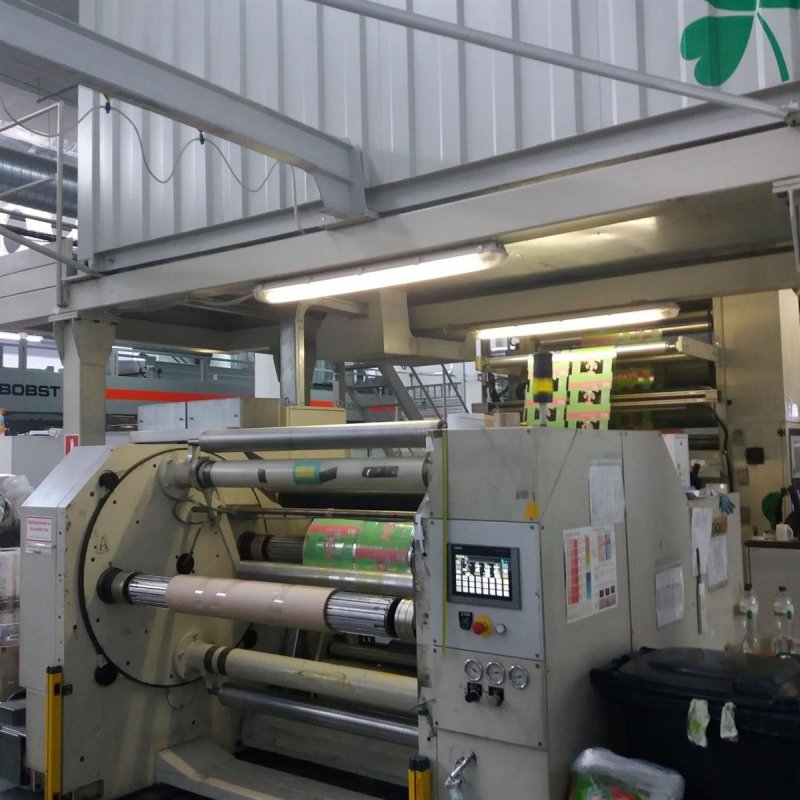

Rewinder type Turret rewinder
Max reel diameter rewinder (mm) 1000
Drying 2 gas burners, 2 zones 4 fans 4,75 tunnel, Automatic recirculation system with LEL control for each zone

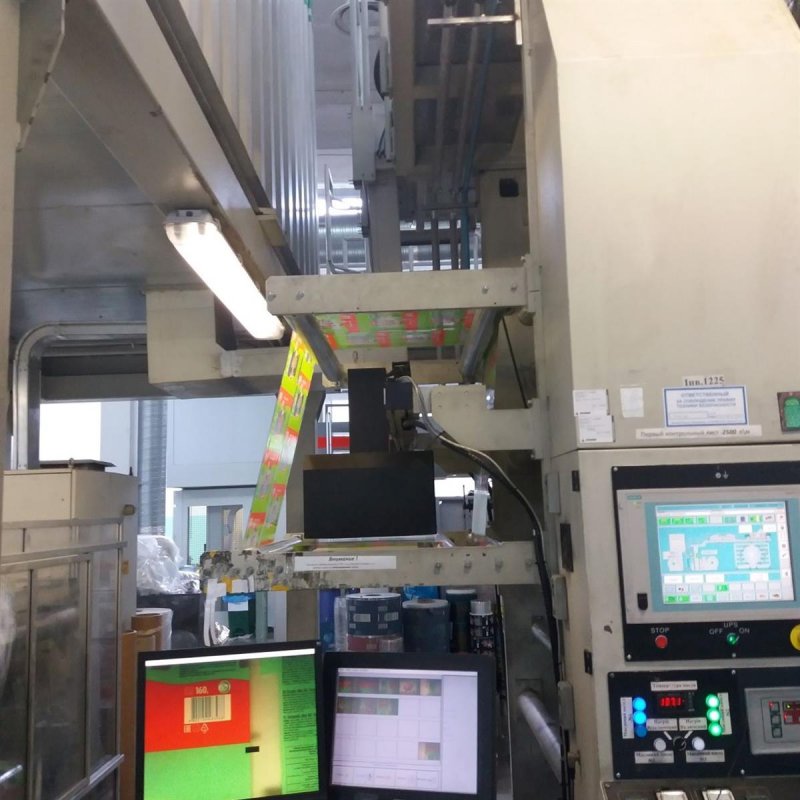

Videocamera Deco System with Auto Register control and Quality control
Corona treatment yes
Web guides Yes in and out
Vyscosity control Yes

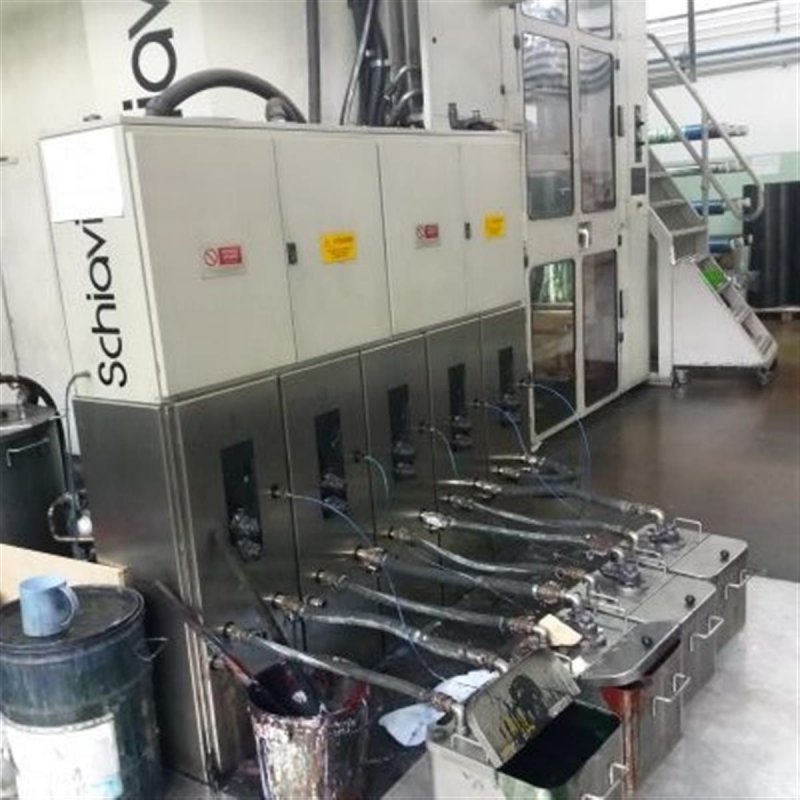

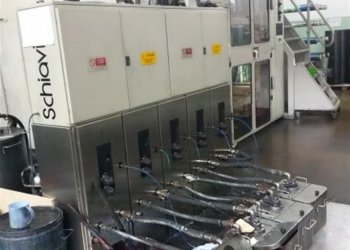

Washing system Yes
Inking system Closed chamber doctor blades
Anilox 32 ceramic anilox sleeves. 6 x 340 l/cm , 5x 280 l/cm; 1x 260 l/cm; 4x 220 l/cm; 3x 200 l/cm; 5x 180 l/cm; 1x 160 l/cm; 4x 120 l/cm
Print Sleeves 140 as follwos 10 sleevs for each repeat 400mm, 410 , 420, 430 , 440 , 450 , 460, 480 , 500 , 510, 520 , 530 , 540 , 550
Print cylinders 1 set of carriers
Additional information Sleeve change for print sleeves and anilox rollers;Fast job system with "Random Deck change" ; Automatic register Control ; Automatic print pressure control ; 1 set of carbonfiber carriers (1x 10) ;
