** SOLD **

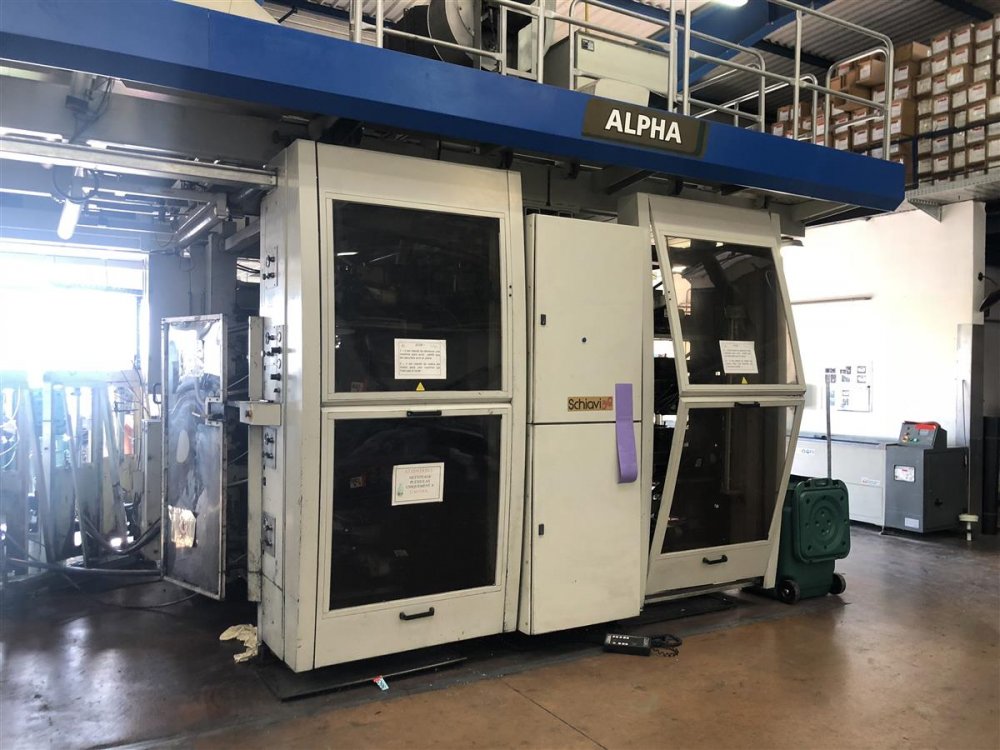

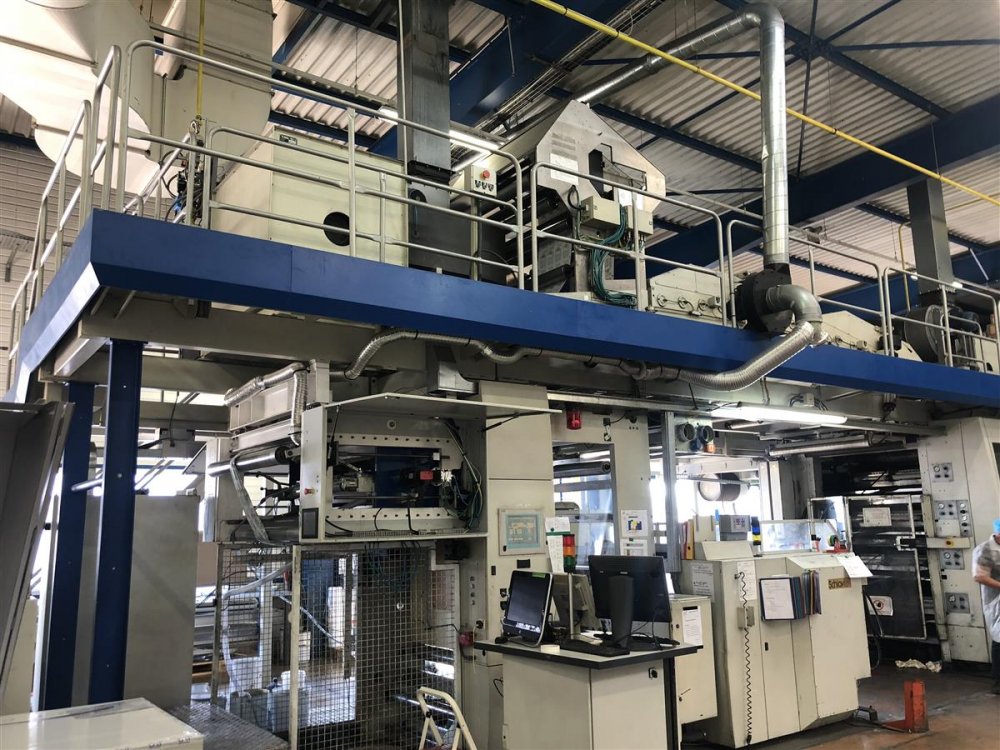

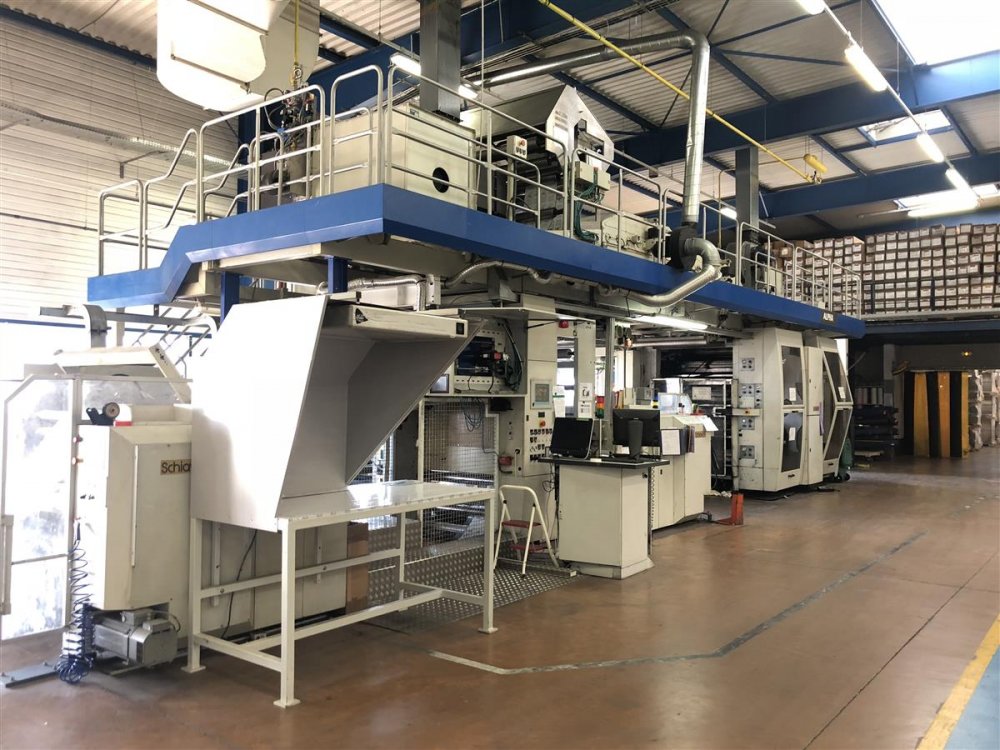

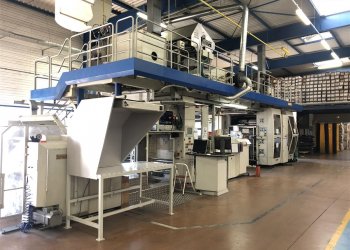

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL805
- Manufacturer
- SCHIAVI
- Modello
- ALPHA
- Year
- 2002
- Number of colors
- 8
- Print possibilityes
- 8 col plus varnish
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

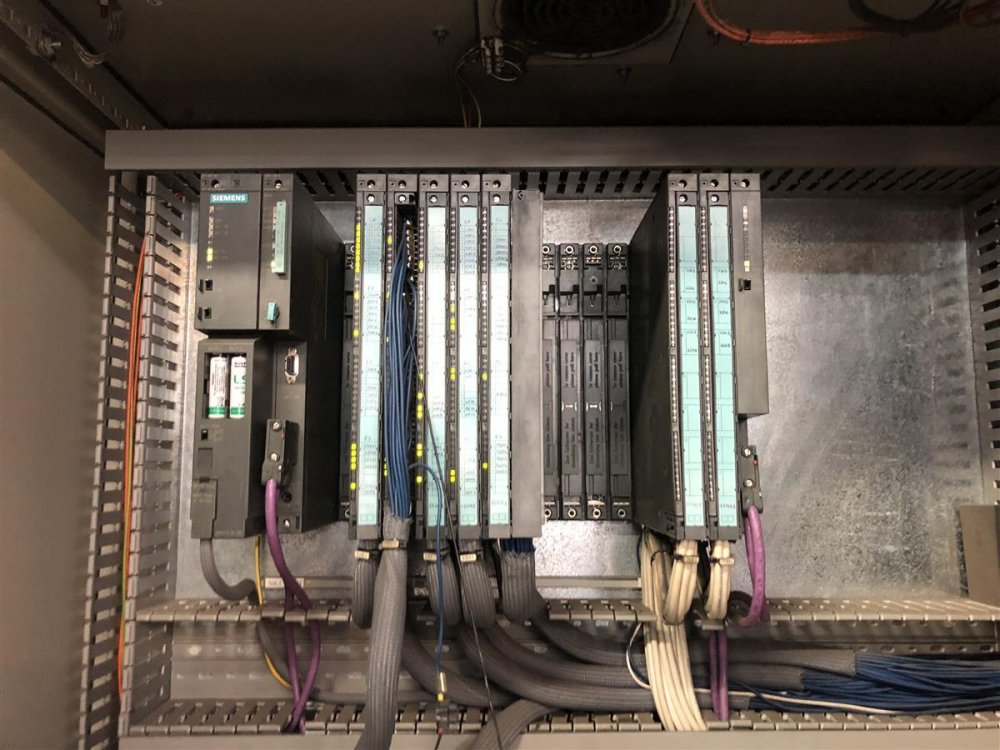

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 650

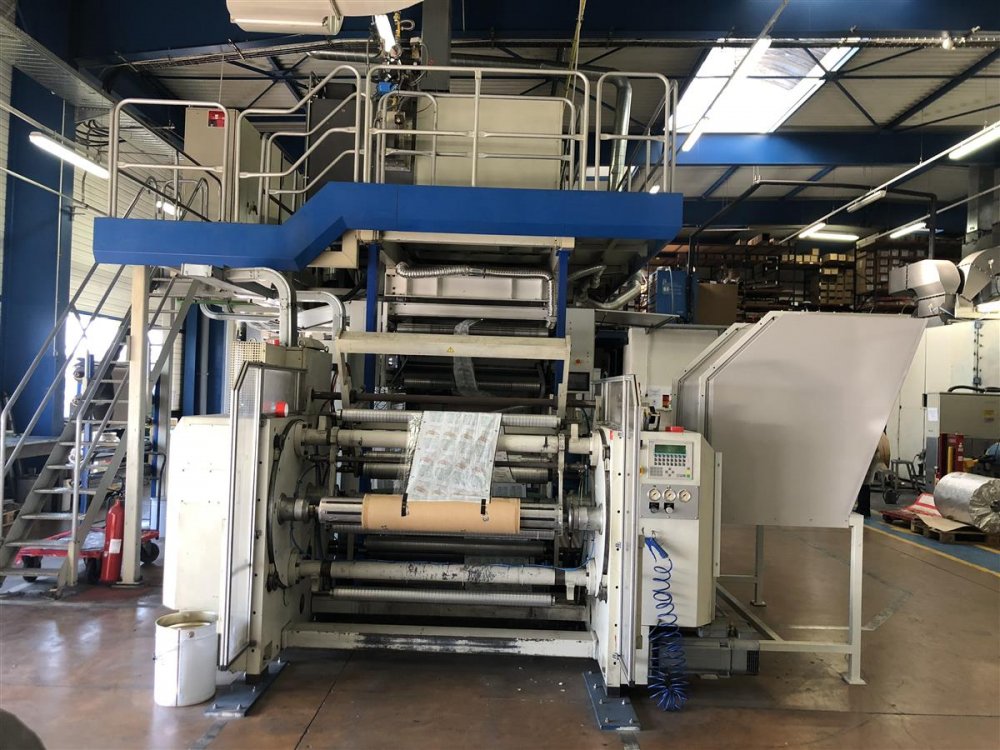

- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners
- Videocamera
- ELTROMAT video camera for printed side. second inspection system for varnish
- Corona treatment
- Sherman. Not complete and need repair
- Web guides
- 2x BST
- Vyscosity control
- no
- Inking system
- Closed chambers doctor blades system . Chambers changed in 2014
- Anilox
- 12
- Print Sleeves
- 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650
- Note
- In line in register varnishing system
| Machine Code | FL805 |
| Manufacturer | SCHIAVI |
| Modello | ALPHA |
| Year | 2002 |
| Number of colors | 8 |
| Print possibilityes | 8 col plus varnish |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 650 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners |
| Videocamera | ELTROMAT video camera for printed side. second inspection system for varnish |
| Corona treatment | Sherman. Not complete and need repair |
| Web guides | 2x BST |
| Vyscosity control | no |
| Inking system | Closed chambers doctor blades system . Chambers changed in 2014 |
| Anilox | 12 |
| Print Sleeves | 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650 |
| Note | In line in register varnishing system |
