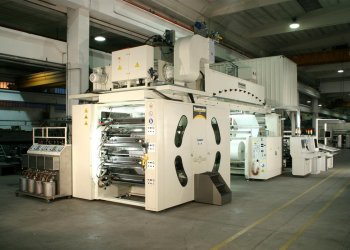

FLEXOTECNICA CHRONOS flexo press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL793
Manufacturer
FLEXOTECNICA
Modello
CHRONOS
Year
2004
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
350
Max print repeat (mm)
750
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones - 4 fans final tunnel -thermo oil heat exchangers - Automatric air recirculation system with LEL control
Videocamera
Yes ELTROMAT
Corona treatment
Yes FERRARINI BENELLI
Web guides
Yes in and oiut
Vyscosity control
Yes VISCOLOR 2200
Washing system
Yes
Inking system
Closed chamber doctor blades
Anilox
1x80lines ink transfer 16,4, 1x100l x 14,4, 1x120l x 13,2, 3x140l x (9,05,9,6, 11,87), 5x160l x(10.4,10.46, 10.5,10.7, 11.67), 2x260lx(6.1,7.2), 4x220lx(8.4,10,4), 2x300lx(5, 4.96), 1x260lx(7.2), 5x360lx(4.5,4.4,4.2,4.4,4.4)
Print Sleeves
4x40cm, 8x43, 7x44, 9x45, 8x46, 9x47, 8x49, 4x50, 6x51, 8x55, 10x57, 10x58, 7x62, 7x64 + 1 set of Carriers
Machine Code FL793
Manufacturer FLEXOTECNICA
Modello CHRONOS
Year 2004
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 750
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans final tunnel -thermo oil heat exchangers - Automatric air recirculation system with LEL control
Videocamera Yes ELTROMAT
Corona treatment Yes FERRARINI BENELLI
Web guides Yes in and oiut
Vyscosity control Yes VISCOLOR 2200
Washing system Yes
Inking system Closed chamber doctor blades
Anilox 1x80lines ink transfer 16,4, 1x100l x 14,4, 1x120l x 13,2, 3x140l x (9,05,9,6, 11,87), 5x160l x(10.4,10.46, 10.5,10.7, 11.67), 2x260lx(6.1,7.2), 4x220lx(8.4,10,4), 2x300lx(5, 4.96), 1x260lx(7.2), 5x360lx(4.5,4.4,4.2,4.4,4.4)
Print Sleeves 4x40cm, 8x43, 7x44, 9x45, 8x46, 9x47, 8x49, 4x50, 6x51, 8x55, 10x57, 10x58, 7x62, 7x64 + 1 set of Carriers
** SOLD **
