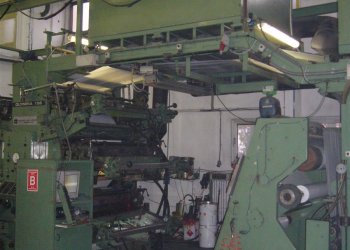

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL0758
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- OLYMPIA
- Year
- 1996
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 950
- Unwinder type
- Turret double semiautomatic
- Max reel diameter unwinder (mm)
- 600
- Rewinder type
- Turret double semiautomatic
- Max reel diameter rewinder (mm)
- 600
- Drying
- Gas Burner
- Web guides
- Ye
- Inking system
- Ceramic anilox + doctor blade
- Anilox
- 11
- Print Sleeves
- Yes
- Print cylinders
- Yes
- Note
- Max printing speed 130m/min
| Machine Code | FL0758 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | OLYMPIA |
| Year | 1996 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 950 |
| Unwinder type | Turret double semiautomatic |
| Max reel diameter unwinder (mm) | 600 |
| Rewinder type | Turret double semiautomatic |
| Max reel diameter rewinder (mm) | 600 |
| Drying | Gas Burner |
| Web guides | Ye |
| Inking system | Ceramic anilox + doctor blade |
| Anilox | 11 |
| Print Sleeves | Yes |
| Print cylinders | Yes |
| Note | Max printing speed 130m/min |
