** SOLD **
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
about a similar one
- Machine Code
- FL741
- Manufacturer

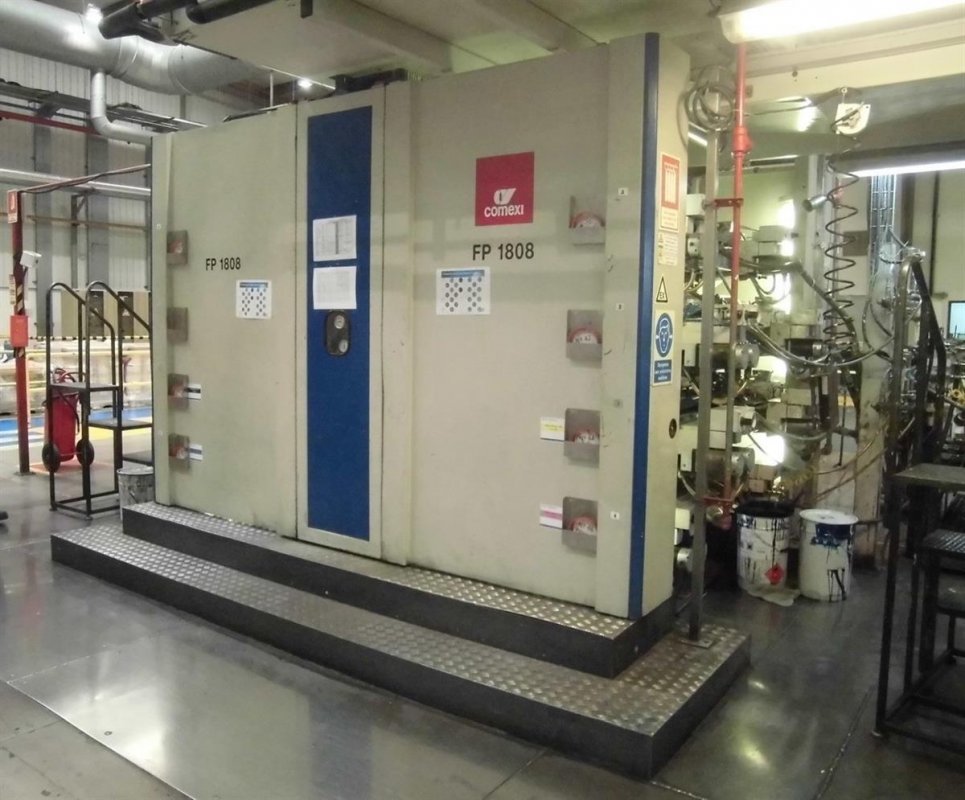

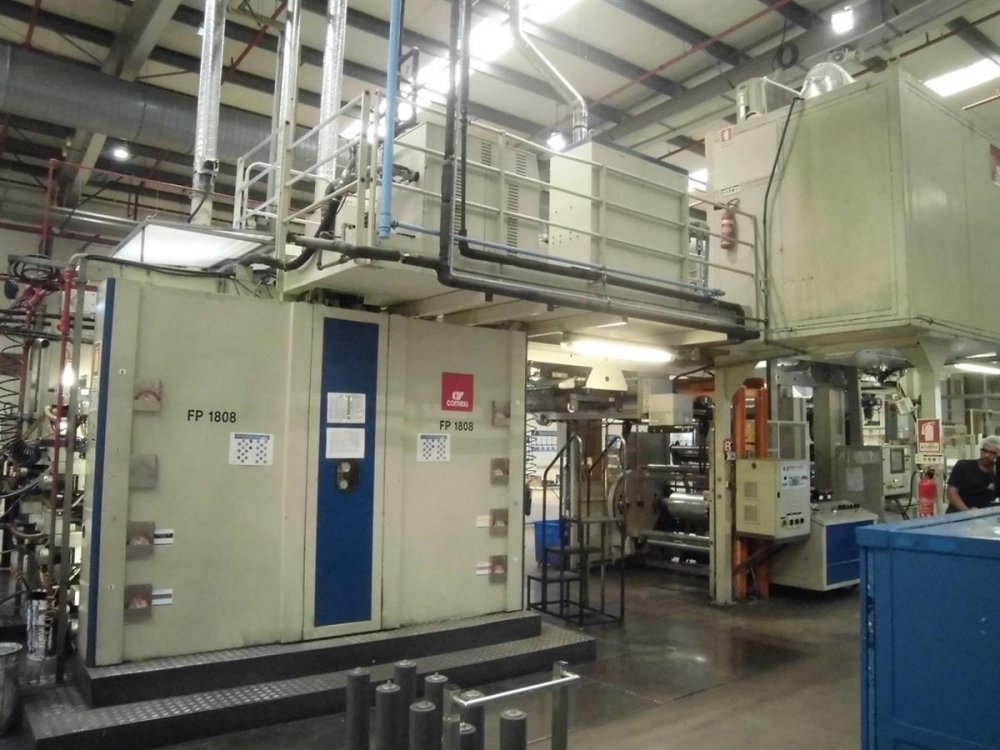

- COMEXI
- Model
- FP 1808 CNC
- Year
- 1998
- Number of colors
- 8
- Overhaul/renovation
- Several upgrades : Siemens S7 PLCs. Register system upgraded to encoders. Sleeves for 1.7 plates. Repeates 400-640mm. Rossini everstat sleeves and Axcyl.8 Rossini adaptors with metalic rings. Anilox from Sandon. Eltromat web inspection system with matricial error detecor. Ultrasonic visco controller for all decks. Ferrarini corona web. Heaford manual monter with revamp. Flexoart ink chambers and fixation system to reduce vibration. Stainless rack for both sleeve and anilox. Imbroved system for fast ink changeover. Inline ink cooling system for each deck
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 650

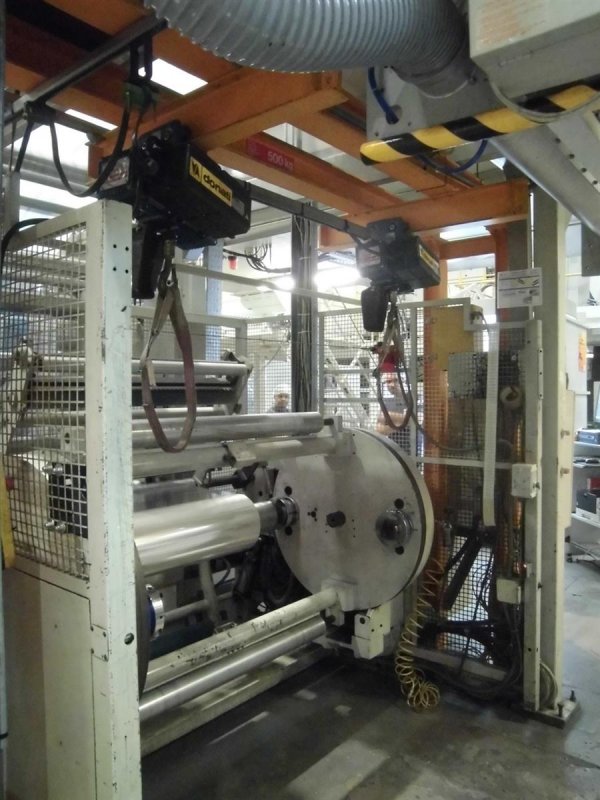

- Unwinder type
- Double unwinding shaft, electromagnetic brake, marriage rolls, dancing rollers
- Max reel diameter unwinder (mm)
- 800

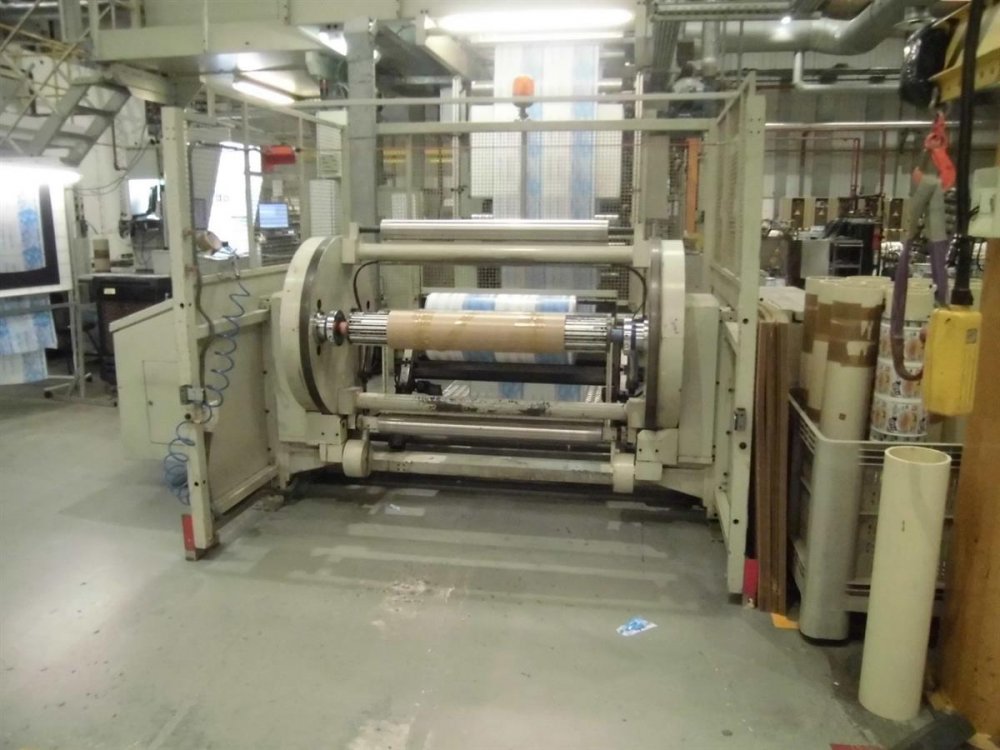

- Rewinder type
- Turret Non Stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas
- Videocamera
- Video system -BST-Eltromat IPQ with Register system & inspection system Eltromat
- Corona treatment
- Ferrarini & Benelli
- Web guides
- BST
- Vyscosity control
- Inkspeck
- Inking system
- Electrical pump inking system.Pneumatic pumps .Doctor blades system from flexoArt
- Anilox
- 5x340L/cm Vol3,6; 2x340L/cm Vol3,5; 2x340 L/cm Vol3,4; 2x360L/cm Vol3,8; 1x340L/cm Vol4,8; 1x340L/cm Vol5 ; 2x320 L/cm Vol6,5; 1x260L/cm Vol5; 2x280L/cm Vol7,7; 1x200L/cm Vol 7,7; 1x200L/cm Vol10,2;2x200L/cm Vol5,3 ; 120L/cm Vol9,4; 120L/cm Vol10;100L/cm Vol12
- Print Sleeves
- as available 8x400,410,420,430,440,450,460,480,490,510,520,530,540,550,560,570,580,590,600,610,620,640mm Twinlock 16x440mm; 9x490,500,520,580,640mm; 8x590,620mm
- Additional information
- Materials: BOPP, PET, LDPE, NYLON, Cellophane Speed 250m/min Cantilever system to work with sleeves Sleeves and twinlocks Automatic positioning & adjustement of all print stations Lateral side register tolerance +/- 5mm Fire safety - CO2 Automatic extinguishing system-bottles excluded Cylinder width 1000mm With motorized longitudinal register Banana rolls, 1 pcs Cliché holder hoist lifting Electrical hoists, 3 pcs Plate mounting machine included Rack for sleeves storage included PLC revamp to Siemens S7 done Ink cooling Gears 8x330,340,350,360,370,380,390,400,410,420,430,435 ; 10x440,450; 8x 460; 10x470,480,490,500,510,520 ;8x 530,540,550,560,570,580,590,600,610,620mm
| Machine Code | FL741 |
| Manufacturer | COMEXI |
| Model | FP 1808 CNC |
| Year | 1998 |
| Number of colors | 8 |
| Overhaul/renovation | Several upgrades : Siemens S7 PLCs. Register system upgraded to encoders. Sleeves for 1.7 plates. Repeates 400-640mm. Rossini everstat sleeves and Axcyl.8 Rossini adaptors with metalic rings. Anilox from Sandon. Eltromat web inspection system with matricial error detecor. Ultrasonic visco controller for all decks. Ferrarini corona web. Heaford manual monter with revamp. Flexoart ink chambers and fixation system to reduce vibration. Stainless rack for both sleeve and anilox. Imbroved system for fast ink changeover. Inline ink cooling system for each deck |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 650 |
| Unwinder type | Double unwinding shaft, electromagnetic brake, marriage rolls, dancing rollers |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Non Stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas |
| Videocamera | Video system -BST-Eltromat IPQ with Register system & inspection system Eltromat |
| Corona treatment | Ferrarini & Benelli |
| Web guides | BST |
| Vyscosity control | Inkspeck |
| Inking system | Electrical pump inking system.Pneumatic pumps .Doctor blades system from flexoArt |
| Anilox | 5x340L/cm Vol3,6; 2x340L/cm Vol3,5; 2x340 L/cm Vol3,4; 2x360L/cm Vol3,8; 1x340L/cm Vol4,8; 1x340L/cm Vol5 ; 2x320 L/cm Vol6,5; 1x260L/cm Vol5; 2x280L/cm Vol7,7; 1x200L/cm Vol 7,7; 1x200L/cm Vol10,2;2x200L/cm Vol5,3 ; 120L/cm Vol9,4; 120L/cm Vol10;100L/cm Vol12 |
| Print Sleeves | as available 8x400,410,420,430,440,450,460,480,490,510,520,530,540,550,560,570,580,590,600,610,620,640mm Twinlock 16x440mm; 9x490,500,520,580,640mm; 8x590,620mm |
| Additional information | Materials: BOPP, PET, LDPE, NYLON, Cellophane Speed 250m/min Cantilever system to work with sleeves Sleeves and twinlocks Automatic positioning & adjustement of all print stations Lateral side register tolerance +/- 5mm Fire safety - CO2 Automatic extinguishing system-bottles excluded Cylinder width 1000mm With motorized longitudinal register Banana rolls, 1 pcs Cliché holder hoist lifting Electrical hoists, 3 pcs Plate mounting machine included Rack for sleeves storage included PLC revamp to Siemens S7 done Ink cooling Gears 8x330,340,350,360,370,380,390,400,410,420,430,435 ; 10x440,450; 8x 460; 10x470,480,490,500,510,520 ;8x 530,540,550,560,570,580,590,600,610,620mm |
